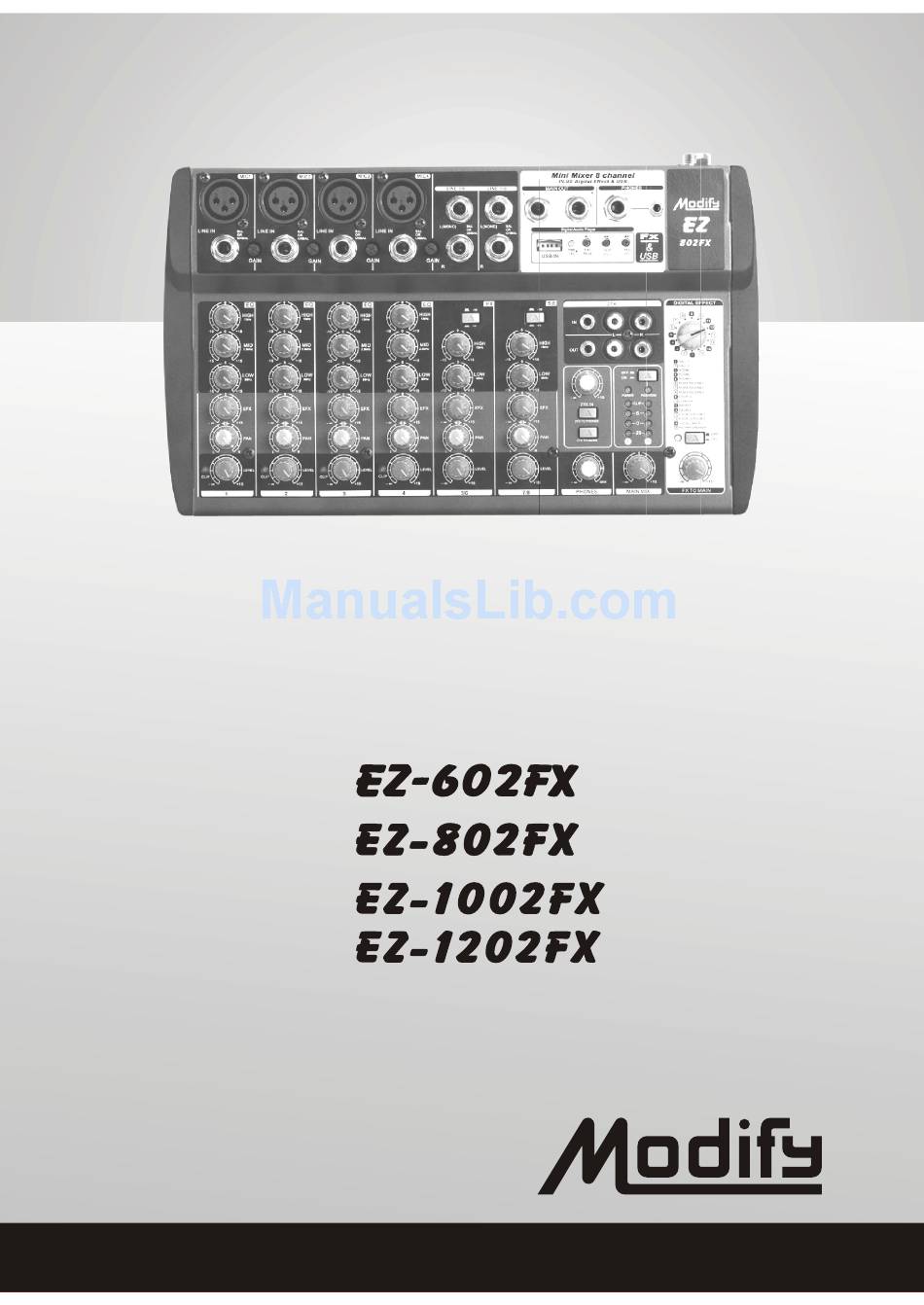

- Page 1 Mini Audio Mixer OPERATING MANUAL AND USER GUIDE OPERATING MANUAL AND USER GUIDE...
- Page 2 OPERATING MANUAL AND USER GUIDE OPERATING MANUAL AND USER GUIDE IMPORTANT WARNINGS & SAFETY INSTRUCTIONS IMPORTANT WARNINGS & SAFETY INSTRUCTIONS 1. Power Supply This mini-mixer is supplied with an external power supply unit. Use only the power supply provided with your mixer. Use of any other power supply could cause damage to the mixer and other equipment.
- Page 3 MINI MIXER 6/8/10/12 CHANNEL WHAT ABOUT THE MINI MIXER? WHAT ABOUT THE MINI MIXER? The Mini Mixer is a high quality mixer designed to provide the best sound and features in a compact package. It is designed to provide transparent and accurate mixing capability in an easy to use package.
- Page 4 OPERATING MANUAL AND USER GUIDE OPERATING MANUAL AND USER GUIDE FEATURES FEATURES Mini Size,light weight MP3 Player With USB jack High Quality Multi-Channel Mixer 6/8/10/12 Channels Channels XLR+TRS balanced inputs 3 band (Low/Mid/High) EQ Gain adjustment EFX level control L/R pan control Phantom Power Clip LED Stereo Channels...
- Page 5 MINI MIXER 6/8/10/12 CHANNEL MIXER FRONT PANEL MIXER FRONT PANEL...
- Page 6 OPERATING MANUAL AND USER GUIDE OPERATING MANUAL AND USER GUIDE DETAILED FEATURES DETAILED FEATURES Mono Mic / Line Input Channel...
-
Page 7: Mono Channels
MINI MIXER 6/8/10/12 CHANNEL Mono Channels 1. Low Impedance (Low Z) MIC Input The law noise, high headroom "law Z" MIC inputs are for use with balanced, law impedance dynamic or conderser microphones. NOTE: Condenser micrphones generally require phantom power. If your condenser microphone appears not to be working check that the phantom power switch (master section - 5) is engaged. - Page 8 OPERATING MANUAL AND USER GUIDE OPERATING MANUAL AND USER GUIDE 6. EFX Section The EFX control allows you to mix the dr y (i.e. no effects) sound with the effects signal. Same instruments and voices sound better with a different level of the effects add ed in to the clean signal.
-
Page 9: Master Section
MINI MIXER 6/8/10/12 CHANNEL 3. PAN and LEVEL PAN Control On a stereo channel, with a stereo input connected, turn ing the PAN control to the left will case right input's signal level to decrease. Turning the PAN control fully right on a stereo channel will cause the left Jnput's signal level to decrease. - Page 10 OPERATING MANUAL AND USER GUIDE OPERATING MANUAL AND USER GUIDE featuring a 1/8" stereo jack, and left and right RCA jacks. These outputs allow for the routing of MAIN MIX stereo signal out of the mixer. This signal level is controlled by the MAIN MIX volume control.
- Page 11 MINI MIXER 6/8/10/12 CHANNEL MP3 Player (Digital Audio Player) Section MP3 Player (Digital Audio Player) Section 1.USB Input Jack 2.Power &Playing LED This LED will light up when there is power supply to the MP3 player, when plug in the USB, it flashes and indicate the USB is working, when push the PLAY/PAUSE button , it will stop flashing and just light up.When push PLAY/PAUSE button...
- Page 12 OPERATING MANUAL AND USER GUIDE OPERATING MANUAL AND USER GUIDE SETTING UP SETTING UP The professional features of the Mini Mixer makes it easy to use and to tailor the sound of your system. Always make sure there is a good electrical ground. Before turning on the mini Mixer, be sure that the power switch is in the off position, the volume controls are all the way down level) and all audio connections are made before switching the speaker on.
- Page 13 MINI MIXER 6/8/10/12 CHANNEL How to use FX How to use FX TYPICAL WIRING DIAGRAM FOR THE mini mixer SINGAL IPUT MIXER MIC, CD etc. TO MIXER OUTPUT INPUT TO GRAPHIC EQUALISER SEPARATE HIGH/MID AND LOW OUTPUTS TO INPUTS TO CROSSOVER AMPLIFIER(S) FROM CROSSOVER...
- Page 14 OPERATING MANUAL AND USER GUIDE OPERATING MANUAL AND USER GUIDE BLOCK DIACRAM BLOCK DIACRAM...
- Page 15 MINI MIXER 6/8/10/12 CHANNEL SPECIFICATIONS SPECIFICATIONS mini-mixer Specifications Maximum OutputLevel +22dB(MIX L/R)@600ohm (0,5%T.H.D at 1KHZ) +22dB(2TK)@ 600ohm over150mv(headphone) 32ohm Total Harmonic Distortion 0.0025%@+14dB 20Hz-20KHz (MIX L/R,2TK)@600ohm Frequency Response 20Hz-20KHz. +0/-1dB (MIX L/R.2TK) 600ohm Hum and Noise -127dB Equivalent Input Noise (Average.Rs=t50) -92dB Resodual Nolse(MIX L/R,2TK) -88dB(MIX L/R, 2TK)
