DBL Technology VP-102 User Manual

Voip phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

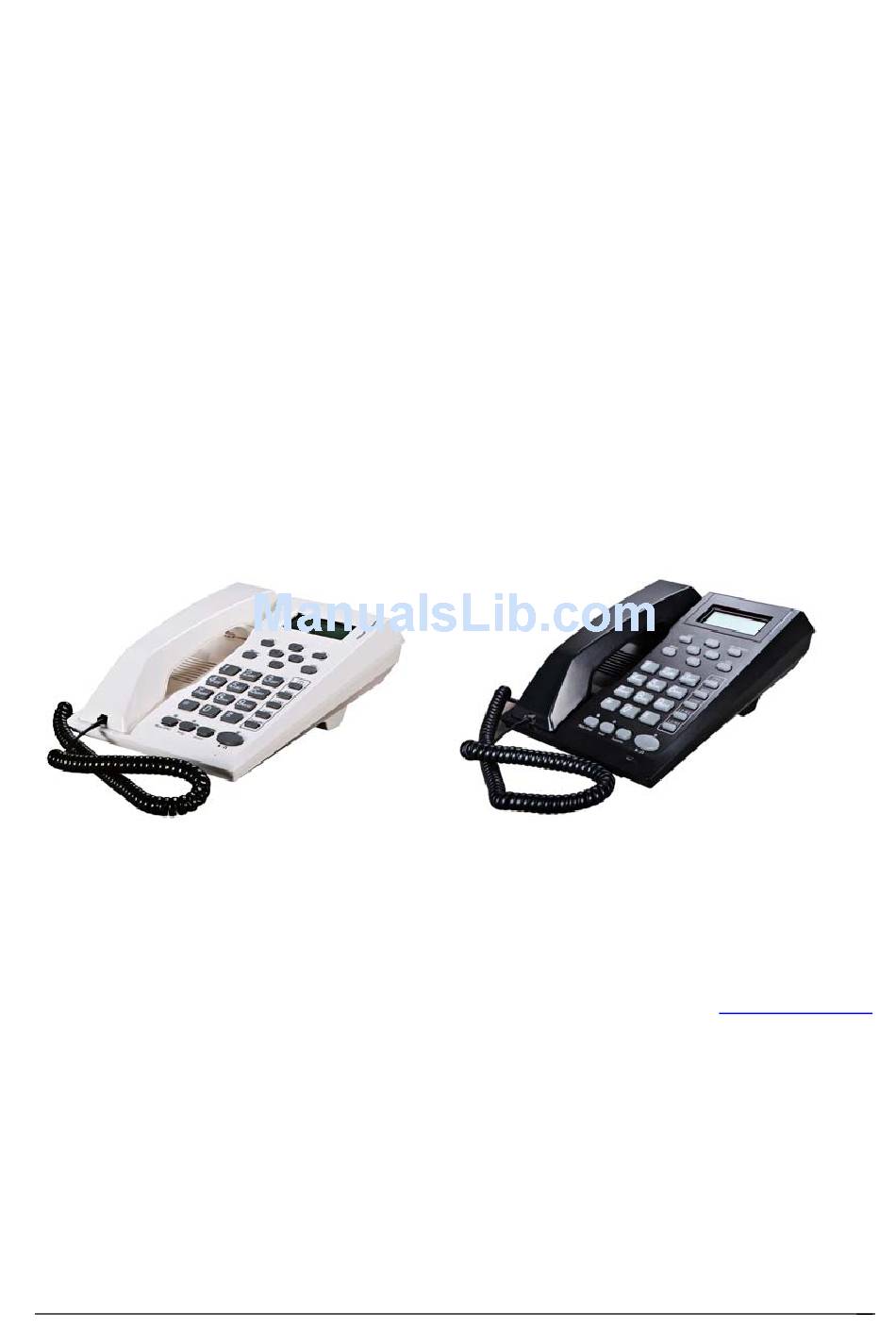

User Manual
VoIP Phone
VP-102/VP-202
DBL Technology Co.,Ltd.
Http://www.dbltek.com
Support@dbltek.com
Sales@dbltek.com
Release 1.0
1

Advertisement

Table of Contents
loading

Related Manuals for DBL Technology VP-102

Summary of Contents for DBL Technology VP-102

  • Page 1 User Manual VoIP Phone VP-102/VP-202 DBL Technology Co.,Ltd. Http://www.dbltek.com Support@dbltek.com Sales@dbltek.com Release 1.0...

  • Page 2: Table Of Contents

    3.3 Answering an Incoming Call ........................39 3.4 Dialing from Phonebook ..........................39 3.5 Viewing / Dialing from Call History......................39 3.6 Redialing the Last Number (For VP-102 only)................... 40 3.7 Putting a Call on Hold..........................40 3.8 Transferring a Call ............................40 3.9 Setting up a Call Conference........................

  • Page 3: Overview

    VoIP systems. It is an ideal solution for both residential and business market to replace the traditional analog and digital (pbx) phones. 1.1 Key Features The major features of VP-102 / VP-202 VoIP Phones are: • Supports both H.323 V4.0 and SIP 2.0 •...

  • Page 4: Shipping Contents

    Http://www.dbltek.com VP-102 / VP-202 User manual • Supports NTP and redundant DNS servers • NAT-friendly remote upgrade capability (via HTTP) even from behind firewall/NAT router. • Proprietary Firewall-Pass-Through Technology 1.2 Shipping Contents Table 1 below shows the contents of the Phone package.

  • Page 5: Appearance

    Http://www.dbltek.com VP-102 / VP-202 User Manual 1.3 Appearance The VP-102 keypad layout is shown and described below. VP-102 Front View – If Menu mode is not active, press this key to cancel the current operation and resumes to idle LCD display.
  • Page 6 Http://www.dbltek.com VP-102 / VP-202 User manual – While the phone is displaying phone entries or text, press this key to scroll the LCD screen up one line till the top of the screen is reached. – While the phone Is in idle mode, press this key to view the Answered Call List.
  • Page 7 Http://www.dbltek.com VP-102 / VP-202 User Manual characters: 3 D E F d e f. – For DTMF dialing, press this key to dial the digit “4”. – For menu selection, press this key to select the menu item 4 (if available).

  • Page 8: Vp-202 Keypad Layout

    Http://www.dbltek.com VP-102 / VP-202 User manual 1.4 VP-202 Keypad Layout The VP-202 keypad layout is shown and described below. VP-202 Front View – If Menu mode is not active, press this key to cancel the current operation and resumes to idle LCD display.
  • Page 9 Http://www.dbltek.com VP-102 / VP-202 User Manual up one line till the top of the screen is reached. – While the phone Is in idle mode, press this key to view the Answered Call List. Down – While the phone is displaying phone entries or text, press this key to scroll the LCD screen down one line till the bottom of the screen is reached.
  • Page 10 Http://www.dbltek.com VP-102 / VP-202 User manual – For DTMF dialing, press this key to dial the digit “2”. – For menu selection, press this key to select the menu item 2 (if available). – For text input, press this key (one or multiple times) to enter either one of the following characters: 2 A B C a b c.

  • Page 11: Hardware Setup

    Http://www.dbltek.com VP-102 / VP-202 User Manual 1.5 Hardware Setup Connect the handset cord to the handset and the base. The handset cord should be wired to the bottom of the base as shown below. The base stand should be snapped on to the based for desktop or wall mount application.
  • Page 12 Http://www.dbltek.com VP-102 / VP-202 User manual 2. Optional: Connect an Ethernet cable between the PC port and a computer or network device. It is intended to build a new local network segment (Fixed IP mode) or extend the existing network segment (Bridge mode).

  • Page 13: Web Configuration

    Web Configuration 2.1 Starting Up Upon powering up for the first time, the VP-102 scans for available services for network connections. It will then display the services available and prompt for user input. 1. DHCP service – This means that a local DHCP host is detected. Select this service to enable the phone to obtain IP address and related information for the LAN port from the DHCP host.

  • Page 14: Accessing The Web Configuration Menu

    The web browser pops up a login window as shown below. Both VP-102 and VP-202 support two login levels. For Administrator, please enter User name = “admin” and Password = “admin” (factory default). For User, please enter User name = “user” and the Password = “1234”...

  • Page 15: Configuring The Voip Phone

    Http://www.dbltek.com VP-102 / VP-202 User Manual 2.4 Configuring the VoIP Phone When entering the webpage, the default Status page is displayed as shown in Figure above. The Status page provides a brief summary of the Phone and Network status. Phone Information Serial Number Each phone is assigned with a unique serial number by the factory.

  • Page 16: Preference

    Http://www.dbltek.com VP-102 / VP-202 User Manual This field shows IP address assigned to the PC port. PPPoE This field shows the dial up status when PPPoE is enabled for ADSL login. Default Route The Default Route shows the IP address of the default gateway / router that is used in the current network environment.
  • Page 17 Http://www.dbltek.com VP-102 / VP-202 User Manual language change is saved, it does not take effect until a new access to the web server. To change the display language immediately, you can select the language icon as shown below. However, this does not change the default language.
  • Page 18 Http://www.dbltek.com VP-102 / VP-202 User Manual Each network tone is defined as nc, rpt, c1on, c1off, c2on, c2off, c3on, c3off, f1, f2, f3, f4, p1, p2, p3, p4 where nc is the number of cadences rpt is the repeat counter(0 - infinite, 1~n - repeat 1~n times)

  • Page 19: Network Configuration

    Http://www.dbltek.com VP-102 / VP-202 User Manual j) Centralized Management – This is a proprietary protocol defined to communicate with phone via a PC program. Please contact your supplier for more information on this feature. This parameter enables this feature. 2.4.2 Network Configuration This page configures the network interface for LAN Port and PC Port.
  • Page 20 Http://www.dbltek.com VP-102 / VP-202 User Manual 3. PPPoE – This selection is intended for broadband connection (ADSL / Cable modem) that requires dial up / authentication using PPPoE protocol. Both User Name and Password are required. Please consult your service provider for more information if needed. One advantage with the PPPoE dial up is that the IP address obtained for the LAN port is normally a public IP.

  • Page 21: Call Settings

    HT-812P is divided as two Endpoint Types: H.323 Phone and SIP Phone. Some of the parameters are unique to the Endpoint Type and are described separately below. REMARK: Model VP-102 supports only one SIP registration (1 Line). Model VP-202 supports two SIP registrations (2 Lines). 2.4.3.1 H.323 Phone The H.323 Phone selection for Endpoint Type refers to the protocol used.
  • Page 22 Http://www.dbltek.com VP-102 / VP-202 User Manual string. Some gatekeepers may use this ID for authentication. 4. Endpoint Mode – Gatekeeper Mode supports making a VoIP call via a call server. Registration to the server is required. Direct Mode supports making a VoIP call by dialing the IP addresses or an alias.
  • Page 23 Http://www.dbltek.com VP-102 / VP-202 User Manual 1. RAS Port – This Port is used to convey the registration, admissions, bandwidth change, and status messages between two H.323 endpoints. If not specified, the port address is assigned automatically. 2. Q.931 Port – This port is used for call signaling to convey Call Setup and teardown messages between two H.323 endpoints.

  • Page 24: Sip Phone

    2.4.3.2 SIP Phone The SIP Phone selection for Endpoint Type refers to the protocol used. Model VP-102 supports only one line registration. Model VP-202 supports up to two line registrations to the same or different SIP Servers. The Call Settings pages for both models are shown below. Some of the parameters in VP-202 are discussed in the Phone Setting Page.
  • Page 25 Http://www.dbltek.com VP-102 / VP-202 User Manual The basic SIP settings are: 1. Phone Number – This parameter assigns the phone number used for SIP registration. 2. Display Name – This parameter (optional) specifies the Caller name and is transmitted as part of the caller 3.
  • Page 26 9. Password –This field specifies the password used for Authentication during a SIP registration. 10. Backup Server (For Model VP-102 only) – The backup option provides settings for a SIP backup server. Once the designated SIP Proxy and/ SIP Registrar fail, the backups will be used automatically. Once the primary servers are up, the phone will switch back automatically.
  • Page 27 Http://www.dbltek.com VP-102 / VP-202 User Manual Advanced Settings More settings are available under the Advanced Settings tab. Depending on your network requirements, please consult your network administrator for the correct configuration. 1. Signaling Port – This Port is used to convey signaling message with the SIP Proxy. The standard port number is 5060.
  • Page 28 Http://www.dbltek.com VP-102 / VP-202 User Manual 6. Signaling QoS – This parameter sets the QoS mode for VoIP Signaling for better response time and more reliable VoIP Call signaling. Both IP TOS and Diffserv modes are supported. Please check with your network administrator or ISP for the correct setting.

  • Page 29: Media Settings

    Http://www.dbltek.com VP-102 / VP-202 User Manual Mode 1: Use UDP packets and encryption. Mode 2: Use UDP packets and encryption; use single UDP port. Mode 3: Use TCP packets and encryption; Use single TCP port; The mode 2 and mode 3 are the passive and the port use is assigned by the RELAY SERVER.
  • Page 30 Http://www.dbltek.com VP-102 / VP-202 User Manual 5. Encryption – For secure voice transmission, RC4 and ET263 Encryptions are supported. Please make sure your service provider can support this encryption method before enabling this feature. 6. Symmetric RTP – Enable the media channel to use symmetric RTP ports. Some network environment demand the use of Symmetric RTP.

  • Page 31: Phone Settings

    3. Auto-dial Timeout – The field specifies the timeout duration (in second) for automatically dialing out the number entered. 4. Hotline (VP-102)– This feature enables the phone to dial out the Hotline Number entered automatically whenever the phone goes off hook.
  • Page 32 Http://www.dbltek.com VP-102 / VP-202 User Manual Note: For practical use, it should not be possible to reach the maximum length of the Dial Plan string. Examples: a) Dial Plan = “010:-010” means that the number dialed out will have the first 3 digits ”010” removed when a number with the first digits as “010”...

  • Page 33: Phone Book

    Http://www.dbltek.com VP-102 / VP-202 User Manual Select By List for answering only the number listed on the Auto Answer List (total 10 entries). 2.4.5 Phone Book This page lists all the phone book entries for editing. Just click on New Contact to add a new contact as shown in the window below.

  • Page 34: Tools

    Http://www.dbltek.com VP-102 / VP-202 User Manual Repeat the above to add more contacts. Click on Edit to edit or Del to delete the corresponding entry. 2.4.5 Tools The Tools section is intended to offer the following functions: Online Upgrade, Change Password, Backup/Restore Configurations, Reset Config, and Reboot as shown below.

  • Page 35: Change Password

    Http://www.dbltek.com VP-102 / VP-202 User Manual WARNING: Once the upgrade starts, a message window is displayed to show the upgrade status. DO NOT TURN OFF THE POWER WHILE THE FIRMWARE UPGRADE IS IN PROCESS! 2.4.5 .2 Change Password HT-812P supports two login levels to the built-in webpage. The User level is intended for general user and is restricted from accessing the Call Settings page and Reset Configuration function.

  • Page 36: Reset Configuration

    Http://www.dbltek.com VP-102 / VP-202 User Manual 2.4.5 .4 Reset Configuration This function can only be accessed in administrator login level. Click on the Reset Configuration tab to initiate the reset process. A message windows pops up to ask for confirmation. Click “Yes” to reset all configurations back factory defaults.
  • Page 37 Http://www.dbltek.com VP-102 / VP-202 User Manual The blocks highlighted in green are available for programming in the URL below. http://xxx.xxx.xxx.xxx//en_US/gain.html The first 3 rows in the gain settings page shows the 3 modes of operation: Handset, Handsfree, and Headset. Each mode uses the same configuration as shown in the block diagram above. The left hand column (first 3 rows) shows the mode of operation.

  • Page 38: Voip Phone Operation

    Http://www.dbltek.com VP-102 / VP-202 User Manual VoIP Phone Operation 3.1 Making a call Pick up handset. Dial a phone number. Press OK (or # key if enabled) or wait for Auto Dial timeout (programmable in the Preference page). For VP-202, the default line is Line 1. If Line 2 is preferred, press L2 instead of OK to make the call.

  • Page 39: Answering An Incoming Call

    Http://www.dbltek.com VP-102 / VP-202 User Manual 3.3 Answering an Incoming Call Answering a call can be done manually or automatically. Manual Answer Mode When the phone rings, just pick up the handset or press to answer the call. For handsfree mode, the call will be routed to speakerphone or headset depending on the Default Handsfree Device setting.

  • Page 40: Redialing The Last Number (For Vp-102 Only)

    Http://www.dbltek.com VP-102 / VP-202 User Manual 3.6 Redialing the Last Number (For VP-102 only) Press Pick up the handset / to dial the number. Pick up the handset / Press Press OK to dial the number. 3.7 Putting a Call on Hold Press while a call is in progress to hold the call.

  • Page 41: Accessing Voice Messages

    Http://www.dbltek.com VP-102 / VP-202 User Manual VP-202: Party A presses L1 (if the current call in using Line 1)/ L2 (if the current call is using Line 2) to put party B on Hold and get a dial to make another call.

  • Page 42: Adjusting The Handset Receiver Volume

    Http://www.dbltek.com VP-102 / VP-202 User Manual 3. Select Ring Volume. 4. Press Up or Down to increase or decrease the ring volume. Actual ringing is generated to show the ring level set and the LCD also shows the current ring level setting.

  • Page 43: Appendix A Phone Menu

    Http://www.dbltek.com VP-102 / VP-202 User Manual Appendix A Phone Menu...
  • Page 44 Http://www.dbltek.com VP-102 / VP-202 User Manual 6/19/2008 Page 2/2 LINE 1 1. TYPE 1 2. TYPE 2 3. TYPE 3 4. TYPE 4 TYPE 1 RING TYPE SET TYPE 1 1. LINE 1 2. LINE 2 LINE 2 TYPE 2 1.
