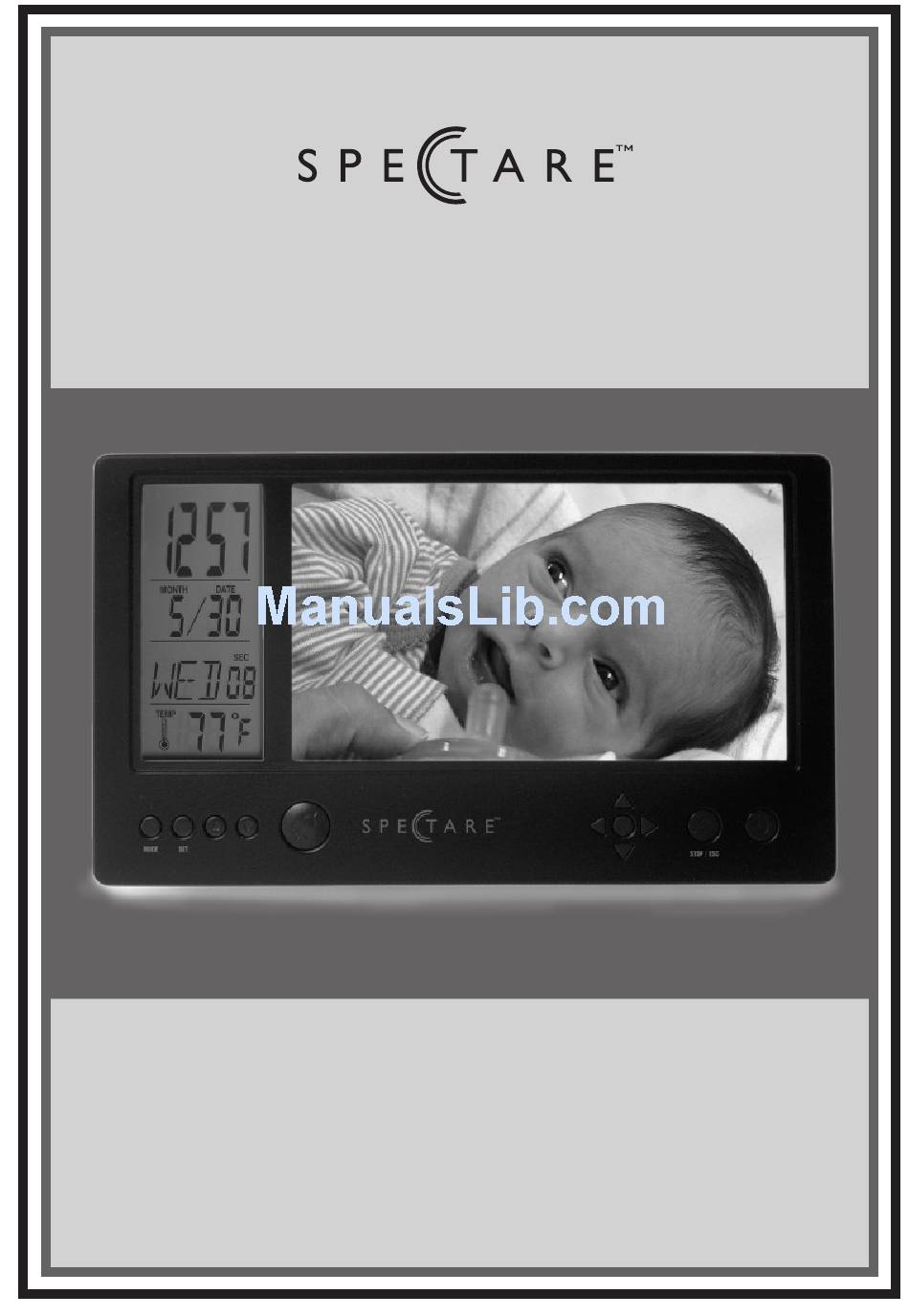

- Page 1 TimeFrame User Guide for the Spectare Time Frame Model: SP 02171...
- Page 3 Thank you for purchasing the Spectare Time Frame. Please take some time to read through and follow these important safety and operation instructions. WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
- Page 4 (if available). Battery Disposal: Do not incinerate, disassemble or short circuit the battery. Do not expose the battery to temperatures above Fahrenheit. Please observe the local regulations regarding the disposal of exhausted batteries and old equipment. Spectare TimeFrame...
-
Page 5: Table Of Contents
Spectare Products 6081 Meridian Ave Suite 70-308 San Jose, CA 95120 http://spectareproducts.com support@spectareproducts.com The Spectare Logo and the Spectare brand are trademarked by SuMaWah LLC, San Jose, CA. Copyright 2007 SuMaWah LLC, All Rights Reserved Worldwide. user's guide... -
Page 6: Quick Start Guide
Quick Start Guide: Setting up the frame To begin using your Spectare TimeFrame follow these simple instructions: Using the AC Adapter included in the package connect the small end into the side panel of the frame as shown. Then connect the other end to a wall socket. - Page 7 Quick Start Guide: Setting the Clock To Set the Date and Time on the clock display: Remove the battery cover on the back of the frame and insert 2 AAA batteries. This will keep the time and date set on the clock even when the power is disconnected.
-
Page 8: Product Description
Fahrenheit to Celsius temperature readout Stops slide show if running or escapes back to the last menu Alarm On/Off Frame Power Button Turns OFF alarm when ringing. Turns ON Tuns off LCD 7” frame display only alarm when deactivated. Spectare TimeFrame... - Page 9 Product Description: Back and Side Panels CF Card Slot Main Power button SD / MMC / MS / Shuts off the main power to both the frame and clock MS PRO Card slot TV out Use the AV connector cable to connect to TV- see page 19 USB Connection Use the USB connector cable...
-
Page 10: Frame Display: Main Menu
RIGHT / LEFT: Press to select the desired memory card. ENTER: Press to select and view images from that card. ESC: Press to return back to the menu. Spectare TimeFrame... -
Page 11: Setup Menu
Frame Display: Setup Menu The Setup Menu Select the Tools Icon from the main menu using the arrow buttons. ENTER: Press to confirm and enter the sub menu The Setup Sub-Menus UP / DOWN : Press to select a menu choice. RIGHT / LEFT: Press to change the setting Repeat for all of the setting fields... - Page 12 ON will display the file name, date and size on the screen. Folder Mode: ON: Allows selection of individual folders and will displays only photos in a selected folder under thumbnail view or slideshow view OFF: Displays all photos in all folders and subfolders. Spectare TimeFrame...
-
Page 13: Alarm Setup
Frame Display: Alarm Setup The Setup Sub-Menus Cont. Aspect Ratio: 4:3 aspect ratio. This is the 4x3 Aspect Ratio standard still image aspect ratio from most digital cameras. Black Bars will appear on each side of the frame. Use this mode for viewing standard photos in unaltered proportions 16:9 Changes to Wide Screen 16:9... -
Page 14: Time Setup And Display
Repeat for all of the setting fields ESC: Press to exit and confirm, then Press: ENTER: to save settings --- OR --- Press ESC again to Cancel Time and Date Display From the Settings Menu select Clock Icon. Press Enter Spectare TimeFrame... -
Page 15: Time / Thumbnail Display
Frame Display:Time /Thumbnail Display Time and Date Display Cont. After Selection the Clock will appear on the screen. Press ENTER again After selection the Calendar will appear on the screen. Press STOP / ESC to return to the menu Viewing Thumbnails By selecting the card icon on the main menu.or pressing STOP / ESC twice in the slideshow mode... -
Page 16: Image Controls
Pan around the image. Select the zoom icon again to zoom out. Slideshow: Starts the slideshow again Delete: Once selected it will delete the current image on the display. Set up Menu: Press this button to return to the settings menu. Spectare TimeFrame... -
Page 17: Clock Display: Set Up
Clock Display: Set up To set the time/ Date To set the alarm Under normal clock operation Under normal clock operation Press the SET button and the Press the MODE button once position to be changed will and the Alarm mode will be flash entered. -
Page 18: Modes Of Operation
UP / DOWN : Press to change to the correct hour of minute for the count down time Repeat until all of countdown time positions have been correctly set. Spectare TimeFrame... - Page 19 Clock Display: Modes of Operation Birthday / Event Reminder Temperature Display Under normal clock operation Under normal clock operation Press the MODE button FOUR the temperature will be TIMES and the birthday mode will displayed automatically be entered. DOWN: press to change the Press the SET button to enter the read out from Fahrenheit to time and date of the birthday or...
-
Page 20: Connection To Computer
If you are using this device with Windows delete from your computer and 98 operating system you will need to download the drivers that are located at http://spectareproducts.com memory cards. under the support section. Spectare TimeFrame... -
Page 21: Output To Tv
Output to TV To Connect to Television Playback of images Using the supplied AV Once connected to your connector insert the TV use the controls on small end of the cable your device to access into the side panel of features normally. -
Page 22: Troubleshooting
Troubleshooting PROBLEM: My pictures do not display on the frame. SOLUTION: The Spectare TimeFrame supports baseline RGB .jpg files only. It does not support other picture file types (i.e. .bmp, .gif, .tif), nor do they support progressive or grayscale .jpgs. You can resave your photos in a baseline .jpg format using the paint application which comes with... -
Page 23: Technical Specifications
Technical Specifications FRAME SPECIFICATIONS Display: 7” TFT LCD screen display Memory Support: SD,MMC,MS,CF, MS Pro, xD, USB 2.0 Media Support: JPEG Features: Slide show, transition effects, rotate, zoom, adjustable slide show display time, thumbnail Connections: USB connection and TV output Internal Memory: No built in memory on the frame Time and Date Mode:... - Page 24 Spectare is a registered trademark of SuMaWah LLC. © 2007 www.spectareproducts.com...
