Summary of Contents for Northern Industrial JPC-80

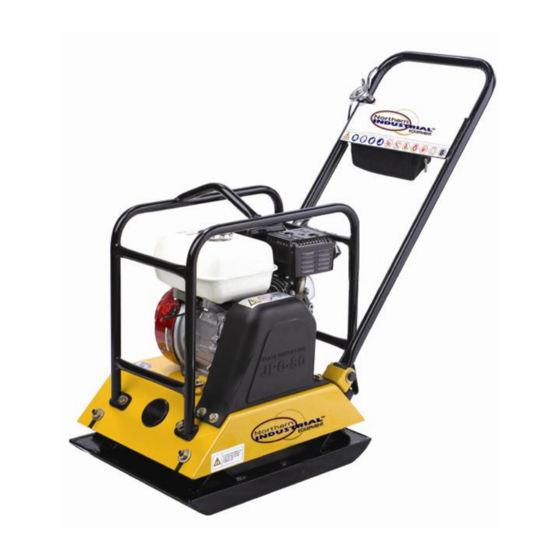

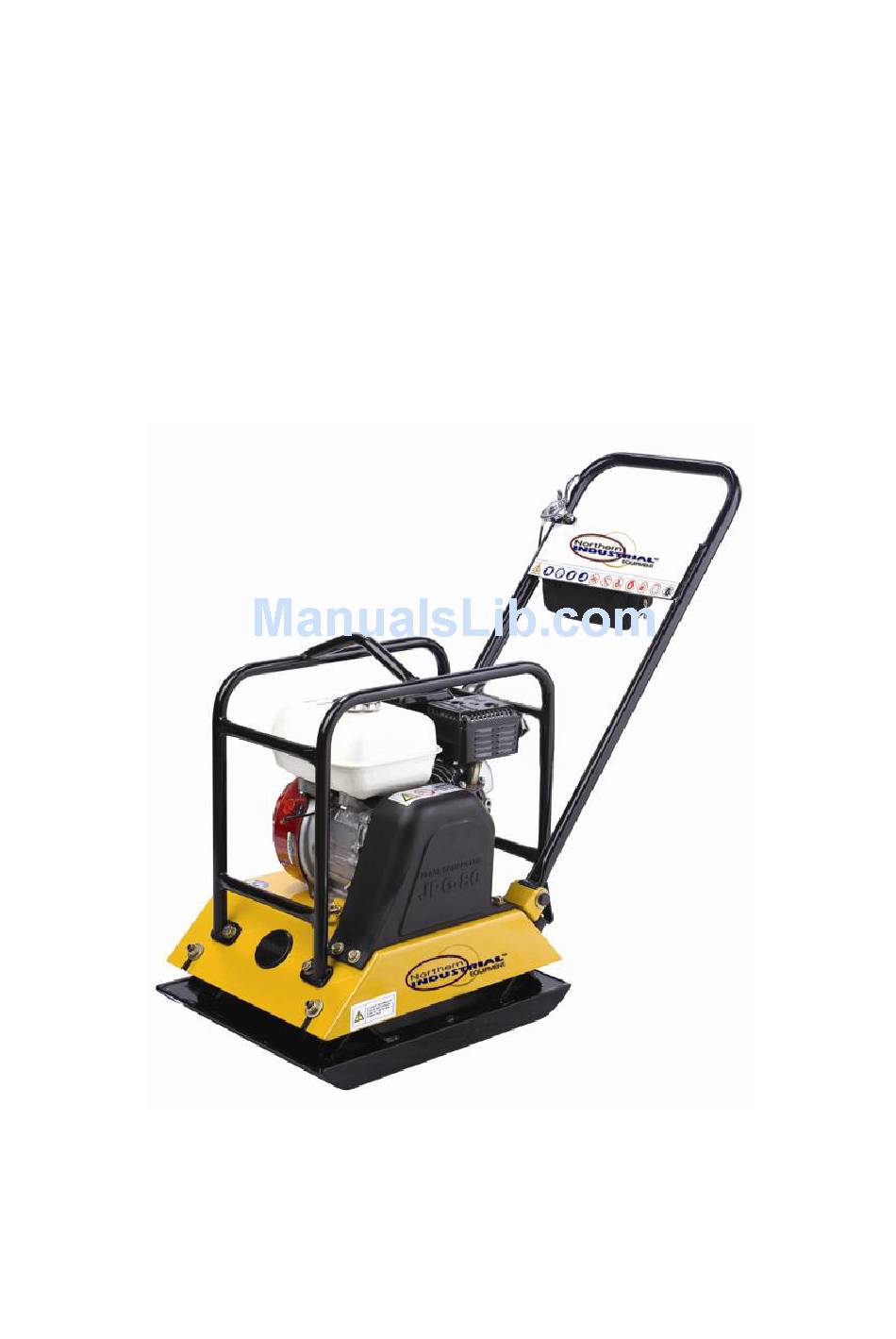

- Page 1 USER’S INSTRUCTION MANUAL PLATE COMPACTOR MODEL: JPC-80...
- Page 2 Indicates the important note (or information) which must be precisely perceived by the operator and the servicing personnel. It is USER’S RESPONSIBILITY to communicate proper information on the SAFE USE and GOOD OPERATION of this machine. Please contact your local NORTHERN industrial distributor or any of the contact address in this manual directly for further information.
-
Page 3: Table Of Contents
Table of Contents Page 1. Safety information 2. Precautions 3. Warnings 4. Safety label locations 5. Specifications 6. Engine 7. Operation 8. Transportation 9. Storage 10. Periodic Maintenance Schedule 11. Troubleshooting 12. Component and Parts list 13. Warranty Policy... -
Page 4: Safety Information
1. Safety Information The product, Plate Compactor, is only allowed to be operated under the intended conditions of compacting ground where vibrating roller is unable to compact. It is prohibited to use it for any other purpose. Although the product is designed with special attention to the safety, it is still the user’s responsibility to read the safety information THOROUGHLY AND CAREFULLY in this manual to avoid the exposed danger before use. - Page 5 Do not refuel the engine near inflammables to avoid fire. Do not run the engine in an airtight space to avoid exhaust gas poisoning 3.2 To protect the operator When operator feels the fatigue comes from vibration, the operator must stop the machine and take a rest for a while.
- Page 6 by an expert before the initial use and after the essential modification. 15) During the operation, the operator has to monitor other objects within a radius of 20m in case of lighting. 16) The compactor generates mechanical heat so do not touch the body of engine, muffler or other parts during the operation, which may cause heat burn.
-
Page 7: Safety Label Locations
4. Safety Label Locations... -
Page 8: Specifications
5. Specifications 5.1 Specifications ** CE CERTIFIED PRODUCT ONLY** PLATE COMPACTOR MODEL JPC-80 WEIGHT(kg) PLATE SIZE(mm) 540 X 420 TRAVEL SPEED(m/min) 20-25 CENTRIFUGAL FORCE (kgf) 1,800 ENGINE As required ENGINE OIL 10W/30, 600CC FUEL Unleaded Gasoline KW (HP) / RPM 4.0 ~ 4.5 (5.5 ~ 6.0)/3,600RPM... - Page 9 5.3 Outline Configuration 6. Engine 6.1 Recommended Fuel Plate compactor engine requires regular, unleaded gasoline. Use only fresh, clean fuel. Fuel containing water or dirt will damage the fuel system. Consult to engine owner’s manual for complete fuel specifications. 6.2 Before starting Read and understand the safety and operating instruction manual of the engine.
-
Page 10: Operation
6.3 Starting the Engine Shift the engine On/Off switch to “on”. Open the fuel valve. Note: If the engine is cold, move the choke lever to “close” position. Note: If the engine is hot, set the choke lever at “open” position. Move the throttle lever slightly to the left. - Page 11 Several different kinds of engines are available upon request for this plate compactor and the followings are for Honda GX160 engine made in Japan. Please make sure to read the engine instruction manual before operation. Please read the engine and plate compactor user’s manuals before starting or operating this plate compactor.
-
Page 12: Transportation
Pull the starter grip slowly and return it to its original position when resistance is felt. Note: The above operation is necessary to prevent outside moisture air from intruding into the combustion chamber. Caution ** If the engine has been running hard, do not stop it abruptly from the full load. ** Cut down the speed (load) and allow the engine to run idle for a few more minutes. -
Page 13: Periodic Maintenance Schedule
10. Periodic Maintenance Schedule Please refer to the following chart for the initial maintenance of plate compactor and its engine. Also please see the enclosed engine manufacturer’s instruction manual for additional information about engine maintenance. The following chart is based on the normal operation schedule. Maintenance Interval Maintenance Point Daily before operating... -
Page 14: Troubleshooting
11. Troubleshooting Please check the list below before addressing the problems to servicing personnel including local dealer. If the problem continues after the following troubleshooting, please call your local dealer for future assistance. Failure Possible Cause Remedial Measure - The engine throttle does not open completely. - Open the engine throttle completely. -
Page 15: Component And Parts List
12. Components and Part list... - Page 16 Description Q'TY Dimension Engine Honda GX160/ Robin EX17 5 x 5 x 20m/m(square) Centrifugal Clutch 18, 19, 20m/m V-Belt Washer 8m/m Spring Washer 8m/m Bolt 8 x 40m/m Engine Fitting Bolt Set 8 x 50m/m (specialty steel) Flange Nut 8m/m 8m/m Pulley Fitting Bolt 12 x 20m/m...
- Page 17 Engine Base Ass'y 520 x 450 x 110m/m Rubber Cap Belt Cover Flange Bolt 8 x 20m/m Washer 8m/m Catching Rubber Bolt 12 x 70m/m Washer 12m/m Rubber Isolator "B" Lock Nut 12m/m Handle Bracket 780 x 375m/m Bolt Handle Speed Control Bar Speed Control Bar Lever Cable Speed Control Bar Fitting bolt...
-
Page 18: Warranty Policy
Warranty policies for the Products are shown on the following table. NORTHERN industrial shall supply all necessary parts for the replacement or repair at free of charge, if and only if, when the defects are proved to be derived from mill defect by 3rd party inspection or joint inspection of the two (2) parties.
