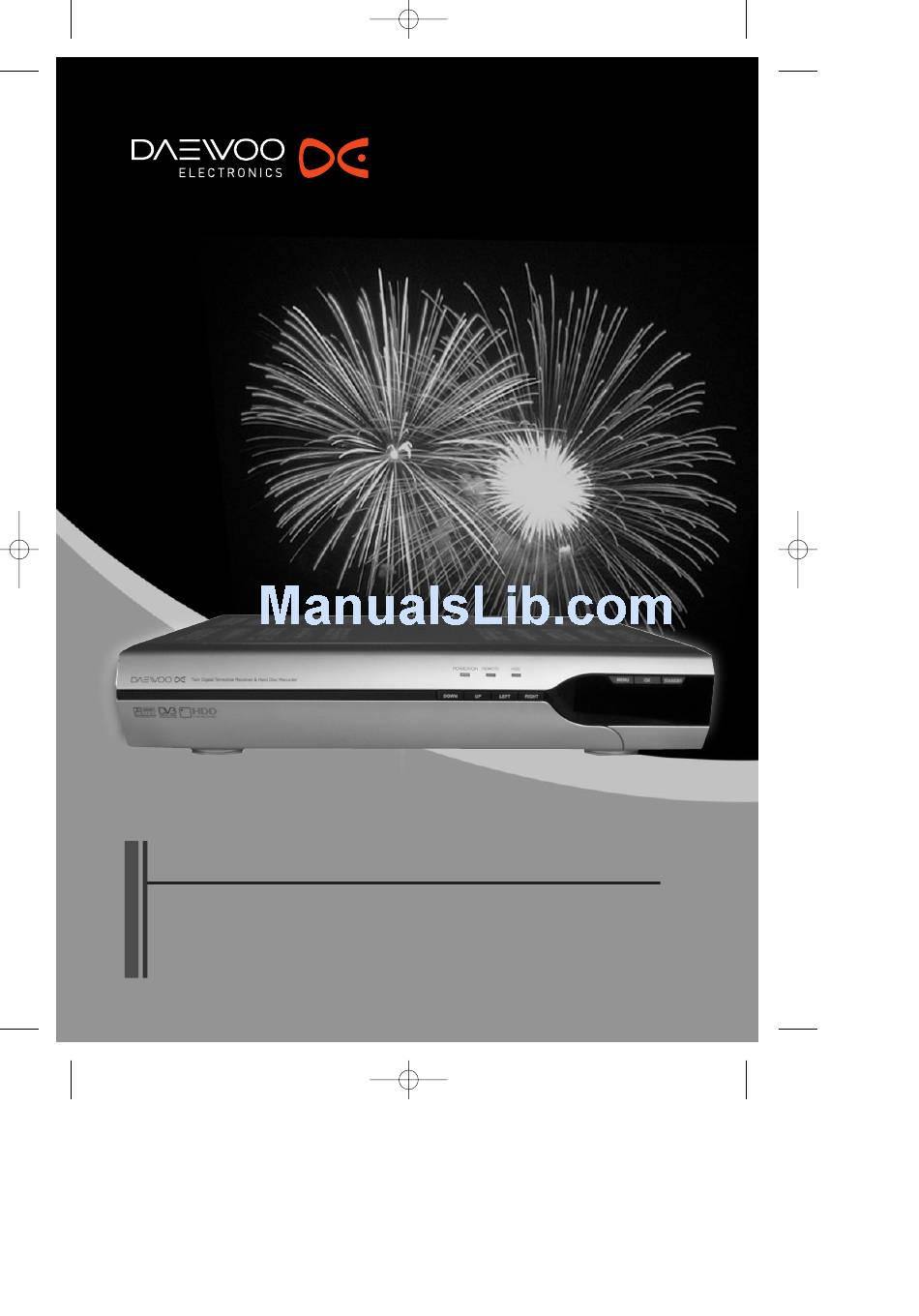

- Page 1 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ mac001 1200DPI 90LPI USER’S GUIDE DSD-9502T/9502TFP/9502TFPB/9503T/9503TFP/9503TFPB 9504TFP/9504TFPB Twin digital terrestrial Receiver & Hard disc Recorder P/N : 97P95600P0-65...
-
Page 2: Introduction
Introduction Thank you for purchasing the Digital PVR. Equipped with the latest technology and design, the DSD-9502T/ 9502TFP/ 9502TFPB/ 9503T/ 9503TFP/ 9503TFPB/ 9504TFP/ 9504TFPB is a set-top box ideal for digital terrestrial broadcast reception. The simple installation and operation, user-friendly three- dimensional OSD, Digital audio output with Dolby Digital ready, and advanced video clarity made for TV and VCR are all designed to enrich the viewer experience. -
Page 3: Important Care And Safety Advice
It is important that you read these safety instructions. If you have any doubts about the installation, operation, or safety of this Digital PVR, contact Daewoo, as shown in the next page. The lightning flash with arrowhead CAUTION... - Page 4 • Contact the retailer/ supplier who sold you the Digital PVR. • Call the Daewoo Helpline : 0870 100 2525 Or e-mail us at information@desuk.co.uk End User licence This product contains propriety software and hardware that are licensed to the user as a single product that cannot be separated.
-
Page 5: Table Of Contents
1) Daewoo Digital PVR 2) Remote Control & Batteries 3) RF-lead 4) User’s Guide & Quick start Guide • If any parts are missing, do not attempt to install this product. Please contact the Daewoo Careline on 0870 100 2525. -
Page 6: Front Panel
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ mac001 1200DPI 90LPI Front Panel 1 2 3 4 5 6 1 Power On indicator 2 Remote indicator 3 Hard disk drive indicator ; will be visible when hard disk drive is in use ie when in record or time shift mode. 4 Menu Button ;... -
Page 7: Rear Panel
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ mac001 1200DPI 90LPI Rear Panel 1 RF IN ; connects your aerial. 2 Audio L/R ; connects to your TV or VCR and outputs audio signals. 3 T V Scart ; connects a T V SCART cable. 4 RF OUT ;... -
Page 8: Remote Control
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ mac001 1200DPI 90LPI Remote Control 1 Mute pauses the audio temporarily. 2 TV/DVR switches between DVR and TV. 3 Number buttons 4 EPG Electronic Programme Guide 5 Menu choose and change a wide range of PVR’s features. -
Page 9: Connecting The Pvr
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ mac001 1200DPI 90LPI Connecting the PVR SCART connections offer the best picture and sound quality. They can also tell your TV when the Digital PVR is switched on and off and whether widescreen pictures are being broadcast. Therefore this is the way this box has been designed to be connected. - Page 10 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ mac001 1200DPI 90LPI Connecting the PVR • Connect a SCART cable between the SCART TV socket on your Digital PVR and your TV SCART IN socket. • Connect an RF cable between the ‘RF OUT’ socket on the Digital PVR and the RF input socket on your VCR.
-
Page 11: Installation Wizard
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 10 mac001 1200DPI 90LPI Installation wizard Using your Digital PVR for the first time. The first time you use your Digital PVR, you will see a screen like the one below. The Digital PVR now needs to scan for available Digital TV channels. •... -
Page 12: Basic Operation
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 11 mac001 1200DPI 90LPI Basic Operation This chapter describes functions such as switching channel, volume control and basic features for watching programmes. Using Standby When you are not watching TV, you should set your Digital PVR to ‘Standby’. To do this: Press the [POWER(√)] button to switch to STANDBY. - Page 13 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 12 mac001 1200DPI 90LPI Basic Operation Using the TV Guide (EPG) The TV Guide shows a full list of available channels and programmes. To view the Guide : Press [EPG]. Press […/†] to scroll through the list of channels. To scroll through the programmes press [œ/√].
- Page 14 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 13 mac001 1200DPI 90LPI Now and Next Information Now and Next gives you information on the current and next programmes on each channel. To open the Now/Next menu press [INFO]. This displays information on the programme showing Now.
-
Page 15: Pip And Time Shifted Recording
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 14 mac001 1200DPI 90LPI PIP and T ime Shifted Recording Picture-in-Picture (PIP) Screen If you press the [PIP] button on the remote control while watching TV, you can watch 2 channels at the same time. The Audio from the Main screen will be outputted. Each time you press the [PIP] button, the PIP screen is switched on or off. - Page 16 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 15 mac001 1200DPI 90LPI PIP and Time Shifted Recording 1. Time shift information First enter time shift mode by pressing the [TIME SHIFT] button this will pause live TV and press the [PLAY] button to continue watching TV or if you press the [INFO] button in time shift record mode, the time shift information will be displayed.
-
Page 17: Recording And Playback
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 16 mac001 1200DPI 90LPI Recording and Playback Using the built-in hard disk drive, you can record a programme without an external media device such as a VCR. Instant Recording Press the [REC] button on the remote control to record the current programme instantly. If you change channels while recording and press the [REC] button, recording starts on that channel also. - Page 18 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 17 mac001 1200DPI 90LPI Recording and Playback Timer You can delete recording schedules by going to “Menu - Timers”. Or easily by pressing the [TIMER] button. Adding new recording schedules is available in programme guide. You can record up to two channels simultaneously.
- Page 19 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 18 mac001 1200DPI 90LPI Recording and Playback Programme Playback You can view the recorded programmes in the Menu - Recordings library. You can also view the recorded programme list by pressing the [LIBRARY] button. 1 Select the desired programme to playback using the […/†] button and then press the [PLAY] button to playback the programme.
-
Page 20: Using The Main &Setup Menu 'S
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 19 mac001 1200DPI 90LPI Using the Main & Setup Menu’s The Main menu lets you choose and change a wide range of your Digital PVR’s features. • To access the Main Menu, press [MENU]. √... -
Page 21: Channel List
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 20 mac001 1200DPI 90LPI Using the Main & Setup Menu’s Channel list - lets you delete, reorder, lock, favourite and rename the channel line up. Channel list shows only the favourite list of channels when favourite mode is on. You can easily enter the channel list menu by pressing the [OK] button while watching a channel. -
Page 22: Programme Guide
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 21 mac001 1200DPI 90LPI Using the Main & Setup Menu’s Programme guide displays programme information about each channel, based on the date and time. You can also schedule your recording using the information given. Refer to page 12~13 for more information. - Page 23 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 22 mac001 1200DPI 90LPI Using the Main & Setup Menu’s Setup - Recordings Start early, End late : sets the start and end timing for programme guide recording. These menus are valid only when record type is 'time'. Max timeshift : sets the maximum timeshift time.
- Page 24 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 23 mac001 1200DPI 90LPI Using the Main & Setup Menu’s Setup - Configuration 1 Country : sets country. Broadcasting RF band is different for each country. 2 Subtitle : sets subtitle on/off. 3 TV type : lets you change how programmes are displayed on your TV (widescreen 16:9 or normal 4:3).
- Page 25 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 24 mac001 1200DPI 90LPI Using the Main & Setup Menu’s Installation 1 Automatic channel scan - If your product is connected to the aerial and television, you can automatically search channels without entering any other information. 2 Manual channel scan - You can search channels manually by pressing the [numerical] buttons.
-
Page 26: Where To Get More Help
If you have any problems using your Digital PVR and cannot find a solution in this user guide: For general problems contact Daewoo helpline on 0870 100 25 25 Or e-mail us at information@desuk.co.uk If possible when calling, you should be close to your TV and have your Digital PVR and TV switched on. -
Page 27: Specification
DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 26 mac001 1200DPI 90LPI Specification UHF Channel Channel 21-69 -75 to -20 dBm Bandwidth 8 MHz DVB Compatible ETS 300 744 Decoding MPEG2 compatible (DVB/Main profile@Main level) Video 1.5~15Mb/s (720 x 576) Audio MPEG2 - Musicam (layer 1&2) (32, 44.1, 48kHz) Symbol rate 2~40 Mbaud Power... - Page 28 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 27 mac001 1200DPI 90LPI Specification Disposal of Used Electrical &Electronic Equipment The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical &...
- Page 29 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 28 mac001 1200DPI 90LPI...
- Page 30 DWBP-B3L1KA-AGN 2007.10.1 4:58 PM ˘ ` 29 mac001 1200DPI 90LPI...
