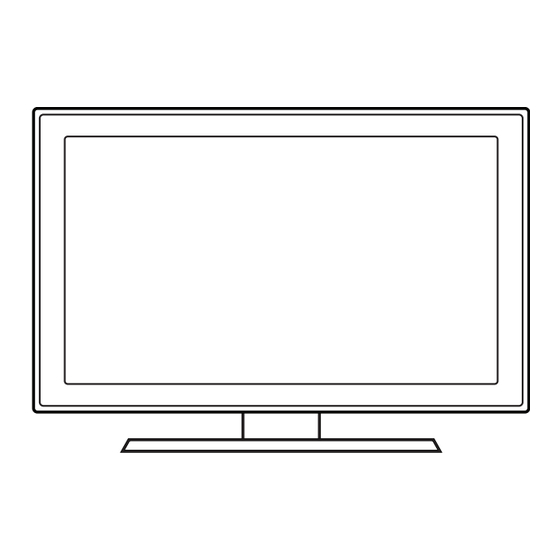

Samsung 460 Installation Manual

Led tv
Hide thumbs Also See for 460:
Table of Contents

Advertisement

Quick Links

460
LED TV
Installation manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model
Serial No.

Advertisement

Table of Contents
loading

Related Manuals for Samsung 460

Summary of Contents for Samsung 460

  • Page 1 LED TV Installation manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model Serial No.

  • Page 2: Instruction

    SBB/STB. If the TV is in ONLINE mode, it stops receiving IR(Samsung remote) commands and acts according to interface protocol. Stand-Alone: If SBB/STB is not identified, the TV should be switched to STAND-ALONE mode with restricted operation.

  • Page 3: Table Of Contents

    Contents y Instruction ................................. 2 y Operational Modes ..............................2 y Still image warning ..............................2 y Securing the Installation Space ..........................2 y Accessories ................................4 y Installing the LED TV Stand ............................4 y Viewing the Connection Panel ........................... 6 y Using the TV’s Controller (Panel Key) .........................

  • Page 4: Accessories

    Accessories ✎ Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer. ✎ The items’ colour and shapes may vary depending on the models. y Remote Control & Batteries (AAA x 2) y Power Cord y Quick Set up Guide y Safety Guide (Not available in all locations)
  • Page 5 HG32EB460, HG39EB460 Top View (M4 X L12) Front ATTENTION ✎ Rear Place a soft cloth over the table to protect the TV, and DO NOT USE DO NOT USE DO NOT USE then place the TV on the cloth screen side down. CHEMICALS GREASE ✎...

  • Page 6: Viewing The Connection Panel

    Viewing the Connection Panel HDMI IN (DVI) Power Power Input Input HG32EB460, HG39EB460 HG28EB460 ✎ Whenever you connect an external device to your TV, make sure that power on the unit is turned off. ✎ When connecting an external device, match the color of the connection terminal to the cable. USB / CLONING –...
  • Page 7 HDMI IN (DVI): Connects to the HDMI jack of a device with an HDMI output. ✎ No sound connection is needed for an HDMI to HDMI connection. ✎ Use the HDMI IN (DVI) jack for DVI connection to an external device. ✎...
  • Page 8 ✎ Optimal resolution is 1920 X 1080 @ 60 Hz. (FHD Model) Horizontal Frequency Vertical Frequency Pixel Clock Frequency Sync Polarity Mode Resolution (KHz) (Hz) (MHz) (H / V) 720 x 400 31,469 70,087 28,322 640 x 480 35,000 66,667 30,240 832 x 624 49,726...

  • Page 9: Using The Tv's Controller (Panel Key)

    Using the TV's Controller Function menu Down (Front) Right Left Return Function menu Up (Rear) TV Controller TV Controller Remote control sensor The image is drawn Remote control sensor facing the front of the TV. HG28EB460 HG32EB460, HG39EB460 TV Controller is a multi directional button that helps navigate without remote control. ✎...

  • Page 10: Viewing The Remote Control

    Viewing the Remote Control ✎ This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and Volume buttons. Display and select available video sources. Turns the TV on and off. Directly select channels Alternately selects Teletext, Double or Mix.

  • Page 11: Connecting The Bathroom Speakers

    Connecting the Bathroom Speakers HP-ID ¦ An additionally created Headphone Box can be installed on a bed or business desk so that users can use it conveniently. The installation procedures are described below. y Detailed Drawing of the Headphone Box. TV Rear Panel HEADPHON BOX HP-ID...

  • Page 12: Setting The Hotel Option Data

    Setting the Hotel Option Data → → → → ENTERE buttons in order. (From the Hospitality mode, the Standalone mode is set.) To Enter: Press the MUTE To Exit from this menu : power off and turn on again. initial value No Item Description Sub item...
  • Page 13 initial value No Item Description Sub item Standalone Users can set channel options such as Auto Tuning, Channel Setup Manual Tuning, Antenna setting, etc. Provided option for editing Channel Name and Number and video. Channel Editor Mute settings for channels in channel List. Assign the channels that will be included in the channel bank.
  • Page 14 initial value No Item Description Sub item Standalone Turns the front panel (Local key) operation on/off. • Lock: Locks all panel keys Unlock / Lock / • Unlock: Unlocks all panel keys Panel Button OnlyPower / Menu/ Unlock • Only Power: Locks all keys except the power key Lock (Panel Key). Source • Menu-Source: Locks only the Menu & Source keys This function turns the function On/Off that automatically turns on the subtitles in a specific country.
  • Page 15 initial value No Item Description Sub item Standalone This feature is used to change the behaviour of USB devices when plugged in. • Default : When this option is selected and we plug in a USB device, a popup window appears and the USB Media Play starts playing when you press Enter.
  • Page 16 initial value No Item Description Sub item Standalone Select the SIRCH update Time. OFF / 1hour / In the SIRCH update time , you have the option to REACH Server 2hour / 12:00 am 1hour perform an automatic upgrade at 12:00 AM/PM or update Time / 2:00 am / 12:00 at 2:00 AM/PM.
  • Page 17 Welcome Message ¦ Welcome message is a feature to display custom message on TV, every time TV is turned on by Guest in Hotel room. – Welcome message settings are placed in Hotel Option Menu. – Welcome message should be ON in order to display the message on power on. Hospitality Mode Standalone SI Vendor...
  • Page 18 Logo File Format – The TV supports only the BMP and AVI format. – The file name must be samsung.bmp or samsung.avi. – The maximum resolution of the BMP format is 960 x 540. – The maximum fi le size of AVI format is 30MB.
  • Page 19 Cloning ¦ USB Cloning is a function to download user configured settings (Picture, Sound, Input, Channel, Setup, and Hotel Setup) from one TV set and upload the same to other TV sets. All the user-defined settings from the TV (Master Set) can be copied to the USB device. y Clone TV to USB: It is an operation to copy the stored data from the specific area on the EEPROM from the TV set to the USB device.

  • Page 20: Plug & Play

    If Standalone Plug & Play is selected Auto Tuning Welcome to Samsung TV Configure your TV To receive channels, configure the options below Select your language to start the on screen setup. Select your information in the categories below.
  • Page 21 3. Select the Language – Select the desired OSD(On Screen Display) language. – Display time: OSD timeout and operation are the same as Samsung's consumer TV models. 4. Select the Country and Picture Mode – Select the appropriate country and picture mode.
  • Page 22 HD Plug & Play – Local Set ¦ y Local Set is very important software setting value such as Languages, Broadcast frequencies, etc. y TV might not function, if Local Set is not correctly configured. Select correct Local Set with country list provided. Local Set change option on the first page Select right Local Set with TV will reboot automatically to apply...

  • Page 23: Setting The Time

    Multi Code Remocon ¦ Multi Code Remocon is a special transmitter which is designed to control each TVs with one remote. This function is useful where there is more than one TV in one location like hospital Set ID number will be displayed in source osd.
  • Page 24 Channel Bank Editor (Smoovie TV Only) ¦ Channel Bank Editor is a function to edit the channel with 3 different Bank Options. Depending on the Bank card, there are specific channels Hotel customer can enjoy. Setting the Channel Bank Editor under Stand-alone Mode 1.
  • Page 25 Channel Editor ¦ Channel Editor is a function to edit channel number and name. – Use Channel Editor to sort the channels as user-desired channel numbers. Hospitality Mode Standalone SI Vendor Power On Channel My Channel Menu OSD Operation Music Mode Channel Editor External Source Eco Solution...
  • Page 26 My Channel ¦ Determines the country and genre for the channels provided by the hotel, and if the user selects a country and genre, shows the corresponding channels. y You must select the country first, or you cannot set a genre. y If you select the genre that not added any channels, the Channel list displays all channels.
  • Page 27 ✎ Notes This section describes the layout of the Front UI that appears when the TV is turned on. (Factory Mode > Genre Mode: Enable). The genre is a sub-list of each country. The broadcast screen that was being displayed the last memorial channel. –...
  • Page 28 Highlight Interaction [Country Items] • This page is only for interaction. Each screen may not be exactly identical to the actual one. ✎ Notes Users can navigate the list items in each country & genre list by pressing the up or down remote control keys. Circular navigation is supported. My Channel My Channel Current status : All Country/Sports Current status : All Country/Sports Country Genre...
  • Page 29 Highlight Interaction [Default Genre] • This page is only for interaction. Each screen may not be exactly identical to the actual one. My Channel My Channel highlighted Current status : All Country/Sports Current status : All Country/Sports Country Genre Country Genre ▲ ▲ ENTER / RIGHT All Country All Country Austria News Austria News Belgium Radio Belgium Radio China Entertainment...
  • Page 30 Mode Change Interaction 1 (1/2) • This page is only for interaction. Each screen may not be exactly identical to the actual one. My Channel My Channel Current status : All Country/Sports Current status : All Country/Sports Country Genre Country Genre ▲ ▲ DOWN All Country All Country Austria News Austria News Belgium Radio Belgium Entertainment China Entertainment China Hotel...
  • Page 31 Mode Change Interaction 1 (2/2) • This page is only for interaction. Each screen may not be exactly identical to the actual one. My Channel Current status : All Country/Sports Country Genre ▲ ENTER All Country Austria News Belgium Entertainment Genre Mode change to Austria/News. Info China Hotel Denmark Finland France ▼ Navigation Help Area The genre mode change complete message is displayed. If the left key is pressed from the genre to the country menu, an existing selected country item is highlighted.
  • Page 32 Mode Change Interaction 2 (1/2) • This page is only for interaction. Each screen may not be exactly identical to the actual one. My Channel My Channel Current status : All Country/Sports Current status : All Country/Sports Country Genre Country Genre ▲ ▲ DOWN All Country All Country Austria News Austria News Belgium Entertainment Belgium Entertainment China Sports China Sports...
  • Page 33 Power On Scenario [Last Memory] • This page is only for interaction. Each screen may not be exactly identical to the actual one. POWER Current Status : Austria / News Power Off Current Genre Mode : Austria / News POWER My Channel Current status : All Country/Sports Country Genre ▲ All Country Austria News Belgium Entertainment China Hotel Denmark Finland...
  • Page 34 Genre Editor (This configures the genres of each of the hotel TV channels.) y This can be used through the Hotel Menu (Factory). y Supported genres include News, Radio, Entertainment, Sports and Hotel. y More than one genre can be selected for each channel at the same time. y Country Editor (Channel Editor): This is the editor that configures the country for each of the hotel TV channels.
  • Page 35 Elements Name Description When the user enters this screen, the currently selected default item is highlighted. The Country Icon + Category Name are provided. (If the highlight is in the Main Frame, only the icon is displayed.) Moving the highlight –...
  • Page 36 ✎ Notes This is a definition of the Tools menu in the Left Frame Category. Only the Info item for each Register/Country is provided. Elements Category Tools menu Descriptions Registered, Country Information Registered Channels. The number of channels of each country. • The items are displayed without ‘Channel’.
  • Page 37 ✎ Notes This is the component for when there are no channels registered to the country category. Elements Description Description y The message is displayed when the currently selected country does not contain any items. Main Frame [Channel Browser] English...
  • Page 38 Key Guide Button Action Nav. Help < CH > Moves the page. Page Selects or enters the corresponding Channel Browser area. Select ENTER RETURN Returns to the previous step (Factory Mode). Return Moves the highlight up or down. (No Guide) ▲/▼...
  • Page 39 Add to Countries / Edit Countries (1/2) • Channel Manager > Browser > Tools > Add to Countries Key Guide Button Action Nav. Help ENTER Selects the highlighted item. Enter RETURN Cancels and returns to the previous screen (Tools). Return ▲/▼ Moves the highlight over country items. Move Moves the highlight. Move ◄/►...
  • Page 40 Elements Name Description • If there are no channels that have been registered to the country list in the selected Add to Countries channels, “Add to Countries” is displayed as the title. Window • A check box is displayed depending on whether the country that was selected when entering the screen is registered or not. Guide • The number of the selected channel or the channel name. - The channel name is displayed when one channel has been selected: Selected channel: Selection Info NNNN-NNN ABC - The number of selected channels is displayed when more than one channel has been...
  • Page 41 ✎ Notes This is the definition for Edit Countries. The highlighted channel item or more than one selected channel item is added or deleted from the Country category. ✎ Etc. Timeout (60 sec) Elements Name Description y If there is a registered channel among the selected channels, Edit Countries is displayed as the title.
  • Page 42 ✎ Etc. Vertical circulation is supported. Elements Name Description y Both the numeric keys and the Up/Down keys are supported. – Selected Channel: Shows the currently selected channel name. – Number: Shows the new channel number. Edit Channel (The currently allocated channel name is also displayed.) Number Window –...
  • Page 43 Key Guide Button Action Nav. Help If a user presses the button, the channel number is initialized. Reset Applies the changes and closes the window. Enter ENTER Cancels or returns to the previous screen (Tools). Return RETURN Changes the channel number of the selected channel. Adjust ▲/▼...
  • Page 44 Edit Channel Name • Channel Manager > Browser > Tools > Edit Channel Name Key Guide Button Action Nav. Help GREEN Saves the changes and returns to the Channel Manager. Done ENTER Saves the channel name and moves the cursor to the next field. Enter RETURN Cancels and returns to the previous screen (Tools). Return Navigates via the keyboard.
  • Page 45 Tools [Edit Mode] Edit Mode Content Highlight (when the number of the checked item is 0 or 1) When there is more than one checked item. Add to Countries Edit Countries (when an already-registered item is checked.) Add to Countries Channel Name Edit Edit Countries (when an already-registered item is checked.)
  • Page 46 Sound Bar ¦ y Samsung Sound-Bar & Hospitality TV in 2013 – Samsung Sound-Bar & hospitality TV support HDMI 1.4, so you can listen to TV’s sound on Sound-Bar by using single HDMI cable. – Supporting model. y Sound-Bar : HW-E350/E450/E550 y The operation of “Hotel mode”...

  • Page 47: Installing The Wall Mount

    Contact a technician for assistance when installing the wall mount bracket. We do not advice you to do it yourself. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select to install the TV on your own. Wall Mount Kit Specifications (VESA) ✎...

  • Page 48: Securing The Tv To The Wall

    Anti-theft Kensington Lock The Kensington Lock is not supplied by Samsung. It is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer.

  • Page 49: Specifications

    Specifications Items Specification Comment TV System PAL, SECAM DVB-TC 28inch /32inch : 5W X 2 Audio out Speaker out 39inch : 10W X 2 Component Y, Pb, Pr, Audio-L/R Audio Video Jack Input HDMI Compatible with the HDMI Specifications Antenna 75 ohm Unbalanced, Din Jack Operating temperature 10°C ~ 40°C (50°F ~ 104°F)
  • Page 50 Supported Video Formats File Extention Container Video Codec Resolution Frame rate (fps) Bit rate (Mbps) Audio Codec DivX 3.11/4.x/5.x/6.x *.avi / *.mkv LPCM MPEG4 SP/ASP 1920 x 1080 *.asf / *.wmv ADPCM *.mp4 / *.3gp (IMA, MS) H.264 BP/MP/HP *.vro / *.mpg Motion JPEG 640 x 480 *.mpeg / *.ts...
  • Page 51 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country Web Site Customer Care Centre AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.com www.samsung.com/be (Dutch) BELGIUM 02-201-24-18 www.samsung.com/be_fr (French)
