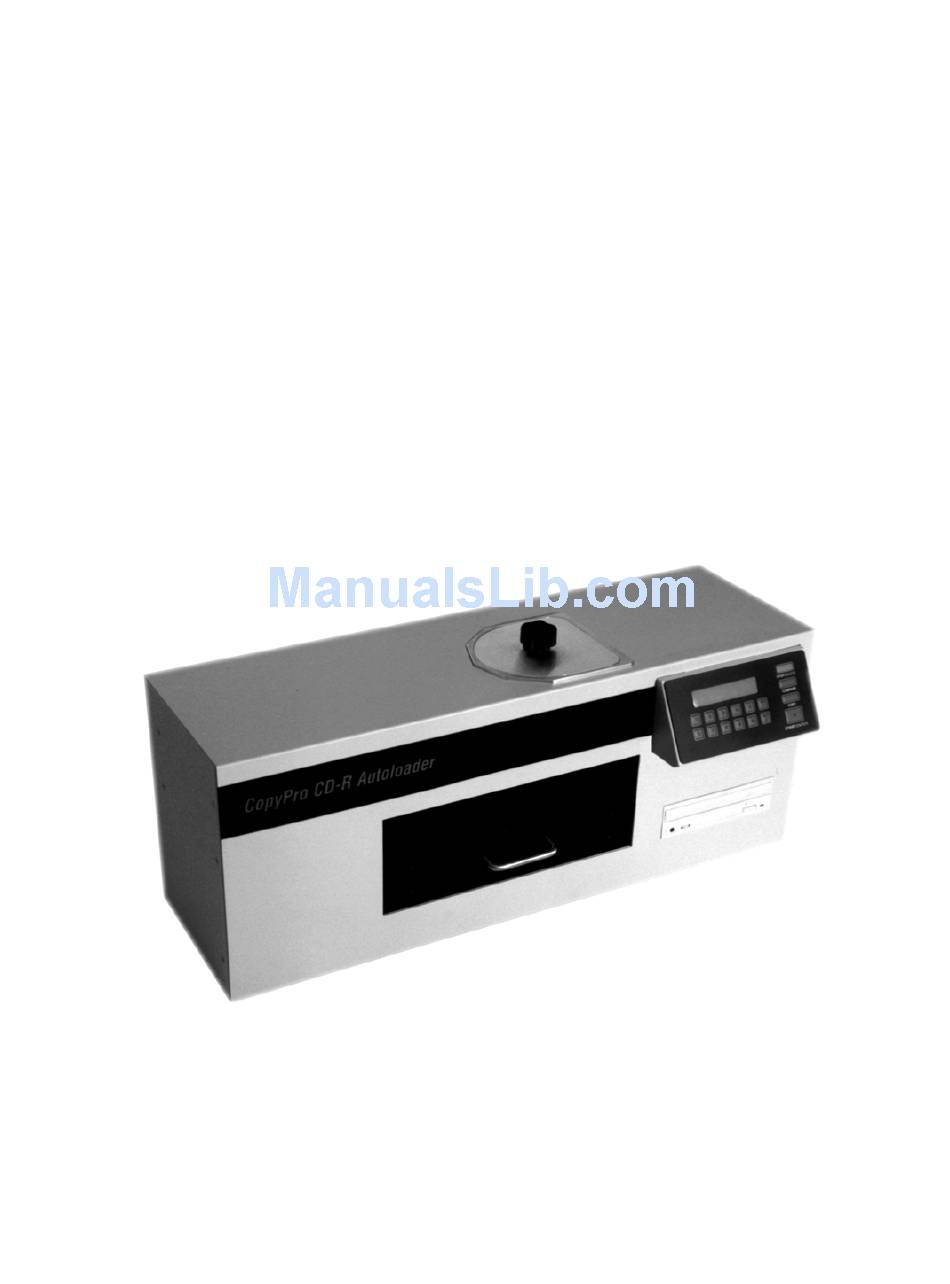

CopyPro CD-R 3500
CD-R Duplicating System
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-R 3500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CopyPro CD-R 3500

Summary of Contents for CopyPro CD-R 3500

  • Page 1 CopyPro CD-R 3500 CD-R Duplicating System User’s Manual...
  • Page 2 CopyPro CD-R 3500 User’s Manual CopyPro, Inc 4020 Pike Lane Concord, CA 94520 tel (925) 689-1200 fax (925) 689-1263...
  • Page 3 This manual is copyrighted and all rights reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine readable form without the prior written consent of CopyPro, Inc. CopyPro, Inc.

  • Page 4: Table Of Contents

    CopyPro CD-R 3500 Table of Contents Table Of Contents Unpacking Parts List: The CD Duplicator The LCD Display Setting up the Machine Loading CD Follower Starting the System Duplicating CD’s Operating MODES Duplicating MODE Firmware Download Mode Verify Enable Mode...

  • Page 5: Unpacking

    CopyPro CD-R 3500 Unpacking Unpacking Parts List: The CD-R 3500 includes: 1. CD-R 3500 CD Duplicator 2. Reject Spindle 3. Output Spindle 4. Input Spindle 5. Drawer 6. Power Cord 7. Shipping screw (must be removed before use!) -- see next page for details 8.
  • Page 6 CopyPro CD-R 3500 Unpacking ATTENTION! ATTENTION! Please remove SHIPPING SCREW and FOAM BLOCK before use. Please remove SHIPPING SCREW (Located at end of unit -- marked with RED TAG) Please remove FOAM BLOCK (Inside the input spindle port) Shipping Screw...
  • Page 7 CopyPro CD-R 3500 Unpacking Output and Reject spindles are placed on the side of the packing foam, these need to be removed first. 1. Remove the Reject and Output Spindles located on the side of the packing foam. Card to pick up the Input Spindle Black handle Using the card, lift the Input Spindle on top of the machine.

  • Page 8: The Cd Duplicator

    CopyPro CD-R 3500 The CD Duplicator The CD Duplicator Input Spindle Port Input Spindle Stand Key Pad & LCD External drive option Disc drawer Output Spindle Reject Spindle (good discs) (rejected discs) Disc drawer CopyPro CD-R 3500...

  • Page 9: The Lcd Display

    LCD Display The LCD Display CopyPro CD-R 3500 is a standalone CD-R duplication system. The product consists of a keypad with 16 keys, a two-line LCD display, one CD-writer drive and autoloading mechanism. The system is controlled by using the keypad in the front panel, which displays important status information.

  • Page 10: Setting Up The Machine

    CD-R 3500 Setting Up Setting up the Machine Place the CD-R 3500 on a clean and stable surface. Vibration of the machine during operation may result in disc errors. CD-R 3500 with empty Input Spindle placed in Spindle Stand. CopyPro CD-R 3500...

  • Page 11: Loading

    3. Place blank CD-R discs on to the Input Spindle writeable side out (away from the back plate) as shown. 4. Place the CD-ROM master disc readable side out, on top of the blank discs in holder. Note: label side of the disc faces towards the metal disc holder. CopyPro CD-R 3500...
  • Page 12 7. Master disc is at bottom of the stack now on the Input Spindle. Note: The master disc is always below the stack of CD-R’s. If multiple masters are loaded, the first master is first off the stack, then the blank CD-R’s for that master, then the next master etc. CopyPro CD-R 3500...
  • Page 13 You are now ready to record discs. Make sure the Output Spindle is loaded into the left side of Disc Drawer & Reject Spindle (short spindle) is loaded on the right. (See photo, page 5). Shut the Disc Drawer. CopyPro CD-R 3500...

  • Page 14: Cd Follower

    Note: Due to the differences in the CD-R Media available on the market today, it is recommended that you separate and loosen the blank media before loading it onto the spindle. This prevents the CD-R media from sticking together. CopyPro CD-R 3500...

  • Page 15: Starting The System

    CopyPro CD-R 3500 Starting the System Starting the System Plug in the system and power on. The following messages will be displayed: CopyPro CD-R 3500 Autoloader Ready Followed by: Load Master & Blank Discs - Press START The system is now ready to start duplicating CD’s. If you do not get the above message, please refer to the troubleshooting section Duplicating CD’s...
  • Page 16 CopyPro CD-R 3500 Starting the System The following message will be displayed at the end of one session of duplication. Write Successful Loading Blank CDs The machine will now duplicate all the blank CD’s loaded on the Input Spindle. The duplication process will continue until the media spindles are emptied:...

  • Page 17: Operating Modes

    Duplicating MODE When you “ power on,” duplicating Mode becomes default. The CD-R 3500 has batch mode default. If you have multiple master CD’s loaded on the Input Spindle, the data from the next master CD will automatically overwrite the existing data in the system CACHE. The CD-R 3500 will then begin duplicating on the next set of blank discs.

  • Page 18: Firmware Download Mode

    CopyPro CD-R 3500 Operating MODES Firmware Download Mode This mode is used to upgrade the firmware of The CopyPro CD-R 3500 in the field. There are two ways to do this: Through Install CD. Through Serial Port. To upgrade firmware, press ‘ENTER’ at the Firmware Download mode screen.
  • Page 19 CopyPro CD-R 3500 Operating MODES If the CD-R 3500 has encountered system files of a lower version on the Install CD, you will get this warning… Lower Ver Sys Files Proceed (Y/N)? If you want to download system files of a lower version than the existing ones, press ‘YES’...

  • Page 20: Verify Enable Mode

    Verify Enable Mode Selecting Verify Enable Mode allows you the option to verify each CD, which has been recorded. By default, the CD-R 3500 does not verify each recorded CD. Simulate Write Mode The Simulate Write mode disables the laser in the CD-ROM drive. This mode allows test writing.

  • Page 21: Error Messages

    CopyPro CD-R 3500 Error Messages Error Messages The CD-R 3500 displays error messages in any of the operating modes if a problem occurs during its operation. The error messages are shown below with some suggested action items. Error Message Description...

  • Page 22: Trouble Shooting

    CopyPro CD-R 3500 Trouble Shooting Trouble Shooting Please refer to the table below in the case of following start up messages: Boot Error Message Description HDD Not Detected Problem in accessing HDD inside CD-R 3500XL Unable To Access HDD Problem in accessing HDD inside CD-R 3500XL...
