Sarowin SR-08 User Manual

User's Manual
Model : SR-08
5.8GHz AV Sender
Descriptions
This 5.8GHz video sender adopts a new industrial
design with a high performance patch array antenna to
improve the reception range. It consists of one
transmitter and one or multiple receivers. The input and
output AV cables can be optionally RCA or SCART
connector. This device transmits vivid video and Hi-Fi
stereo sound from a VCR, TV set, DVD, VCD, Satellite
Receiver or cable set top box to any TV or monitor. It
can also be used in conjunction with a camcorder or
closed circuit camera and turns into a wireless security
monitoring system.
As to the transmission capability, the signal can go up to
300 feet clear line-of -sight and even penetrate through
walls. With the built-in IR remote extender, it allows the
user to remotely control the audio/video sources from
other rooms.
In addition, seven user selectable channels allow
multiple transmitters to multiple receivers operation in
the same area. And most importantly, the 5.8GHz
frequency band is much more clear than the 2.4GHz
one, therefore, no more annoying interference problem
will bother you any more. All these advanced features
will make your home life amazingly convenient and
joyful.
Applications
Simultaneous viewing of video programs on a 2nd
TV/monitor without wires.
Wireless transmission of Hi-Fi stereo to any active
speaker.
Remote monitoring of live video from a camcorder or
closed circuit camera.
Local area broadcasting of audio/video programs for
multiple viewers even in different rooms.
Features
5.8GHz wireless transmitter and receiver with
7selectable channels.
High gain patch array antennas for improving
reception range and interference resistance.
Transmitting and receiving of crisp video and Hi-Fi
stereo even through walls.
Long transmission range up to 300 feet clear
line-of-sight.
NTSC/PAL video format compatible.
Built-in wideband IR remote extender for application
of almost all different models of IR remote control.
No more annoying interference problems of 2.4GHz
products.
Compact size design, 12 x 6.5 x 3 cm
List of Contents
This package contains the following items:
A. User's manual
B. One Transmitter (Tx) & one Receiver (Rx)
C. Two power adapters
D. Two AV cables :
3.5mm AV phone plug - RCA (or SCART)
E. One IR LED eyes cable

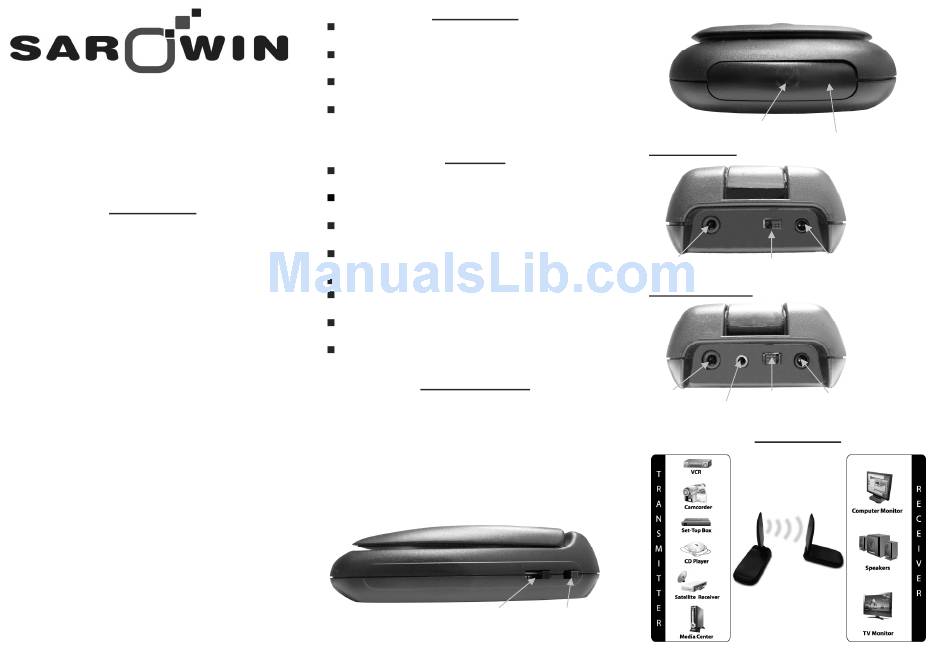

SIDE VIEW:
CH. selector 2
FRONT VIEW:
Receiver REAR:
A/V jack
Transmitter REAR:
3
A/V jack
External IR
LED cable jack
CH. selector 1
Tx: IR LED
Rx: IR sensor Power LED
ON/OFF Power jack (9V)
ON/OFF Power jack (9V)
Applications
