KW5862 WIFI ADSL Gateway
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KW5862 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kasda KW5862

  • Page 1 KW5862 WIFI ADSL Gateway User Manual...
  • Page 2 WLAN ADSL Gateway User Manual NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.

  • Page 3: Table Of Contents

    Content OVERVIEW ..........................1 ......................... 1 EATURES Data rate ........................1 1.1.1 1.1.2 ADSL Compliance....................1 1.1.3 Wireless ........................1 Network Protocol & Features ................. 2 1.1.4 ATM Capabilities ..................... 2 1.1.5 VoIP .......................... 2 1.1.6 1.1.7 FIREWALL....................... 3 1.1.8 Management Support .....................

  • Page 4: Overview

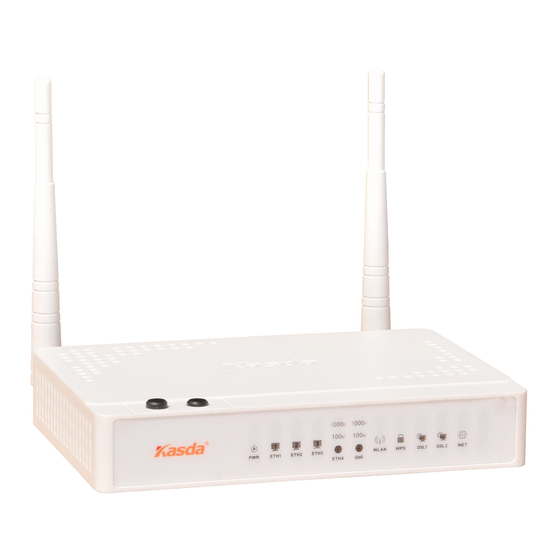

    User Manual 1 Overview Thank you for choosing our product. The KW5862 is a Wireless ADSL router combining an ADSL modem, an 802.11n wireless router, a 4-port switch, two FXS ports and a USB host port in one unit, bringing high-speed wireless Internet connection to a home or office.

  • Page 5: Network Protocol & Features

    WLAN ADSL Gateway User Manual 1.1.4 Network Protocol & Features  Ethernet to ADSL Self-Learning Transparent Bridging  Internet Control Message Protocol (ICMP)  IP Static Routing  Routing Information Protocol (RIP, RIPv2)  Network Address Translation (NAT)  Virtual Server, Port Forwarding ...

  • Page 6: Firewall

    WLAN ADSL Gateway User Manual  Voice codecs: G.711A/µ, G.723, G.726, G.729  Call waiting  Call forwarding 1.1.7 FIREWALL  Built-in NAT  MAC Filtering  Packet Filtering  Stateful Packet Inspection (SPI)  Denial of Service Prevention (DoS) ...

  • Page 7: Environmental

    WLAN ADSL Gateway User Manual 1.1.10 Environmental  Operating humidity: 10%-90% non-condensing  Non-operating storage humidity: 5%-95% non-condensing Packet Contents The packet contents are as the following:  ADSL ROUTER  External Splitter  Power Adapter  Telephone Line  Ethernet Cable ...

  • Page 8: Warnings And Cautions

    WLAN ADSL Gateway User Manual Warnings and Cautions  Never install telephone wiring during storm. Avoid using a telephone during an electrical storm. There might be a risk of electric shock from lightening.  Do not install telephone jacks in wet locations and never use the product near water.

  • Page 9: Hardware Description

    WLAN ADSL Gateway User Manual 2 Hardware Description Front Panel Color Function On: Power POWER Green Off: No power On: LAN link established and active via LAN port ETH1,2,3,4 Green Blinking: ADSL data activity occurs Off: No LAN link via LAN port On: The wireless module is ready and idle.
  • Page 10 WLAN ADSL Gateway User Manual Rear panel Port Function Connect the device to an ADSL telephone jack or splitter using a RJ-11 telephone cable FXS1 Connect the device to your normal phone RESET System reset or reset to factory defaults. Connect the device to your printer Connect the device to your PC's Ethernet port, or to the ETH1,2,3,4...

  • Page 11: Hardware Installation

    WLAN ADSL Gateway User Manual 3 Hardware Installation This chapter shows you how to connect Router. Meanwhile, it introduces the appropriate environment for the Router and installation instructions. Using a telephone line to connect the DSL port of ROUTER to the MODEM port of the splitter, and using a other telephone line connect your telephone to the PHONE port of the splitter, then connect the wall phone jack to the LINE port of the splitter.

  • Page 12: Pc Configuration Guide

    WLAN ADSL Gateway User Manual PC Configuration Guide Local PC Configuration in Windows 95, 98, ME, XP 1. In the Windows task bar, click the “Start” button, point to “Settings”, and then click “Control Panel”. 2. Double-click the “Network” icon. 3.

  • Page 13: Web-Based Management Guide

    WLAN ADSL Gateway User Manual 5 Web-based Management Guide In order to use the web-based management software it will be necessary to use a computer that occupies the same subnet as the Router. The simplest way to do this for many users will be to use DHCP server that is enabled by default on the Router.

  • Page 14: Internet Access Configuration

    WLAN ADSL Gateway User Manual We can select wizard setup or advanced setup mode to setup KW5862.the wizard set up will guide us for a basic setting,and the advanced setup will guide us to home page for more detailed setup.
  • Page 15 WLAN ADSL Gateway User Manual 3. Click WAN Service from the left menu. 4. Click Add to select a layer 2 interface for this service and then click Next. 5. Choose WAN service type, just choose PPPoE for example here. You can enter your own service description here if you want and then click Next.
  • Page 16 WLAN ADSL Gateway User Manual PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 17 WLAN ADSL Gateway User Manual The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout. The entered value must be between 1 minute and 4320 minutes. The PPP IP Extension is a special feature deployed by some service providers.
  • Page 18 WLAN ADSL Gateway User Manual 8. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. If only a single PVC with IPoA or static MER protocol is configured, you must enter static DNS server IP addresses. 9.

  • Page 19: Router Mode Setup

    WLAN ADSL Gateway User Manual 5.2.2 Router Mode Setup 1. From Advanced Setup, click Layer2 Interface and select ETH Interface. Before you configure ETH WAN interface, you’d better remove all PVC settings from ATM interface. 2. Click Add and you’ll see the following screen. 3.
  • Page 20 WLAN ADSL Gateway User Manual From Advanced Setup, click WAN Service to configure a WAN service over the interface you selected. 6. Click Add and you’ll see the following screen. 7. Click Next and you’ll see the following screen. Select PPPoE as WAN service type for example.
  • Page 21 WLAN ADSL Gateway User Manual 8. Enter the user name and password that your ISP has provided to you. Click Next.
  • Page 22 WLAN ADSL Gateway User Manual PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 23 WLAN ADSL Gateway User Manual The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout. The entered value must be between 1 minute and 4320 minutes. The PPP IP Extension is a special feature deployed by some service providers.
  • Page 24 WLAN ADSL Gateway User Manual 10. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. Click Next. 11. Make sure that the settings below match the settings provided by your ISP. Click on the Apply/Save button to save your configurations and reboot the ADSL router.

  • Page 25: Lan Settings

    From LAN, Configure the DSL Router’s IP Address and Subnet Mask for LAN interface. In this page, you can use DHCP (Dynamic Host Configuration Protocol) to control the assignment of IP addresses on your local network (LAN only).KW5862 support IPv4 /IPv6 dual stack. 5.2.3.1 IPv4 LAN Settings...
  • Page 26 WLAN ADSL Gateway User Manual Item Description This is the IP address that other devices on your local network IP address will use to connect to the modem. This defines the size of your network. The default is Subnet mask 255.255.255.0.

  • Page 27: Ipv6 Lan Settings

    WLAN ADSL Gateway User Manual 5.2.3.2 IPv6 LAN Settings Item Description This is the IP address that other devices on your local network IPv6 address will use to connect to the modem. This defines the size of your network. The default is Subnet mask 255.255.255.0.
  • Page 28 WLAN ADSL Gateway User Manual Use blocking mode to discard unknown multicast traffic. The DHCP server assigns an IP addresses from a pre-set pool of Disable / Enable addresses upon request from DHCP client (e.g. your computer). DHCP server Do not disable the DHCP server unless you wish to let another device handle IP address issuance on the local network.

  • Page 29: Wireless Setting

    WLAN ADSL Gateway User Manual 5.3 Wireless setting 5.3.1 Basic Option Description Enable A check box that enables or disables the wireless LAN interfaces. The default is wireless to enable wireless communications. Select Hide Access Point to protect the ADSL route access point from detection by wireless active scans.

  • Page 30: Advanced Settings

    WLAN ADSL Gateway User Manual BSSID Displays the gateway's wireless MAC address. (User may need this address if user is using WDS or multiple gateways.) Click Apply to save changes. Country Drop-down menu that allows selection of specific channel. 5.3.2 Advanced Settings This page is where user specifies a number of advanced settings for wireless communications.
  • Page 31 WLAN ADSL Gateway User Manual Warning: The settings shown above are default settings. Changes made to these items can cause wireless communication problems. Field Description This is the range of frequencies the gateway will use to communicate with Band user’s wireless devices. Channel Drop-down menu that allows selection of specific channel.

  • Page 32: Security

    WLAN ADSL Gateway User Manual multicast messages for its clients, it sends its next DTIM message with this DTIM interval value. The clients hear the beacons and awaken as needed to receive the broadcast and multicast messages. The amount of time (in milliseconds) between beacon transmissions, each of which identifies the presence of an access point.
  • Page 33 WLAN ADSL Gateway User Manual 2.Configure WPA Pre-shared key as below and click Apply/Save. 3.Enable WPS as below.
  • Page 34 WLAN ADSL Gateway User Manual 4.Set WPS AP mode as Unconfigured and click Config AP. 5. Set WPS AP mode as configured and click Save/Apply. 6.Now you can use a wireless adaptor with WPS function and the WPS button to connect to access the Internet.
  • Page 35 WLAN ADSL Gateway User Manual The wireless security page allows user to configure the security features of user’s wireless network. There are several security methods to choose from, depending on user’s needs and the capabilities of user’s wireless machines. WEP open and WEP shared —WEP is an encryption scheme that is used ...

  • Page 36: Oip Configuration

    WLAN ADSL Gateway User Manual the weaknesses in WEP. Any client capable of WPA encryption should use it instead of WEP. WPA (PSK) — This is WPA encryption combined with a pre-shared key  (PSK), which is a text string known only to the gateway and authorized wireless clients.
  • Page 37 WLAN ADSL Gateway User Manual Interface Name: PVC channel for VoIP service. Locale Selection: Keep the value as default if without any request from your ISP. Preferred codec list: Voice codecs. SIP Proxy: SIP proxy server address or domain name of SIP service. You can make it blank if your ISP hasn’t given you the address.

  • Page 38: Sip Advanced Setting

    WLAN ADSL Gateway User Manual SIP Registrar: The SIP server address provide by your ISP. This address is necessary for VOIP setting. SIP Registrar port: the signal port of SIP server. The default value is 5060. Extension: SIP account username provided by your ISP. The value is necessary for VOIP setting.

  • Page 39: Printer Server Installations

    WLAN ADSL Gateway User Manual Line Forwarding Number: Forward the incoming call to the number you typed. Select checkbox to enable the call forwarding function. Enable MWI. MWI means Message-Waiting Indication. Usually an audio or visual signal that a voicemail or other type of message is waiting. Enable T38 Support: Select the checkbox to enable T.38 fax support.
  • Page 40 WLAN ADSL Gateway User Manual 4. Select Connect to a printer on the Internet, type “http://192.168.1.1:631/printers/printer” and click “Next”. The printer name “Printer” must be the same name entered in the ADSL router “print server setting” as in step 1. Select driver file directory on CD-ROM or in your hard disk and click “OK”.

  • Page 41: Appendix: Frequent Asked Questions

    WLAN ADSL Gateway User Manual Click “Finish”. Appendix: Frequent Asked Questions Q: None of the LEDs are on when you power on the ADSL router? A: Please make sure what you use is the power adaptor attached with the ADSL router package and checks the connection between the AC power and ADSL router.
  • Page 42 WLAN ADSL Gateway User Manual Please make sure that you use parallel network cable to connect UpLink port of hub, or use parallel network cable to connect PC. If connect normal port of hub (not UpLink port), you must use cross-cable. Please make sure that your network cables meet the networking requirements above.
  • Page 43 WLAN ADSL Gateway User Manual...
