BitaTek IT-6000 Series User Manual

Bitatek it-6000 series mobile computer user’s manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IT-6000 Series
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT-6000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BitaTek IT-6000 Series

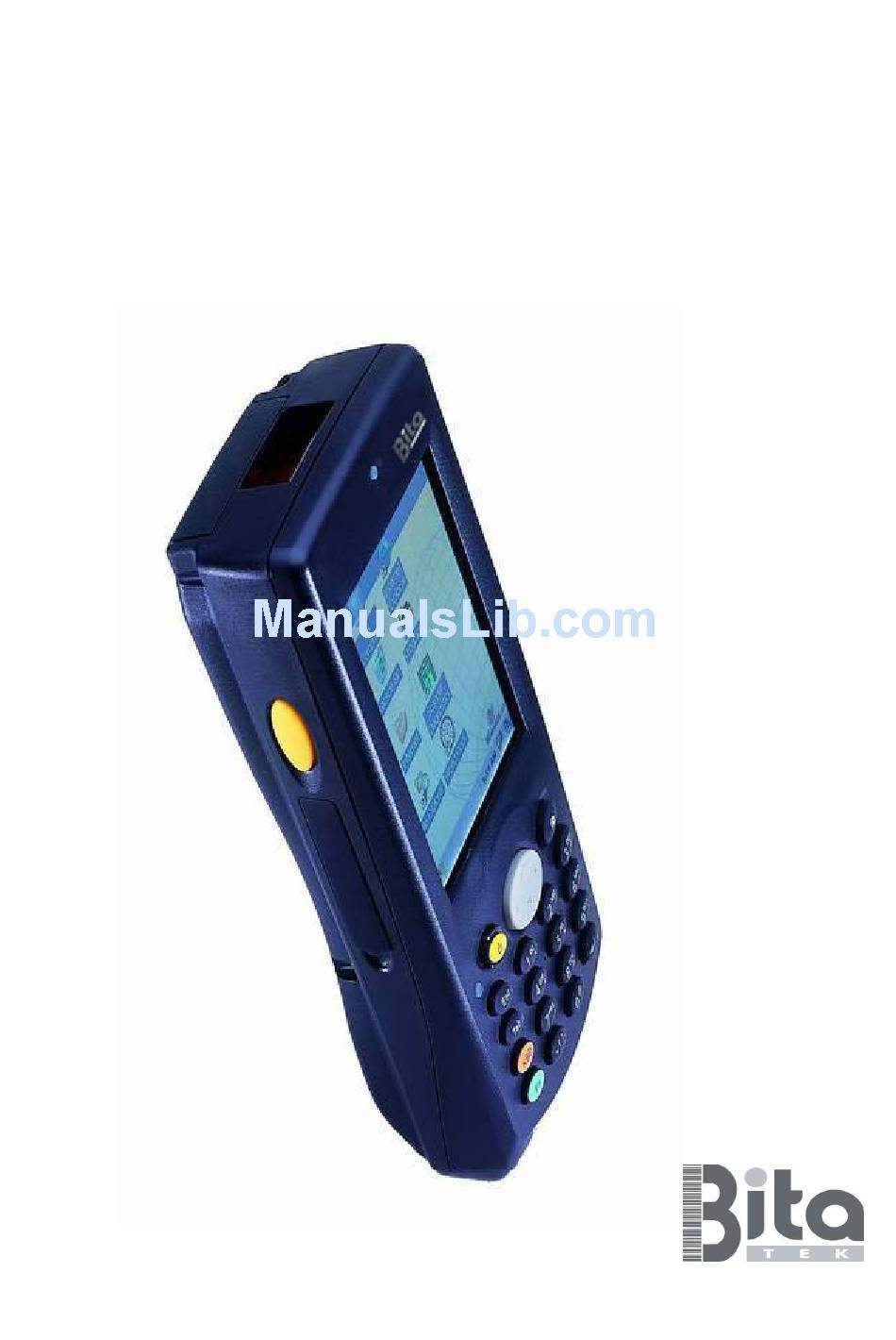

  • Page 1 IT-6000 Series User’s Manual...
  • Page 3 IT-6000 Series Product Reference Guide...
  • Page 4 6F, 190-1, Ta -Tung Road, Sec. 3,Hsichih, Taipei Hsien, Taiwan TEL:+886 2 8647 1299 FAX:+886-2 8647 1542 Copyright ©2003 BITATEK CO., LTD. An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of BITATEK CO., LTD.
  • Page 5 Contents Chapter 0 Before Getting Started Introduction Check the Package Parts information Charging the Battery Installing Batteries Charging battery with adapter Charging battery with Docking Cradle Chapter 1 Getting Started Introduction Setting Up Starting Calibrating the Touch Screen Adjusting Brightness Adjusting Volume Scanning Running Scanner Diagnostics...
  • Page 6 Scanning Scanning Bar Codes Chapter 3 Powering Overview Suspend Mode Suspending Resuming Backlight Turn On Backlight Turn Off Backlight Batteries Checking Battery Power Installing the Main Battery Pack Charging the Battery Using the Power Adapter Using the Docking Cradle Backup Battery Battery Life Battery Disposal Resetting...
  • Page 7 Removing Programs Selecting and Using Programs Using the Task and Command Bars Entering Data Using the Stylus on the Touchscreen Display Selecting Text Entering Data with a Bar Code Scanner Soft Keypad/Input Panel Desktop Window File Explorer Inbox Internet Explorer WordPad Chapter 5 Configuring...
  • Page 8 Chapter 6 Networks, Communications, and Connections Overview SNMP Installing & Setting Up the IT-6000 IrDA Dock Driver IrDA Driver Installation Setting up the IrDA Port Installing & Setting Up Microsoft® ActiveSync Microsoft® ActiveSync Using ActiveSync Setting up a Partnership Transferring Files ActiveSync File Synchronization Networking Setting up the Network ID...

  • Page 9: Before Getting Started

    Before Getting Started This chapter contains hardware and software information to assist you in making the most out of your Mobile Computer. The components include: Check the Package Parts information Charging the Battery...

  • Page 10: Check The Package

    Check the Package Carefully remove all protective materials from around the Mobile Computer and save the shipping container for later storage and shipping. Verify that you received all equipment listed bellow: Main Unit ❶ Stylus Pen ❷ Open type CF Slot Cover ❸ Standard Battery Pack ❹...
  • Page 11 ❸ ❷ ❹ ❶ ❺ ❽ ❻ ❼ ❾ Figure 1. Contents in Package...

  • Page 12: Parts Information

    Parts information Four perspectives of the Mobile Computer are in Figure 2 and Figure 3. Refer to more detailed information. Figure 2. Front View...
  • Page 13 Figure 3. Left and Right View Figure 4. Top View...
  • Page 14 Figure 5. Bottom View Figure 6. Back View...
  • Page 15 LCD and Touch Screen Show running applications and tap on screen with stylus pen to interact with applications. Scanner LED Indicator Turn on Green or Red LED when it read barcode. If barcode reading is successful, it’ll show Green, otherwise Red. Scanner Button Press to read barcode, then Barcode Scanner will start to trig.
  • Page 16 Adapter Power Port Connect External Power Adapter to this Port to charge the Battery. Note : The Standard battery need to charge 4 hours. When you open the box, charge the battery fully. USB/Serial Sync port Connect USB or Serial cable with Desktop and this Mobile computer.
  • Page 17 Key Pad Input number or alphabet characters. We can run special functions with Fn Key. Ear/Microphone Jack Connect Ear/Microphone to hear audio sound or record voice. It’s useful for VoIP phone or Voice chatting. Speaker Play the sound effect or scanner beep sound. Battery cover Latch Open or lock battery cover.

  • Page 18: Charging The Battery

    Charging the Battery Before using Mobile Computer, Please charge the battery fully. You can indicate with Green power LED. The battery usually charges in 4 hours to fully charge. Installing Batteries Pull the battery cover latch until the cover releases. Lift the battery door away from the Mobile Computer.

  • Page 19: Getting Started

    Getting Started This section covers the most basic aspects of preparing the Mobile Computer for use. Please refer to the appropriate sections for more information. Turn On/Off Setting Up Starting Calibrating the Touch Screen Adjusting Brightness Adjusting Volume Scanning Running Scanner Diagnostics Scanning...
  • Page 20 Turn On/Off Press Power button to turn on the device. And, to turn off the device, press Power button again. The device is not turned off exactly. It just will make suspend. Every running application will be kept until next turn on. And if turn on, it will show the screen very quickly.
  • Page 21 Figure 2. Desktop Window...
  • Page 22 Calibrating the Touch Screen This device was produced with calibrated screen. So, the user does not need to modify at first. If you feel the positioning is incorrect, you need to recalibrate. Press ‘=’ key as press down Fn Key. It’ll show the calibration screen.
  • Page 23 Adjusting Brightness The Backlight factory default is maximum status. But, user can feel uncomfortable. At this moment we can try to control the Backlight. This will make the bright ness change. Press Right or Left on the Navigation button with Fn Key. You can see the brightness change.
  • Page 25 Using This chapter will show how to use Stylus pen and other accessories include in the package. Using the Stylus Using the Keypad Using the Ear/Microphone Using the Handstrap Using Applications Selecting Application Scanning Scanning Bar Codes...
  • Page 26 Using the Stylus The stylus is located next to the CF Cover. The stylus on the device is the equivalent of the mouse on a PC. Use the stylus to: • Navigate the touch screen display. • Select characters in the soft input panel (SIP). •...
  • Page 27 Using the Keypad Keypad is very useful input method. You can input numeric character, alphabet character. And you can control device with some function keys. Numeric Character Press numeric keys that you want to input. But, you need to make sure which character type selected.
  • Page 28 Device control using the function key To control the device, press defined function key with Fn Key. Following table shows device control function define. Description Left Decrease brightness intensity Right Increase brightness intensity Increase Volume Down Decrease Volume Home Go to Desktop and hide all running applications Run Record or defined application...
  • Page 29 Using the Ear/Microphone Connect Ear/Microphone to Earphone Jack. This is look like cellular phone’s earphone. But, it support Stereo Sound. When you are using VoIP phone function, this will be useful. The Mobile Computer doesn’t have internal microphone. So, to record voice, you have to use Ear/Microphone.
  • Page 30 Using the Handstrap The Mobile Computer has a handstrap which increases comfort when holding the device for extended periods of time. The handstrap may be removed or replaced, if damaged. To use the handstrap: Hook the upper of the handstrap from the Scanner Window Fix the upper of the Handstrap with 2 screws.

  • Page 31: Using Applications

    Using Applications To select and open programs, select Start > Programs to open a list of available programs. If the program has an icon on the desktop, tap to open it. Using the Task Bar The task bar at the bottom of the screen displays the active program and current time, and allows you to select programs and close screens.
  • Page 32 Using the Command Bar Use the command bar at the top of the screen to perform tasks in programs. The task bar includes menu names, buttons, and the input panel button. To create a new item in the current program, Select File >...
  • Page 33 Scanning Running Scanner Diagnostics Tap the Start > Programs > Scanner > Scanner Diagnostics to try to read barcode. Scanning Press scanner button. Aim the Laser beam or LED light to the barcode. Check the read barcode.
  • Page 34 Powering This chapter explain the Mobile Computer Power System, and how to control the power consumption, how to make reset. Suspend Mode Batteries Checking Battery Power Installing the Main Battery Pack Charging the Battery Backup Battery Battery Life Battery Disposal Resetting Warm Reset Cold Reset...
  • Page 35 Suspend Mode The Mobile Computer will go into a suspend mode or sleep mode when it is idle for a period of time. This duration can be customized using the Power control panel (refer to "Power Off Tab". Suspend mode works and looks just like you are turned the unit off.
  • Page 36 Batteries The main battery pack in the device is a 3.7 V, 1800 mAh Lithium Polymer battery. You will be alerted with a message dialog box when the battery reaches a low state. A complete battery charge takes about four hours depending on battery state. Note: Prior to using the device for the first time, you will need to charge the main battery.
  • Page 37 Installing the Main Battery Pack The main battery must be installed in the device before you can charge it in the docking cradle. Complete the following instructions to install the battery. On a device, detach the elastic handstrap by releasing its hook from the handstrap connector at the base of the unit.
  • Page 38 Charging the Battery When you first remove the device from the box, you will need to charge the main battery. The battery must be inside the unit to charge it with the dock. A complete battery charge takes about about 4 hours depending on battery state. After using the device, if a low battery indicator appears, the main battery needs recharging.
  • Page 39 Charging battery with Docking Cradle Connect power code to power adapter. Connect power code to the power source. Insert power adapter to the power jack of docking cradle. Figure 2. Charging with the docking cradle During charging, Main unit’s Power LED will turn on Red LED. When battery is charged fully, it will turn on Green LED.
  • Page 40 Backup Battery The backup battery in the device is a 3.1V Lithium battery. The backup battery is charged off the main battery pack, so it is important to keep the main battery pack with at least a minimal charge so the unit can maintain date, time, data, and other settings. Battery Life Batch units can have 6 hours to 16 hours of battery life per charge depending upon usage, number of scans per minute, backlight...
  • Page 41 Resetting You always attempt a Soft (warm) reset before initiating a Hard (cold) reset. Once you initiate a hard reset, all applications are forcibly closed and working RAM and files are cleared. It is a good idea to store important data in the DiskOnChip memory for this reason.
  • Page 42 Cold Reset A cold (hard) reset is a complete reset of the device in which all applications are forcibly closed and working RAM and files are cleared. Reason to Cold Reset Press the <Reset> button with FN Key when the WindowsCE.Net operating system (OS) locks up and the Warm reset command does work.

  • Page 43: Software Applications

    Software Applications This chapter explains preinstalled applications and how to install additional applications. DiskOnChip Installing Programs Using an Installation Wizard Installing Programs Manually Using File Explorer to Add to the Start Menu Using ActiveSync to Add to the Start Menu Removing Programs Selecting and Using Programs Using the Task and Command Bars...
  • Page 44 DiskOnChip In addition to the RAM-based storage standard on WindowsCE .Net terminals, the device is also equipped with Flash- based storage area. To access the contents of Flash Memory: Double-tap the My Computer icon on the desktop. Double-tap the DiskOnChip Disk icon to view DiskOnChip Disk.
  • Page 45 Installing Programs Programs pre-installed on the device are stored in ROM (read only memory). You cannot remove, or modify this software. You may add programs and data files to RAM (random access memory) or into DiskOnChip. Please follow the directions provided with the software to install it.
  • Page 46 Connect your terminal and desktop computer. Double-click the *.exe file. Once the installation is complete, you double-tap the program icon from your desktop, or select Programs > program icon to select it. Using File Explorer to Add to the Start Menu Select Start >...
  • Page 47 Removing Programs Only user installed programs can be removed. To remove a program select Start > Settings > Control Panel > Remove Programs. Select the program you wish to remove from the list and press remove. Selecting and Using Programs To select and open programs, select Start >...
  • Page 48 Using the Command Bar Use the command bar at the top of the screen to perform tasks in programs. The task bar includes menu names, buttons, and the input panel button. To create a new item in the current program, Select File >...
  • Page 49 Entering Data Using the Stylus on the Touch Screen Display The stylus is located next to the CF Cover. The stylus on the device is the equivalent of the mouse on a PC. Use the stylus to: Navigate the touch screen display. Select characters in the soft input panel (SIP).
  • Page 50 Figure 2. Entering data using SIP Use the stylus to select letters, numbers, or symbols from the Soft Input Panel for the current application. Tap the key to change the keypad to show international letters.
  • Page 51 Pocket Inbox WindowsCE .Net units come with Inbox for WindowsCE .Net installed from the factory. Inbox is a familiar Microsoft email interface. To setup up Inbox: Open Inbox by selecting Start > Programs > Inbox. Select Services > Options from the command bar to configure. Select Add..
  • Page 52 Figure 2. Pocket Inbox...
  • Page 53 Internet Explorer The IT-6000 comes with Internet Explorer for WindowsCE .Net installed from the factory. Open Internet Explorer by selecting Start > Programs > Internet Explorer. To set default home page, navigate to desired default web page. Select View > Internet Options from the command bar. Enter the desired URL in the Start Page field.
  • Page 54 WordPad The IT-6000 comes with Word-Pad for WindowsCE .Net installed from the factory. The following text and document file types are compatible with Word-Pad: Text (*.txt) Word Document (*.doc) Rich Text File (*.rtf) WordPad (*.pwd)) When file types other than *.pwd are transferred to the WindowsCE .Net device, WindowsCE .Net translates the files into a compressed WindowsCE .Net file type.
  • Page 55 Figure 2. WordPad...
  • Page 56 Configuring This chapter explains to configuring the device. Context Sensitive Help Calibrating the Touch screen Display Adjusting LCD Brightness Rotating the Screen Adjusting Volume Setting Application Buttons Volume and Sounds Setting the Date and Time Power Configuration Battery Tab Power Off Tab Memory Configuration Memory Allocation &...
  • Page 57 Context Sensitive Help Microsoft WindowsCE context sensitive help is available for those configuration applets where a “?” button appears in the upper right hand corner of the dialog box. Press the “?” button to open the help window. Figure 1. Using WindowsCE. Net Context Sensitive Help...
  • Page 58 Calibrating the Touch screen Display It is possible that you might need to recalibrate the touch screen (i.e. when you notice that when you select one item with the stylus, another item is selected). To recalibrate the touch screen, complete the following steps: Press Enter button with Fn Key.

  • Page 59: Adjusting Volume

    Adjusting Brightness The Backlight factory default is maximum status. But, user can feel uncomfortable. At this moment we can try to control the Backlight. This will make the bright ness change. Press Right or Left on the Navigation button with Fn Key. You can see the brightness change.
  • Page 60 Volume and Sounds Select the Start > Settings > Control Panel > Volume & Sounds Properties to open the Volume settings. Set the volume by adjusting the slider from Soft to Loud. Enable the desired sounds for key Clicks, screen taps, notifications, and applications.
  • Page 61 Setting the Date and Time In this control panel, you can change the year, month, date, time, time zone, or select automatic adjust for daylight savings time. To set or change the date and time: Select Start > Settings > Control Panel > Date/Time. Select the month to open a pulldown list of months or press the arrow buttons on either side of the month to increase or decrease the month.
  • Page 62 Figure 1. Date and Time setting...
  • Page 63 Power Configuration To adjust power management settings, select Start > Settings > Control Panel > Power. Use this control panel to check the charge on the battery or to change the Power settings. Battery Tab The Battery tab provides power indicators for External power, Main battery, and Backup battery.
  • Page 64 Scheme Tab The Scheme tab allows you to determine the idle duration and suspend mode initiation to save battery power. To save your settings, press OK from the command bar, or press the <Enter> key on the keypad. Figure 1. Power Setting...
  • Page 65 Memory Allocation & Usage Adjust the Memory Allocation with the following steps: Select Start > Settings > Control Panel > System Properties. Select the Memory tab. Move the slider to adjust memory allocation. Press the OK button, or the <Enter> key on the IT-6000 Figure 1.
  • Page 66 Networks and Communications This chapter explains the network and communications setting. SNMP Installing & Setting Up the IT-6000 IrDA Dock Driver IrDA Driver Installation Setting up the IrDA Port Installing & Setting Up Microsoft® ActiveSync Microsoft® ActiveSync Using ActiveSync Setting up a Partnership Transferring Files ActiveSync File Synchronization Networking...
  • Page 67 SNMP SNMP (Simple Network Management Protocol) is the standard protocol for managing devices on a network. The Firmware Management Utility (FMU) makes use of SNMP to send and receive configuration information to the terminals. Since the networked terminals are constantly running SNMP, this allows FMU to interface with the terminal at any time, without requiring user intervention on the terminal.
  • Page 68 to cancel the installation of ActiveSync. Once ActiveSync is installed, it will attempt to connect to the device; allow it to fail on the first attempt. Reboot your PC. Open ActiveSync. Select File > Connection Settings from ActiveSync’s menubar. Enable the Allow serial cable or infrared connection to this COM port check box.
  • Page 69 Using ActiveSync Use ActiveSync to transfer and synchronize files between the device and the Host PC. Setting up a Partnership During the Microsoft ActiveSync installation, you were prompted to create a partnership with your mobile device. When you set up a partnership, you select synchronization and file conversion settings, which are contained in a file on your desktop computer.
  • Page 70 ActiveSync File Synchronization ActiveSync file synchronization requires an ActiveSync partnership between the IT-6000 and the Host PC. Select the files in the synchronization configuration for the IT- 6000 partnership. Select Tools > Options from the ActiveSync command bar to configure the synchronization options. Place the file to be synchronized in the Synchronization folder created in your My Documents directory.
  • Page 71 Network and Dialup Connections Select Start > Settings > Network and Dialup Connections. Double-tap on the WLAGS46B1 item (this will vary based on installed radio manufacturer and number of connections). Complete the two tabs: • IP Address: Select DHCP or set static IP settings. •...
