Direct power BP11240 Safety And Operating Manual

24v combi drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

SAFETY AND OPERATING MANUAL
24V COMBI DRILL
BP11240

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP11240 and is the answer not in the manual?

Questions and answers

Summary of Contents for Direct power BP11240

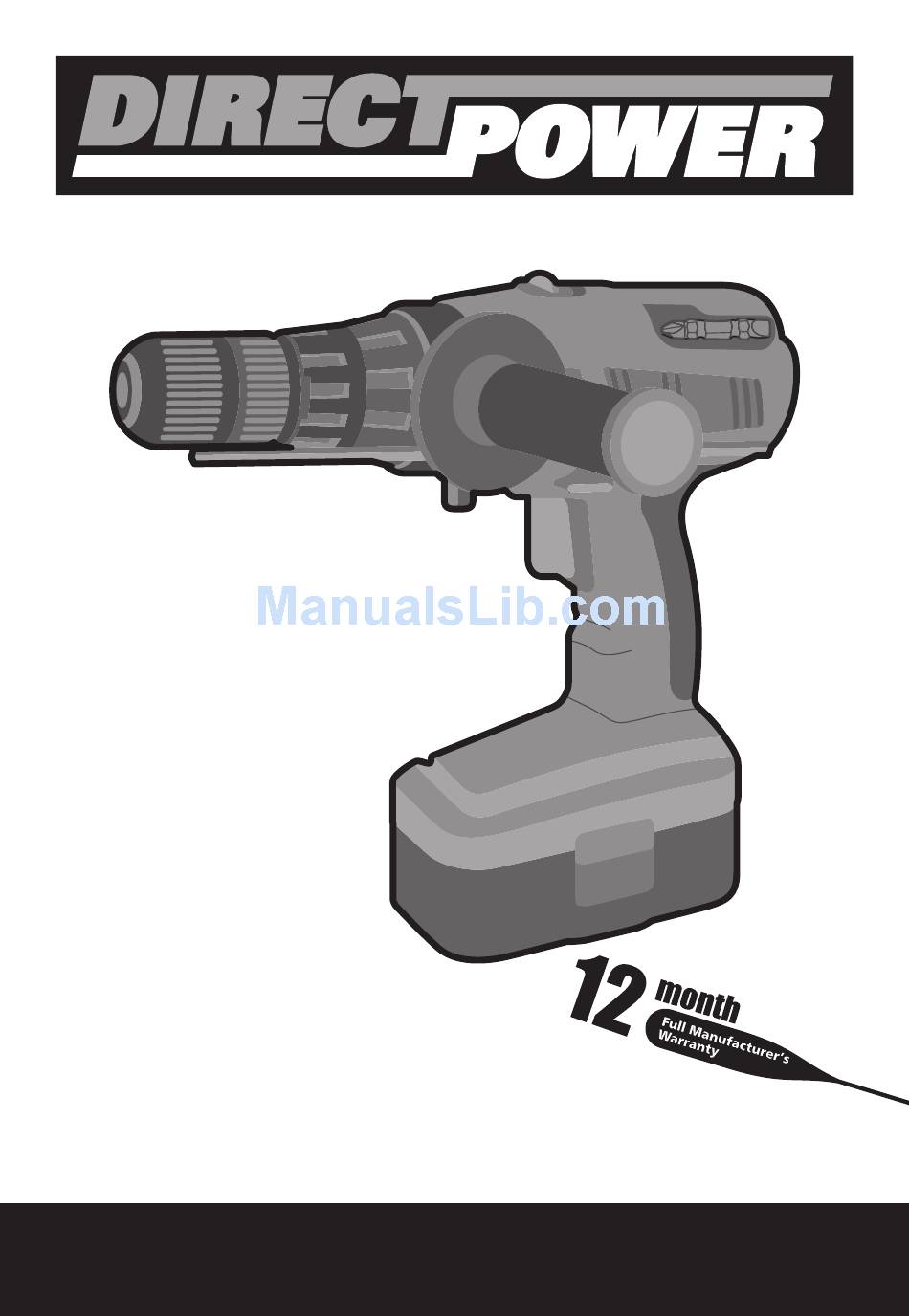

  • Page 1 SAFETY AND OPERATING MANUAL 24V COMBI DRILL BP11240...
  • Page 3 This guarantee does not affect your statutory rights.This guarantee is only valid in the UK. For further technical advice, spare parts or repair service (outside of guarantee) please contact the customer helpline number on 0845 607 6380. 24V COMBI DRILL BP11240...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS WARNING! Read all instructions.Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVETHESE INSTRUCTIONS 1. Work area. a. Keep work area clean and well lit. Cluttered and dark areas invite accidents. b.
  • Page 5 When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the 24V COMBI DRILL BP11240...

  • Page 6: Health Advice

    battery terminals together may cause burns or a fire. e.Battery leakage may occur under extreme usage or temperature conditions. If battery fluid comes into contact with skin, wash with soap and water and rinse with lemon juice and vinegar. If the fluid comes into contact with the eyes, flush with water for several minutes and contact a doctor immediately.
  • Page 7 SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection 24V COMBI DRILL BP11240...
  • Page 8 1. VARIABLE SPEED TRIGGER SWITCH 2. FORWARD REVERSE SWITCH 3. TORQUE ADJUSTMENT RING 4. HAMMER/DRILLING MECHANISM 5. KEYLESS DRILL CHUCK 6. HANDLE 7. DEPTH GAUGE LOCKING SCREW 8. DEPTH GAUGE 9. TWO SPEED GEAR BOX SELECTOR 10. BUBBLE LEVEL 11. BIT STORAGE (ONE EACH SIDE) 12.

  • Page 9: Technical Data

    2pcs Charger: Drill bits: 6pcs(1.5 , 2.5 , 3 , 4 , 5 , 6 mm) Screwdriver bits: 8pcs 2 Pozi , 2 PH , 2 Flat , 2 Double ended 4/5mm PH2/6mm Flat Bit adaptor: 24V COMBI DRILL BP11240...
  • Page 10 Charger plug Mains socket Battery pack Fig 2 Charger Charging indicator (red) Power indicator (green) Charging start button Fig 3 Torque up Fig 4 Fig 5...

  • Page 11: Operating Instructions

    Drilling:Turn switch to drill symbol. Hammer:Turn switch to hammer symbol. -When drilling brickwork and stone: Switch to hammer and use a suitable tungsten carbide tipped masonry drill bit. -When drilling tiles: Switch off hammer mechanism. Fig 9 24V COMBI DRILL BP11240...

  • Page 12: Drilling Wood And Plastic

    3. KEYLESS CHUCK-FITTING/REMOVING DRILLS To fit or remove a drill or adaptor open chuck by holding the bottom part of the chuck with one hand, and with the other hand turn the top part of the chuck anti-clockwise to open. Insert drill, drill must reach the bottom of the chuck.Turn top chuck clockwise to tighten.
  • Page 13 4. Keep the drill in line with the hole. Ideally, the drill bit should enter at right angles to the work. If the angle is changed during drilling, this could cause the bit to snap off blocking the hole and perhaps causing injury. 24V COMBI DRILL BP11240...

  • Page 14: Troubleshooting

    3.SCREWDRIVING 1. It is advisable to drill a pilot hole first, slightly longer and just smaller than the shank diameter of the screw to be fitted.The pilot hole will act as a guide for the screw and will also make tightening of the screw less difficult.
  • Page 15 10.The charger will get warm during charging This is normal, it’s a result of the stepping down of the main supply from 230Vac to 24Vdc. 24V COMBI DRILL BP11240...

  • Page 16: Environmental Protection

    ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. PLUG REPLACEMENT The fuse in the main plug of your fast charger always is replaced with one of identical rating.
  • Page 17 24V COMBI DRILL BP11240...

  • Page 18: Declaration Of Conformity

    Yeovil BA 22 8RT Declare that the product COMBI DRILL BP11240 Complies with the essential health and safety requirements of the following directives: 89/336 EEC, 93/68 EEC. –EMC Directive. 73/23 EEC, 93/68 EEC. –Low Voltage Directive 98/37 EC. –Machinery Directive.
  • Page 19 24V COMBI DRILL BP11240...
