ACI Farfisa Single Channel DVR User Manual

Single channel digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Thank you for purchasing our product.
Please read this user manual before
using the product.
STAND-ALONE DVR
Single Channel Digital Video Recorder
Comply with Multiplexers

User manual

VER 1.0
Single channel
stand-alone DVR
Best solution to replace Time Lapse VCR in use with Multiplexer
ALL ABOUT IMAGE RECOGNITION & PROCESSING

Advertisement

Table of Contents
loading

Summary of Contents for ACI Farfisa Single Channel DVR

  • Page 1: User Manual

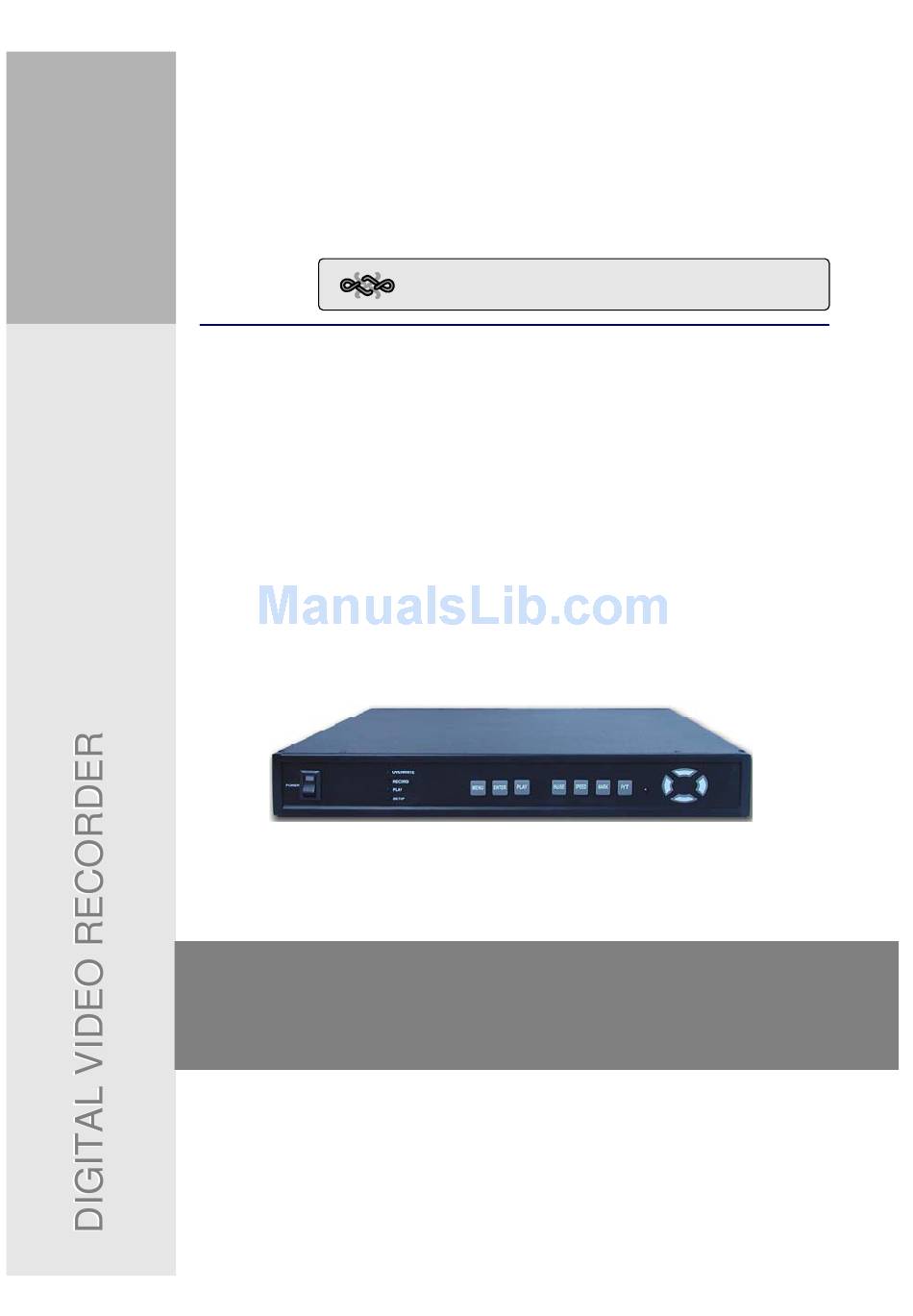

    Thank you for purchasing our product. Please read this user manual before using the product. STAND-ALONE DVR Single Channel Digital Video Recorder Comply with Multiplexers User manual VER 1.0 Single channel stand-alone DVR Best solution to replace Time Lapse VCR in use with Multiplexer ALL ABOUT IMAGE RECOGNITION &...
  • Page 2 1 channel stand-alone DVR SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This label may appear on the bottom of the unit due to space limitations. The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “...

  • Page 3: Table Of Contents

    1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING Table of Contents ………………………………………………… 1. About user manual …………………………………… 2. Before reading this document …… 3. Unit description …………………………………………………… 1) Front panel …………………………………………………… 2) Rear panel …………………………………………………………… 4. Installation …………………………………………………………… 5.

  • Page 4: About User Manual

    1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 1. About user manual. Before installing stand-alone DVR, be sure to carefully read and follow instructions in this User manual. Pay particular attention to the parts that are marked NOTICE. Also, when connecting with external devices, first turn off the power OFF and follow manual instruction for proper installation 2.

  • Page 5: Unit Description

    3. Unit description 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 3. Unit description 1) Front panel POWER OVERWRITE RECORD PLAY SETUP MENU ENTER PLAY PAUSE SPEED MARK 1. POWER SWITCH WITH LED : DC power switch with LED 2.

  • Page 6: Rear Panel

    3. Unit sedcription 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 2) Rear panel TRIGGER ETHERNET CAMERA TERATRAY CONNECTION r k s DC 12V LOOP MONITOR 1. TERATRAY CONNECTION : Connects to HDD Bay(Tera-Tray) 2. TRIGGER : Connects to trigger output of multiplexer(recording syncronize) 3.

  • Page 7: Installation

    4. Installation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 4. Installation 1) Camera connection Connect camera to the CAMERA INPUT on the rear panel of the system. LEVEL VIDEO CAMERA VIDEO LENS AC24V/DC12 DC 12V LOOP MONITOR Rear view of camera Notice : This DVR system automatically detects video system of camera you connected to the unit when you boot DVR system first.
  • Page 8 4. Installation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 3) Monitor(S-VHS) connection Connect S-VHS monitor to MONITOR OUT(S-VHS) on the rear panel of the system. CAMERA VIDEO PRINTER DC 12V LOOP MONITOR 4) TRIGGER connection Connects to TRIGGER port of MULTIPLEXER if your multiplexer has TRIGGER OUT, in case you replace time lapse VCR used in connection with multiplexer.
  • Page 9 4. Installation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 5) Network connection Connects to HDD Bay(Tera-Tray), Multiplexer, or Network TRIGGER ETHERNET TERATRAY CONNECTION r k s Connect to Connect to Connect to HDD BAY multiplexer IP network Notice : TERATRAY CONNECTION is only for HDD Bay, Tera-Tray.
  • Page 10 4. Installation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 7) Power connection Connect the power to the POWER CONNECTION on the rear panel of the system, and turn on the switch. DC 12V 8) Turn on the POWER and Log-in the the system Follow direction in the Log-in part of this manual to input the PASSWORD and start the system.

  • Page 11: Operation

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 5-1. Log-in 1. Log-in Enter the password LOGIN DVR SYSTEM default P/W : 1 < > PASSWORD 1,2,3,4 : INPUT PASSWORD MENU : ERASE PASSWORD ENTER : ENTER OR EXIT Input or modify 1) Press [MENU] button to enter the system menu after starting the system.

  • Page 12: Record

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 5-2. Recording Indicate recording speed. 60FPS : Records 60 fields/sec REC : Represent current mode is MOTION REC : Records when motion is detected Indicates current time on recording. 001MUX : Records in connection with multiplexer 2002 / APR / 01 AM 04:34:54...
  • Page 13 5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 3. Sensor recording 1) When there is sensor input, recording starts. 2) It records for preset period of time. RECORD SETUP ALARM SETUP HDD CLEAR : NO HDD FULL : OVERWRITE Or set at ALARM SIGNAL...

  • Page 14: Play

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 5-3. Play S (START) : Start of recording Indicates E (END) : End of recording recording is G (GOTO) : Set time from which stopped playback starts 1. How to replay 1) Press [PLAY] button to begin playback.
  • Page 15 5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING Press Press 1X PLAY SPEED 1X PLAY SPEED 2X PLAY SPEED 1/2 PLAYSPEED 4X PLAY SPEED 1/4 PLAYSPEED 8X PLAY SPEED 1/8 PLAYSPEED 16X PLAY SPEED 1/16 PLAYSPEED Indicate playback speed 4.

  • Page 16: Setting

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 5-4. SETUP 1. Start of SETUP SYSTEM SETUP DISPLAY SETUP CAMERA SETUP TIME/DATE SETUP ALARM/MOTION SETUP RECORD SETUP TCP/IP SETUP MISCELLANEOUS FACTORY DEFAULT SELECT UP/DOWN , ENTER Display of SYSTEM SETUP 1) Press [MENU] button.

  • Page 17: Display Setup

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 2. DISPLAY SETUP This is about the contents displayed on the display screen. 2002/ARP12 AM 07:40:38 DISPLAY SETUP 60FPS REC TIME/DATE : ON CAMERA TITLE : ON PB TIME/DATE : ON PB CAMERA TITLE : ON...

  • Page 18: Camera Setup

    3. CAMERA SETUP SYSTEM SETUP DISPLAY SETUP TITLE SETUP : Input title of camera. CAMERA SETUP TIME/DATE SETUP ALARM/MOTION SETUP CAMERA TITLE SETUP RECORD SETUP Press [ENTER] button then move to any location you TCP/IP SETUP MISCELLANEOUS 0 1 2 3 4 5 6 7 8 9 . , < > ( ) A B C D FACTORY DEFAULT E F G H I J K L M N O P Q R S T U V W X Y Z a b...

  • Page 19: Time/Date Setup

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 4. TIME/DATE SETUP SET TIME/DATE : Sets year/month/day/hour/minute/second SET TIME/DATE YEAR MONTH SYSTEM SETUP 2002/APR/15 HOUR PM 09:23:17 DISPLAY SETUP MINUTE CAMERA SETUP TIME/DATE SETUP SET TIME/DATE SECOND ALARM/MOTION SETUP SET TIME/DATE TYPE RECORD SETUP...

  • Page 20: Alarm/Motion Setup

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 5. ALARM/MOTION SETUP ALARM SETUP : Sets type of sensors connected to DVR unit. ALARM SETUP SYSTEM SETUP : N.C > ALARM SIGNAL DISPLAY SETUP CAMERA SETUP ALARM DURATION : 20 SEC TIME/DATE SETUP ALARM/MOTION SETUP...
  • Page 21 5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 1. SORT : Originally the list shown is arranged in the sequence of date and time. If you press [ENTER] button, list shall be rearranges in the sequence of ALARM, LOSS, and MOTION. 1) DATE/TIME : Order in data and time 2) ALM : Order in type (ALARM, LOSS, MOTION) 2.
  • Page 22 5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING MOTION MASK SETUP : Sets detection area in picture taking area. Shown when EDIT : SELECT EACH CELL setting blocks <P/T> : CHANGE EDIT <ENTER> : MASK ON/OFF SYSTEM SETUP ALARM SETUP DISPLAY SETUP...

  • Page 23: Record Setup

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 6. RECORD SETUP RECORD SETUP > : NO HDD CLEAR : OVERWRITE HDD FULL SYSTEM SETUP RECORD MODE : TIMER RECORD SPEED : 60FPS DISPLAY SETUP MUX CH NUMS : 16CH CAMERA TITLE TIME/DATE SETUP...

  • Page 24: Tcp/Ip Setup

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 7. TCP/IP SETUP TCP/IP option of stand-alone DVR enables users to see live pictures and search recorded pictures via IP network, far apart from DVR unit. It is also possible to control PTZ camera while you see live pictures. To see live pictures or search recorded pictures, users must assign static IP address to DVR together with Gateway and Subnet mask, and install Remote Viewer program in client PC from which you are going to access to DVR unit.

  • Page 25: Miscellaneous Setup

    5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 8. MISCELLANEOUS SETUP MISCELLENEOUS SETUP SYSTEM SETUP BUZZER SETUP ID/PW SETUP DISPLAY SETUP SCHEDULE REC SETUP CAMERA TITLE PANTILT CMD SETUP TIME/DATE SETUP ALARM/MOTION SETUP HDD INFORMATION RECORD SETUP MARK IMAGE SETUP TCP/IP SETUP MISCELLANEOUS...
  • Page 26 5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING SCHEDULE REC SETUP TIME/DATE INPUT SETUP > DATE : 02―04―7 Select data SYSTEM SETUP START ― END ON/OFF DISPLAY SETUP CAMERA TITLE 00 : 00 ― 24 : 00 ―...
  • Page 27 5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 3. Example of schedule setting 01:00-03:00 ON 04:00-05:00 ON Just record from 1 to 3 and from 4 to 5, and does not record for the rest of hours. 01:00-03:00 OFF 04:00-05:00 OFF Just not record from 1 to 3 and from 4 to 5, and record for the rest of hours.
  • Page 28 5. Operation 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING HDD DATA LIST SIZE : 61.4GB , 53.9GB HDD space. Used space TYPE : NORMAL FRAME : 398947 SYSTEM SETUP START : 02/04/07 07:40:38 Start and end of recording : 02/04/07 14:11:56 DISPLAY SETUP >...

  • Page 29: Hdd Bay

    6. HDD BAY 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 6. HDD BAY 1. HDD EXTENSION Default HDD installed in DVR unit 1) 1~2 HDDs as per customer requirements 2) EIDE, 3.5 inch, 7200 rpm, LBA mode type 3) HDD capacity : Up tp 120GB/unit Compatibility with up to 120GB confirmed 2.

  • Page 30: Specification And Configuration

    7. Specification 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 7. Specification 1. SPECIFICATIONS MODEL NO Single channel stand-alone DVR INPUT 1 CH INPUT 1.0 VP-P, 75 OHM UNBALANCED (BNC TYPE) OUTPUT 2 OUTPUT VBS : 1.0VP~P.75 OHM UNBALANCED (BNC TYPE) VIDEO I/F HORIZONTAL RESOLUTION 500TV LINES...

  • Page 31: Configuration

    7. Specification 1 channel stand-alone DVR ALL ABOUT IMAGE RECOGNITION & PROCESSING 2. Configuration of single channel stand-alone DVR 3. Arrangement of RS-484 and RS-232C pic and RS-232C Hex-codes table Hex-code table : Following ASCII codes are for programmers who want to control the DVR unit via RS-232C port. If you connect to RS-232C, you can operate DVR unit using key board of PC, in addition to operation using operation buttons on the front of DVR unit.
  • Page 32 ACI srl Farfisa Intercoms Via E. Vanoni,3 - 60027 - OSIMO - AN - Italy Tel. (+39) 071 7202038 - Fax (+39) 071 7202037 Email: info@acifarfisa.it http://www.acifarfisa.it ALL ABOUT IMAGE RECOGNITION & PROCESING...
