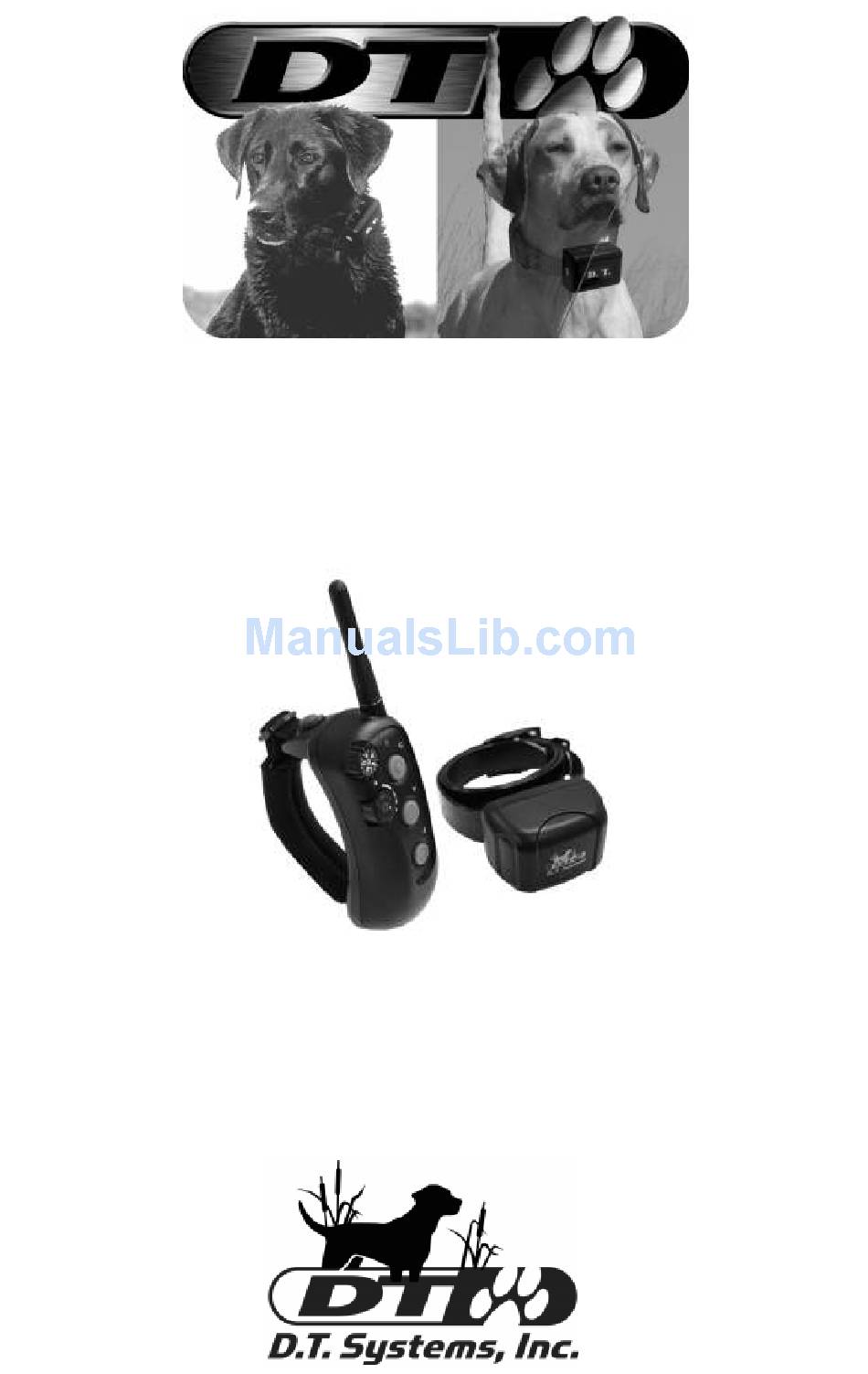

- Page 1 R.A.P.T. Series with SmartLED Owner’s Manual • R.A.P.T. 1400 • R.A.P.T. 1400 CoverUp...
- Page 2 IMPORTANT NOTE: Please read this owner’s manual in its entirety before operating this unit. Should you have any questions about our collars or their operation please contact our Customer Service department (see back page for address and phone number information). NOTICE! According to how you use your transmitter, the transmitting range...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents ..........3 • Introduction............4 • Package Contents ..........5 • Model Features ...........5 • Parts & Functions ..........6 • SmartLED............11 • Charging the Batteries ........12 • Turning ON and OFF ..........13 • Testing..............14 • Re-Thread SureGrip Strap .. -
Page 4: Introduction
The new D.T. Systems R.A.P.T. 1400 collar is the result of over 30 years of experience researching, producing, and field testing the best E-collars in the business. D.T. Systems. Dog Tested, Dog Tough Since 1983. -
Page 5: Package Contents
PACKAGE CONTENTS • Transmitter with Antenna and Lanyard • Collar Receiver • NiMH Batteries for Collar (already installed) • Battery Charger • Triple-Jack Splitter/Adaptor Cable for charging • Test Light • Owner’s and Training Manuals MODEL FEATURES • PATENTED Curved Transmitter for one finger operation •... -
Page 6: Parts & Functions
PARTS & FUNCTIONS Antenna Intensity Level Dial Rapid Access Button (default Nick Stim.) LED Indicator Light Continuous Stimulation Button Collar Selector Dial with Lockout Vibration Button Jump Button SureGrip Strap Magnet ON/OFF Switch (white dot) Battery Cover Lanyard Connection Transmitter Transmitter Antenna - Always check that the Antenna is securely fastened to the transmitter before each use. - Page 7 PARTS & FUNCTIONS Dial - The Intensity Selection intensity selection dial can be set from level 1 to level 16 to find the exact stimulation level for your dog (see page 18). LED Indicator Light - The LED lights while pressing any of the Transmitter buttons.
- Page 8 PARTS & FUNCTIONS Vibration and Jump Buttons - Pressing the Vibration Button makes the collar vibrate only. Pressing the Jump Button makes the collar give a ‘Jump’ Stimula- tion, making the intensity level instantly “jump” to a user-programmed intensity level (see page 18). Magnetic ON/OFF Switch - White dot on Transmitter indicating location of the magnet used to power ON/ OFF the Collar Unit.
-
Page 9: Collar Receiver
PARTS & FUNCTIONS Buckle Contacts Charging Receptacle Magnetic ON/OFF Activation Switch Collar Belt with SmartLED MAXX-Range™ Indicator Light 360 Antenna Collar Receiver Magnetic ON/OFF Activation Switch - Raised dot turns the Collar Receiver unit ON and OFF (see page 13). Collar SmartLED Indicator Light - Shows charging status and battery life status (see page 11). - Page 10 PARTS & FUNCTIONS Collar Belt with MAXX-Range™ 360 Antenna - The embedded MAXX-Range™ Antenna is woven into the collar belt and runs along the entire length of the belt, providing extended range without the drawback of an external antenna. Because it wraps around the neck along with the collar belt, the MAXX-Range Antenna provides 360˚...
-
Page 11: Smartled
New batteries may also initially give an error light. Contact D.T. Systems if the problem persists after a few charging sessions. Transmitter Battery Indicator - The LED lights while pressing any of the Transmitter buttons. -
Page 12: Charging The Batteries
CHARGING THE BATTERIES All R.A.P.T. Series collar units are equipped with rechargeable Nickel Metal Hydride (NiMH) batteries, which are not memory sensitive and do not require depletion before recharging. Although batteries come partially charged from the factory, it is recommended that they are given a full charge (about 12 hours) before initial use. -
Page 13: Turning On And Off
TURNING ON AND OFF The Transmitter is always in a permanent sleep state. It is only ON when a button is being pressed and does not need to be turned off by the user. If the Transmitter does not activate, make sure you have a good battery installed and that your Collar Selector Dial is not in the Lockout position. -
Page 14: Testing
TESTING If the collar unit is not responding to any signals NOTE: from the transmitter, the collar may need to be repro- grammed to the transmitter (see page 16). Before testing, make sure that both units are fully charged and the power to the Collar Receiver is “ON”. To Test the Electronic Stimulation: 1. -
Page 15: Re-Thread Suregrip Strap
Re-Thread SureGrip Strap 1. With the buckle of the strap facing outwards, thread the sure- grip strap through the bottom 2. Thread both sides of the suregrip strap through the neo- prene loop. 3. Thread loose end (non- buckle end) of the strap through the top guide. -
Page 16: Programming The Collar
PROGRAMMING THE COLLAR When adding an “Add-On” collar, the collar will need to be programmed to the transmitter. If your current collar unit is not responding to the transmitter, it may also need to be reprogrammed to the transmitter. 1. Select the desired Collar Selecting Switch position on the transmitter. -
Page 17: Properly Fitting The Collar
PROPERLY FITTING THE COLLAR NOTE: Proper collar tightness and position are very important to insure safe and consistent collar use. All electronic collars need to be very snug around the dog’s neck to work properly. They must be just tight enough to allow the “contacts”... -
Page 18: Setting The Intensity Level
SETTING THE INTENSITY LEVEL It is very important to set the correct intensity level on your R.A.P.T. Training System before beginning your training sessions to provide the proper level of stimulation without over-stimulating your dog. 1. Place the Intensity Selection dial so that the system is set on Level 1. -
Page 19: Setting The Rapid Access Button
SETTING THE INTENSITY LEVEL Setting the Jump Stimulation Level (cont.): 1. Press and hold Button Jump button. 2. While holding the Jump button, turn the Intensity Dial to the desired Jump stimulation level. The LED will start flashing to indicate that you are programming the Jump stimulation level 3. -
Page 20: Maintenance
MAINTENANCE It is very important to periodically clean your R.A.P.T. system for maximum performance. Regular Series cleaning will also lengthen the life of your unit. Clean the collar box, belt and buckle with lukewarm • water and a mild anti-bacterial soap. Thoroughly clean the space between the electrodes •... -
Page 21: Important Safety Notes
IMPORTANT SAFETY NOTES Before training with this unit, your dog’s health • should be examined by a veterinarian. Do not use with aggressive-tempered dogs. • Your R.A.P.T. Series collar is a very valuable tool • • • • if used correctly. It is extremely important that you completely understand all the functions of the collar and how to properly train with it before placing it on your dog. -
Page 22: Warranty
(with your original sales receipt) to D.T. Systems within 30 days of purchase. • Your unit must be sent to D.T. Systems for all warranty issues. • There is no charge for parts or labor for the first year on any of our lifetime warranty products. -
Page 23: Fcc/Ic/Ce Compliance
Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d'Industrie Canada. Declaration of Conformity (Directive 1999/5/EC) D.T. Systems, Inc. declares that the R.A.P.T. Series products are in compliance with the essential requirements under Article 3 of the R&TTE Directive 1999/5/EC by application of the following standards: Article 3.1(a) - EN 60950-1... -
Page 24: Contact Information
2872 Walnut Hill Lane Dallas, Texas 75229 Tel: (214) 350-9446, (888) 588-8364 Fax: (214) 350-7847 Website: www.dtsystems.com E-mail: customerservice@dtsystems.com 1-RAPT 2013.04.20 Printed in Korea...
