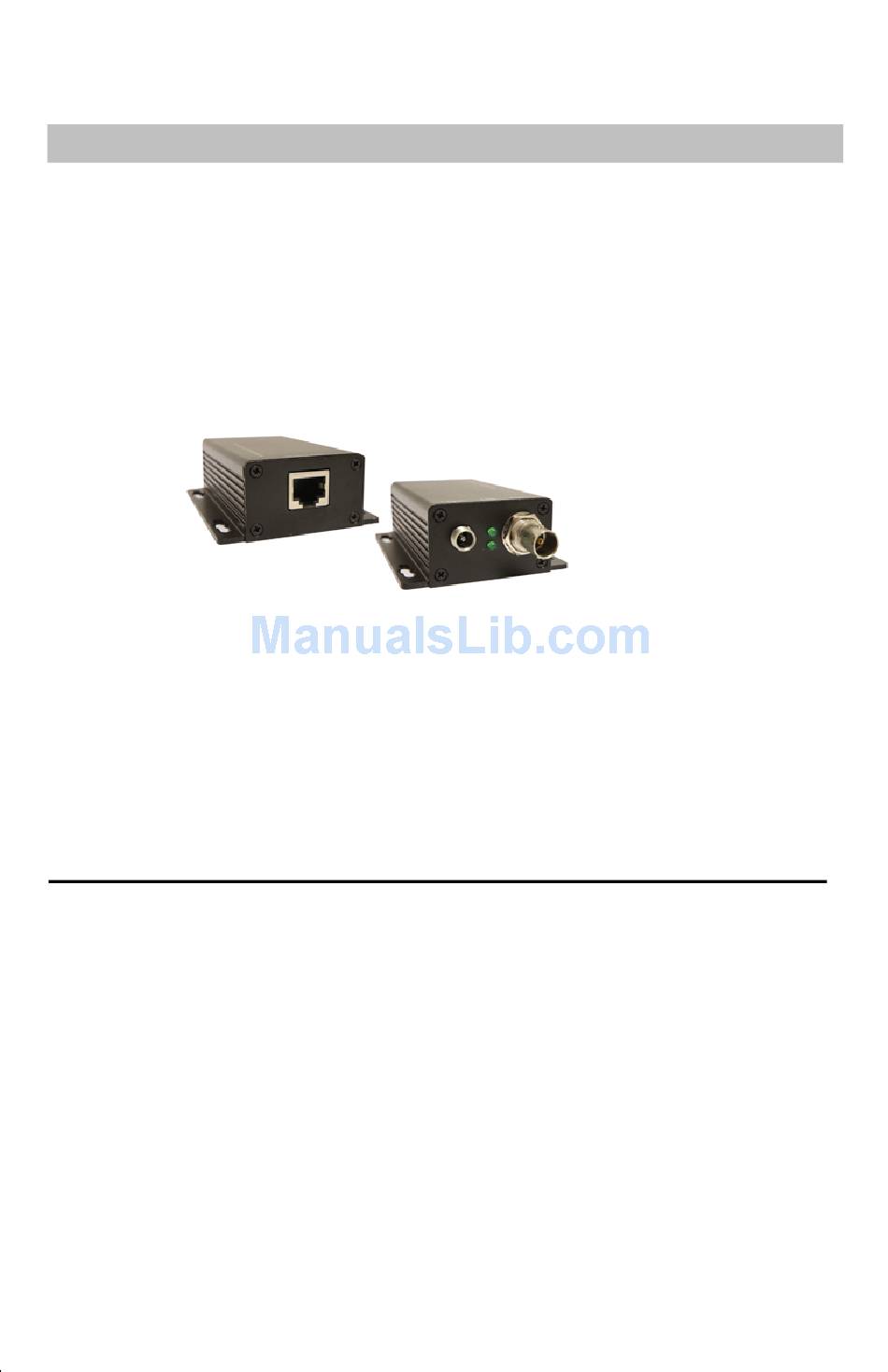

SDI Video Extender over CAT5 / 6
This kit allows HD-SDI to be transmitted up to 45m / 147ft via CAT5/CAT6 cab le in a point-to-point
configuration. The SDI-UTP Extender supports transmission of up to 1.485 Gbps uncompressed,
un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television
facilities and between professional video equipment.
Features
•
Up to 35m / 114ft via CAT5e cable
•
Up to 45m / 147ft via CAT6 cable
•
Supports SDI‐SMPTE 259M‐C (270Mbps);
•
HD‐SDI‐SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
•
LED diagnostics: sync, SDI detect
•
5V~24V DC
User Manual
VHD-CAT5-CONV
NOTE: The casing design
is subject to change
without notice.
R201209‐V2.1
..
ND11
Advertisement
Summary of Contents for Videcon VHD-CAT5-CONV
- Page 1 User Manual SDI Video Extender over CAT5 / 6 VHD-CAT5-CONV NOTE: The casing design is subject to change without notice. This kit allows HD-SDI to be transmitted up to 45m / 147ft via CAT5/CAT6 cab le in a point-to-point configuration.
- Page 2 Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. ...
-
Page 3: Application Diagram
4. Objects and liquid entry Never push objects of any kind into this product as this may touch dangerous voltage points of short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the product. 5. Cleaning Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning. 6. Servicing Do not attempt to service this product by yourself as opening or removing covers may expose you to dangerous voltage or other hazard s. Refer all service to qualified servicing personnel. Package Contents .. One (1) VHD-CAT5-CONV-TX One (1)(VHD-CAT5-CONV-RX One (1) User Manual 4. One (1) AC Adapter ... -
Page 4: Hardware Installation
2. Connect SDI signal source to SDI IN of VHD-CAT5-CONV-TX via coaxial cable. 3. Connect Cable to RJ-45port of VHD-CAT-CONV-TX， and connect another side Cable to RJ-45 port of VHD-CAT5-CONV-RX 4. Connect the SDI OUT port of VHD-CAT5-CONV-RX to display device by coaxial cable ... -
Page 5: Technical Specifications
Technical Specifications .. VHD-CAT5-CONV-TX VHD-CAT5-CONV-RX Model Type Transmitter Receiver Standard Supported SMPTE 259M (270Mb/s), SMPTE 292M Speed 270Mb/s, 1.485Gb/s (automatic selection) HD: 720p@23.98 Hz, 720p@24 Hz, 720p@25 Hz, 720p@29.97 Hz, 720p@30 Hz, 720p@50 Hz, Support Input Format 720p@59.94 Hz, 720p@60 Hz; 1080i@50 Hz, 1080i @59.94 Hz, 1080i @60 Hz; 1080p@23.98 Hz, 1080p @24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz Power on (on both end) Indicators Synchronisation detect (on both end) Link between the two unit working (on both end) 1x BNC 75 ohm female Connectors 1x RJ45S for CAT5e/6 unshielded or shielded twisted pair 1x power connector, 2.1mm All resolutions Maximum Distance ... - Page 6 Components Made in China for this product: Name of Component Manufacturer DC/DC Converter Richtek *Key components are listed by the manufacturer and are subject to change without notice Eye Diagram & Jitter Performance .. SD Mode ...
- Page 7 HD Mode ...
- Page 8 ...
- Page 9 MADE IN CHINA VHD-CAT5-CONV R201210‐V1 8 ...
