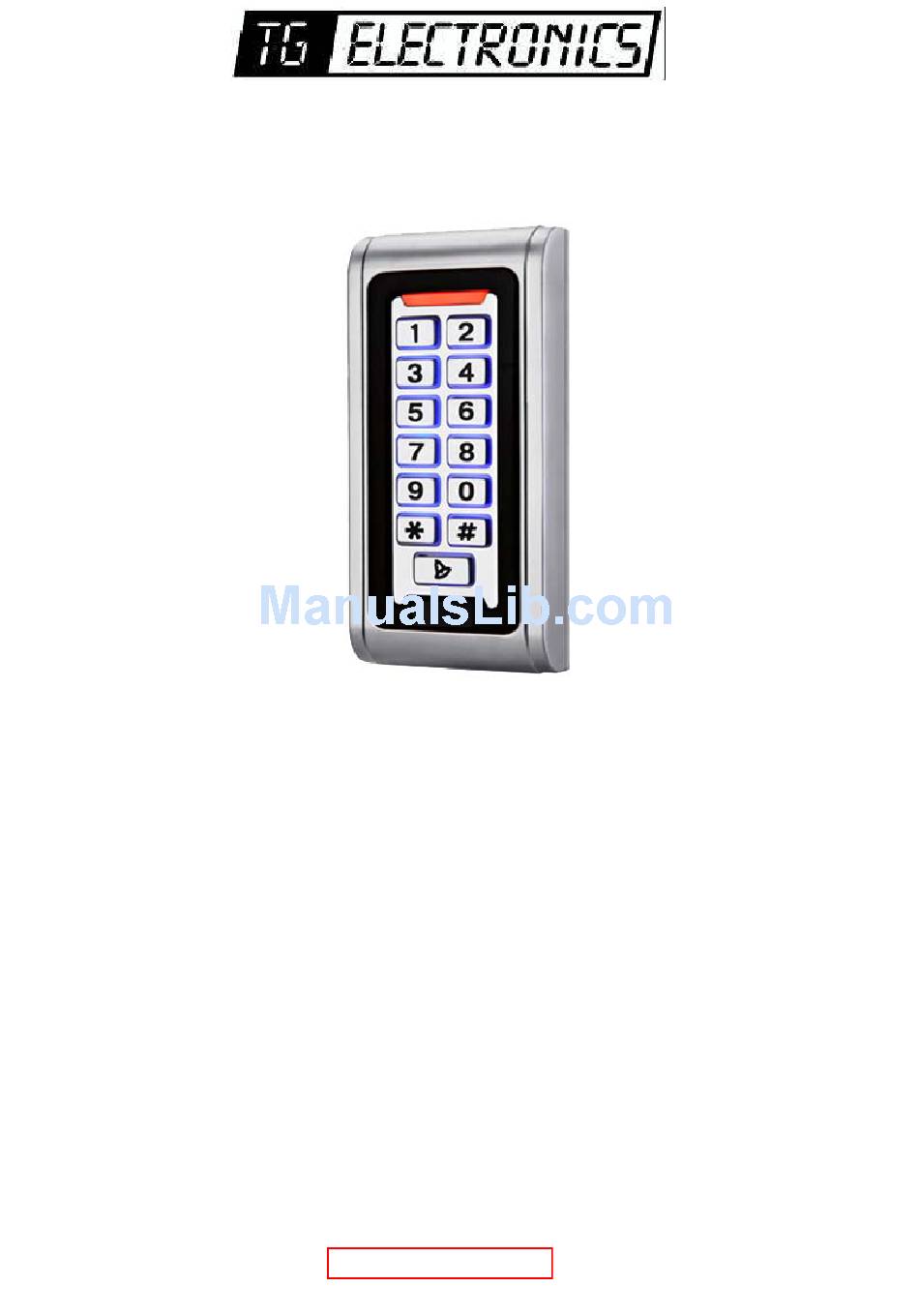

HSY-S212W Metal waterproof access control system
Reading carefully before Install and use this manual
1. Product Profile
The product is Contact-less inductive card Metal Password Access Controller, According to the model,
respectively support 125Khz EM cards, It is one of the most advanced stand alone access controller.
It uses unique metal exterior design, Dexterity keyboard panel operation, Built-in high-grade
microprocessors, Strong anti-interference ability, Safety and reliability is extremely high, can provide
a powerful security for 2,000 users. It has strong functions, such as low power consumption,
Luminous keyboard, independent passwords, wiegand26 output, the output short circuit protection,
door magnetic alarm, prevent demolition alarm, exit button, the doorbell interface, level of security
Settings, etc. widely used in home, office, residential area and other public places.
2. Features
Low power consumption: less than 30mA standby current
Luminous keyboard: the night can also operate keyboard
User capacity: support 2,000 users
User Manual
www.tgelectronics.no
Advertisement
Summary of Contents for TG Electronics HSY-S212W
-
Page 1: User Manual
HSY-S212W Metal waterproof access control system User Manual Reading carefully before Install and use this manual 1. Product Profile The product is Contact-less inductive card Metal Password Access Controller, According to the model, respectively support 125Khz EM cards, It is one of the most advanced stand alone access controller. - Page 2 Independent password: can use password which irrelevant with the card to open the door User modification password: Users can revise the door password Search speed: charge to open the door time less than 0.1 S. Output short circuit protection: electric lock or alarm output circuit within 100 μS when shut down automatically output Wiegand output: With Wiegand output interface，Wg26 card number or Wg4 buttons output...
- Page 3 Press 1 Eight card number # , Eight card number # , … Automatically increase, the user ID automatically generated by this machine, the range is 1 ~ 2000, and search from small to large. 4.2.3 Designated ID No swipe card increase: Press 1 ID Number # Reading card ，...
- Page 4 4.7.1 Shielding of the function (factory default) ： Press 6 # 。 4.7.2 Open the function ： Press 6 Open the function, two possibilities: If you open the door not closed properly, 1 minute, built-in buzzer alarm tone hair 4.7.2.1 tips, door or turn off automatically after 1 minute.
- Page 5 state Light Light Standby Slow flashing Buttons Success Di－ Failure DiDiDi Into Di－ Indicator is programming orange Set condition Exit Slow Di－ programming flash Unlock Di－ Alarm Fast Alarm flashing sound 8 Installation method, lead wire description and Cabling diagram 8.1 Installation method 8.1.1 On the wall of the aperture size machine on the pan is playing well with a hole, or installed 2 exisiting junction box plus connecting.(Figure 1)
- Page 6 BELL_A Pink Doorbell button one end BELL_B Pale blue The doorbell button to the other end Green WG output line D0 White WG output line D1 ALARM Grey Alarm negative (alarm positive connected + 12 v OPEN Yellow Exit button one end（Exit button the other end connected GND）...
- Page 7 Figure 3 Access Control Power Supply Cabling diagram 9 Packing list Name Model/specification Quantity Note Metal waterproof HSY-S212W access access control control User manual HSY-S212W access control Tapping screws Used for installation fixed Φ4mm×28 mm Stopper Used for installation fixed Φ6mm×30 mm...
