Summary of Contents for Watkins Solana

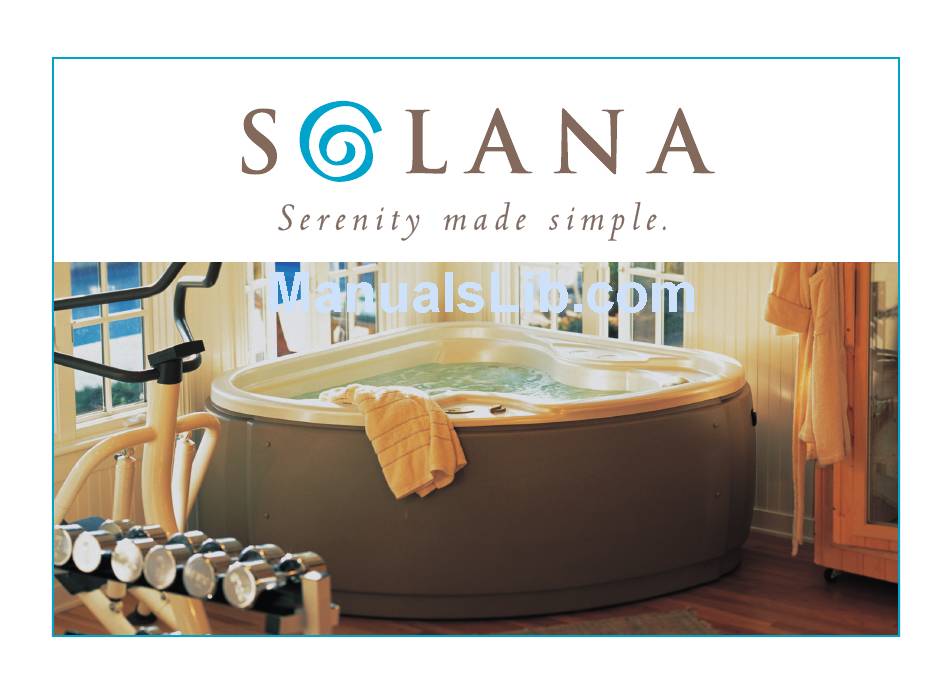

- Page 1 ™ ™ OWNER’S MANUAL Watkins Manufacturing Corporation...
- Page 3 Solana dealer. They are trained professionals who are familiar with the product as well as new ™ spa ownership concerns. Their expertise will facilitate the enjoyment of your new Solana spa. ™ The Serial Number/Identification label is located within the equipment compartment of your Solana spa.
- Page 4 Important! Important! unsupervised access to a pool (or spa) by children under 5 years of age. Your Solana spa is equipped ™ with a locking cover. As a general practice, your local Building Department will inform you of any applicable barrier requirements at the time a permit is obtained for the installation of an electrical circuit.
-
Page 5: Table Of Contents
Deck Installation Freshwater Silver Ion Purifier Replacement ® Outdoor Installation Chlorine (Sodium Dichlor) How to Move the Solana ™ Common Water Chemistry Questions How to Remove and Replace the Front Access Panel Water Terminology Spa Leveling Instructions VI. SERVICE INFORMATION... -
Page 6: Safety Information
• To reduce the risk of injury, lower water temperatures are recommended for young children. Children are especially sensitive to hot water. • Make sure you always lock the child resistant locks after using the spa for your children’s safety. Every Solana spa is equipped ™... - Page 7 ™ VOIDING THE ISK OF LECTROCUTION ANGER ISK OF ELECTROCUTION • Connect only to a grounded source. • Do not bury the power cord. A buried power cord may result in death or serious personal injury due to electrocution if direct burial-type cable is not used, or if improper digging occurs.
- Page 8 ™ the terminal box that is provided for this purpose if in accordance with National Electrical Code ANSI/NMFPA70-1993. • Do not permit any electrical appliances, such as a light, telephone, radio, or television within 5 feet (1.5 m) of a spa. Failure to maintain a safe distance may result in death or serious personal injury due to electrocution if the appliance should fall into the spa.
- Page 9 • Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulatory system problems or diabetes should consult a physician before using spa. NCLEAN WATER • Keep the water clean and sanitized with correct chemical care. The recommended levels for your Solana spa are: ™...
- Page 10 • Test the water with your hand before entering the spa to be sure it’s comfortable. AFETY Each Solana ™ spa is shipped with a SAFETY SIGN in the owner’s package. The sign, which is required as a condition of Product Listing, should be permanently installed where it is visible to the users of the spa.
-
Page 11: Important Spa Information
If you have an operational problem, carefully go through the steps outlined in the Troubleshooting section. If you are not able to resolve the problem, contact your authorized Solana Spa Dealer. Many problems can easily be ™... -
Page 12: Installation Instructions
Consult your local code authority to determine if an electrical outlet with a cover is required for your installation. If it is, a suitable outlet may be purchased from your Authorized Solana Dealer. Ask for Part #71591. -
Page 13: Deck Installation
Plus, a spa surrounded by dirt or grass will soon be filled with dirt or grass from users’ feet; therefore, it is important to get it onto a solid foundation as soon as possible. HOW TO MOVE THE SOLANA ™... -
Page 14: How To Remove And Replace The Front Access Panel
™ HOW TO REMOVE AND REPLACE THE FRONT ACCESS PANEL Your spa uses three panels that are attached to the frame. These panels are referred to as side panels and a front panel. The front panel is located below the control panel. Behind the front panel, you’ll find all the electrical components. The front panel is held onto the frame with six Phillip screws. -
Page 15: Spa Leveling Instructions
16" cord exits 3. Carefully lift and pivot the carpenter’s level (so as not to knock over your stack of shims) to the remaining corner. The Solana spa may be shimmed under any of the dimple locations ™ - Dimple locations in Base Pan shown in the bottom view of the spa. -
Page 16: Electrical Requirements And Precautions
115 volt 30 amp hard-wired configuration. The 30 amp configuration provides enough electrical current to allow the heater and the high speed jet pump to operate simultaneously. Conversion requires electrical modification within the control box (contact an authorized Solana Service Technician) and the installation of an electrical sub-panel (available from your Solana ™ ™... - Page 17 , note #3, on page 13. NSTALLATION OTES If you choose to convert your spa to 115 volt 30 amp operation (contact an authorized Solana Spa Service Technician to perform the ™ conversion), a licensed electrician must install the sub-panel (available from your Solana ™...
- Page 18 3. Using a pair of needle nose pliers, carefully move the JM1 jumper from pins 2 and 3 to pins 1 and 2 (see Figure 2). A licensed electrician must install the sub-panel (available from your Solana Spa Dealer) to supply ™...
- Page 19 ™ 30 A MP SUB PANEL WIRING INSTRUCTIONS NOTE: The sub-panel must be placed within 100 feet of the main electrical service panel, and between 5 and 50 feet away from the spa. Refer to the wiring diagram below. 1. Connect the #10 AWG, WHITE [NEUTRAL] wire from the main electrical service panel to the sub-panel NEUTRAL bar. 2.
- Page 20 If the GFCI breaker fails to operate in this manner, it is an indication of an electrical malfunction and the possibility of an electric shock. Disconnect the power until the fault has been identified and corrected. IMPORTANT: Should you ever find the need to move or relocate your Solana ™...
-
Page 21: Spa Specifications/Overhead View
™ SOLANA ™ VERHEAD PECIFICATIONS 8 Precision jets ® Moto-Massage ® Cupholders HORIZONTAL DIMENSIONS: 67” x 67” (170 cm x 170 cm) Armrest HEIGHT (without cover): 29” (74 cm) Spa pillow EFFECTIVE FILTER AREA: 30 sq. ft. (2.7 sq. meters) HEATER: 1000 watts (1.0 kW) -
Page 22: Equipment Compartment View
™ QUIPMENT OMPARTMENT 1. 1.0 kW Heater 2. Spa Drain Valve 3. Electrical Control Box 4. Compression Unions 5. Jet Pump... -
Page 23: Operating Instructions
• Do not add chlorine if treating your spa with polyhexamethylene biguanide (Biguanide, PHMB, eg. BaquaSpa™) sanitizer. 1. Close the drain, attach the drain cap and fill the spa with water through the filter compartment. The water level of your Solana ™... - Page 24 ™ jet system and remove any remaining air from the heating system, push the JETS button twice to make the jet pump run on high speed for one minute. Once the jet system is fully operational (as indicated by strong, non-surging jets), priming of the spa is complete.
-
Page 25: Heating And Hydromassage Systems
™ OPERATION NOTES: 1. The Solana ™ spa is equipped with a 10-minute Tranquil Mode timer delay on the heating/maintenance mode. Whenever the high speed mode of the jet pump has been turned off, it will take 10 minutes before the low speed of the jet pump and heater become activated, unless the JETS button is pushed again. - Page 26 20°F, the heater may not be able to raise the spa water to the desired temperature, and the heater and low speed cycle will run continuously, resulting in substantially higher operating costs. IMPORTANT: The 115 volt electrical system of the Solana spa is not convertible to a 230 volt system. Any modification to the original ™...
- Page 27 Should the Moto-Massage jet not achieve full vertical travel and the problem is ® ® not a closed air control valve, a pump set on low speed, or a clogged filter cartridge, then your Solana Spa Service Center should be ™ contacted.
-
Page 28: Safety Equipment
™ ® RECISION Precision Jets are in a group of eight. They are designed to perform a soft, soothing massage on your back and shoulders. Adjust their ® pressure using the Comfort Control lever. ® SAFETY EQUIPMENT A. GFCI: The Ground Fault Circuit Interrupter, located on the end of the power cord, is a safety device that is designed to sense as little as 5 milliamps of electrical current leakage to ground. -
Page 29: Comfort Control System
MAX allows for the same volume of air to flow to all ® ® Moto-Massage jets and Precision jets simultaneously. On the Solana ™ , the jet faceplate is then used to control the intensity of the ® ®... - Page 30 ™ C. TEMPERATURE CONTROLS: The set temperature range is from 50°F to 104°F (10°C to 40°C). The factory-set temperature of the spa water is 102°F (39°C). Whenever power is disconnected and then reconnected to the spa, the water temperature will automatically seek this temperature, unless you set it otherwise using the temperature controls. Pressing the Temp Plus (+) button displays the spa’s set temperature.
-
Page 31: Spa Care And Maintenance
3. Open the valve by turning the knob counterclockwise. The spa will drain almost completely by gravitational flow. Any remaining water should be removed using a soft towel. IMPORTANT: All Solana spa models will drain almost completely through the main drain valve. Use a soft towel to remove any ™... -
Page 32: Filter Maintenance
IMPORTANT: Always clean the filter cartridge each time the spa is drained for cleaning. Always sanitize and chemically balance the spa water after cleaning and refilling the spa. FILTER MAINTENANCE As with any water filtering system, the filter cartridge may become clogged, resulting in reduced water flow. In your Solana ™ spa, it is important to maintain a clean, unobstructed filtering system to ensure maximum performance from the jets. -
Page 33: Care Of The Exterior Finish
This will return the original luster and shine to the marred spa shell surface. SERVICE NOTES: 1. Iron and copper in the water can stain the spa shell if allowed to go unchecked. Ask your Solana Spa Dealer about a Stain and ™... - Page 34 IMPORTANT: Some surface cleaners contain eye and skin irritants. Keep all cleaners out of the reach of children and use care when applying. IDING The spa siding of the Solana spa is manufactured from Endurol , a durable U.V.-resistant material. Even so, monthly cleaning and ™...
- Page 35 • DO NOT use any lifting mechanisms, chemicals or cleaners except those recommended by Watkins Manufacturing Corporation or its Authorized Sales and Service Dealer.
-
Page 36: Care Of The Spa Pillow
™ CARE OF THE SPA PILLOW The spa pillow will provide years of comfort if treated with care. The pillow has been positioned above the water level in order to minimize the bleaching effects of chlorinated water and other spa water chemicals. To extend its life, whenever the spa shell is being cleaned, the spa pillow should be removed and cleaned. -
Page 37: Prevention Of Freezing
(or neighbor) is not available to assist with the water maintenance, draining or winterizing of the spa is recommended. PREVENTION OF FREEZING Your Solana spa has been designed and engineered primarily for indoor applications. In areas where the ambient temperature falls ™... - Page 38 When replacing, do not overtighten. O REACTIVATE Reinstall the filter cartridge, close the main drain and reinstall the drain cap. Follow the Start-Up and Refill Procedures to make your Solana spa operational. ™...
-
Page 39: Water Quality And Maintenance
™ V. WATER QUALITY AND MAINTENANCE t’s important to have clean water. Water maintenance is one of the least understood, yet most important areas of spa ownership. Your dealer can guide you through the process of achieving and maintaining perfect water in your spa, given your local conditions. Your program will depend on your water’s mineral content, how often you use your spa, and how many people use it. - Page 40 ™ • pH • Sanitizer Two types of testing methods are recognized and recommended by Watkins: The Reagent Test Kit is a method which provides a high level of accuracy. The reagents come in either liquid or tablet form. Test Strips are a convenient testing method used by many spa owners. Keep in mind that test strips are susceptible to heat and moisture contamination, which will result in inaccurate readings.
- Page 41 ™ HEMICALS ATER IMPORTANT: All spa water chemicals, including granulated dichlor, MPS, granulated pH increaser or decreaser, granulated total alkalinity increaser, calcium hardness increaser, liquid stain and scale inhibitor, and liquid de-foamer must always be added directly into the filter compartment while the jet pump is running in high speed mode, and it must run for a minimum of ten minutes. O ADMINISTER SPA WATER CHEMICALS 1.
-
Page 42: The Solana ™ Spa Water Maintenance Program
™ THE SOLANA SPA WATER MAINTENANCE PROGRAM ™ Each step in your water maintenance program is dependent on the completion of the previous steps. Omitting a step or failing to reach the recommended range may cause an imbalance in your water’s chemistry. Unbalanced water chemistry can damage the spa and its components as well as cause discomfort for the user. - Page 43 ™ (CH) ALANCING THE ALCIUM ARDNESS A. The recommended Calcium Hardness (CH) level for your spa is 150-200 ppm. B. Calcium Hardness is a measure of the total amount of dissolved calcium in the water. Calcium helps control the corrosive nature of the spa’s water.
-
Page 44: Solana ™ Spa Water Quick Reference Guide
™ ™ THE SOLANA SPA WATER MAINTENANCE QUICK REFERENCE GUIDE Ideal Range (ppm) What Chemicals to Use Steps Minimum Maximum To Raise To Lower 1 Total Alkalinity Sodium Hydrogen Sodium Bisulfate Carbonate or Sodium Bicarbonate 2 Calcium Hardness 150 Calcium Hardness... - Page 45 • Brominating Concentrate (One Step Granular Bromine) ™ • Baqua Spa ™ WARNING: DO NOT use tri-chlor chlorine, bromo-chloro-dimethyl-hydantoin (BCDMH), any type of compressed bromine or chlorine, acid or any type of sanitizer which is not recommended by Watkins Manufacturing Corporation.
-
Page 46: Solana ™ Water Treatment Guide
™ ™ SOLANA WATER TREATMENT GUIDE At spa startup Follow spa Start-Up and Refill Procedures. NOTE: Use the FreshStart ™ pre-filter when filling or refill 10,000 the spa to remove unwanted contaminants. Prior to each use Add one-quarter (1/4) teaspoon of sodium dichlor -or- (Test before adding any chemicals;... -
Page 47: Freshwater
™ FRESHWATER SILVER ION SYSTEM ® The Silver Ion system is comprised of the following products: • FreshStart Pre-filter ™ 10,000 • Sodium Dichlor • Monopersulfate (MPS) • FreshWater Silver Ion Purifier ® Ag + FreshStart Pre-filter is used when filling a spa for the first time or at refill. It attaches to a garden hose and filters out rust, dirt, ™... -
Page 48: Freshwater
™ FRESHWATER SILVER ION PURIFIER REPLACEMENT ® INSTRUCTIONS When replacing the Silver Ion Purifer (every four months), it is highly recommended that the spa be drained and refilled at the same time. After refilling the spa with water, balance the Total Alkalinity (TA), Calcium Hardness (CH) and pH to the recommended levels. Shock the spa by adding sodium dichlor. -
Page 49: Chlorine (Sodium Dichlor)
™ Question: What happens if I do not add the weekly non-chlorine oxidizer treatment? Answer: The contaminants in the water may coat the silver ion cartridge’s ceramic beads, blocking the silver ions’ release into the water. When this occurs, there will be no residual of silver ions present in the water, eliminating them from the sanitizing process. Question: How often should the FreshWater silver ion purifier cartridge be replaced? ®... - Page 50 ™ B. Watkins Manufacturing Corporation recommends the use of Sodium Dichlor type granulated chlorine for sanitizing the water. Sodium Dichlor is preferred because it is totally soluble, dissolves quickly and is nearly pH neutral. C. Maintaining the proper level of chlorine during use is extremely important.
- Page 51 NOTE: Well water may contain high concentrations of minerals. The use of a low water volume, extra-fine pore water filter (in-line pre- filter such as the FreshStart pre-filter) will help to remove many of the larger particles during the filling of the spa. In-line pre- ™ 10,000 filters can be purchased at your local Solana Spa Dealer. ™...
- Page 52 Damage to the spa and cover can occur very quickly. WARNING: Watkins Manufacturing Corporation DOES NOT recommend the use of any floating chemical dispenser. Damage to the spa shell or components caused by a floating chemical dispenser is specifically not covered under the terms of the limited warranty.
-
Page 53: Common Water Chemistry Questions
™ • DON’T broadcast or sprinkle the chemicals onto the water surface. This method may cause chemically-induced spa surface blistering (chemical abuse). • DO add all chemicals slowly into the filter compartment with the jet pump operating on high speed for ten minutes. •... -
Page 54: Water Terminology
Unlike bromamines, chloramines are weaker, slower sanitizers. Chlorine: An efficient sanitizing chemical for spas. Watkins Manufacturing Corporation recommends the use of Sodium Dichlor-type granulated chlorine. This type is preferred because it is totally soluble and nearly pH neutral. - Page 55 ™ DPD: The preferred reagent used in test kits to measure the Free Available Chlorine. Halogen: Any one of these five elements: fluorine, chlorine, bromine, iodine and astatine. MPS: Monopersulfate is the non-chlorine oxidizer used with the FreshWater Silver Ion Purification system. ®...
-
Page 56: Service Information
™ VI. SERVICE INFORMATION GENERAL INFORMATION our Solana Spa has been designed to provide years of trouble-free use. As with any appliance, problems may occasionally occur ™ that require the expertise of a qualified service person. Though such simple repairs as resetting a GFCI switch or breaker, High Limit Thermostat, or Pressure Switch or replacing a light bulb may not require a service call, they may indicate that a more serious condition exists. -
Page 57: Miscellaneous Service Information
Misuse and abuse shall include any operation of the spa other than in accordance with Watkins Manufacturing Corporation printed instructions, or use of the spa in an... -
Page 58: Disclaimers
*Operation of the spa does not mean “use” of the spa! Watkins Manufacturing Corporation does not recommend using the spa if the water temperature is above or below the spa’s control panel temperature range. -
Page 59: Troubleshooting
™ TROUBLESHOOTING Watkins Manufacturing Corporation strives to provide the most trouble-free spas on the market. Should you experience any problem whatsoever, do not hesitate to contact your authorized Solana Spa Dealer. Here are some tips to help you to diagnose and ™... -
Page 60: Spa Water Maintenance Troubleshooting Guide
™ SPA WATER MAINTENANCE TROUBLESHOOTING GUIDE Problem Probable causes Solutions Cloudy Water • Dirty filters • Clean filters • Excessive oils / organic matter • Shock spa with sanitizer • Improper sanitization • Add sanitizer • Suspended particles / organic matter •... - Page 61 ™ NOTES:...
- Page 62 ™ NOTES:...
- Page 63 , Moto-Massage and Serenity Made Simple are trademarks of Watkins Manufacturing Corporation. Baqua Spa is a trademark of AVECIA, Inc. Windex is a trademark of S.C. Johnson & Son, Inc. Soft Scrub is a trademark of The Clorox Company. Brominating Concentrate™ is a trademark of Bio-Lab Inc.
