Summary of Contents for Pulse Pulse ACTIVEPRO Series

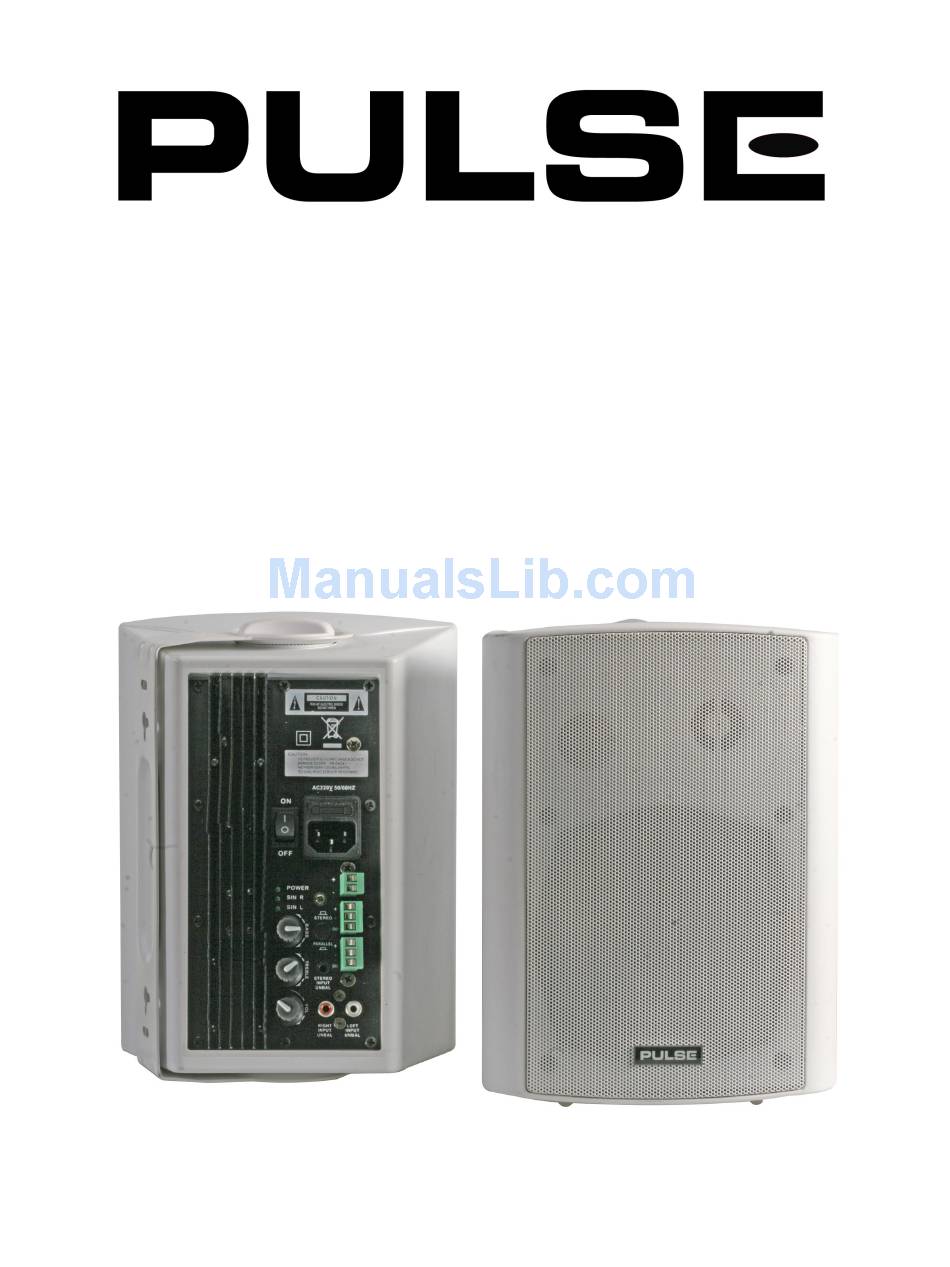

- Page 1 Stereo Powered Speakers Model: ACTIVEPRO Series www.mcmelectronics.com...
-
Page 2: Safety Information
Safety Information The lightning bolt To reduce the risk of electric The exclamation point within a triangle is shock, do not remove cover within a triangle is intended to alert the of this device. There are no intended to alert the user to the presence user serviceable parts user to important... -
Page 3: Operation
Pulse ACTIVEPRO Install Speakers Designed for install into commercial environments the PULSE ACTIVEPRO series feature a host of input options ensuring maximum system flexibility. This product is warranted from defects for one year from the date of purchase. Should your product require service, either within or beyond that warranty period, please contact your Pulse Dealer or contact Pulse directly via info@pulse-audio.co.uk... - Page 4 with a fused 13A-IEC cord. Should the fuse require replacement please ensure a fuse is fitted of the same value as originally supplied. 5) Power Switch On/Off control for the system. 6) Speaker Output The system utilises one passive and one active (powered) speaker. Supplied with Phoenix type connections to allow the wiring to be produced at ground level and then simply plugged into the speakers.
-
Page 5: Installation
Installation: Supplied complete with wall mount brackets the ACTIVEPRO series are ready for install from the box. Care should be taken with any install to comply with local guidelines and legislation from relevant local authorities. The fixing’s and wall should be sufficient to support a 10:1 safety factor (ie 10x the static weight of the speaker). - Page 6 Mark out the wall and prepare holes following the instructions provided with your chosen fixing method. The bracket can either be attached via the two 10mm diameter holes or the central 13.5mm diameter hole taking care to use appropriate fixings for the weight of the speaker. Once the installation of the brackets has been completed the speakers can be attached to the brackets and the wiring connected.
- Page 7 Technical Specification ACTIVEPRO40 Dimensions & Frequency Response...
- Page 8 ACTIVEPRO50 Dimensions & Frequency Response...
- Page 9 Warranty Pulse products are warranted by, MCM Electronics, against manufacturer defects for a period of one year from the original date of purchase. This warranty is limited to manufacturer defects, in either materials or workmanship. Pulse, MCM Electronics or any other worldwide division of Premier Farnell PLC, is not responsible for any consequential or inconsequential damage to any other component, structure or the cost of installation or removal of said items.
