Summary of Contents for North Star MONOBLOCK

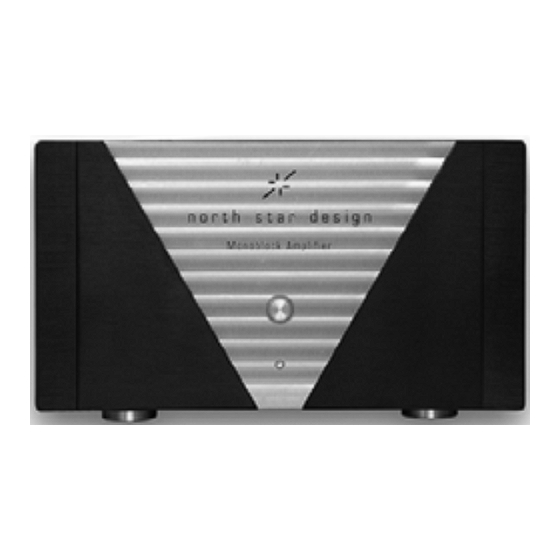

- Page 1 Monoblock Amplifier Operating Manual North Star Design ® MONOBLOCK Power Amplifier...
- Page 2 Rev. 1.0 February 03...
- Page 3 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
-
Page 4: Important Safety Instructions
8. NEVER block air flow through heatsinks. 9. NEVER bypass any fuse. 10. NEVER replace any fuse with a value or type other than those specified. 11. NEVER attempt to repair this product. If a problem occurs, contact your North Star Design retailer. ®... -
Page 5: Initial Inspection
Monoblock Amplifier will offer you many years of musically satisfying enjoyment. Please take a few moments to read the remainder of this Operating Manual. A thorough understanding of the operational features will allow you to gain the maximum performance and ease of use for which this Amplifier was designed. -
Page 7: Installation
(which are not user-serviceable). 2 STANDBY BUTTON When power is applied to the Monoblock power amplifier, and assuming the rear panel AC mains switch is set to its on position, the amplifier remains in standby for few seconds and then switch on. - Page 8 We recommend speaker wires be connected to the Monoblock via high quality spade lugs, either soldered directly to the cable or crimped with extremely high pressure—or both crimped and soldered. Connect a + (positive or red) output post of the Monoblock to the + (positive or red) input terminal of the appropriate loudspeaker.
-
Page 9: Technical Specifications
Two slo-blow 3,15A (220-240V), 6,3A (100-120V) fuses are located inside a small drawer in the AC main inlet. If you suspect that your AC fuses have blown, disconnect the Monoblock from the AC mains and contact your North Star Design dealer for assistance. - Page 10 NORTH STAR DESIGN s.r.l. VIA LENIN, 132 56010 S.MARTINO ULMIANO (PI) ITALY PHONE: +39-050-859945 FAX: +39-050-859166 E-MAIL: info@northstar.it WEB: www.northstar.it...
