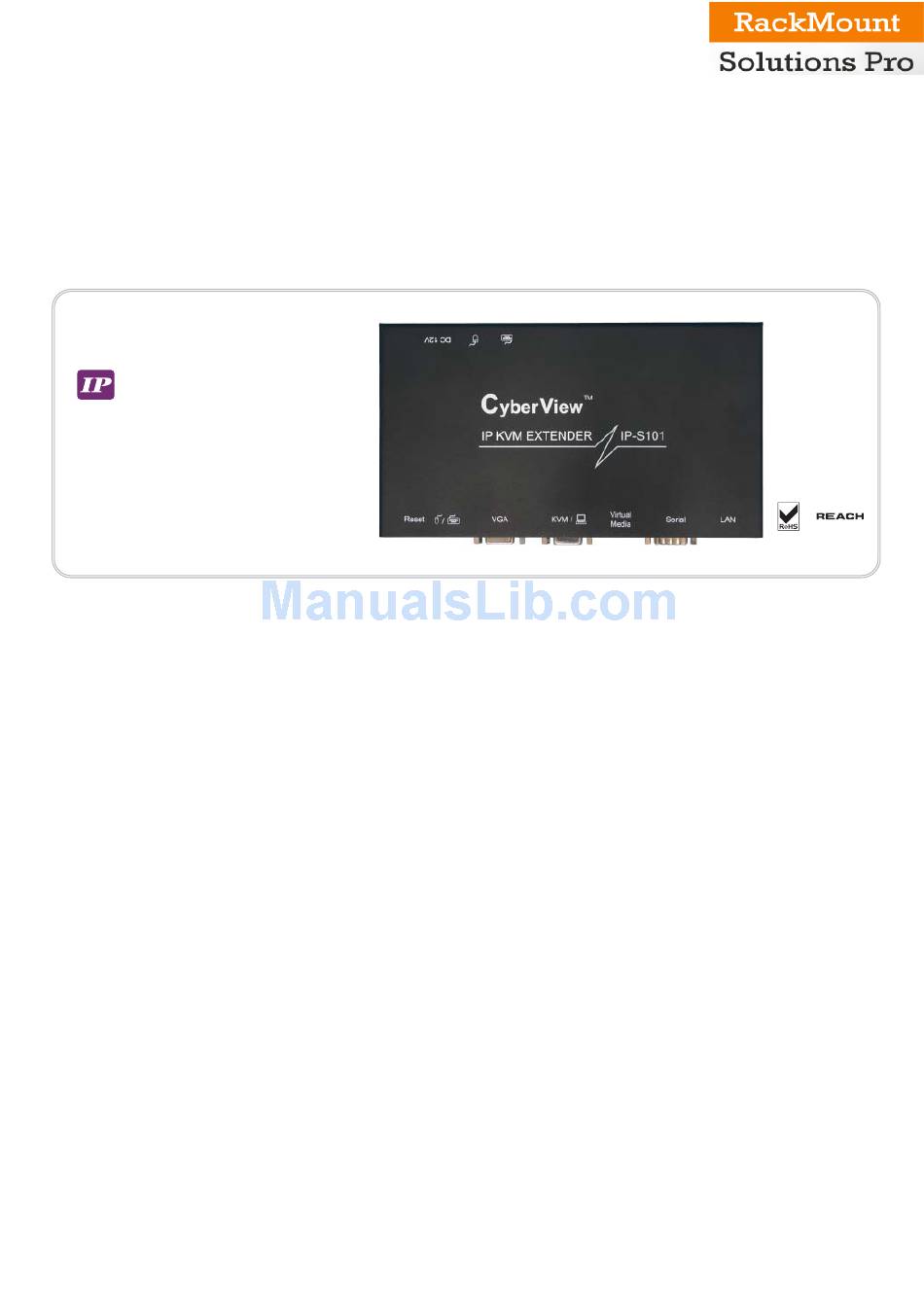

Page 1: User Manual
User Manual IP-S101 Combo KVM Extender... - Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Before Installation
If anything is missing, or damaged, contact the supplier immediately. < Part 1 > IP-S101 < 1.1 > Package Contents IP-S101 unit X 1 - CE-6 6ft Combo KVM cable X 1 - Power adapter w/ power cord ( for receiver ) X 1... - Page 4 Serial Front PS/2 Power Mouse Rear IP-S101 Specifi cation 1 x RJ-45 Ethernet 10/100 IP Connection 1 XDB-15 VGA, up to 1600 x 1200 2 x USB type connector for keyboard & mouse Console connection 2 x PS/2 mini Din 6-pin for keyboard & mouse...
- Page 5 < Part 2 > Application IP-S101 < 2.1 > Connection to KVM console port over IP USB Console KVM switch CE-6 combo KVM cable Rear Front Monitor CAT 5 / 6 cable max. 100m Network device hub or router...
- Page 6 < 2.2 > Connection to computer over IP IP-S101 Computer CE-6 combo KVM cable Rear Front Monitor CAT 5 / 6 cable max. 100m Network device hub or router...
- Page 7 < Part 3 > IP Initial setup IP-S101 After the cable connection, please take the following steps to confi gure the IP KVM Extender : 1. Download IPKVMsetup.exe from the link: http://www.rackmount-solutions-pro.com/support/utilities/IPKVMsetup.exe 2. Double click IPKVMsetup.exe to confi gure the IP KVM Extender by device setup as below.
- Page 8 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Rackmount-Solutions-Pro.com. All rights reserved.
