Summary of Contents for Jiehao INEN-6102

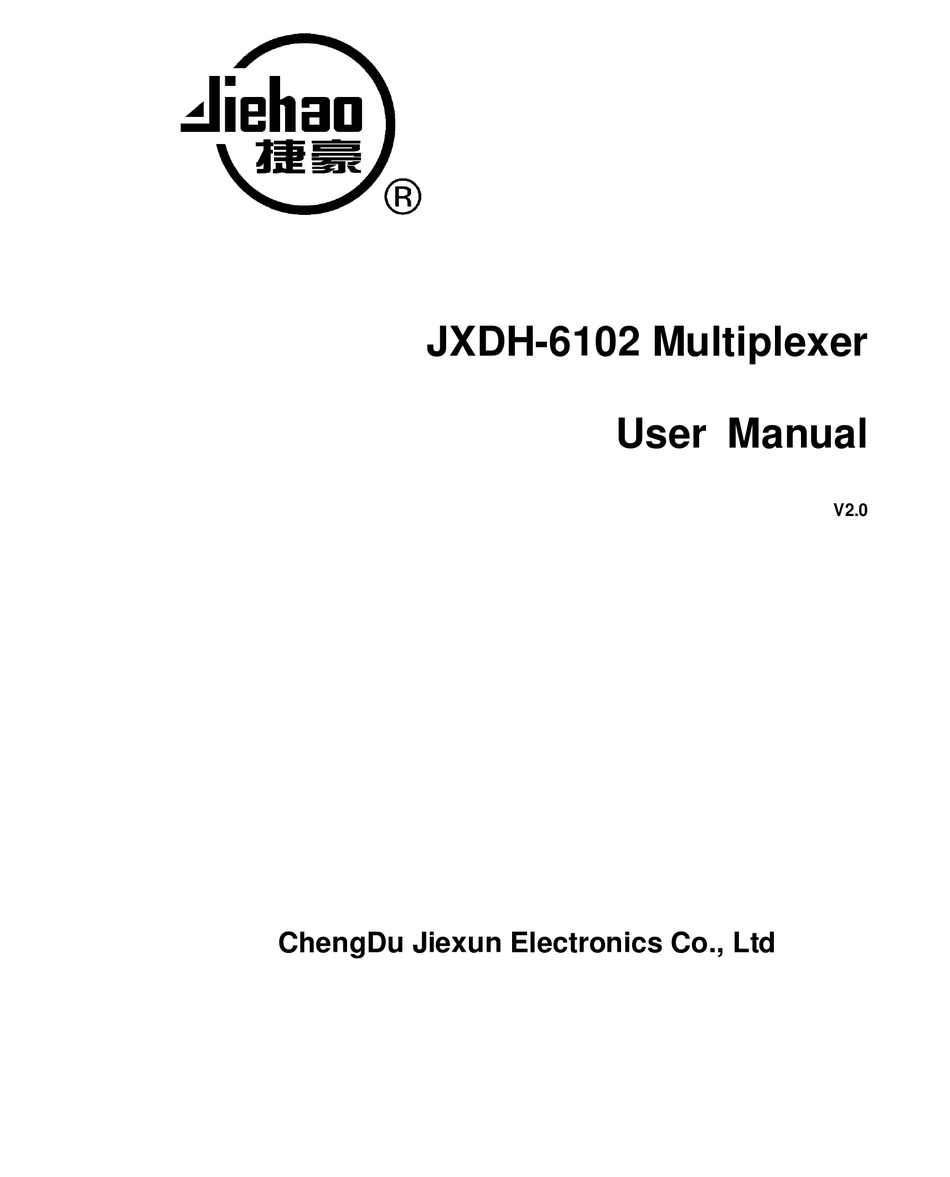

- Page 1 INEN-6102 JXDH-6102 Multiplexer User Manual V2.0 INITEL TELECOMMUNICATIONS ChengDu Jiexun Electronics Co., Ltd...
-
Page 2: Chapter 1 Product Outline
JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, Chapter 1 Product Outline 1.1 Outline INEN-610 JXDH-6102 multiplexer is a digital broadcasting TV system TS stream INEN-610 re-multiplexer. JXDH-6102 multiplexer combines several single-programs or multiple-programs, which are compressed, coded, and multiplexed according to customer request by head-end, into single transport stream. -
Page 3: Performance Index
JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, Have the function of insert and reflection of SDT/NIT Able to connect independent scrambler for scrambling to specified program or service. Generating SPI/SI information Support PCR adjusting and PID re-reflection out put data rate 0 -155Mbps,188 byte format Each input support 270Mbps data rate, total 8 input rate is 576Mbps High precision PCR revise, usually holding 20 -60ns MPEG2 progr am delay less than 100 s... -
Page 4: Principle Chart
JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, Output PID range 0000-1FFF Random PID Random transparent transport transparent transport possbile Max PID number for each input Format Auto identification,188/204byte,encoding Data input Ethernet port 10/100M Dimension 44mmx482mmx410mm Miscellaneous 0-45 (Operating) ; -20-80 (Storage) Temperature 110/220VAC±10% 50Hz 2 5W... - Page 5 JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, LCD Display Interface Power Indicator Alarm Indicator Input CH lock indicator Up /Down/Left/Right Arrow Enter key Menu Key Rear Panel Illustration AC110-220V/50/60Hz ASI IN ASI OUT RS232 RJ45 8 ASI Input CH Output CH1 Output CH2 RS232 RJ45...
-
Page 6: Chapter 2 Installation Guide
JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: INEN-610 JXDH-6102 multiplexer User’s Manual... -
Page 7: Environment Requirement
JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, 2.2.2 Environment Requirement Item Requirement W hen user insta ll mach ine frame array in on e machine ha ll, the Machine hall distance b etween 2 row o f machine frames sh ould be 1 .2~1.5m spac e and th e distan ce to wall should be no less than 0 .8m Electric Isolation, Dust Free... -
Page 8: Frame Grounding
JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, conducting with the metal housing of device. Grounding conductor must adopt copper conductor in order to reduce high frequency impedance, and the grounding wire must be as thick and short as possible. The 2 terminals of grounding wire must make sure for well electric conducting, and process for antirust. - Page 9 JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, When the device adopts united way, the grounding resistance should be smaller than 1 Caution: Before connecting power cord to Encoder, user should set the power switch to “OFF”. 2.4 Signal Wire Connection The signal connections include the connection of input signal wire and the connection of output signal wire.
-
Page 10: Chapter 3 Operation
JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, Chapter 3 Operation INEN-610 This JXDH-6102 multiplexer’s front panel is user operation interface. Before operating, we should collocate input and output parameter. Input setting includes the select of multiplexed channels, output parameter includes setting of TS output. Equipment supply perfect Chinese and English menu for user select, detail operations go as follows: Front Panel Keyboard Function Description ENTER... - Page 11 JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, 3.3 Output CH1 setting When user select this setting, the system will show as follows: 1.1 Port 01 Setting 1.2 Port 02 Setting 1.3 Port 03 Setting 1.4 Port 04 Setting 1.5 Port 05 Setting 1.6 Port 06 Setting 1.7 Port 07 Setting 1.8 Port 08 Setting...
- Page 12 JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, 1.10 Trans Stream_ID 0x0000 3.7 ORG network ID When user select this setting, the system will show as follows: 1.11 Original_network_ID 0x0000 3.8 Mux Comfirm When user select this setting, the system will show as follows: 1.12Yes Enter Menu...
- Page 13 JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, 3.12 System setting When user select this setting, the system will show as follows: 4.1 Network Setting 4.2 Factory config 4.3 Version Number 3.13 Network Setting When user select this setting, the system will show as follows: IP Address: 101.101.101.100 Subnet Mask:...
- Page 14 JXDH-6102 User Manual Chengdu Jiexun Electronics Co.Ltd, 3.15 Version Number When user select this setting, the system will show as follows: Hardware V1.0 Software V1.0 3.16 Language select When user select this setting, the system will show as follows: English Press UP/DOWN to select language, the “...
