Summary of Contents for Klutch 171468

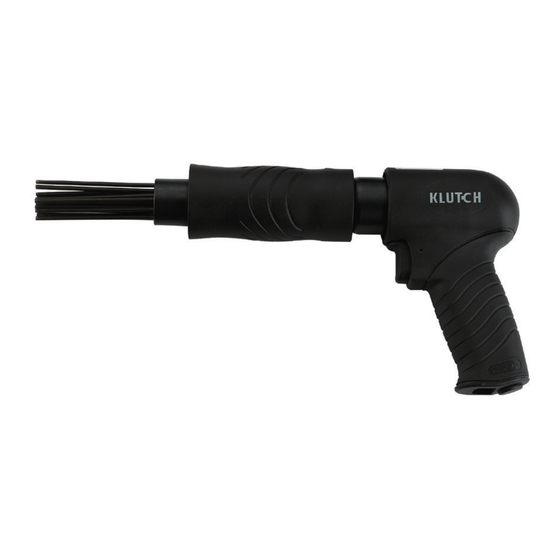

- Page 1 Composite Pistol-Type Air Needle Scaler OWNER’S MANUAL WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #171468 1 OF 7...
-
Page 2: Intended Use
Thank you very much for choosing a Klutch™ product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. -
Page 3: Work Area
WORK AREA · Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause accidents. · Do not use your Air Scaler where there is a risk of causing a fire or an explosion; e.g. in the presence of flammable liquids, gasses, or dust. -
Page 4: Tool Set Up
· Store idle tools. When tools are not is use, store them in a dry, secure place out of the reach of children. Inspect tools for good working condition prior to storage and before re-use. · Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool may create a risk of injury when used on another tool. -
Page 5: Maintenance
3. Drain the air tank daily. Water in the airline can damage the tool. 4. Clean the air inlet filter weekly. 5. Line pressure should be increased to compensate for longer air hoses (over 26 feet or 8 meters). The hose diameter should be 3/8in. I.D. 6. -
Page 6: Diagram & Parts List
DIAGRAM & PARTS LIST PART NO DESCRIPTION PART NO DESCRIPTION 171468-1 171468-13 Cylinder 171468-2 Housing 171468-14 Retaining Ring 171468-3 O-ring (11 x 2.4mm) 171468-15 Sleeve 171468-4 O-ring (3.8 x 1.9mm) 171468-16 Needle Driver 171468-5 Valve Stem 171468-17 Needle (19 pcs.) 171468-6 O-ring (3.5 x 1.5mm) - Page 7 For replacement parts and technical questions, please call 1-800-222-5381. WARRANTY One-Year Limited Warranty WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
