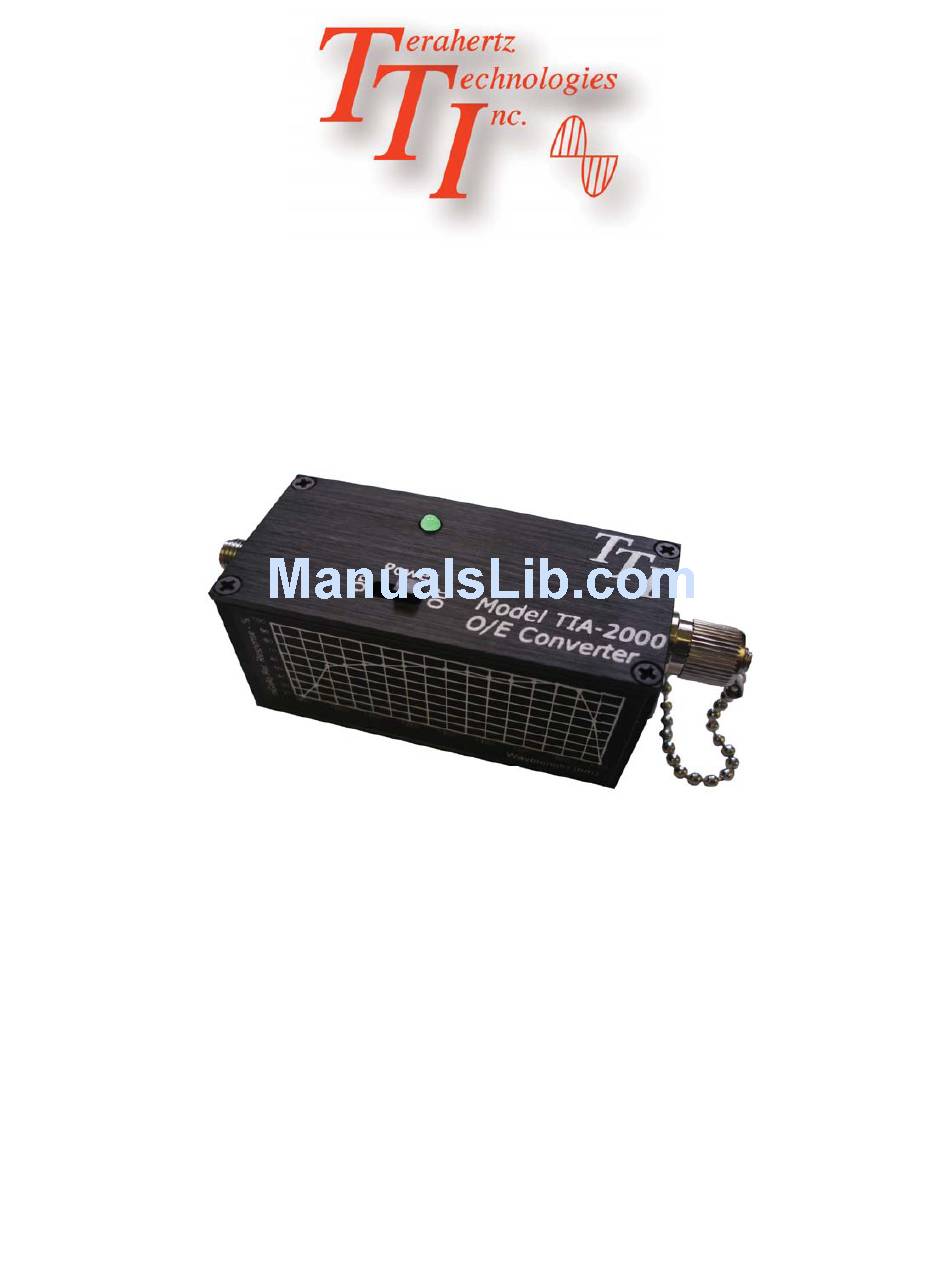

Page 1: Operating Instructions
TIA-2000 Optical/Electrical Converter Operating Instructions Terahertz Technologies Inc.169 Clear Road Oriskany NY 13424 (315) 736-3642 FAX (315) 736-4078 E-mail sales@terahertztechnologies.com 6/2011... - Page 2 Contents Introduction.............................1 Unpackaging and Inspection........................1 Power Supply............................1 Typical Setup............................2 Operating Considerations........................2 Typical Frequency Response........................3 Typical Spectral Response ........................3 Specifi cations............................2 Service/Warranty Information.........................5...
-
Page 3: Unpacking And Inspection
The unit is equipped with an InGaAs/InP detector that is responsive in the wavelength range of 1250- 1625 nm. The TIA-2000 is provided with an FC/UPC fi ber optic receptacle. Other fi ber optic connec- tors can be provided on request. The output signal is presented to a type K SMA female connector. -
Page 4: Operating Considerations
Operating Considerations The TIA-2000 is comprised of a fi ber coupled InGaAs detector coupled with a reverse bias voltage network. The ouput of the diode is brought out to a type K female SMA connector. Light falling on the detector generates a positive-going proportional current. -
Page 5: Spectral Response
Typical Frequency Response The bandwidth of the TIA-2000 is from DC to typically 20 GHz (-3 dB ). Refer to the following Bode plot Frequency {GHz} Spectral Response The approximate relative response curves of the detectors employed is as shown below. Note that these are re- esentative curves and do not necessarily correspond to the exact response on the particular detector in use. - Page 6 TIA-2000 Specifications Detector Type InGaAs/InP (900 - 1700nm) 0.8 A/W @ 1550nm Typical Current Responsivity Maximum Linear Input Power 10mw Maximum Input Power without Damage Bandwith-(3dB) DC to 20 GHz Typ, 18 GHz min. Output Impedance 50 Ohms Output Connector...
-
Page 7: Limited Warranty
LIMITED WARRANTY TERAHERTZ TECHNOLOGIES INC. (“TTI”) WARRANTS THAT TO THE FIRST PURCHASER, FOR A PERIOD OF TWO YEARS FROM THE DATE OF RECEIPT, THAT THIS PRODUCT (“THE PRODUCT”) WILL BE FREE FROM DEFECTS IN MATERIALS AND MANUFACTURING. THE FOREGOING WARRANTY IS THE ONLY WARRANTY, EXPRESS OR IMPLIED, GIVEN BY TTI, I.E., THERE IS NO WARRANTY OF FITNESS FOR A...
