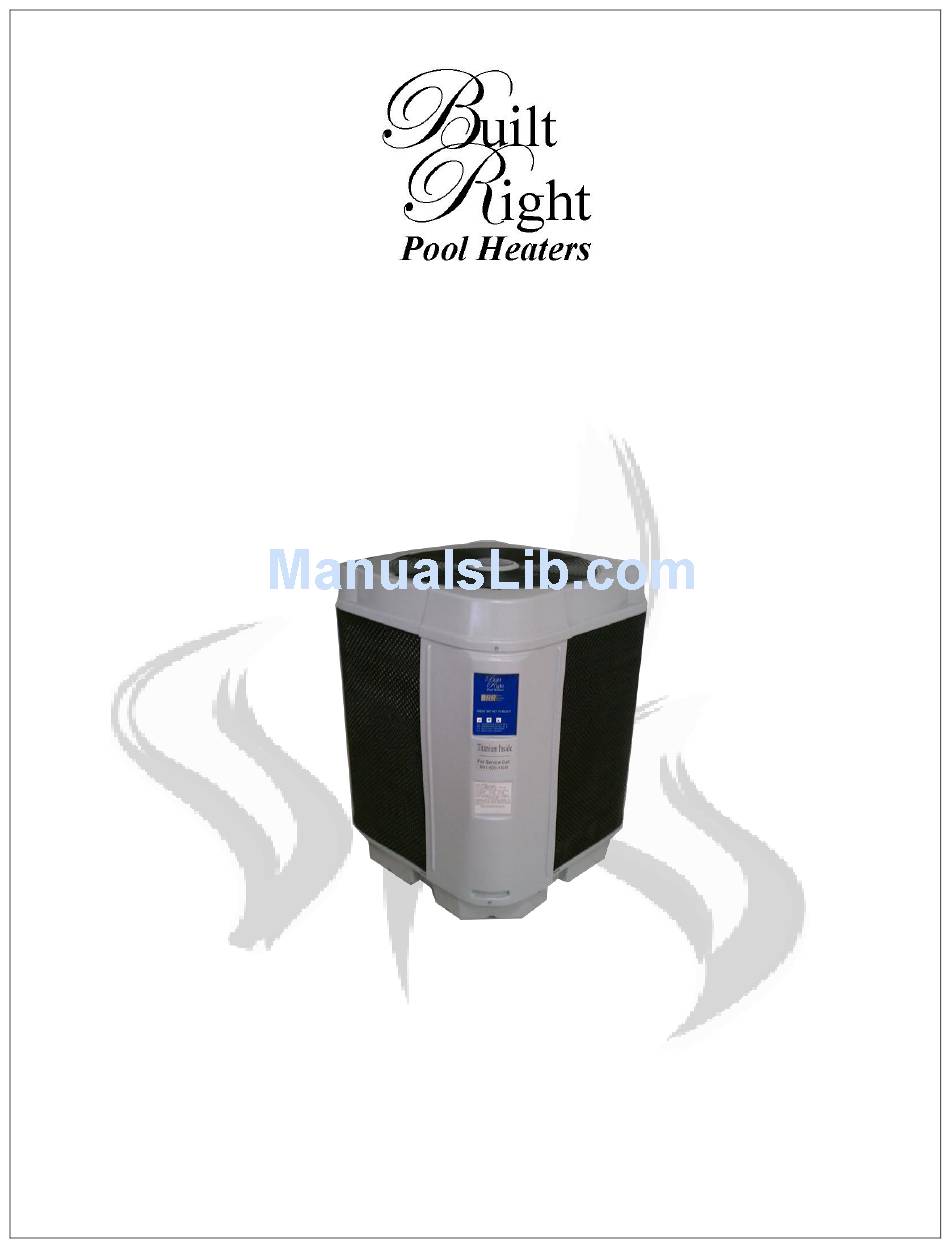

- Page 1 Pool/Spa Heat Pump Installation & Operation Manual Models BR80 XW BR115 XW BR135 XW BR100 S7 BR115 S7 BR135 S7 BR-40101 Version 2.0...
- Page 2 This warranty applies to all models installed within the State of Florida after September 1, 2012 (all versions, brands and voltages). Built Right Pool Heaters, LLC warrants this Swimming Pool Heat Pump, to the original owner and installation site, to be free of material or workmanship defects for a limited term. Specific warranty terms, by model, are listed below.
-
Page 3: Table Of Contents
Page | 1 Table of Contents Important Information Log Introduction Installation Location Recommendations Clearances Equipment Pad Tie Down Straps Water Piping Electrical Hook Up Bonding Wiring Diagram Heat Pump Operation / Digital Control Operation 8-10 Control On/Off Pool/Spa Mode Displaying the Temp. in °F or °C Keypad Lockout Feature Changing Set Point Temperature Heater Operating Times... -
Page 4: Important Information Log
Page | 2 Please Read Carefully For your records, please complete the information requested below. Should warranty service be required, the following information will be requested to initiate service. Model Number:___________________________________________________________________ Serial Number:____________________________________________________________________ Purchase Date:___________________________________________________________________ Dealer Name:_____________________________________________________________________ Dealer Address:___________________________________________________________________ ____________________________________________________________________ Dealer Phone#:___________________________________________________________________ Keep your sales slip and this booklet together in a safe place for future reference. -
Page 5: Introduction
Page | 3 INTRODUCTION Thank you for your purchase of a Built Right pool and spa heat pump, proudly made in Punta Gorda, Florida. To ensure a long worry-free life, your heat pump has been manufactured with the highest quality parts available today. A pool heat pump is a cost effective method of heating your pool or spa. -
Page 6: Installation
Tie Down Straps The unit can be strapped down using the Built Right strap kit*. Attach a strap to each side and anchor to the deck. The Built Right strap kit may be used if local codes require securing the unit The Built Right strap kit is available upon request. -
Page 7: Water Piping
15 feet above the pool level. Be advised that when pool equipment is located below the pool surface a leak can result in large-scale water loss or flooding. Built Right Pool Heaters, LLC cannot be responsible for such water loss or flooding or the damage caused by either occurrence. -
Page 8: Electrical Hook Up
Page | 6 ELECTRICAL HOOK UP The wiring of your heater should be performed by a qualified electrician in accordance with local code requirements. CAUTION! The main power disconnect must be off before opening the access panel. IMPORTANT! The electrical conduit must be run up through the base of the unit and connected at the control box with a conduit connector. -
Page 9: Wiring Diagram
Fi e l d Wi r i n g t o Fi e l d Wi r i n g f o r Pump Remote Swi t ch or Fan Rel a y Cont a ct o r T' S tat Built Right Pool Heater... -
Page 10: Heat Pump Operation / Digital Control Operation
Page | 8 HEAT PUMP OPERATION / DIGITAL CONTROL OPERATION CAUTION! When the control is in the “OFF” mode, there is still high voltage to the unit. If you want to turn the unit off for long periods of time, shut the main power off to the unit at the main or service disconnect. -
Page 11: Pool/Spa Mode
Page | 9 Pool/Spa Modes The control is equipped with two independent thermostats, one for pool temperature and one for spa temperature. This is to allow the user to preset a temperature of their choice and switch between the two settings. To change between pool and spa modes, ... -
Page 12: Changing Set Point Temperature
Page | 10 Changing the Set Point Temperature To change the set point temperature, press the SET button until either POL or SPA is displayed. The programmed temperature will be displayed. Press either the UP or DOWN arrows to change the set point temperature. After adjusting to the desired temperature setting, the display will revert to the actual pool water temperature after five seconds. -
Page 13: General Maintenance
Page | 11 GENERAL MAINTENANCE CAUTION! Make sure all power is disconnected to the heater prior to washing. Cleaning Your heater requires only minimal maintenance, Make sure the heater has good airflow through the evaporator. To ensure good airflow, remove any leaves, paper or other debris. -
Page 14: Troubleshooting
Page | 12 TROUBLESHOOTING To verify that your heater is heating your pool, place your hand above the unit. Cool air will blow out of the top of the heater, this occurs when the heating indicator is on. The water returning to the pool will be between 3°... -
Page 15: Service Information
Page | 13 SERVICE INFORMATION All service must be handled by an Authorized Service Center. Warranty may be void if a non- authorized service representative does service. Do not return the heater to your dealer, as they do not provide service. Before calling for assistance or service, please check the Troubleshooting section of this manual. - Page 16 Built Right Pool Heaters, LLC. 8260 Pascal Dr Punta Gorda, Fl 33950-4726 www.BuiltRightPoolHeaters.com...
