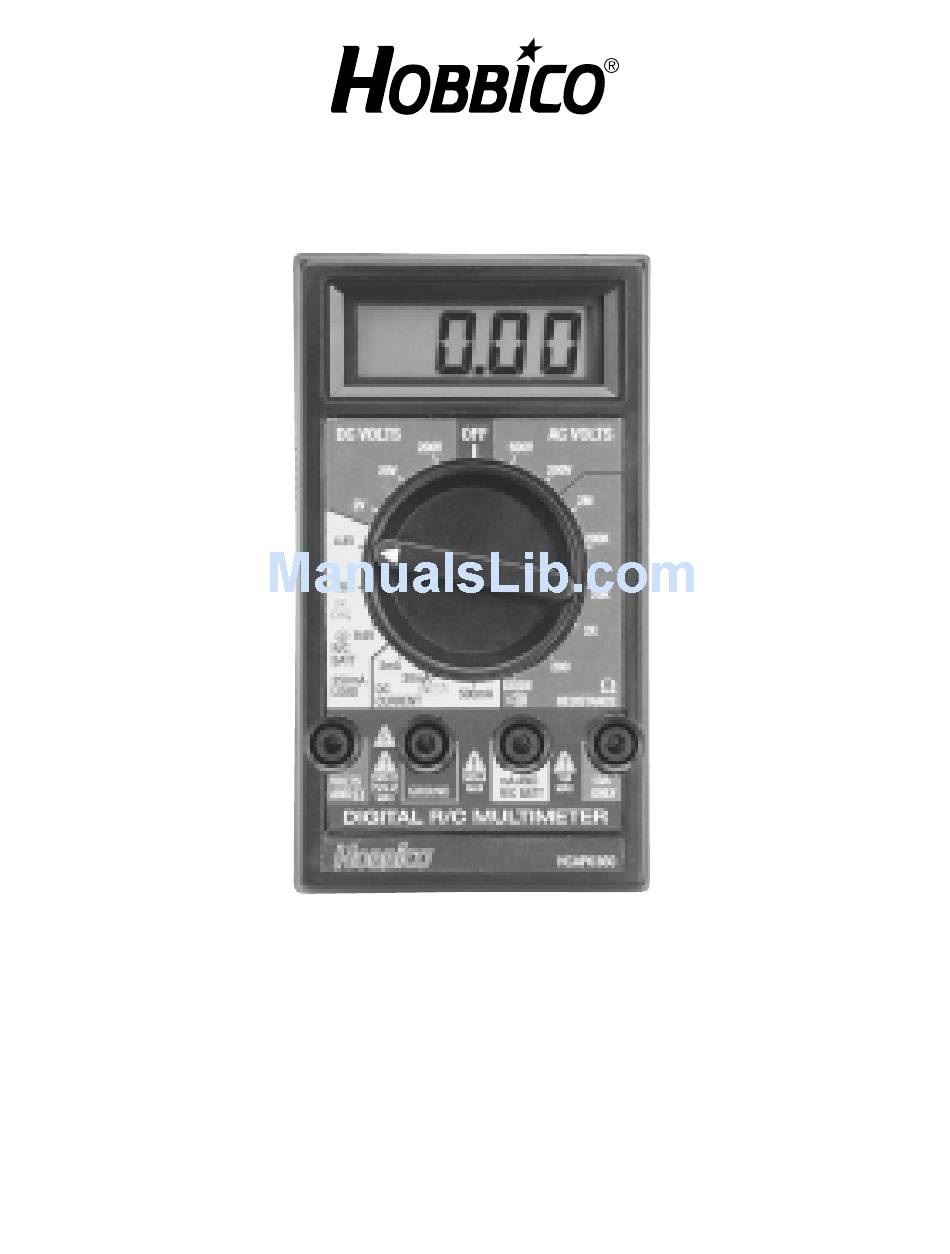

DIGITAL R/C MULTI-METER
OPERATION MANUAL
PLEASE READ THESE OPERATING INSTRUCTIONS CAREFULLY.
Misuse and/or abuse of this instrument may cause injury and/or damage to
the meter or the equipment under measurement. Please read and follow all
instructions carefully. Please inspect the meter and test probes for wear or
abnormalities prior to every use. If a flaw exists, do not attempt to take any
measurements. Replace the damaged equipment. Never touch exposed
wiring, connection, or line circuit conductors when attempting to take
measurements. Damage resulting from a failure to follow instructions will
void the warranty.
© Copyright 1999 Printed in China
HCAZ3064 for HCAP0360
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Hobbico DIGITAL R/C MULTI-METER
- Page 1 DIGITAL R/C MULTI-METER OPERATION MANUAL PLEASE READ THESE OPERATING INSTRUCTIONS CAREFULLY. Misuse and/or abuse of this instrument may cause injury and/or damage to the meter or the equipment under measurement. Please read and follow all instructions carefully. Please inspect the meter and test probes for wear or abnormalities prior to every use.
-
Page 2: Specifications
FEATURES · Pocket-size · Simple operation · 300 hour battery life · Maximum 10A DC current range · Recessed safety designed input terminals · Built-in table stand · Overload protection on all ranges · Diode test function · Audible continuity buzzer ·... - Page 3 Max. Common Mode Volts: 500V DC or AC peak voltage Accuracy Temp. Coefficient: (10°C-18°C and 28°C-50°C) less than 0.1x applicable accuracy specification degree C Fuse: 0.8A, 250V, 5 x 20mm fast acting cylindrical glass Dimensions: 5.0" x 2.8" x 1.4" Weight: Approximately 7.0oz.
-
Page 4: Safety Rules
500V selection: +/- (2.0% of reading + 4 digits) Overload protection: 1000V DC or 750Vrms AC for 15 seconds Impedance: DC Current Range: 2mA, 20mA, 500mA +/- (1.2% of reading + 1 digit) 10A selection: +/- (2.0% reading + 3 digits) Overload protection: 0.8A / 250V fuse, no protection for 10A selection... - Page 5 faulty display, etc.), do not attempt to take any measurements. Refer to the Troubleshooting Guide at the rear of this manual for further information. Never ground yourself when taking electrical measurements. Do not touch exposed metal pipes, outlets, fixtures, etc., which might not be at ground potential.
- Page 6 Figure 1 Digital Display Rotary Selector R/C Battery Switch Load Test Range With 2-color Go/No-Go Input Terminals...
-
Page 7: Front Panel Controls
FRONT PANEL CONTROLS Digital Display: A 3-½ digit liquid crystal display (LCD), with 0.5" numerals, maximum reading of “1999” with automatic polarity sign and low battery indicator (see figure 1). Rotary Selector Switch: Select desired measurement by rotating dial to the appropriate position. Input Terminals: Color coding of the measurement selections helps determine which banana jacks (recessed for safety) the probes should be connected to for measurement. -
Page 8: Fuse Replacement
WARNING: Before attempting to replace the battery, first disconnect the test probes from any energized circuit and then disconnect the test probes from the instrument. Disconnect the test probes from any energized circuit, and from the meter. Turn the dial to the “OFF” position. Remove the single screw from the rear of the case with a Phillips screwdriver. -
Page 9: Operation
Replace the battery and rear cover by reversing the above procedure. OPERATION The Digital R/C Multi-Meter’s selection ranges and input jacks are color coded for convenience and safety. The red test probe should always be inserted in the input jack whose color matches the color of the range in which the dial is positioned. - Page 10 being measured and work down from there. Note these areas of the selection range are red in color, to match the color of the proper jack in which the red test probe should be inserted for this type of measurement. CAUTION: To avoid possible electric shock, instrument and/or equipment damage, do not attempt to take any voltage measurements if the voltage is above 200V DC or if the voltage is unknown.
- Page 11 Completely de-energize the circuit in which the current is to be measured. Place the meter in series with the conductor carrying the current which is to be measured. Energize the circuit. If the reading is less than 0.20 amps, you can move the dial to a lower selection for greater accuracy.
- Page 12 resistance and diode measurements should be taken on de-energized circuits only. To avoid possible electrical shock, instrument and/or equipment damage, do not connect the “GROUND” and “VOLTS AND ” jacks to circuits having a potential difference exceeding 250V AC or DC. Do not connect the “GROUND”...
- Page 13 For continuity measurements: A. Move the dial to the selection marked “DIODE” with the buzzer icon underneath. B. Touch the red and black probes together to confirm the audible buzzer sounds and that the LCD reads “.000”. C. Completely de-energize the circuit or device which is to be measured.
-
Page 14: Sleep Mode
time. Permanent damage to the meter or equipment under test could result and void the warranty. It is highly recommended to remove the battery from either the Tx or Rx before testing. Inaccurate readings could result as a failure to follow these instructions. -
Page 15: Troubleshooting Guide
are not touching any live electrical circuitry to prevent accidental short circuits and possible damage to the meter and/or other equipment. It is always important to keep the probes completely clear of any live electrical circuitry when not in use. TROUBLESHOOTING GUIDE Problem: LCD is fading or does not display - battery indicator illuminates on LCD. - Page 16 If you attempt to disassemble or repair this unit yourself it may void the warranty. For service to your HOBBICO product, either in or out of warranty, send it post paid and insured to: Hobby Services...
