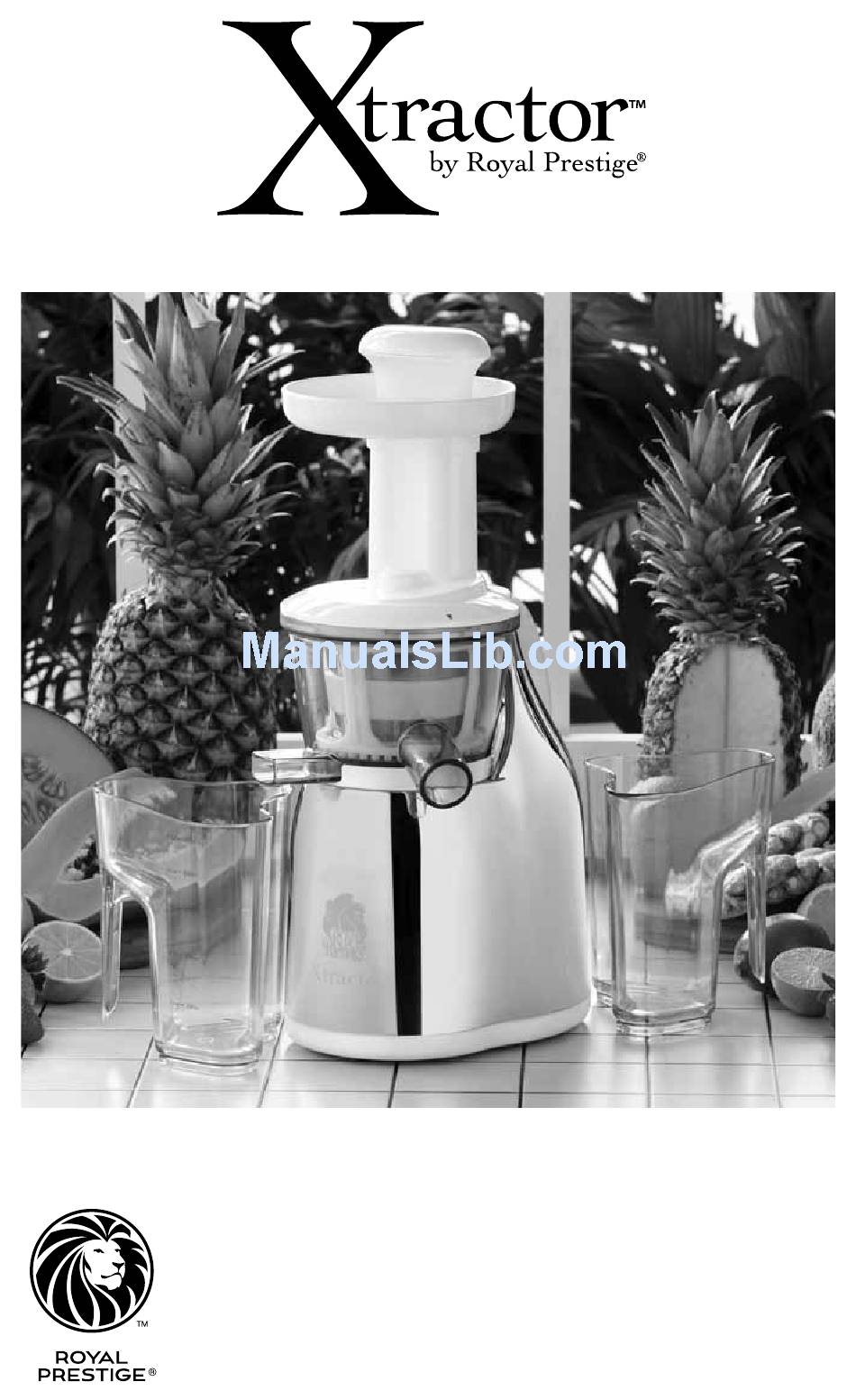

- Page 1 Instruction Manual • Please read the instructions carefully before using. • P lease keep the user’s guide where it is easily accessible. • D esign and product development may be upgraded without a public notice.
-
Page 2: Table Of Contents
Note to New users The Xtractor by Royal Prestige is a completely different mechanism ® where fresh juice comes from squeezing rather than grinding. The Xtractor is a newly developed patented product which is capable of making soy milk, vegetable extracting, fresh squeezed fruit juice, soups and much more. LSTS (Low Speed Technology System) squeezes instead of grinding which allows the juice to maintain it’s pure color, natural taste, nutrients and vitamins. -
Page 3: Attachment Listing
AttAChMeNt LIstINg Hopper Squeezing Screw Base Cleaning Brush Strainer Top Set Spinning Pusher Containers (2) Brush Important As shown below, the hopper Bowl edge must point to the “close” symbol on the base in order for the machine to operate Pulp ejection properly. Juice ejection Notice Do not turn on until you are ready to use. Do not operate with an empty bowl. Xtractor | 3... -
Page 4: Safety Precautions
sAFety preCAutIoNs • Please read carefully before using. • Please follow instructions to avoid injuries. warning signs warning : Violating this sign may lead to serious injury or even death. Caution : Violating this sign may lead to serious damage to the product. wArNINg Do not plug or unplug the Please plug in your outlet electrical plug with wet hands. properly. • N ot doing so can • C an cause cause electrocution, electrocution. fire, or product damage. Do not use other than 120 Do not force plug into outlet; volt power. ensure plug is away from any heat source and is not bent or • C an cause electrocution, fire, or product damage. twisted in any way. • May cause electrocution or fire. Do not disassemble the base. Stop use when the electrical Please contact your Royal cord is damaged or loose. - Page 5 wArNINg Do not put any unknown Keep the base dried at all substance into the machine. times. • V iolating these instructions may cause • V iolating these instructions may cause electrocution or fire. electrocution or fire. Keep away from children or Do not disassemble any parts anyone not familiar with the while operating the machine. usage of this product. Do not put any unknown objects in while operating the machine. • V iolating these instructions may cause injuries or damage to the product. • V iolating these instructions may cause injuries or damage to the product. CAutIoN Do not operate when the Do not unplug the outlet when hopper is loose. there is gas exposure, rather open all windows for air • V iolating these instructions may cause electrocution or fire.
- Page 6 CAutIoN Do not move unit while Should the squeezing screw operating. jam, put in reverse for 2-3 seconds then try operating • V iolating these instructions may cause again. injuries or damage to the product. • V iolating these instructions may cause injuries or damage to the product. Do not disassemble while Do not use anything other than operating. the pusher. • V iolating these instructions may cause • V iolating these instructions may cause injuries or damage to the product. injuries or damage to the product. • D isassemble after the power is off. Do not use more than 30 Do not submerge the motor in minutes continuously. water. • I t will overheat the motor. • V iolating these instructions may cause injuries or damage to the product.
-
Page 7: Assembly Instructions
AsseMBLy INstruCtIoNs Place the strainer into the spinning brush strainer spinning brush Place the strainer and spinning red dot on the brush into the bowl. spinning brush • M ake sure the red dot on the strainer and the red dot on the bowl are aligned. red dot on the bowl Bowl Push the squeezing screw into the strainer. squeezing screw strainer Bowl Xtractor | 7... - Page 8 AsseMBLy INstruCtIoNs Assemble the hopper onto the bowl. • M ake sure the arrow on the hopper and the red dot on the bowl are aligned. hopper the arrow on the hopper red dot on the bowl Bowl Assemble the entire top set onto the base. • A s shown below, assemble the bowl onto the base and twist the bowl so that the hopper edge is pointing to “close” sign. OPEN Juice ejection CLOSE Base 8 | Xtractor...
- Page 9 AsseMBLy INstruCtIoNs Connect the power cord. Place containers under both ejections. (Juice and pulp ejection) Underneath the bowl, there is a yellow rubber plug which allows all the juice to only discharge from the fresh juice ejection. The rubber plug can be removed for cleaning. Simply grab onto one side of the rubber plug and pull out. rubber plug Xtractor | 9...
-
Page 10: 10 | Xtractor
how to use the xtrACtor The machine has three settings. • “ On” starts motor to start making juice. • “ Rev” is reverse. Only use when ingredients are stuck and you need to unclog. • “ Off” is at center position. This allows the machine to turn off. Rinse ingredients thoroughly before putting into the machine. • A fter rinsing, put ingredients into the machine using the pusher. • R emove any hard seeds before using. Turn off the machine after using. Dry your hands before touching the power switch. warning Any unused juice should be refrigerated. Do not operate with wet hands. -
Page 11: Warnings While Operating
wArNINgs whILe operAtINg Violating the warning may Do not use longer than cause serious damage to the 30 minutes at a time. product. Do not use anything as a Violating the warning may pusher (fork, chopsticks, cause serious damage to the spoons, etc.) other than product. the pusher itself. Violating the warning may Remove any hard seeds. cause serious damage to the product, especially the screw. Violating the warning may Do not operate with wet cause serious damage to the hands. product or electrocution. when machine is stuck and not operable, please... Turn off the machine and put it in reverse for few seconds then try operating again. When reverse switch does not work, turn off the machine and reassemble following the instructions given. After reassembly, please try turning on the machine. Xtractor | 11... -
Page 12: How To Disassemble And Clean
how to dIsAsseMBLe ANd CLeAN Turn machine “Off” Use the brush to clean and unplug it. thoroughly after operating. Twist the hopper to unlock by grabbing the two ejections. Make sure the arrow is aligned with the open sign before pulling off the bowl. Do not use metal sponges to clean, it will damage the machine. Do not use dishwasher to clean. Do not rinse the base with direct water, use dry towel or damp towel to clean. Order to disassemble. 1. Hopper 2. S queezing screw 3. Strainer 4. S pinning brush Please dry the attachments 5. Bowl after cleaning. 12 | Xtractor... -
Page 13: Before Requesting For Repair Service
BeFore requestINg repAIr servICe a. Check if the power cord has been plugged in correctly. Machine does not b. Check if the assembly has been done correctly. operate. c. Call Customer Service. The juice does not discharge sufficiently a. Check if the rubber plug has been installed correctly. or there is juice b. Check if the ingredients are fresh. discharging from the pulp ejector. a. C heck if there are too many ingredients inserted at one time. Machine is b. C heck if the hard seeds are removed. stopped. - T urn off the machine and try the reverse button for 2-3 seconds then try operating again. Machine is This sound is perfectly normal. It is the sound of the juice “squeaking” when being extracted by the squeezing screw. making juice. This shaking is perfectly normal. It is a sign that the motor The machine shakes. is working properly. Xtractor | 13... -
Page 14: Product Specification
Electrical Cord Length 4.5 ft Motor Single-Phase Induction Weight 11.5 lbs Width 6.81 in Dimensions Length 9.84 in Height 15.83 in Standard Usage Time Less than 30 minutes continuously For detAILed wArrANty INForMAtIoN, pLeAse vIsIt royAL prestIge oN the weB At ® www.royalprestige.com For warranty service, return the product to our Service Center: Hy Cite Corporation Royal Prestige Service Center ® 2115 Pinehurst Drive Middleton, WI 53562 1-800-279-3373 14 | Xtractor...
