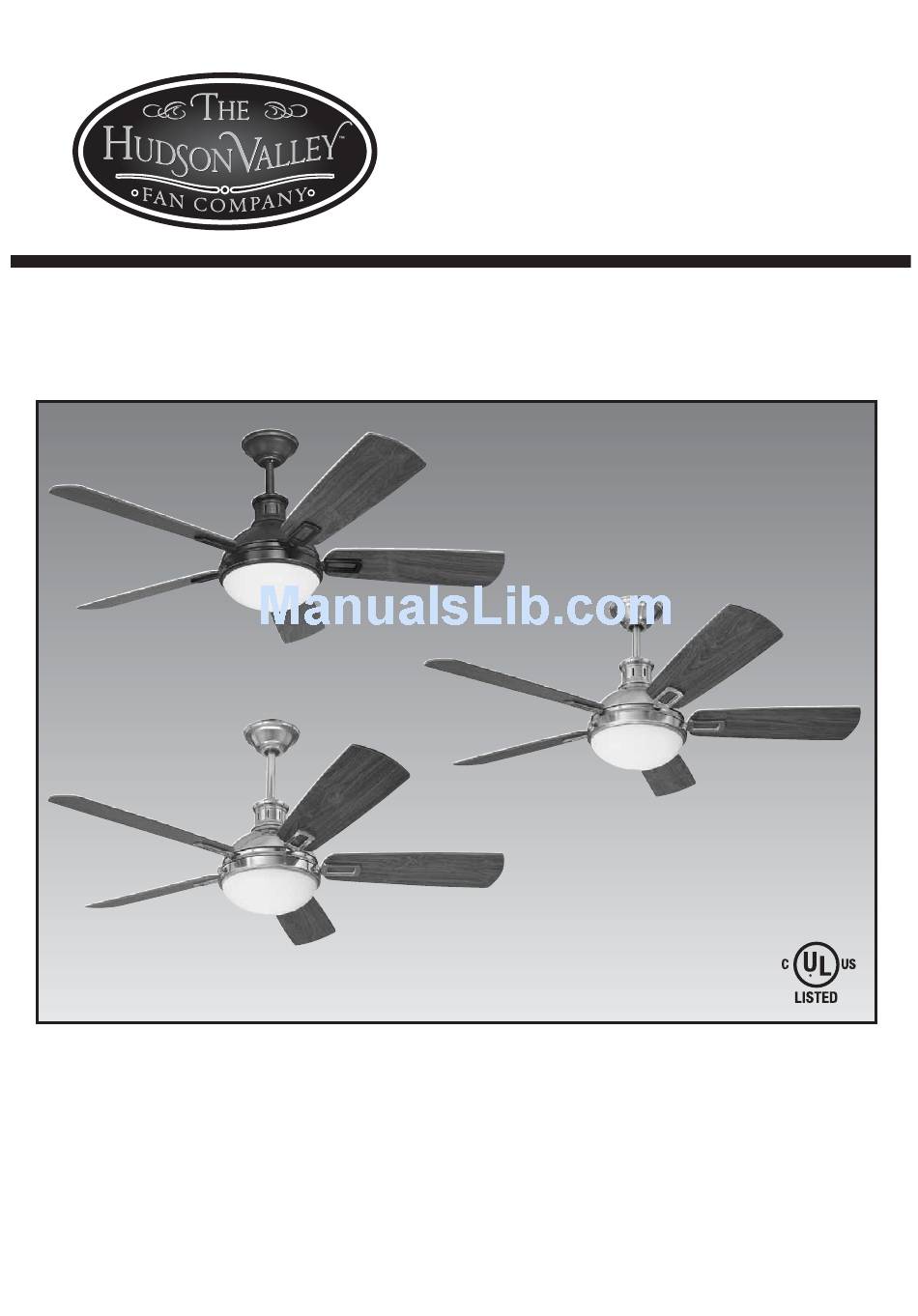

- Page 1 CEILING FAN OWNER'S MANUAL MODEL: Pelham HVFC# 2299 Old Bronze Satin Nickel Polished Nickel READ AND SAVE THESE INSTRUCTIONS FAN RATING AC 120V. 60Hz. CUL LISTED MODEL: AC-554SY05-7S WEIGHT OF THE FAN: 10.8KGS...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, 8. Avoid placing objects in the path of the insure electricity has been turned off at blades. the circuit breaker or fuse box before beginning. 9. To avoid personal injury or damage to the fan and other items, be cautious 2. -
Page 3: Tools And Materials Required
2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 1/2" wrench Step ladder Wire cutters/strippers 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Set of fan blades (5) b. Hanger bracket assembly c. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. Hanging the Fan Hanger bracket REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Ceiling canopy Step 1. Remove the decorative canopy bottom cover from the canopy by turning the Canopy cover counter clockwise. (Fig. 5) cover Figure 5 Step 2. -
Page 6: Make The Electric Connections
INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to prevent the fan from falling. Secure the Hanger bracket safety cable to the ceiling joist with screw Safety cable and washer, as illustrated in Figure 9. CHANGING THE DOWNROD (OPTIONAL) NOTE: Your fan comes with a 8"... - Page 7 Step 2. (Fig. 13 and 14) Motor to Receiver Electrical Connections: Connect the black wire from the fan to black wire marked "TO Outlet box MOTOR L"from the Receiver. Connect the white wire from the fan to the white wire White (neutral) Black (hot) marked "TO MOTOR N"...
-
Page 8: Installing The Wall Transmitter
7. INSTALLING THE WALL TRANSMITTER REMEMBER to Shut the Power Off at the Circuit Breaker or Fuse Box. WARNING: Hook up in "series only" do not connect the hot and neutral wires of electric circuit to the transmitter wall switch - damage to the switch and possible fire could occur. -
Page 9: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Step 1 Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 17. Start screw into bracket. Repeat for the two remaining screws. Screws Step 2 Tighten each screw. Make sure the Slot Blade Fiber... -
Page 10: Installing The Light Plate
11. INSTALLING THE LIGHT PLATE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1. Loosen the 3 screws from the mounting plate. - Page 11 13. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. A. HI, MED, and LOW buttons: These three buttons are used to set the fan speed as follows: HI= high speed Med= medium speed Low= low speed B.
-
Page 12: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
