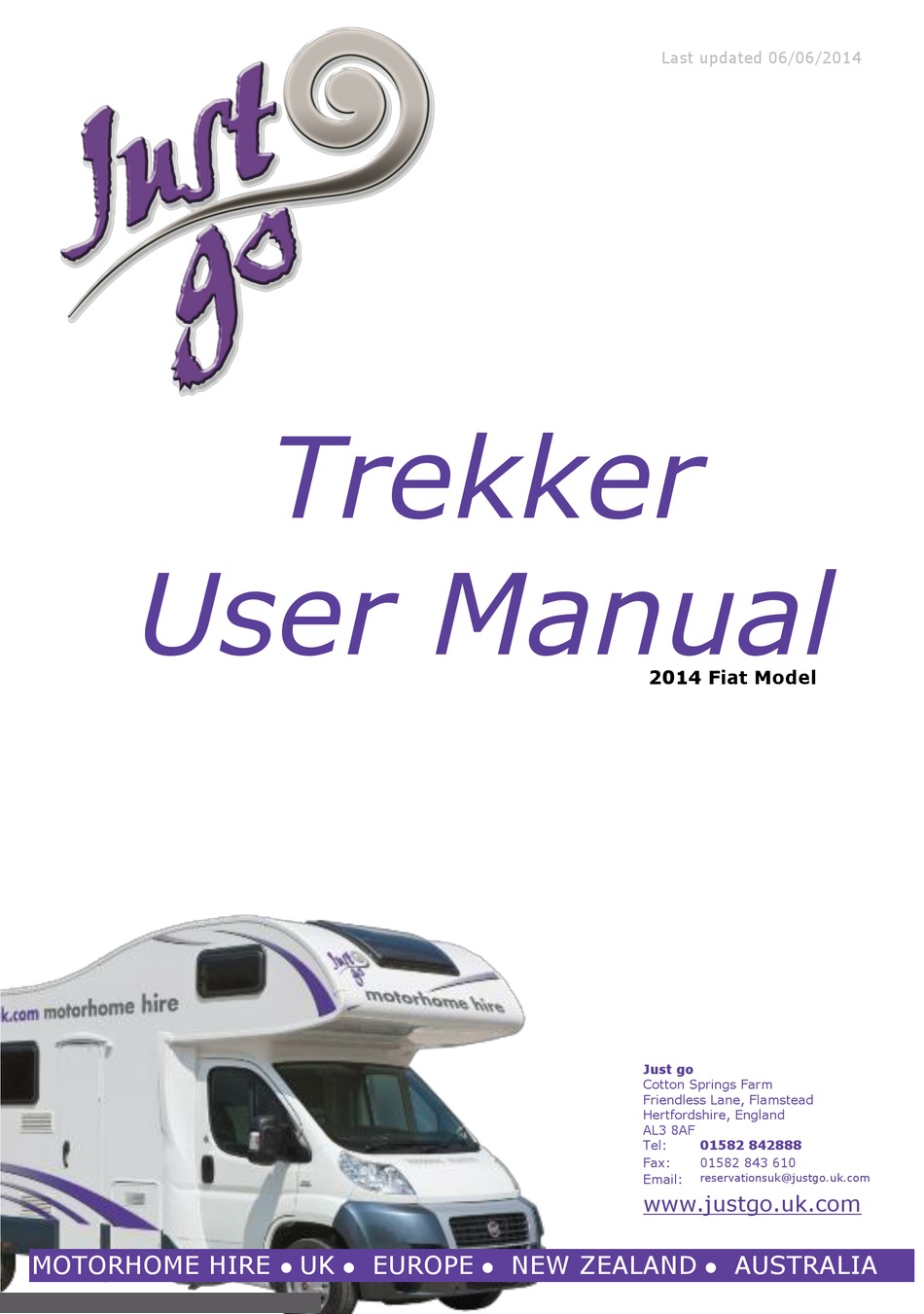

- Page 1 Last updated 06/06/2014 Trekker User Manual 2014 Fiat Model Just go Cotton Springs Farm Friendless Lane, Flamstead Hertfordshire, England AL3 8AF Tel: 01582 842888 Fax: 01582 843 610 Email: reservationsuk@justgo.uk.com www.justgo.uk.com MOTORHOME HIRE EUROPE NEW ZEALAND AUSTRALIA ...
- Page 2 Page 24 Environment & Keeping safe Page 25 Refilling Information Local filling station for LPG gas & diesel upon your return to Just go Page 27 Includes list of filling stations which supply LPG gas. Pages 28-44 Returning the motorhome...
-
Page 3: Setting Off
’ ’ ’ Get the holiday feeling from the moment you arrive at Just go! Step 1 Packing up your motorhome: Setting off Need a hand? Please feel free to ask for a helping hand with your suitcases. ... - Page 4 Step 2 Step 2 Hungry? There are 2 supermarkets (north & south) just moments away from Just go where you will be able to stock up with all the Stock up Finding a necessities before you reach your 1 campsite.
-
Page 5: Finding A Campsite
Town Farm Campsite. At only 25 minutes Finding a (appox) drive from Just go Town Farm is an ideal site for your first pit stop. (For more local campsites please see the Places to stay & visit section) -
Page 6: Step 4 Setting Up
Wherever your holiday takes you we hope you the ‘comprehensive guide to have fun and enjoy your time in a operating your motorhome’ Just go motorhome! section We look forward to seeing you on your return. -
Page 7: Emergency Numbers
Flat chassis battery or incorrect fuel then the assistance service will charge for any callouts. Should you have had an accident and need to notify Just go out of hours then please send a text to our out of hours text line. -
Page 9: Motorhome Exterior
Please make sure your gas bottle is turned off when the vehicle is moving, unattended or you are asleep. LPG Gas bottle – Re-filling The gas bottle must be completely re-filled upon return to the Just go depot. Always make sure the tap on the bottle is closed before refilling with LPG ... - Page 10 LPG Gas Bottle – Refilling Instructions...
- Page 11 Fresh Water Tank (holds 100 litres of fresh water) To refill open cover & unscrew cap and place the hose pipe provided into the tank making sure that the hose is as far down as possible. It should take 10-15 mins to completely fill an empty tank. ...
- Page 12 Reversing Camera The motorhome is equipped with a reversing camera, however Just go always recommends that you have someone helping to direct you when reversing, as the camera may not always pick up small posts etc. There are no overhead cameras so it will not pick up any overhead obstructions.
- Page 13 Grey Water Tank Grey water is waste water from sinks, shower, bathroom sink water and kitchen sink water. The release lever is located underneath the motorhome near to the driver’s side rear wheel, as pointed out during your tour. Pull leaver towards you to release and empty, and push back to close.
-
Page 14: Motorhome Interior
Motorhome Interior: Control Panel (above main entrance door) On/Off: Press this button the turn your control button on or off. Please make sure that you turn the control panel off before leaving the motorhome. Internal Lights: Press the ‘light bulb’ switch to enable lights on. Water pump: Press the ‘water tap’... - Page 15 Pull the grey cover down and you will see a red switch. This switch isolates power to the whole vehicle. Just go un-isolates this before your hire and so you should never have to adjust this. If for any reason the switch has been accidently knocked, to un-isolate the vehicle, turn the red switch until it presses in and is tight.
- Page 16 The switch which has a picture of a snow flake is for your gas supply to the fridge (C). Just go isolates this for safety reasons and should always be in the vertical position. If you find you are without power for the whole duration of your hire i.e Festivals, you can phone the office...
- Page 17 Window Operations – open, close, fly screen & blind To open: Undo all latches; push window out until it clicks into the extended position desired. To close: Push window all the way out and let window fall back to closed position. This should never be forced.
- Page 18 Bathroom - Toilet The seat swivels to give extra leg room. (See pic 1 below) Lever underneath bowl opens and closes the vent to the loo cassette below. We recommend this is closed when not in use, especially whilst travelling. (see pic 2 below) ...
- Page 19 TV System In the rear lounge on the D/S you will see a silver leaver underneath one of the overhead cupboards, whilst holding the bottom of the TV push this lever up and the TV will be released downwards. Once finished with the TV just push this back up till it clicks into place.
- Page 20 12v leisure battery – only works when the engine is running! The fridge can also work on gas, Just go isolates this for safety reasons. If you find you are without power for the whole duration of your hire i.e Festivals, you can phone the office and we can guide you through running your fridge on gas.
- Page 21 Bed conversion Dining area behind the driver’s seat: To start, place all the seat belts into their holders to keep them out of the way and remove the bottom cushions. You can lift off the dinette table and press in the button on the leg to fold this down to fill the hole which then makes the base of the bed and you can use the cushions to form the mattress.
- Page 22 Lounge Area Once the table is removed (this can be stored in the back of the wardrobe) you can then slide out the wooden panel from the rear which makes up the bottom of the bed. You can then remove the back rests to form the cushions for the mattress to be laid out easily.
