SoloChina Co.,Ltd

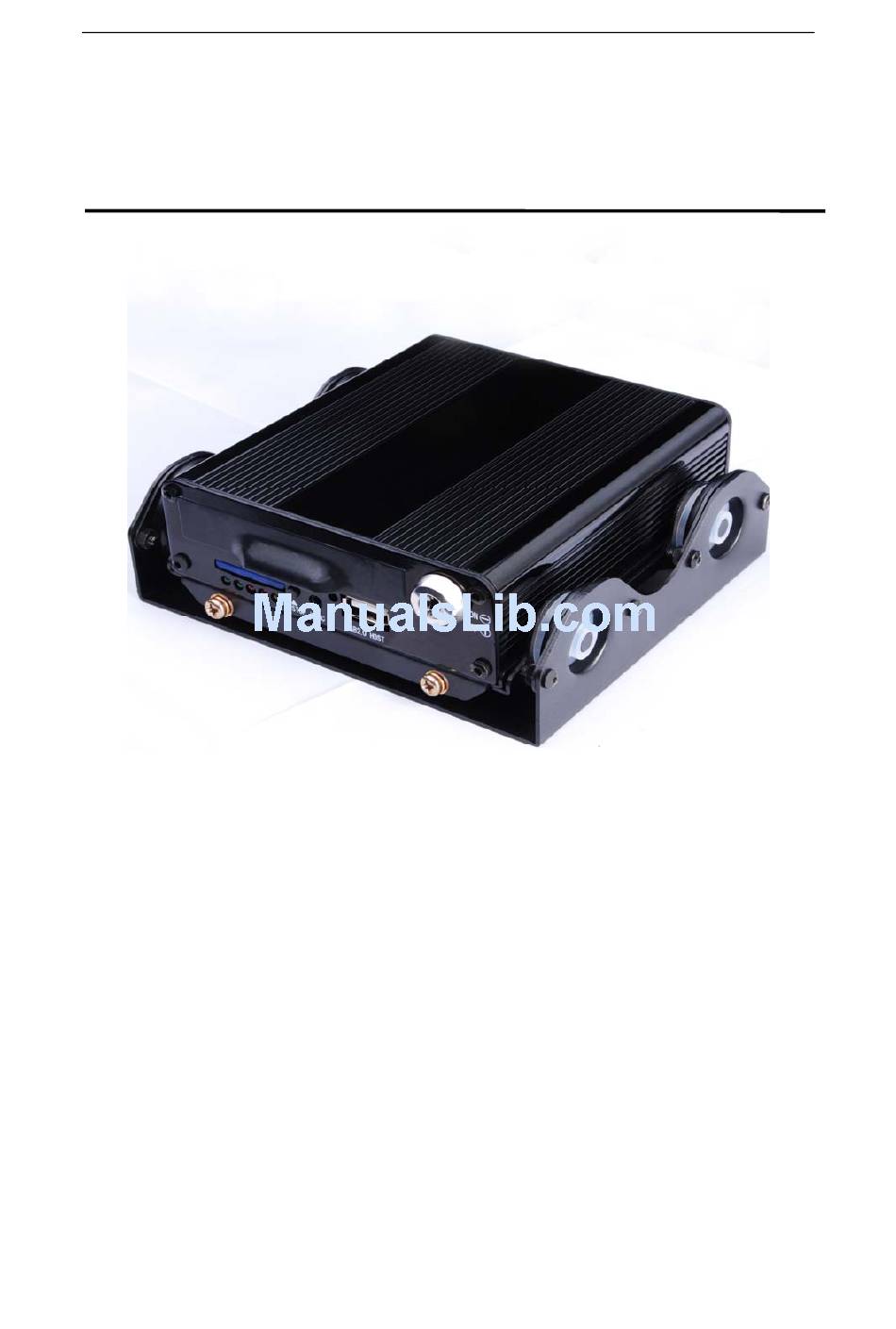

H850--User's Manual
The Main Purpose
Help the investigation of the scene for traffic accident
Gather evidence for violent crimes (blackmail and robbery)
Facilitate the management of company vehicles(GPS positioning)
Full view backing-car function
Speed alarm
Home security(CCTV)
www.solochina.com.cn
1 -
Advertisement
Table of Contents
Summary of Contents for SoloChina H850
- Page 1 SoloChina Co.,Ltd H850--User’s Manual The Main Purpose Help the investigation of the scene for traffic accident Gather evidence for violent crimes (blackmail and robbery) Facilitate the management of company vehicles(GPS positioning) Full view backing-car function Speed alarm Home security(CCTV) www.solochina.com.cn...
-
Page 2: Important Notice
SoloChina Co.,Ltd Warning This DVR is NOT of waterproof; to prevent it from any accident of fire or electric shock, please do NOT put any container with water on the device or nearby. Do not expose the device to moisture, or extreme temperatures. -
Page 3: Table Of Contents
SoloChina Co.,Ltd 1.Main Features..................... 4 2. Overall description.................... 5 2.1 Front Panel ....................5 2.2 Rear panel ....................7 2.3 Remote......................7 3. Using the recorder .................... 9 Step 1, Install the hard drive into the hard drive case .......... 9 Step 2, Connect camera..................11... -
Page 4: Main Features
SoloChina Co.,Ltd 1.Main Features Video And Audio H.264 High Profile video compression, real time recording( 25 fps(PAL) / 30 fps(NTSC) for each channel. Frame rate adjustable for each channel. AAC(Advanced Audio Compression) for audio. D1 resolution for each channel, 720x480@30 fps(NTSC). -
Page 5: Overall Description
SoloChina Co.,Ltd VLC media player（version1.0.0 or above） Storm player(Version 2009 or above） Winamp（Version 5.531 or above） Windows MediaPlayer (Need to download the H.264 control by network) 2. Overall description High video quality based on H.264 profile compression. - Page 6 SoloChina Co.,Ltd Get to know the status of Mobile DVR by the indication of PWR light and RUN light: Description Always On Blinking DVR is turned on and running. Blinking with RUN by Blinking with PWR by Ignition is not enabled and DVR is...
-
Page 7: Rear Panel
SoloChina Co.,Ltd 2.2 Rear panel ①：Power for the recorder and ACC input. ②：AV input 1、AV input 2 ③：AV input 3、AV input 4 ④：AV output(including audio output, video output and power) ⑤：1 IR Cable, 1 speed sensor, 3 universal sensors, 2.3 Remote... - Page 8 SoloChina Co.,Ltd How to use the remote： （1）Press <MENU> to enter main menu or sub menu. You can also use <MENU> to select among different value in the submenu. You can also use <MENU> as <OK>； （2）Press <Up/Down/Left/Right> button to move between the different menu item;...
-
Page 9: Using The Recorder
SoloChina Co.,Ltd 3. Using the recorder Step 1, install the hard drive into the hard drive case To Install hard drive with SATA interface, please do as following steps. 1. Remove screws on the back side of the hard drive case. - Page 10 SoloChina Co.,Ltd 5. through the Hole, use the screwdriver to drive the gear box on the shock bracket hooks under pressure to fix the hard drive. Please note that, under pressure after the test block shake the hook, if the hard disk is not fixed firmly, because the vibrations may cause damage to the hard disk, hard drive data will loss 6.
-
Page 11: Step 2, Connect Camera
SoloChina Co.,Ltd Step 2, Connect camera. Products according to customer requirements of different cable distribution Figure A small camera is connected, The cable use for DC 3.3V camera Figure B is connected ordinary camera, The cable use for DC 12V camera Step 3, Connect to power supply Connect the red wire to the “+”... -
Page 12: Step 4, Format The Sd Card
SoloChina Co.,Ltd ignition, connect the yellow wire to the “+” pole of the batery. Please note: The fuse is used for protecting the battery from shortcut so you need to connect the fuse near to the battery. NOTE 1． The DVR uses DC power input, please be very careful when connecting to the “+” and “-”... -
Page 13: Step 5, Choose Recording Quality
SoloChina Co.,Ltd Step 5, Choose recording quality Press <MENU> to enter the main menu and select “RECORD SETTINGS” in the “RECORD” sub menu. The detailed parameters for each quality list as below: Quality Resolution Maxiam bit Minumum Audio Capacity rate（Bit/s）... -
Page 14: Operations
SoloChina Co.,Ltd NOTE The DVR will recognize either Disk 1 or Disk 2 in random order if both Hard Drive and SD Card are inserted. The Disk 1 can be Hard Drive or SD Card, same as Disk 2. 4.Operations 4.1 Play back the files on HDD drive... - Page 15 SoloChina Co.,Ltd （2）Seek and play back the file at a specific time. Press <MENU> to enter the main menu and select “SEARCH BY TIME” in the “STORAGE” sub menu. Select the Vedio dir you want to seek and choose <OK>. The recorder will list the record file around the time you set.
-
Page 16: Manage The Power
SoloChina Co.,Ltd 4.2 Manage the power （1）Use the ignition to control the power 1. Connect the ignition to the yellow wire of the power cable. And connect the red and black wire to the “+” and “-” pole of battery. - Page 17 SoloChina Co.,Ltd Fuse Yellow wire Black wire wire Battery Recorder 2. Select “POWER ON” and “POWER OFF” in the “Power” sub menu and set the time you want to turn on/off the recorder. If you don’t need to turn on/off the recorder automatically, set the “POWER ON” and “POWER OFF”...
-
Page 18: Alarm Recording
SoloChina Co.,Ltd 4.3 Alarm recording Using the sensor (alarm) The Mobile DVR can be connected to 4 sensors. All these alarms and sensors can trigger the alarm recording. They can also turn on the buzzer, trigger the alarm out, trigger to toggle video display, and trigger to show information on the screen. - Page 19 SoloChina Co.,Ltd Speed sensor input wire on DVR: Label Color Description SENSOR Purple Speed sensor input 2.Connect 1: Speed sensor input 3.Connect2: Speed sensor input www.solochina.com.cn 19 -...
-
Page 20: Appendix, Cables
SoloChina Co.,Ltd 5. Appendix, cables 5.1 Power supply Color Description “+” of power supply YELLOW Ignition signal. Connect this wire to “+” of power supply if you don’t use ignition to control the power. BLACK “-“ of power supply 5.2 AV cables Audio and video connection interface (in the DVR back panel) 1）... -
Page 21: Signal Cables
SoloChina Co.,Ltd Yellow(VIN) Video input White(AIN) Audio input Black(12V) Power output for camera(+12 VDC, Maximum current 1A) 2） AV output cable Mark Description Yellow(VO) Video out White(AO) Audio out Black(12V) Power output for camera(+12 VDC, Maximum current 0.5A) 5.3 Signal cables... - Page 22 SoloChina Co.,Ltd VIDEO INPUT 4 channels VIDEO OUTPUT 1 channel, 1.0V, p-p, 75Ω, BNC VIDEO FORMAT Support PAL/NTSC VIDEO H.264 High Profile COMPRESSION VIDEO RECORD 1280x1024(PAL)/ RESOLUTION 1248x832(NTSC) 100fps(PAL), FRAME RATE 120fps(NTSC) VIDEO 1.98Mbps ~ 4.5Mbps, BITRATE 4 level video quality...
-
Page 23: List Of Standard Accessories
SoloChina Co.,Ltd SIZE 120mm x 105mm x 33mm (Includes shock mount) WEIGHT 0.65kgs (Includes shock mount) 7 List of Standard Accessories Item Description Quantity 1 pc Disk reader antivibration mounting ( shock mount ) 1 pc AV Input Cable AV Output Cable...
