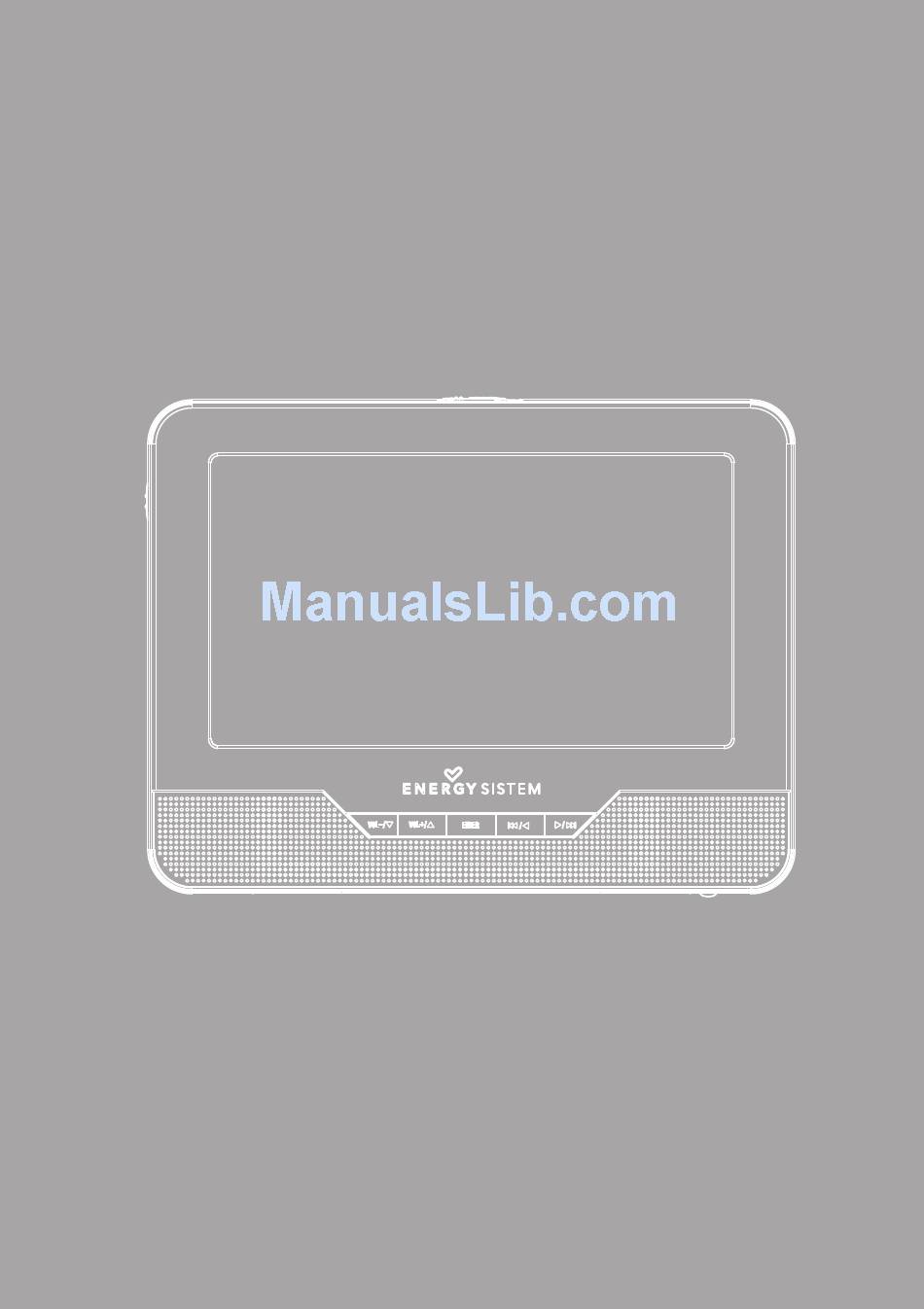

Page 1 User Manual...
Page 3: Important Safety Instructions
1. INTR ODUCTION Energy Sistem® thank you for purchasing the Energy™ Car Media Player. he following sections provide an overview of your new device and its basic features. Please read everything carefully before start using the product. 2. ImpORTaNT SafeTy INSTRUCTIONS To ensure your safety and the safety of others, please ensure that you read all the safety information before operating this product.
Page 4: Front View
3. paNeL SCHeme 3.1. fRONT VIeW Aux. Screen r7/r9 Dual Main Screen r7/r9 Traveller y Dual : short press to move up/down on the menus. Long press to adjust (increase or reduce) the volume. Enter: to confirm a selection. : short press to move left/right on the menus. It is also used to select the previous/next track (long press) during music or video playback.
Page 5 3.2. SIDe VIeW (CONNeCTIONS) r7 Traveller r7 Dual Screen (Main Screen) r7 Dual Screen (Aux. Screen) r9 Traveller r9 Dual Screen (Main Screen) r9 Dual Screen (Aux. Screen) USB host port (Type A). 3.5 mm (1/8”) TRRS A/V output. 3.5 mm (1/8”) stereo earphones output. DC IN Power connection (12 V).
Page 6: Top View
3.3. TOp VIeW Card reader SD/SDHC/MMC/MS. 3.4. RemOTe CONTROLL...
Page 7: Installation
4.1. INSTaLLINg THe bRaCkeT TO THe CaR HeaDReST Your Energy™ Car Media Player includes a adjustable fixing kit for a safe and secure mounting to the car headrest. To install the bracket to the headrest just follow the next steps: ≥...
Page 8 ≥ Fix the screws “C” to the bracket base “D” and insert it on the car headrest. Then, insert the bracket piece “B” to the piece “D” by pressing the side buttons “E” located on piece “B” as below illustration : ≥...
Page 9 4.2. CONNeCTINg THe DUaL SCReeNS * To connect the main and auxiliar screen of your Energy™ Car Media Player (*only available for dual models) connect both screens using the A/V cable (incluided) as below illustration: Adaptador para encededor de autómovil. (12V)
Page 10 5. pOWeR SpeCIfICaTIONS 5.1. bUILT-IN ReCHaRgeabLe LITHIUm baTTeRy Your Energy™ Car Media Player has a built-in rechargable lithium battery.*. ≥ We recommend making a full charge of the battery before first use at least during 12 hours. Charging time takes around 4 hours. Full battery has autonomy enough for 2,5 hours.
Page 11 6. USINg yOUR eNeRgy™ CaR meDIa pLayeR When your Energy™ Car Media Player it’s started the welcome screens will be displayed: The device will automatically detect if there is an external storage device connected (USB reader or memory card) and the main menu will be displayed:...
Page 12: Playing Video
6.1. pLayINg VIDeO Once selected the playback source (USB reader or card reader) access to the menu MOVIE and press the ENTER on the remote control. All the video content stored at the external device will be displayed. To play a file move across the directory (using the navigation buttons) and select the desired file by pressing ENTER.
Page 13 (USB reader or card reader) will be played at the same time. 7. SISTem SeTTINgS To access to the settings menu of your Car Media Player press the button SETUP on your remote control. To exit press ‘SETUP’ again.
Page 14: Display Settings
≥ SHARPNESS: adjust the sharpness effect. 8. TROUbLeSHOOTINg If you experience problems with your Energy™ Car Media Player, in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section. Problema Posible causa Solución...
Page 15: Firmware Update
9. fIRmWaRe UpDaTe To update the firmware of your Energy™ Car Media Player, visit the downloads section of our website: www.energysistem.com, where you will find the instructions and the files required for the update.
Page 16: Specifications
10. SpeCIfICaTIONS Technical Specifications Type TFT-LCD Color Resolution r7: 480 * 234. Display r9: 640 * 234. Size r7: 7” inches. r9: 9” inches. Lithium built-in battery 1000 mAh Battery 7.4V. Power Autonomy Up to 2,5 hours. Charging time 4 hours aprox. Video format supported MPEG, MPG, DAT, VOB, AVI, MOV, MP4, XVID.
Page 17: Warranty
WaRRaNTy Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time the goods were purchased during a period of 36 months. Batteries are excluded from the 36-month warranty, having a warranty period of 12 months.
Page 18: Declaration Of Conformity
We declare under our own exclusive responsibility that the product: energy Sistem® multimedia screen energy™ Car media player r7 Traveller energy Sistem® multimedia screen energy™ Car media player r7 Dual Screen energy Sistem® multimedia screen energy™ Car media player r9 Traveller energy Sistem®...
