  • Page 1: Operation Instructions

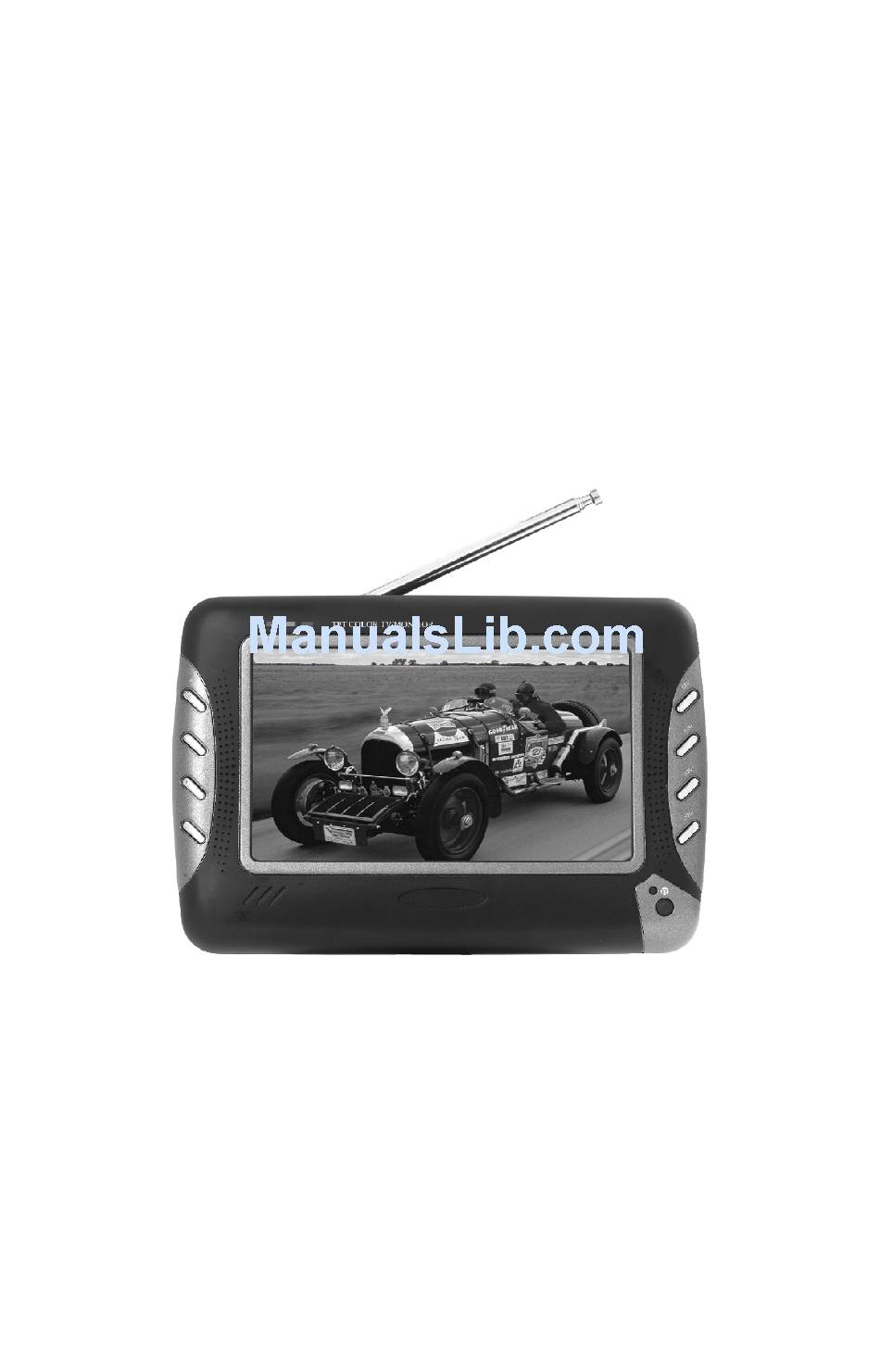

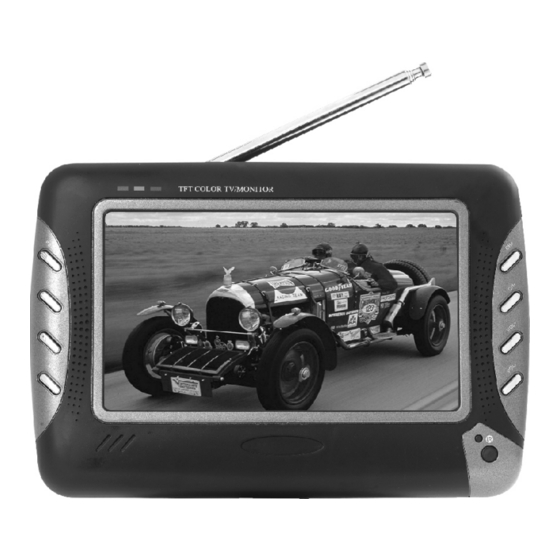

    Operation Instructions TVA-J70B LCD Color Television Receiver...

  • Page 2: Table Of Contents

    Table of Contents 1. Precautions 2. Accessories 3. Appearance 4. Remote Control Operation 5. Basic Operation Methods 6. Menu Operation 6.1 Picture 6.2 Option 6.3 Clock 6.4 System 6.5 Preset 7. In order to receiver clearer picture 8. Before you request for repair 9.

  • Page 3: Precautions

    1. Precautions Storage and Keeping Keep this machine Never use this away from too hot machine near or too cold places. bathtub, The storage washbasin, and temperature of this kitchen, etc machine is - 20~ places with water 60 , the or at damp application basement,...
  • Page 4 Operation Precautions 1. Only the attached AC adapter and the automobile adapter (12V) are applicable. 2. For the sake of safety, when you do not intend to use the display, please plug off the AC adapter or automobile adapter. Earphone Operation Precautions 1.

  • Page 5: Accessories

    2. Accessories Double-side adhesive Base support tape for base support AC adapter Car adapter antenna cord Remote control Telescopic antenna AV input cord...

  • Page 6: Appearance

    3. Appearance 1.TFT-LCD-Bildschirm 2.EIN/AUS Hauptschalter 3.AV / TV Umschalter 4.Auto search 5.Menu 6. Teleskopantenne 7.Programm + 8.Programm - 9.Lautstärke + 10.Lautstärke - 11.Betriebsanzeige 12.Infrarotsensor für Fernbedienung 13.Kopfhöreranschluss 14.AV1 IN jack 15.AV2 IN jack 16.12V DC Eingangs-buchse 17.Lautsprecher 18.Anschluss externe Antenne...

  • Page 7: Remote Control Operation

    4. Remote Control Operation 1. Programmauswahl 2. Lautstärkeregulierung 3. Mute 4. Mode 5. Zifferntasten zur Programmwahl 6. Umschalttaste einstellig/mehrstellig 7. Horizontal 8. Vertikal 9. Menü 10. EIN/AUS Taste Exit Spiel 11. Call 12. Timer 13. Sprache 14. Kalender 15. AV / TV umschalten 16.
  • Page 8 (Channel selection) Press CH , the number of TV channel increases. Press CH , the number of TV channel decreases. VOL - / + (Volume adjust) Press VOL - , the volume of TV set decreases. Press VOL + , the volume of TV set increases. MODE (Mode): By pressing this button, users can realize the five picture mode of Standard, Soft, Vivid, Light and Personal.

  • Page 9: Basic Operation Methods

    5. Basic Operation Methods Basic interface connection 5.1 Installation Method of Base Support: Align the screw bolt of base support with the bottom groove on hardware piece of the rear TV cover before moving upward. Then rotate the fixation button in clockwise direction till fix the TV set onto the support.
  • Page 10 5.5 Connection Method of Earphone: Align the earphone plug with the earphone jack on the TV set, and just plug in till its end is OK. Notice If earphone is applied, the sound only transmits through the earphone, and no sound is available from the speaker of TV set. 5.6 Connection of AV input cord: 5.6.1.AV1 input: Insert the external video cord into the yellow port of the AV...

  • Page 11: Menu Operation

    6. Menu Operation Press MENU to display options as follows: PICTURE OPTION CLOCK SYSTEM PRESET 6.1. PICTURE CONTRAST, BRIGHT, COLOR, SHARP and TINT displays on the screen as illustrated below: PICTURE CONTRAST BRIGHT COLOR SHARP SELECT ADJUST / CH Select VOL + / VOL - : Adjust Press CH+ or CH- to select the item CONTRAST.
  • Page 12 Press VOL - / VOL + can realize selection of ENGLISH, GERMAN, FRENCH, SPANISH, ITALIAN and RUSSIAN etc OSD menu language. Press CH- or CH+ to select the item CALENDAR: OPTION LANGUAGE ENGLISH CALENDAR GAME SELECT ADJUST / CH Select VOL + / VOL - : Adjust Press VOL-/VOL+ adjust CALENDAR, then press CH+/CH- adjust year, and press VOL-/VOL+ adjust month.

  • Page 13: Clock

    6.3 CLOCK TIME, ON-TIME, OFF-TIME, ATTENTION, BESPOKE TIME, and POSITION will display on the screen as illustrated below: CLOCK TIME - - : - - ON-TIME - - : - - OFF-TIME - - : - - ATTENTION - - : - - BESPOKE TIME - - : - - POSITION...
  • Page 14 SYSTEM COLOR-SYS AUTO SOUND-SYS DK 6.5M BLUE BACK HORIZONTAL VERTICAL ZOOM 16:9 SELECT ADJUST / CH Select VOL + / VOL - : Adjust Then press VOL- or VOL+ to revolve the screen in the order of AUTO, PAL and SECAM. Please choose carefully this system correctly. Otherwise, it may cause achromatic or inferior color.
  • Page 15 SYSTEM COLOR-SYS AUTO SOUND-SYS DK 6.5M BLUE BACK HORIZONTAL VERTICAL ZOOM 16:9 SELECT ADJUST / CH Select VOL + / VOL - : Adjust Press VOL- / VOL+ can realize the ON / OFF of BLUE BACK under no signal. Press CH- or CH+ to select the item HORIZONTAL: SYSTEM COLOR-SYS...

  • Page 16: Preset

    Press CH- or CH+ to select the item ZOOM: SYSTEM COLOR-SYS AUTO SOUND-SYS DK 6.5M BLUE BACK HORIZONTAL VERTICAL ZOOM 16:9 SELECT ADJUST / CH Select VOL + / VOL - : Adjust Press VOL - / VOL + can realize the selection of picture modes: 4:3 mode, and 16:9 mode.
  • Page 17 Press CH- or CH+ to select the item AUTO-SEARCH: PRESET POSITION REMEMBER BAND SWAP FINE SEARCH AUTO-SEARCH SELECT ADJUST / CH Select VOL + / VOL - : Adjust Press VOL- or VOL+ to start AUTO-SEARCH, and put into automatic memory and storage upon completion of AUTO-SEARCH.

  • Page 18: In Order To Receiver Clearer Picture

    7. In order to receive clearer picture Adjust the length, angle and direction of the telescopic antenna to obtain optimum image. Draw back the antenna from the butt end after usage. Notice In case the signal intensity is too weak, the image will remain inferior whatever you adjust the antenna, and cause loud noise wave, shaking image and inferior sound, etc., which is not TV fault.

  • Page 19: Before You Request For Repair

    8. Before you request for repair Phenomena below are not necessarily mean failure with TV set. Please check following methods before you request for repair. Phenomena Possible Causes Improper connection with AC adapter or No picture, no sound Care adapter. Use of unauthorized power supply.

  • Page 20: Technical Parameters

    9. Technical Parameters Product Name: LCD Color TV Receiver: Display Device: Color TFT-LCD Receiving Frequency range: 48.25MHZ~863.25MHZ Sound System: DK Screen Size: 7 inches Audio Output: 0.3W (Max) Loudspeaker: one 4.0 cm round loudspeaker. Connecting Terminal: External antenna input jack, earphone jack, Audio / Video (AV) input jack, External power supply jack.
  • Page 21 W a r n in g This operation instruction is only intended for reference. No further notice is available to any modification of all information contained therein. Sound System, Color system and OSD menu language are optional item, please check before usage. W a r n in g No repairable components exist in the machine.
