Summary of Contents for Duratool 22-13775

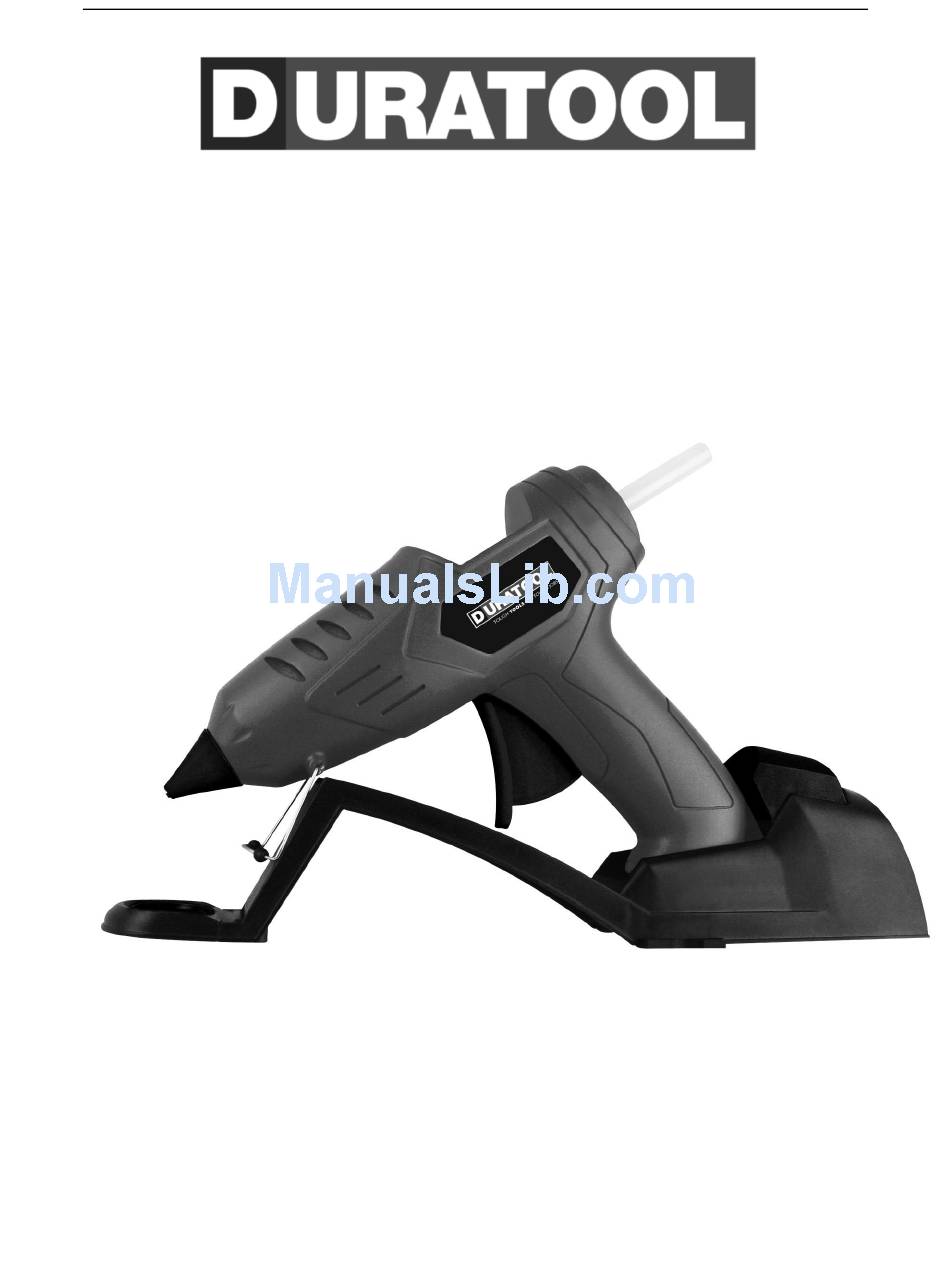

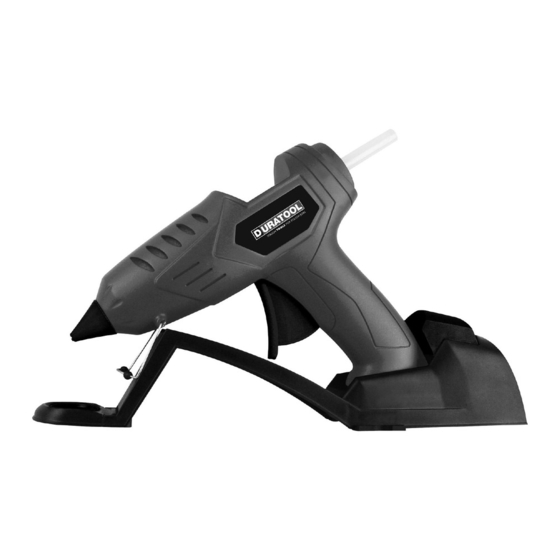

- Page 1 Model – 22-13775 40W Cordless Glue Gun User and Safety Instructions...
- Page 2 Device overview 1. Nozzle 2. Heating duct 3. Feed opening for glue sticks 4. Handle 5. Power light 6. Power cradle 6a. Connection socket 6b. Ejection button 6c. Drainer 7. Glue gun power connection 8. Feed trigger 9. Supporting stand 10.
- Page 3 Always grip and pull the power plug, not the power cable, when removing the power plug from the outlet. Do not carry or hang up the device by the power cable. The cable could be damaged or tore, and the device could fall and become damaged. Safety tips specific for device The persons who are not able to use the device, because of their spiritual or ...
- Page 4 Preparations Mount the supporting stand (9) Put one end of the supporting stand (9) in one of the fixture hole (10). Carefully pull apart the supporting stand (9) to place the other end in the opposing fixture hole (10). Mount the nozzle Screw the desired nozzle (1) up to the block in the thread in front in the device.
-
Page 5: Technical Data
A small amount of glue will remain in the tip when the trigger is released and this will need to drain from the tip. Be cautious not to allow any potential drip to come in contact with sensitive surfaces or skin. Technical data Model: 22-13775 Voltage: 120V ~ 60Hz... - Page 6 Rated Power input: 40W Protection class: Trouble Shooting Problem Possible cause – solution Device can not be switched on. Unit is not plugged in. Plug the power cable in a properly functioning outlet. Power cable is defective. Contact distributor for replacement power cable.
