Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth defects
or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
775-9203A

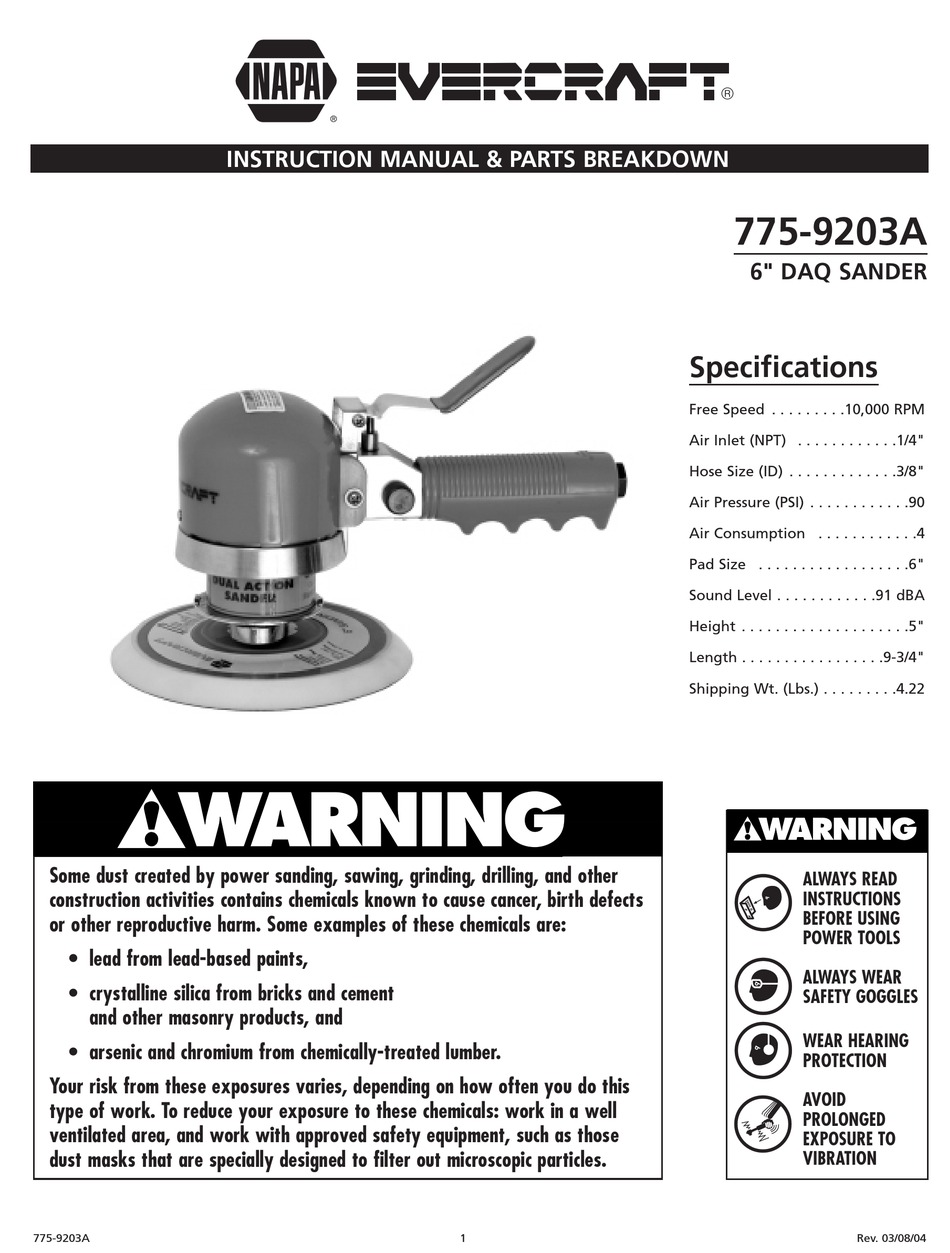

INSTRUCTION MANUAL & PARTS BREAKDOWN
1
775-9203A

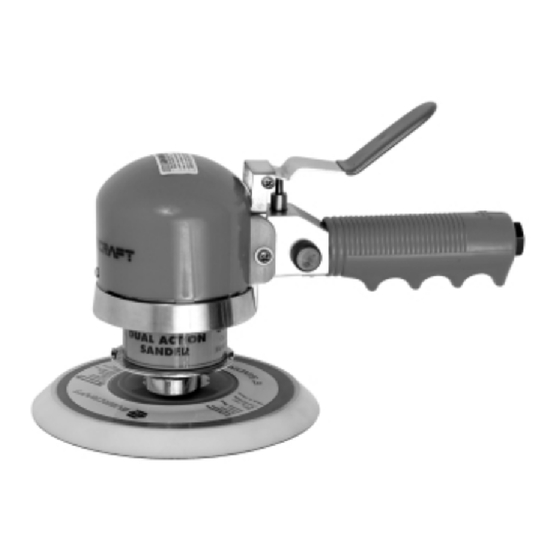

6" DAQ SANDER
Specifications
Free Speed . . . . . . . . .10,000 RPM
Air Inlet (NPT) . . . . . . . . . . . .1/4"
Hose Size (ID) . . . . . . . . . . . . .3/8"
Air Pressure (PSI) . . . . . . . . . . . .90
Air Consumption . . . . . . . . . . . .4
Pad Size . . . . . . . . . . . . . . . . . .6"
Sound Level . . . . . . . . . . . .91 dBA
Height . . . . . . . . . . . . . . . . . . . .5"
Length . . . . . . . . . . . . . . . . .9-3/4"
Shipping Wt. (Lbs.) . . . . . . . . .4.22
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
Rev. 03/08/04
