Summary of Contents for Bauhn freeview AP-HDF1S

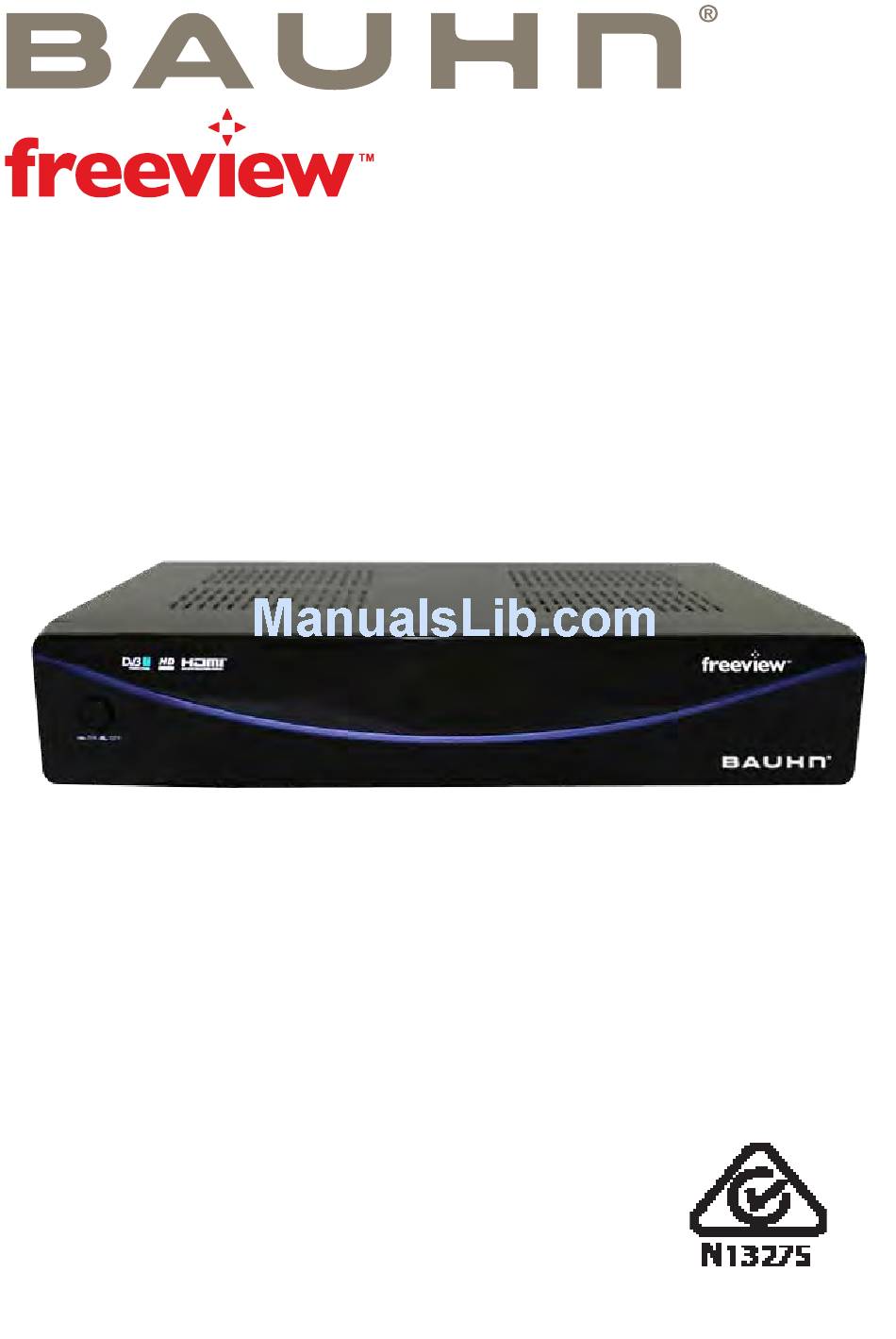

- Page 1 High Definition Set Top Box Instruction Manual Model Number AP-HDF1S After Sales Support 1300 886 649...
-
Page 2: What Your 1 Year Warranty Means
High Definition Set Top Box What your year warranty means Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first year after the date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention. -
Page 3: Table Of Contents
Contents Page What your 1 year warranty means ............. Welcome ....................Important safety instructions .............. Front panel and rear panel ..............Remote controller ................... Basic operation ..................FAQs ......................Technical specifications ................. After Sales Support TEL: 1300 886 649... -
Page 4: Welcome
Welcome Congratulations on choosing to buy a BAUHN product. By doing so you now ® have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you by BAUHN are manufactured to the highest ®... -
Page 5: Important Safety Instructions
Important safety instructions Please read these instructions carefully and keep them in a safe place for future reference. CAUTION! Electrical safety Dangerous high voltages are present inside this appliance. Do not open it. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This product contains no user-serviceable parts inside. -
Page 6: Front Panel And Rear Panel
Front Panel and Rear Panel After Sales Support TEL: 1300 886 649... -
Page 7: Remote Controller
Remote Controller 1. STANDBY Switch the receiver in and out of standby mode. 2. <0>-<9> Numeric keys. 3/ 17.CH-/CH+ Program changing keys. Move cursor up or down in menu item. 4. MENU Display main menu on TV screen, and press again to close the menu. - Page 8 14.AUDIO Change the Audio language or switch to AC3 mode (availability depends on the channel). 15.EXIT Use this key to quit current menu. 18.INFO Display information about the current channel. 19.TV/RADIO Switch between Digital Radio and DVB-T modes (Radio is not available in countries such as France).
-
Page 9: Basic Operation
Basic Operation 4.1 System Setup Press [Menu] key on the RCU, the main menu will be shown on the screen. 1).Select an option by pressing the UP and DOWN keys of the remote control, and press OK keys of the remote control to change the setting’s value. - Page 10 4.1.5 Change Password You can set a password for anyone who wishes to operate in the”Sytem Setup”menu. And you can also set the password for the lock channels. (How to set the lock channel please refer to Lock) Here will show you how to setting and how to revising the password. 1.
- Page 11 4.2.1 TV System Use this option to define the TV system according to your country: PAL or NTSC. 4.2.2 HD Output The High-Definition Multimedia Interface (HDMI) is a digital audio/video connector interface for transmitting uncompressed digital streams. HDMI supports, on a single cable (HDMI cable not supplied), all video formats including standard, enhanced, and high-definition, as well as multi- channel digital audio.
- Page 12 4.3.1 LR Mode LR MODE can select STEREO for both channels. 4.3.2 SPDIF Selecting the SPDIF setting allows the user to adjust the audio output on SPDIF Ports to work in harmony with the audio equipment(e.g.receiver,speakers)conected to the player. PCM Select this option when you are going to use stereo signals(2 channels). You should combine this option with the option"Lower sampling rate",which we explain further on.
- Page 13 4.4.1 OAD This function can upgrade the software through signal lines from the cable. 1) Input the frequency value and download PID, and select bandwidth. 2) Select OAD option, press OK button to start upgrade. 4.4.2 Manual Search If any channel is missing after auto search, or you want to add newly launched channels, you can use Manual Search to scan the desired channels.
- Page 14 4.5 Channel Edit This function allows you to define a list of favourite channels. When you select the option CHANNEL EDITION, a message will appear to ask you to choose whether you want to create a favourite list for DVB-T channels, or for radio stations. Choose the former option to continue (there are no radio stations broadcasted via the DVB-T network in most countries, including France).
- Page 15 Remarks: - Language selection and AC3 availability depend on the channels. Some channels may offer only one language and no AC3. AC3 may also be broadcasted only for a few selected movies. -When you choose AC3, the sound coming from the TV is cut. This is normal, the sound is now transmitted to your home theatre through the DVB-T’s coaxial output.
- Page 16 4.8 EPG The Electronic Program Guide (EPG) gives you immediate access to the channel TV program for the coming hours. To use it, press the EGP button of the remote control. The channel schedule appears immediately, as per the below illustration. Use the UP and DOWN buttons to choose the desired DVB-T channel and then press the EPG button on the remote control to select the detail of a TV program in particular.
-
Page 17: Faqs
FAQ’s 1) Analog reception and DVB-T reception. If you wish to watch TV using your TV tuner (i.e. an analog tuner) and that your DVB-T unit has been turned off or unplugged, the image quality from your TV may not be optimal. This is normal; your DVB-T receiver must be set to ON mode to receive good signal quality. - Page 18 FAQ’s After Sales Support TEL: 1300 886 649...
-
Page 19: Technical Specifications
Technical Specification After Sales Support TEL: 1300 886 649... - Page 20 After Sales Support TEL: 1300 886 649...
