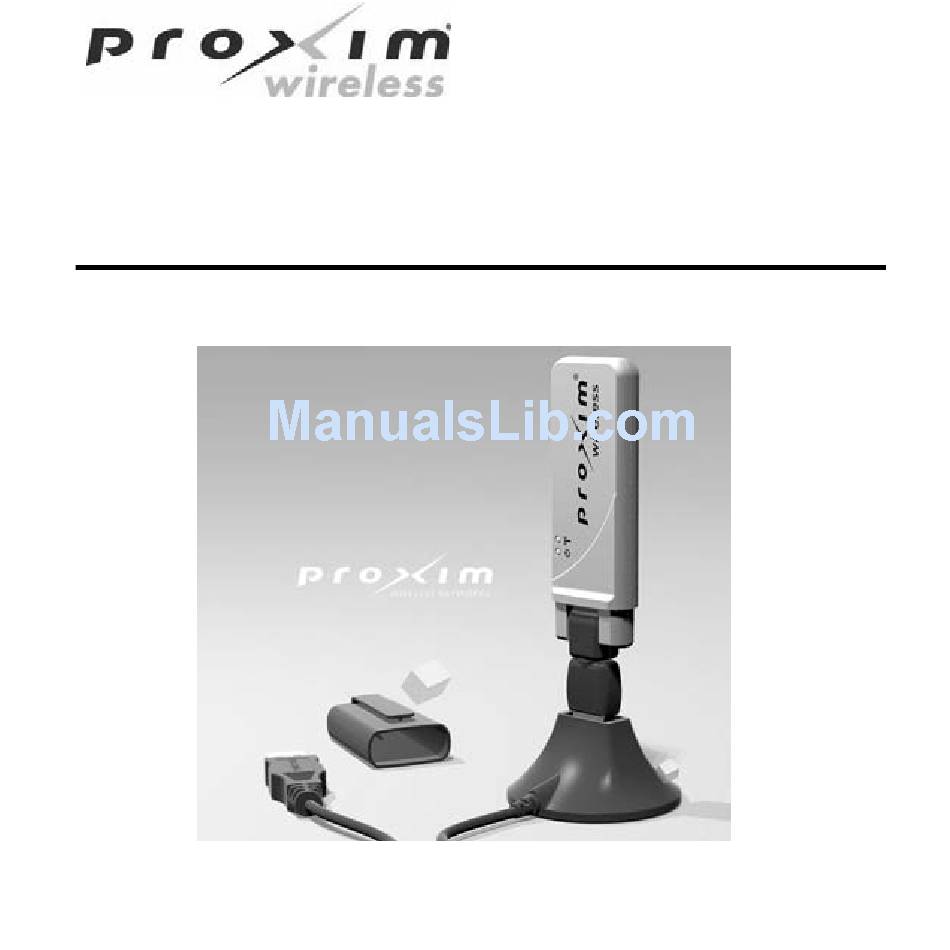

- Page 1 ORiNOCO 802.11 b/g USB Adapter Quick Start User’s Guide...
-
Page 2: Table Of Contents
Contents 1. Before You Start………………………………………………...…… 3 1.1 Features………………………………………………………… 4 1.2 System Requirement………………………………………….. 4 2. Step1: Software Installation…………………………….……..……. 5 2.1 For Windows XP users……………….………………....6 2.2 For Windows 2000 users…………….………………..…….. 8 3. Step 2: Hardware Installation…………….………………..…….. 9 3.1 For Windows XP users……………….……………….....10 3.2 For Windows 2000 users…………….………………..……... -
Page 3: Before You Start
1. Before You Start Please check USB Adapter package content: • USB Adapter • USB Adapter Stand with 1.5M USB cable • CD-ROM containing software driver and documentation If any of the items appear to be damaged or missing, please contact your supplier. -
Page 4: Features
1.1 Features • Double swivel design provides 180° rotation on 2 axis. • Automatic fallback: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps. • Powered by the host machine: no need for external power • Automatic power management •... -
Page 5: Step1: Software Installation
2. Step 1: Software Installation Insert the CD-ROM, and it will auto-run as shown in the following picture. It is required to install the software first, prior to hardware installation. -
Page 6: For Windows Xp Users
2.1 For Windows XP users Step 1: Please click “Install” and the InstallShield Wizard will start the installation. Just follow the instructions for the installation. Step 2: Click “Next” to continue the installation. - Page 7 Step 3: After you click “Next”, the system will start to install the program as shown in the following picture. Step 4: Click “Finish” to complete the installation and restart your computer again.
-
Page 8: For Windows 2000 Users
2.2 For Windows 2000 users Please follow page 6 steps 1 and 2 to start the installation. After that, please ignore the Windows hardware message and click “Yes” to continue the installation. The computer will complete the installation as shown in the page 7 step 3 and 4. -
Page 9: Step 2: Hardware Installation
3. Step 2: Hardware Installation Before you start to do the hardware installation, please plug the USB Adapter to the Stand socket and the other end of the Stand cable to your computer. -
Page 10: For Windows Xp Users
3.1 For Windows XP users For Windows XP users, the system will detect a new device when you plug the cable into the USB socket. Step 1: Please select “View Available Wireless Networks” from taskbar and click “enter”. You will need to wait while the USB Adapter looks for available wireless networks. - Page 11 Step 3: Select the appropriate wireless network and click “connect”. The USB Adapter will be connected to the wireless network you select.
-
Page 12: For Windows 2000 Users
3.2 For Windows 2000 users For Windows 2000 users, the system will detect a new device when you plug the cable into the USB socket and start installation as shown in the following picture. Please ignore the Windows hardware message and click “Yes” to continue. - Page 13 Note: If your Windows 2000 system doesn’t contain file “usb8023k.sys”. Please find the file in the CD-ROM for the installation. If yes, the following 2 steps will not be shown during installation. Please click “Browse” to search the file in the CD-ROM. Please find the file “usb8023k.sys”...
- Page 14 The system will start to install the program as shown in the following picture. After completing the installation, please click icon “ ” to look for available wireless networks and select the appropriate network to complete the connection.
-
Page 15: Step 3: Configuration
4. Step 3: Configuration To connect the wireless network, please complete the following steps: 1. Cancel your browser’s proxy setting. Open your browser and click Tool Internet Options Connections LAN Settings Deselect Proxy setting as shown in the following figure. - Page 16 2. Change your TCP/IP setup. Tick “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Move the cursor to and double click the mouse Click “Property” double click Internet Protocol (TCP/IP) tick “Obtain an IP address automatically” and “Obtain DNS server address automatically”. 3.
-
Page 17: Wpa/Wpa2 Set Up For Windows Xp
4.1 WPA/WPA2 Set Up for Windows XP Before WPA/WPA2 setup, it is required to install patch file in the CD- ROM. Different OS systems will require different patch files. If your Operation System is Windows XP-SP1, please select the file “WindowsXP-KBB22603-x86-ENU.exe” and complete the installation. - Page 18 To do the WPA/WPA2 setup, please complete the following steps: 1. Move the cursor to double click the mouse and click “Properties” 2. Go to “Wireless Networks” and click “Properties”...
- Page 19 Set up “Network Authentication”, “Data encryption” and “Network key” as shown in the following pictures. After the completing these steps, the setup will be completed.
-
Page 20: Wpa Set Up For Windows 2000
4.2 WPA Set Up for Windows 2000 Please follow the prior page 17 to enter the setup screen and set up “Network Authentication”, “Data Encryption” and “Network key” as shown in the following pictures to complete the setup. Note: WPA2 is not supported under Windows 2000. -
Page 21: Technical Support
5. Technical Support The Identification of The Product: • Product Name : ORiNOCO 802.11b/g USB Adapter • Model Number: 8474 Proxim Technical Support Contact Info: • USA & Canada Customers Call Technical Support: Toll Free 866-674-6626 Hours: 8:00 AM to 6:00 PM M-F Pacific Time •...
