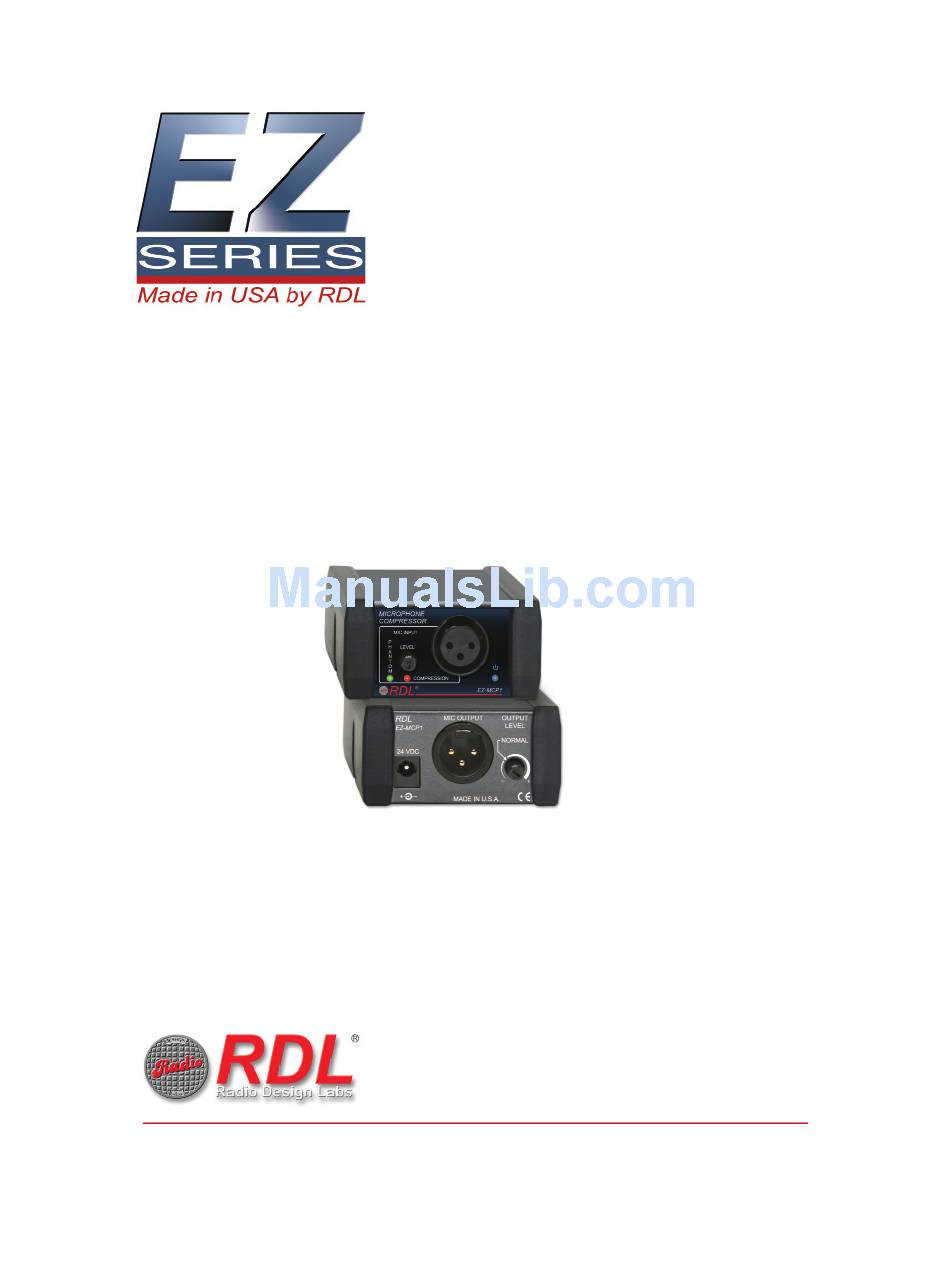

Page 1
RDL EZ Series products provide the highest level of value to A/V professionals and A/V users who demand professional quality. For long-term performance, quality and value, you have made the EZ choice. EZ products are made in the USA by RDL, the For long-term performance, quality and value, you have made the EZ choice.
Page 2
A rear-panel output level trimmer is provided although it is typically left in the normal default position. Phantom voltage (24 V) is automatically switched on when the EZ-MCP1 output is connected to a mic jack that provides phantom voltage.
Page 3
MIC INPUT Plug a microphone into the jack. The microphone may be either a standard dynamic or a condenser microphone. LEVEL ADJUSTMENT POWER INDICATOR Glows blue when the Speak into the microphone at the lowest normal speech level. Adjust the LEVEL control until the product is connected to a COMPRESSION LED just begins to flash.
