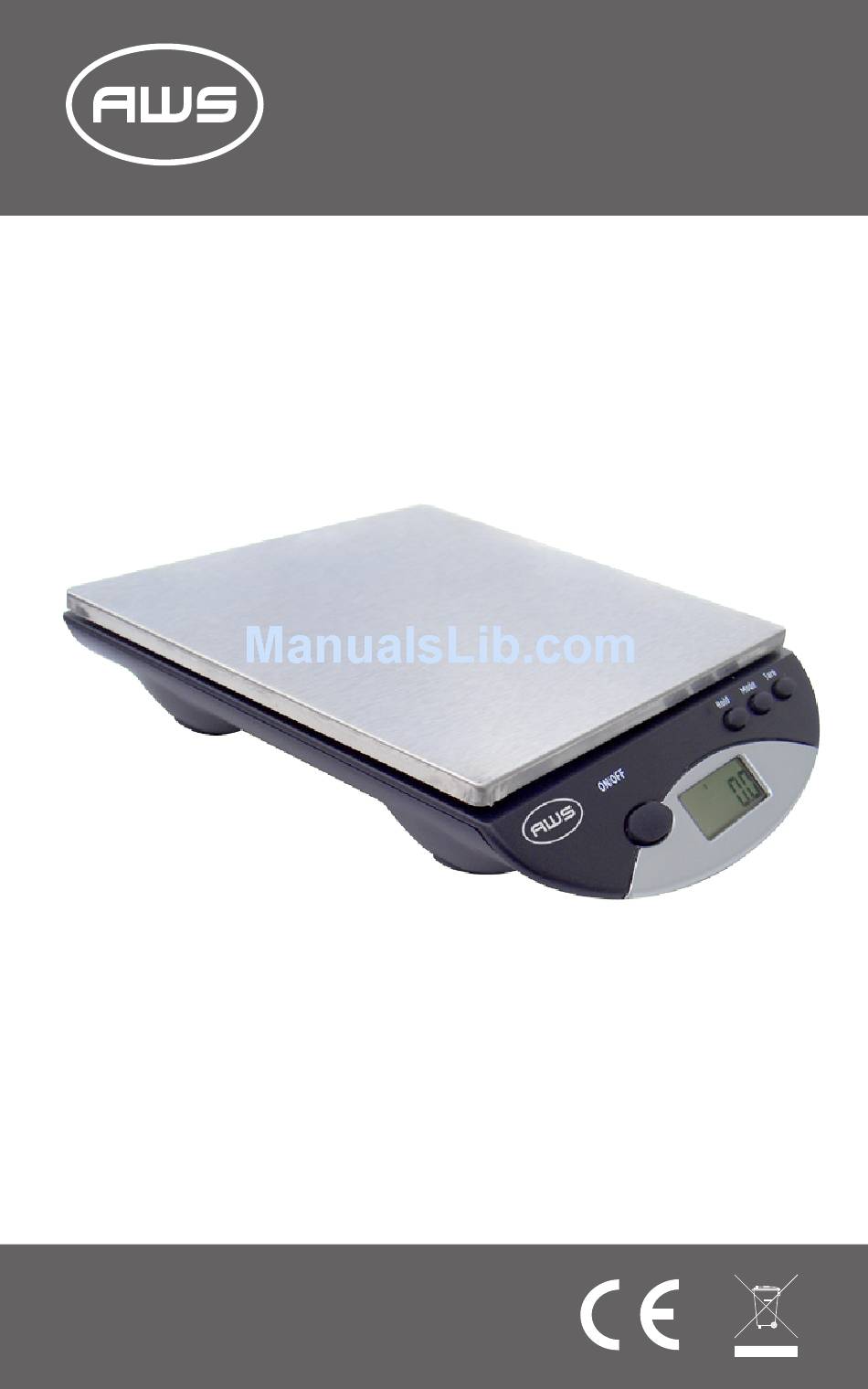

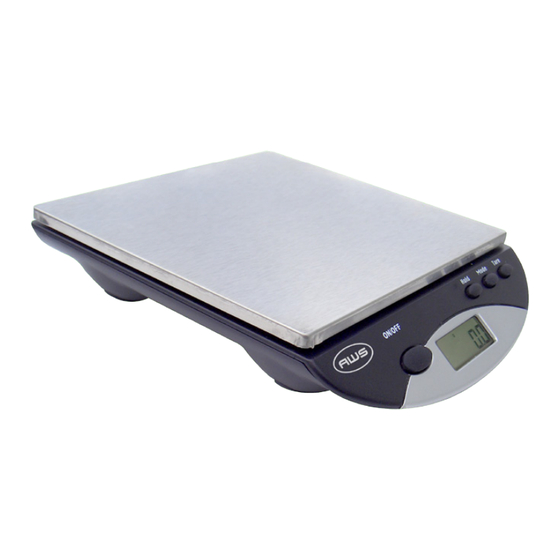

- Page 1 American Weigh Scales AMW-BENCH User Manual AMW-500i (500 x 0.1g) AMW-1000 (1000 x 0.1g) AMW-2000 (2000 x 0.1g) AMW-13 (13lb x 0.1oz) Copyright © 2010 American Weigh Scales, Inc. All rights reserved. Rev. 2.1...
- Page 2 AMW-BENCH Thank you for purchasing the American Weigh AMW-BENCH digital bench scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: •...
- Page 3 I. Part List 1. Scale 2. 9V Battery (x1) II. Key Description Hold Mode Tare ON/OFF ON/OFF Key Hold Key Mode Key Tare Key Calibration / Auto-Off Switch ON/OFF Key- Turns scale ON or OFF Hold Key- Press to hold the current weight on the display.
- Page 4 2. If the scale is turned off then back on, it will default to the last unit used. • AMW-500i, AMW-1000, AMW-2000 Units: g (gram) oz (ounce) ozt (troy ounce) dwt (pennyweight) • AMW-13 Units: lb/oz (pound/ounce) oz (ounce) kg (kilogram) g (gram) VII.
- Page 5 2. If the displayed value is not within acceptable tolerance (see chart below), adjustment is required. Model Acceptable Calibration Recommended Tolerance (±) Weight Accuracy Class AMW-500i 0.2g 500g OIML M2 AMW-1000 0.2g 1000g OIML M2 AMW-2000 0.2g...
- Page 6 AMW-BENCH OFF key to turn the scale on. 3. Press and hold the MODE key until the display shows “CAL”. 4. Press the MODE key again. The display will flash “CAL” followed by the calibration weight value (see chart on page 5). 5. Place the calibration weight on the center of the weighing platform.
- Page 7 XII. Specifications AMW-500i AMW-1000 Max. Capacity 500g 1000g Readability 0.1g 0.1g Power 1x (One) 9V Battery Dimensions 1.6 x 6.2 x 7.2” Platform Dimensions 6.0 x 6.0” Warranty 10 Year Limited Warranty...
