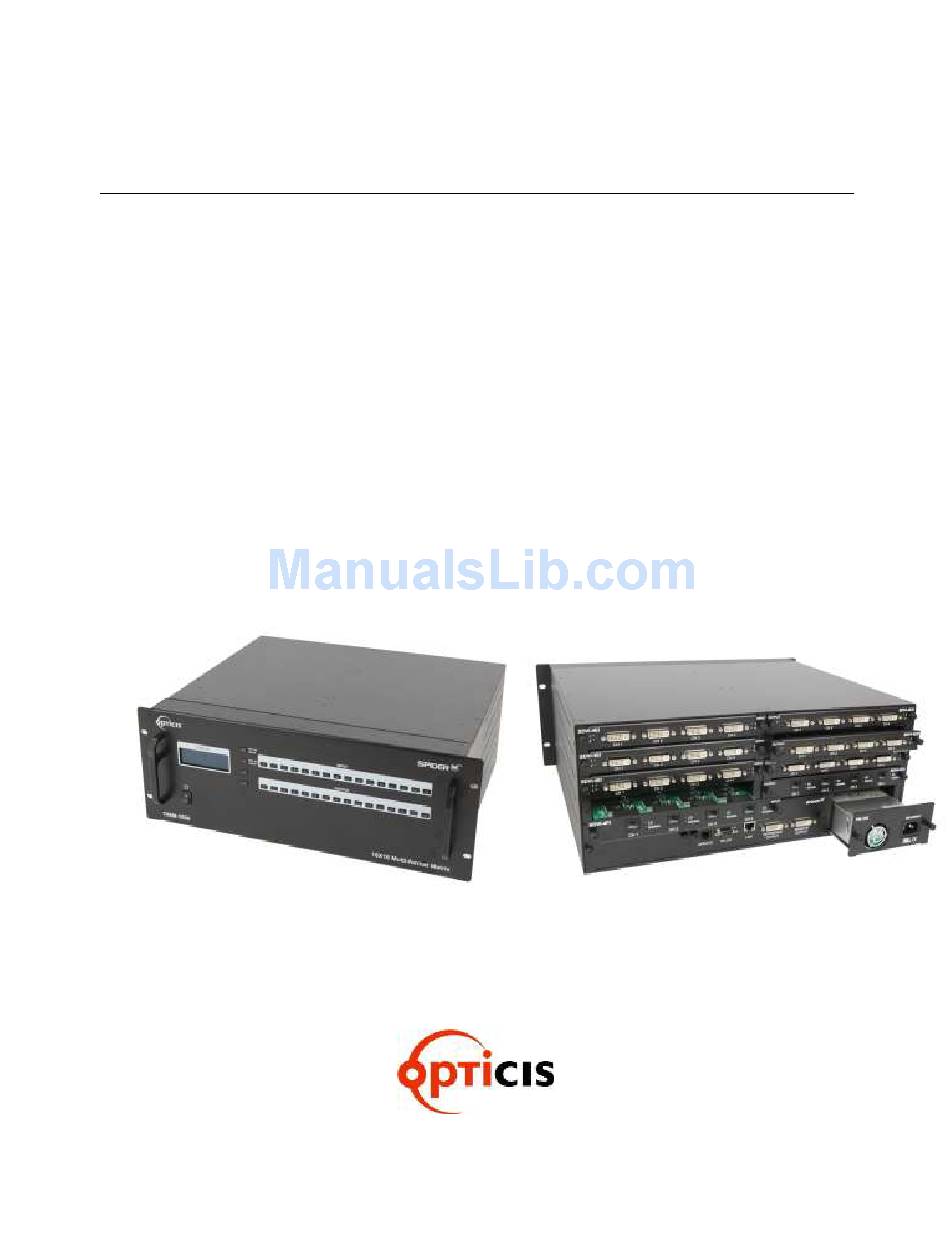

  • Page 1 User’s Manual Version 1.0 OMM-1000 Multi-format matrix 16x16 DVI / HDMI / SDI Matrix router...
  • Page 2: Table Of Contents

    ABLE OF ONTENTS Chapter 1. Introduction and installation ....................4 Key features ..........................4 Shipping group ........................5 Notice of safe usage ........................ 5 Physical description ......................... 6 Installation ..........................7 1.5.1 Initialization ......................... 7 1.5.2 Connection for remote control .................... 7 EDID Configuration ........................
  • Page 3 4.1.3 Video Generator ........................ 20 4.1.4 Control Lock Mode ......................20 4.1.5 Network ..........................20 EDID setup ..........................20 Operation ..........................21 4.3.1 Input / output connection....................22 4.3.2 Input channel status ......................22 4.3.3 Output channel status ....................... 23 4.3.4 Multi-viewer ........................
  • Page 4: Chapter 1. Introduction And Installation

    Chapter 1. Introduction and installation The OMM-1000 modular matrix enables to switch up to 16 different DVI / HDMI or SDI sources to 16 different digital displays. It can be configured using 4 input and output cards and each card has 4 ports of input and output.
  • Page 5: Shipping Group

    1.2 Shipping group ▪ OMM-1000, Modular matrix chassis: 1 EA ▪ Input output cards: Option  SDVI-4EI, 4 ports electrical DVI input card  SDVI-4EO, 4 ports electrical DVI output card  SDVI-1FI, 4 ports 1 fiber optical DVI input card ...
  • Page 6: Physical Description

    1.4 Physical description The OMM-1000 modular matrix chassis is mountable on a 19” standard rack. Key buttons, LCD display and reset switch are placed on the front panel as shown in Figure 1-1. Figure 1-1 Front panel of OMM-1000 All Input and output cards, interface ports and power supplier are placed on the rear panel as below.
  • Page 7: Installation

    [NOTE] Typically, the IP address of PC connected to the network is configured by DHCP server. But, if the PC is connected directly to the OMM-1000, the network server will not able to assign the IP address. In this case, network information of PC should be set manually.
  • Page 8 As depicted in Figure 1-3, once EDID is configured, each EDID is stored in EEPROM in Input ports. As a result, the video sources are able to read EDID from the EEPROM during booting process even though the OMM-1000 and connected displays are not powered on yet.
  • Page 9: Chapter 2. Control Setup

    Chapter 2. Control setup The OMM-1000 modular matrix can be controlled in various ways such as command input (RS-232, TCP/IP), Web control panel (TCP/IP), supplied PC program (RS-232, UDP) as well as key button on the front panel. To do this, PC should be configured properly.
  • Page 10: Rs-232

     Stop bits: 1  Flow control: None [Note] Bit per second of Hyper Terminal should be set as same as baud rate of OMM-1000. ▪ Click OK to save the parameters. ▪ Go Start > Programs > Accessories > Communications > HyperTerminal, then new icon will be shown.
  • Page 11: Chapter 3. Key Button Operation

    Press the input key button to be disconnected. Press ENTER key button. 3.3 FUNCTION mode ▪ It configures basic setting of OMM-1000 to be controlled by command input and PC program. Press FUNCTION to see features – FUNCTION key button will cycle the following features ▪ repeatedly: ...
  • Page 12: Gateway

    3.3.1 Gateway: Press FUNCTION key button once ▪ The cursor shows that it is selected and activated. ▪ Input 3 key button decreases the number. ▪ Input 4 key button increases the number. ▪ Input 1 and 2 key buttons move the cursor left and right. ======Gate Way====== O: 192.
  • Page 13: Mac Address

    ▪ Modify the IP address to be used for your network. ▪ Press ENTER key button to complete the process. ▪ The default setting is 192.168.001.117. 3.3.4 MAC Address: Press FUNCTION key button four times ▪ The cursor shows that it is selected and activated. ▪...
  • Page 14: Multi Viewer

    3.3.6 Multi Viewer: Press FUNCTION key button six times ▪ Multi-viewer card, QDVI-O can choose 4 inputs among 16 inputs of OMM-1000 and configure and output these input signals with 7 different layouts. For more details, refer to chap. 4.3.4.
  • Page 15: Monitoring Output

    3.3.9 EDID Configure: Press FUNCTION key button nine times ▪ It sets EDID information in input port. ▪ OMM-1000 supports three types of EDID setting: Default Mode, Auto Mix Mode and Output Copy Mode. For more information, refer to Chap. 5.2.
  • Page 16: Baud Rate

    ===EDID Configure=== Input: 01 Default Default Mode? 1: Y 2: N 3: << 4: >> 5: ∨ 6: ∧ Press input 1 key button then, the OMM-1000 will recover the Default EDID to allocated input as below. ===EDID Configure=== EDID Copying….
  • Page 17: Control Lock

    ▪ Press ENTER key button to complete the process. 3.3.12 Reset Mode: Press FUNCTION key button twelve times ▪ It resets OMM-1000. It starts rebooting and restores all default setting. ▪ Input 1 and 2 key buttons select YES and NO.
  • Page 18: Chapter 4. Pc Program Operation

    Chapter 4. PC program operation Run the setup.exe to install OMM-1000 PC program. The OMM icon will be shown on the wallpaper. Double click it to launch PC program for OMM-1000. The PC program provides a user-friendly graphic interface alternative to key button input and command input operation.
  • Page 19: Connect Info

    ▪ In case of RS-232 control, enter available COM port number of your PC and select baud rate. The baud rate should be same as that OMM-1000. (115200 is default) ▪ In case of Ethernet, enter IP address of OMM-1000 and port number. 3000 is default port number of OMM-1000.
  • Page 20: Channel Name

    ▪ Click Apply button to save it. 4.2 EDID setup OMM-1000 offers 3 types of EDID setting for easy installation with various displays in the market. To set the EDID option for each input port, click Set EDID button then, Setup EDID window as below will open.
  • Page 21: Operation

    ▪ Auto Mix mode is the most advanced one it analyzes all EDID of attached displays at the output ports of OMM-1000 and get optimized EDID. By selecting it, user can avoid any compliance problems in the field.
  • Page 22: Input / Output Connection

    Input signal resolution and status, EDID setting for each input and Input / output card information and used to make new input / output connections too. Fig 4-5 Input and output status of OMM-1000 4.3.1 Input / output connection ▪...
  • Page 23: Output Channel Status

    (Refer to Chap. 4.2) ▪ There are 4 slots for input cards and OMM-1000 recognizes its type during booting process and shows it on PC program when it launched. (Ex. Slot 1 is fiber optic input card, SDVI-1FI and Slot 2 is electrical DVI input card, SDVI-4EI) 4.3.3 Output channel status...
  • Page 24  4 layout: Select 4 input of QDVI-O and output it on a full screen  5 layout: Make quad-view of 4 inputs (same size)  6 Set 1 input on the left side and other 3 on the right side layout: ...
  • Page 25 A be connected to output 7 of OMM-1000 (It will be the 3rd input of QDVI-O) then, source A will be shown on the bottom left side of layout 5. As the same method, if user allocate source C to output 5 of OMM-1000, it will be shown on the top left side.
  • Page 26: Chapter 5. Web Control Panel Operation

    Web control panel operation The Web control panel operation provides a user-friendly graphic interface and easy access to control OMM-1000, if the PC is connected to Ethernet. But the functions are a little bit limited comparing with other methods. The OMM-1000 supports standard web browser but Microsoft Explorer is highly recommended to run OMM-100 stably.
  • Page 27: Chapter 6. Command Input Operation

    RS-232 and TCP/IP, Web control through TCP/IP and PC program through RS-232 and UDP. All functions are executed on a basis of a serial command input, but the graphic interfaces on the Web or the PC program make more efficient way to operate the OMM-1000 modular matrix.
  • Page 28: Examples Of Command Inputs

    ▪ User can use capital letters and small letters for commands but cannot mix it like ‘Link’, it must be corrected as ‘link’ or ‘LINK’. ▪ After all input commands, OMM-1000 sends back replies to conform the execution of commands.
  • Page 29: Network Setting

    ▪ It changes resolution and pattern of video generator. ▪ It requests current video generator setting. Table 6.5 describes the resolutions and patterns OMM-1000 supports. By command input operation, user can change these to be used with on-site source for easy installation...
  • Page 30: Monitor Output Port Setting

    1280x960@60Hz Vertical Color Bar scroll (Interval:1.0sec) 1280x1024@60Hz Horizontal Color Bar 1600x1200@60Hz Horizontal Color Bar scroll (Interval:0.5sec) 1920x1200@60Hz Horizontal Color Bar scroll (Interval:1.0sec) 1280x720p@60Hz Full White 1920x1080i@60Hz Full Yellow 1920x1080p@60Hz Full Cyan Full Green Full Magenta Full Red Full Blue Full Gray Table 6.5 Video generator resolutions and patterns Command Description and reply...
  • Page 31: Edid Control Command

    EDID=?! Reply: EDID=01OUT.02AUTO03OUT.~16EDF.! Table 6.8 Monitor output setting command examples 4.5.7 Baud rate setting for RS-232 ▪ It sets RS-232 baud rate. OMM-1000 supports 9600, 19200, 38400, 57600, 115200bps. ▪ It requests current RS-232 baud rate. Command Description and reply Sets RS-232 baud rate.
  • Page 32: Multi-Viewer Card (Qdvi-O) Setting

    1 Large screen (Top side) + 3 small screen (Bottom side) 1920x1080p@60Hz Table 6.10 Supporting resolutions and layouts of QDVI-O The first numeric data in command line represents slot number of output bay of OMM-1000 where QDVI-O is inserted. Command Description and reply Sets output resolution of QDVI-O at 1920x1080P.
  • Page 33: Slot Status Request

    Description and reply Requests current cards type in input and output bay. OMM-1000 has 4 rows of input and output slots. If the input output cards are configured as below: row: Single DVI input card / 1 Fiber DVI output card...
  • Page 34 ASCII Description Web control lock Web control unlock Data control (UDP, TCP/IP, RS-232) lock Data control (UDP, TCP/IP, RS-232) unlock Key control lock Key control unlock Table 6.14 Locking type and its ASCII data Command Description and reply Locks data control. LOCK=DL! Reply: LOCK=DL! Request current status of control method.
  • Page 35: Chapter 7. Firmware Update

    2. Click ①, Open of ‘File to be programmed in the Flash’ to select directory and file (hex. Format) to be uploaded. ① ③ ② 3. Connect Service Port in a rear panel of OMM-1000 RS-232 (Comm port) in PC using a...
  • Page 36 4. Select ②, ‘Comm port’ to select communication port of PC for RS-232 communication with OMM-1000. 5. To enable Comm port, Click ③ when it shown as ‘Serial Port Enable’. 6. Power-On of OMM-1000. 7. Then the firmware will be uploaded and its status will be shown in the message box shown as below.
  • Page 37 8. After 3~4 minutes, Application Code Runing!!! message will be shown. Then the firmware upload is completed. 9. Please close a megabox.exe program and reboot OMM-1000 to run it under new firmware.
  • Page 38 Opticis Locations Opticis Co., Ltd. #907 Byucksan Technopia, 434-6, Sangdaewon-Dong, Chungwon-Ku, Sungnam City, Kyungki-Do, 462-120, South Korea Tel: +82 (31) 737-8033 Fax: +82 (31) 737-8079 For order support, please contact your Distributor or Reseller. For technical support, visit Opticis web site, www.opticis.com or contact techsupp@opticis.com...
