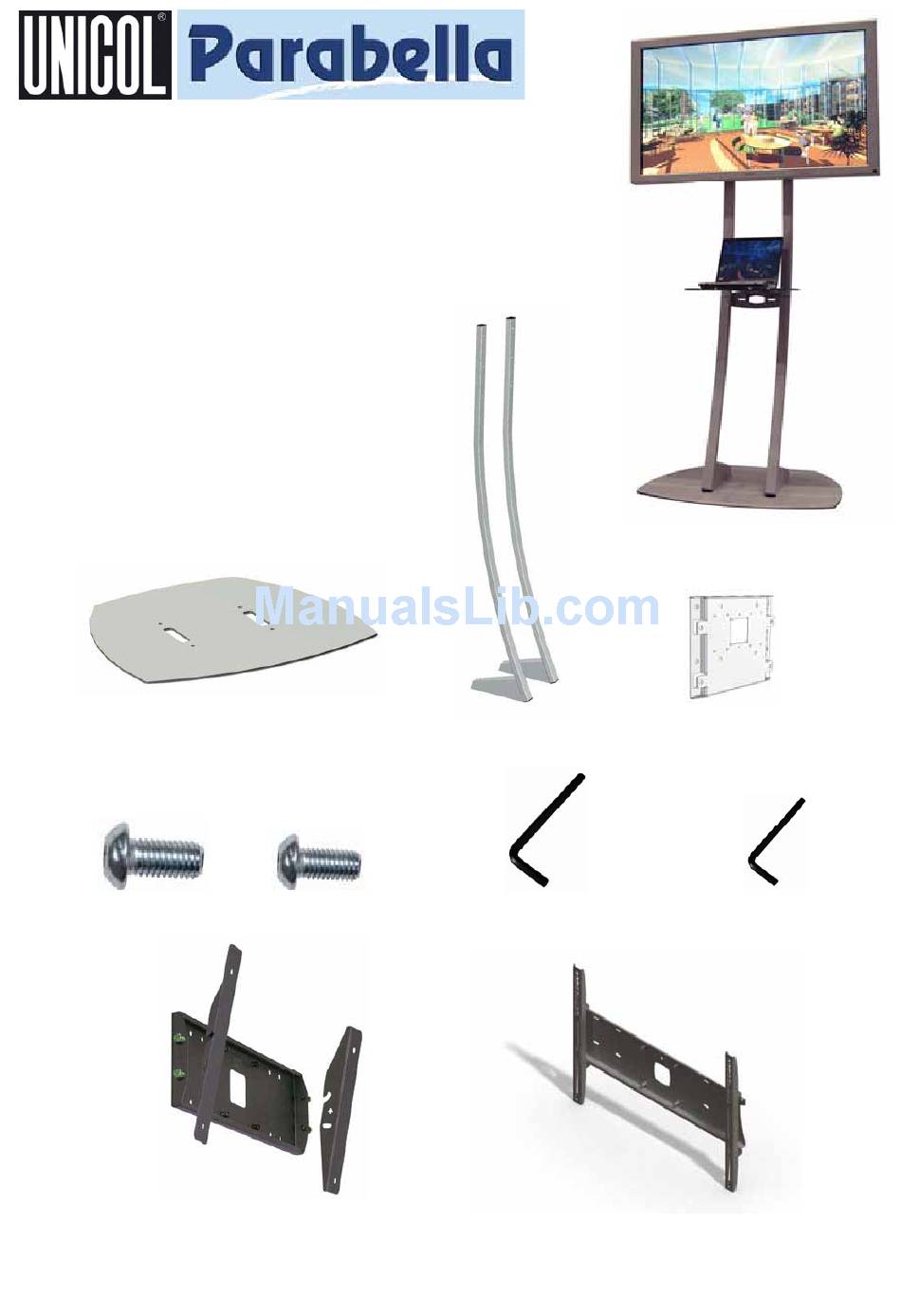

INSTRUCTION MANUAL
PARABELLA STAND

Parts

1 x PARAB
1 X PARAL (Pair)
1 x C15230
8 x M12 x 25
4 x M10 x 20
1 x ALLEN KEY (8mm)
1 x ALLEN KEY (6mm)
1 x PLWL (screens over 50")
or
1 x PZW (screens up to 50")
www.unicol.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parabella and is the answer not in the manual?

Questions and answers

Summary of Contents for Unicol Parabella

  • Page 1 INSTRUCTION MANUAL PARABELLA STAND Parts 1 x PARAB 1 X PARAL (Pair) 1 x C15230 8 x M12 x 25 4 x M10 x 20 1 x ALLEN KEY (8mm) 1 x ALLEN KEY (6mm) 1 x PLWL (screens over 50”) 1 x PZW (screens up to 50”)
  • Page 2 Screws 4 x M10 x 20 PLWL:Xactmatch Screws 4 x M10 x 20 Screws 4 x M10 x 25 Caution: Ensure all ttings are correctly tightened before use (*) Green Arrows are alterna If you require assistance please call: 01865 767676 or email: sales@unicol.com www.unicol.com...
