Summary of Contents for Lightronics TL-5024

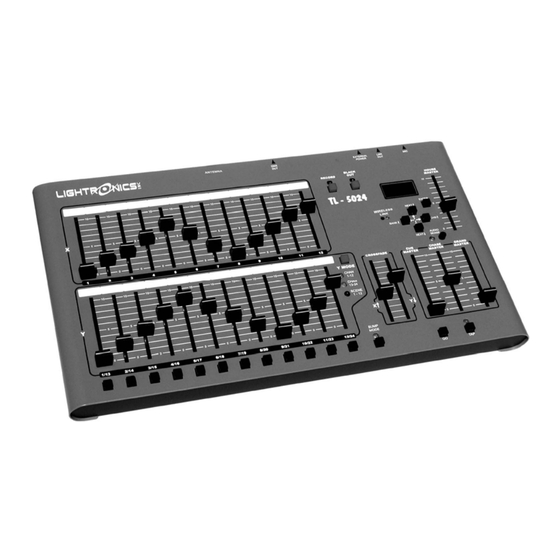

- Page 1 TL - 5024 MEMORY LIGHTING CONSOLE OWNERS MANUAL Version 0.93 07/20/2012 www.lightronics.com Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 tel 757 486 3588...
-
Page 2: Specifications
Common programmable chases, and a LCD Status Display. DMX data - DMX data + The TL-5024 may be powered by the dimmers it is Not Used controlling which eliminates the need for nearby AC Not Used power. The unit may also be powered by an external power supply (Required for DMX only operation). -
Page 3: Controls And Indicators
Page 3 of 13 TL-5024 LIGHTING MEMORY CONSOLE OWNERS MANUAL Version 0.93 07/20/2012 CONTROLS AND INDICATORS X Faders: Control individual channel levels for channels 1 – 12. Y Faders: Control level of scenes or individual channels depending on current operating mode. - Page 4 The master fader affects the level of channels activated by the bump buttons. The TL-5024 can be set to factory default conditions by performing an ERASE ALL function which is Bump buttons are not latching. When you release a accessed from the LCD menu.
-
Page 5: Status Display
PATCH PAGES ASSIGNING CURRENT PATCH PAGE CHANNELS The TL-5024 contains 2 patch pages. In other words you can have two complete sets of channel Channel assignments are always applied only to the assignments in the console and switch between them. - Page 6 You can ZERO ALL channel assignments for the current patch page. This removes ALL The TL-5024 provides 12 chases. Each chase may assignments. have up to 20 steps. All steps of all chases are user created.
-
Page 7: Chase Playback
The mounted microphone. The microphone picks up following display will appear: sounds nearby and circuitry in the TL-5024 filters out all but low frequency sounds. The result is that BNK:SCN the chase will synchronize with base notes of music being played nearby. - Page 8 DEFAULT CUE LIST on the bottom. The TL-5024 is provided with a factory default cue list. Use the buttons to select either FI or This is the condition which will be set if the ERASE FO.
-
Page 9: Dmx Operation
The link is retained even when the receiver and/or functions described above. console are powered off. The receiver units may be released from the link either at the TL-5024 or at the USING ERASE FUNCTIONS receiver. If released at the console then ALL linked receivers will be released. -
Page 10: Maintenance And Repair
Lightronics Service Dept. the desired channels. OWNER MAINTENANCE The best way to prolong the life of your TL-5024 is to keep it dry, clean, and covered when not in use. The unit exterior may be cleaned using a soft cloth dampened with a mild detergent/water mixture or a mild spray-on type cleaner. -
Page 11: Lcd Status Display
07/20/2012 USING THE MENUS The TL-5024 uses a menu system to control four functions. They are the CUEING, CHASER, PATCH, and ERASE functions. Some menus have more than one display screen. The menus are accessed by pushing the ENTER button. The diagram below shows the overall layout of the menus. The arrow characters shown in some of the displays tell which button to push to change a value or advance to another item. - Page 12 Page 12 of 13 TL-5024 LIGHTING MEMORY CONSOLE OWNERS MANUAL Version 0.93 07/20/2012 DEFAULT CHASE SCENE ASSIGNMENTS The following assignments will be made when ERASE CHASER or ERASE ALL is run. CHASE NUMBER STEP # B01 SC01 B02 SC01 B03 SC01...
-
Page 13: Warranty
A) If service is required, you may be asked to provide proof of purchase from an authorized Lightronics dealer. B) The FIVE YEAR WARRANTY is only valid if the warranty card is returned to Lightronics accompanied with a copy of the original receipt of purchase within 30 DAYS of the purchase date, if not then the TWO YEAR WARRANTY applies. - Page 14 Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 tel 757 486 3588...
