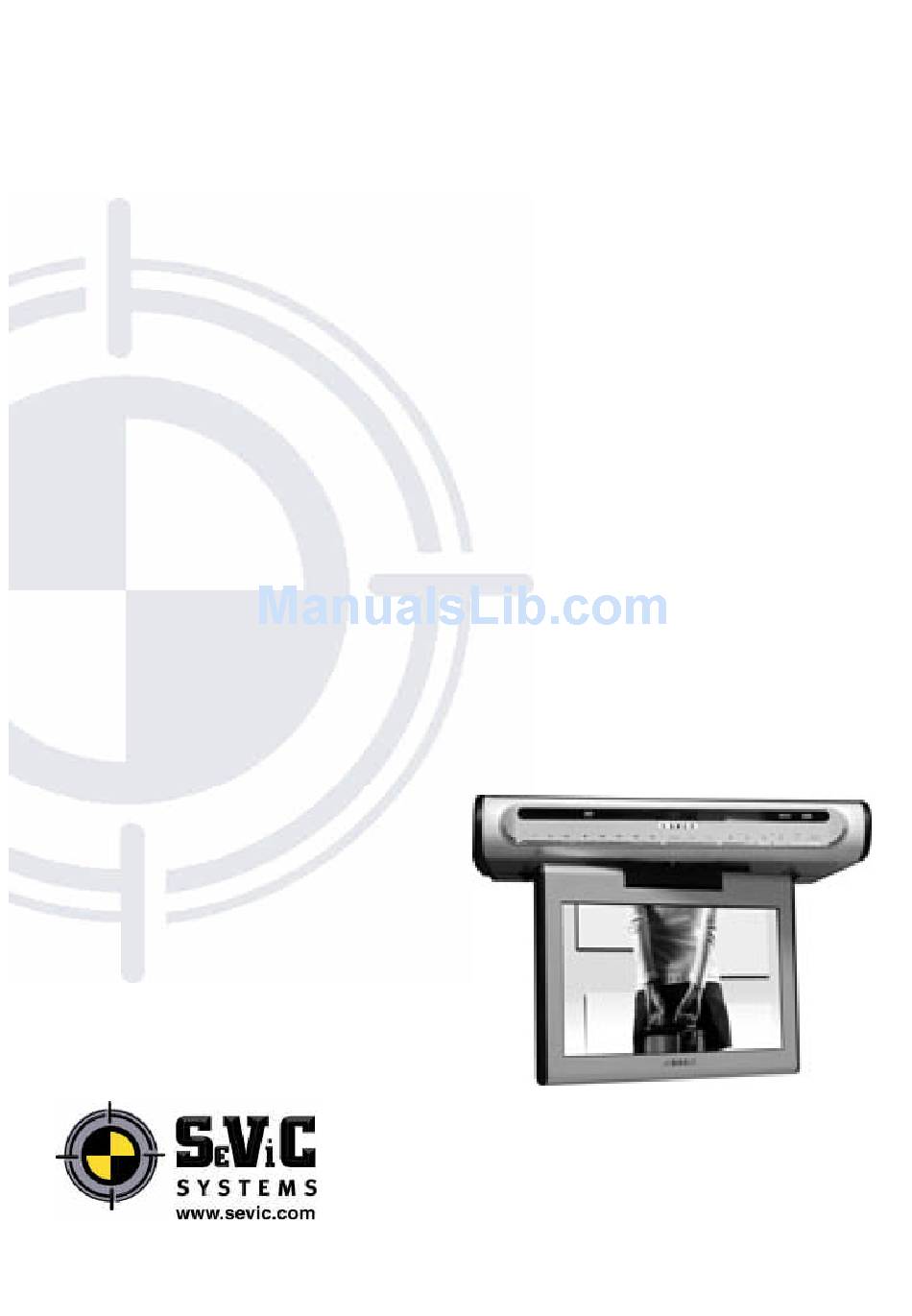

  • Page 1 KITCHEN CENTER 2 SV150210 - User’s Manual - - 1...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Instruction---------------------------------------------------------------------- Characteristic Features ---------------------------------------------------------------------------- Disc Information -------------------------------------------------------------------------------------- Front Panel --------------------------------------------------------------------------------------------- Rear Panel and Display Panel-------------------------------------------------------------------- Remote Control --------------------------------------------------------------------------------------- System Connections -------------------------------------------------------------------------------- Connecting To External AV Signal Source ----------------------------------------------------- Connecting To TV Signal Input Source--------------------------------------------------------- Connecting To Antenna ------------------------------------------------------------------------------------- Connecting To the Power Adapter ------------------------------------------------------------------------ Connecting to DVB-T Antenna------------------------------------------------------------------------------- DVD Play Operation ----------------------------------------------------------------------------------...

  • Page 3: Important Safety Instruction

    Important Safety Instructions The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 4: Important Safety Instructions

    Important Safety Instructions NOTES IMPORTANT FOR LASER PRODUCTS Read, heed and follow all 1. CLASS 1 LASER PRODUCT instructions to ensure correct Visible laser radiation when open and 2. DANGER: interlock failed or defeated. Avoid direct exposure to and safe installation and beam.

  • Page 5: Fcc Notice

    FCC Notice NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resident ial installation.

  • Page 6: Characteristic Features

    Characteristic Features Watch your favourite movies and TV Amplifier Function shows while cooking a meal… or taking Built-in 2x5w stereo amplifier with left a bath! Kitchen Centre 2 fits neatly and right speakers. underneath your kitchen cabinet, shelves in the garage or bathroom. Advanced Playing Function This versatile unit is also ideal for use in a boat or any other place where space...

  • Page 7: Disc Information

    Disc Information Disc Formats Supported By This Player PLAYBACK TIME/ DISC LOGO DIAMETER PLAYABLE SIDES 1 3 3 m i n ( S S- S L ) 2 4 2 m i n ( S S -D L ) 12cm 2 6 6 m i n ( D S- S L ) 4 8 4 m i n ( D S - D L ) 41 min (SS-SL)

  • Page 8: Front Panel

    Front Panel Front Panel Drawing 1. POWER Butt on Under DVD mode, press once to go to Press to enter or exit the STANDBY beginning of the current track/chapter. mode. Press twice to go to the previous 2. Disc Tray track/chapter.
  • Page 9 Front Panel 16. ▲/CH+ Button 9.  FWD SCAN Button Press to select items in the setup menu. Under radio mode, press once to fine Press to select channels or radio tune frequency forward. stations forward under TV or radio Press for about 1.5 seconds to search mode.

  • Page 10: Rear Panel And Display Panel

    Rear Panel and display panel Rear Panel Drawing 1. ANT INPUT Jack 5. Left/Right A UDIO Input Jack Connected to external antenna to Connection for audio input. receive the TV program in TV mode. 6. VIDEO Input Jack 2. DVB-T Antenna Jack Connection for video input.

  • Page 11: Remote Control

    Remote Control Preparation Using Of Remote Control Point the remo te control towards the Refer to the drawing and remove the main unit when operating. The remote empty battery receptacle. control works best at a distance less than 7m and at an angle of up to 60°to the front of the unit.

  • Page 12: Remote Control

    Remote Control Remote Control Drawing 1. POWER Button turn subtitle off when a DVD disc with Press access exit multi-subtitles is playing. STANDBY mode. 3. DVD Button 2. SUBTITLE Button Press to enter DVD mode. Press to select a subtitle language or - 12 -...
  • Page 13 Remote Control 4. TV Button In DVD mode, press to activate fast Press to enter TV mode. forward playback. 5. AV Button 13. (PLAY) Button Press to enter external AV source input Press to start playback in DVD mode. mode. 14.
  • Page 14 Remote Control EJECT Button Press to turn On/Off the LCD screen Press to open or close the disc tray. display. 28. LCD SETUP Button 20. AUDIO Button Press once to enter the PICTURE Press access various audio setup menu. Then press the button to languages when the DVD disc contains enter the TV SETUP menu in TV mode.

  • Page 15: System Connections

    System Connections  Do not connect the power cord until all other connections have been made.  Each time you restart the unit, it remembers the last function used.  Please make all the connections before install ing the unit. Connecting To External AV Signal Source Connections should be made as follows: Connect the L/R audio cables according to the marks on the rear panel of the unit:...

  • Page 16: Connecting To Antenna

    System Connections Connecting To Antenna Connect the supplied AM/FM antennas to listen to the radio.  In order to improve the signal, move AM loop antenna away from system and other equipment.  Extend FM antenna fully.  Keep the FM antenna as horizontal as possible after connection. ...

  • Page 17: Connecting To The Power Adapter

    System Connections Connecting To the Power Adapter This unit is powered via the switching power adapter (supplied). See the below figure for details: 1. Connect the AC adapter to jack marked with “DC 12V IN” on the rear panel of the unit.

  • Page 18: Dvd Play Operation

    DVD Play Operation Preparation Install the unit in the kitchen; refer to page 38 for details. After connecting the unit to the AC power, turn on the unit’s power by pressing the POWER button on the front panel or the remote control. Press the DVD button on the remote control or the SOURCE button on the front panel to shift to DVD mode.

  • Page 19: Jpeg Disc Playback

    DVD Play Operation Subtitle A DVD disc can be recorded with up to 32 subtitles. Press the SUBTITLE button on the remote control during playback to select the one you prefer. NOTE: This function is only available for DVD discs that are recorded with multi- subtitles.
  • Page 20 DVD Play Operation MPEG4 Playback Load a MPEG4 disc in the disc tray, the player will search and play disc automatically. The screen displays the Root Folder. Use the, buttons to select desired folder. Then you can press any of the buttons below to confirm your selection: OK or (PLAY) button.

  • Page 21: Dvd Playback Functions

    DVD Playback Functions Stop During playback, press the (STOP) button once to stop playback of a disc. Press the (PLAY) button and the DVD Player will resume playback of the disc from the point where it was stopped. Pause Press the(PAUSE) button on remote control or the (PLAY/PAUSE) on the front panel to pause playback.
  • Page 22 DVD Playback Functions Search By Time During DVD disc playback, press the GOTO button on the remote control once, there will be a menu displayed on the screen. You can set or select items for your preference. Use the , direction buttons to select items, press the OK button to enter and use the ...

  • Page 23: Dvd System Setup

    DVD System Setup DVD Setup You can customize the set up menu to your own preference. Press the “DVD /DVB SETUP” button on the remote control to display the setup menu. The menu will include “General Setup Page”, “Speaker Setup Page”, “Dolby Digital Setup”, “Video Setup Page”, and “Preference Page”.

  • Page 24: Lcd Setup

    DVD System Setup Dynamic Use this item to adjust linear dynamic compression rate to get different signal compression effects. Video Setup Sharpness Use this setting to adjust the sharpness level . Brightness Use this setting to adjust the brightness level. Contrast Use this setting to adjust the contrast level.

  • Page 25: Tv Function

    TV Function Basic Operation Connect the antenna to the antenna jack on the rear panel. After connecting the antenna, connect the power supply cord. If the player is in standby mode, press the POWER button to turn on the power. Press the TV button on the remote control or the SOURCE button on the front panel to shift to TV mode.
  • Page 26 TV Function Use the ▼, ▲ buttons to select the item you want to set. Use the ►, ◄ buttons to select the item and enter it. First use the ▼, ▲ buttons to highlight the TV SETUP, and then press the ► button on the remote control to exit from the setup menu, and press the ◄...
  • Page 27 TV Function The auto memory will take a few minutes. The unit will search channels from the lowest channel to the highest channel in the standard channel list. When tuning operations are complete the unit will exit and store the channels by sequence in the memory.

  • Page 28: Av Function

    AV Function AV Function The player has an additional AV input so it can function as a monitor for a DVD player, video cassette player, satellite receiver, video game, etc. When an AV source is connected, press the AV button on the remote control or the SOURCE button on the front panel to enter external input AV mode.

  • Page 29: Radio Function

    Radio Function Radio Function Operation Press the FM / AM button on the remote control or the SOURCE button on the front panel to enter FM or AM radio mode. Then press the SEEK+/ - button on the remote control or the /buttons on the front panel for about 1.5 seconds to start searching forward/backward from the current frequency.

  • Page 30: Dvb-T Setup

    DVB-T Setup Preparation Connect the unit to the power. Press the DVB-T button on the remoter control or the SOURCE button on the front panel to shift to DVB-T mode. Press th e DVD/DVB button on the remote control to enter the DVB-T setup menu.
  • Page 31 DVB-T Setup Language Setting You can set the menu or audio language. Press the button to select Language Setting, press the OK button to enter the Language Setting menu, the screen will display as below: In the menu, press the  button to select Menu Lang or Audio Lang.
  • Page 32 DVB-T Setup 1. Brightness & Contrast Select the Bright&Contrast, press the button to adjust the value. 2. Saturation Select the Saturation, press the button to adjust the value. 3. Conversion Select the Conversion, press the  to enter, then press the button to select Auto, Full Frame, Letterbox or Pan Scan.

  • Page 33: Channel Setting

    DVB-T Setup 1. Change Pin Code In the menu, press the button to select Change Pin Code, press the OK button to enter the menu shown as below: In the menu, according to the indication to input the pin code. Press the EXIT button to return. 2.
  • Page 34 DVB-T Setup the channel search menu, press direction buttons to select the item you want to set up, press the  button to enter the item. Press the EXIT button to return to the previous menu. 1. Search Type Select the Search Type, press the  button to enter, then press the  direction buttons to select Auto Search, Manual Search or Scan By NIT, press OK button to confirm.

  • Page 35: Channel List

    DVB-T Setup 6. Update Mode Select the Update Mode, press the button to enter, and then press the  direction buttons to select Append or Replace, press OK button to confirm, press the EXIT or button to return. After setting these items, use the direction buttons to highlight the Start Search, and press the OK button to start searching.

  • Page 36: Favourites List

    DVB-T Setup Add Channel Press the  button to enter Add menu, press the OK confirm, the screen will display as below: Press the direction buttons to select the desired item, press the  button to enter, or use the number buttons to input, press the  button to enter the character and number list.

  • Page 37: System Info

    DVB-T Setup Add Favourite Press the button to enter, press the OK button, the screen will display as below: During initial setting, you should set the channel list at first. Then you can select channels from the channel list, and add the channel into the favourites list. Also you can delete the channel from the favourites list.

  • Page 38: Installing The Unit In Kitchen

    Installing the Unit In Kitchen NOTE: Before installing the unit in the kitchen, please make all the connections. Installing the unit under a cabinet The player unit may be installed in the kitchen with or without the spacer. The suggested mounting position of the unit is under a wall cabinet. See drawings below: NOTE: The dimensions of the player: 7.9cm H x 37.2cmW x 28.7cmD There should be at least 35 mm distance between the unit and the wall.
  • Page 39 Installing the Unit in Kitchen Mark the position of the 4 holes of screw by using the supplied paper template. Drill four holes with diameter of 6mm. If the cabinet door overhangs the shelf and obstructs the unit, adjust the unit or the shelf height for clearance.

  • Page 40: Troubleshooting

    Troubleshooting SYMPTOM CHECK ITEM  Make sure a disc is loaded.  Make sure the disc is loaded with label side up.  Disc should be clean, not dirty or warped.  Player’s region code should be the same as the region The player cannot play.

  • Page 41: Specifications

    Specifications LCD Screen Size 10.2 inches Laser Wavelength Wavelength: 780/650nm Video System Frequency Response 20Hz~20kHz ±2.5dB ≥85 dB Audio Signal-to-Noise ≤-70dB (1KHz) Audio Distortion + Noise ≥ 70dB (1KHz) Channel Separation ≥ 80dB (1KHz) Dynamic Range System Radio 531~1602KHz Frequency Range 87.5~108MHz Power...

  • Page 42: Warranty

    9) For any disputes or litigation: The law courts of Luxembourg are exclusively competent. 10) For all information contact: SEVIC SYSTEMS Luxembourg S.A. , Zone Industrielle Breedewues, L-1259 Senningerberg, G.D. Luxembourg Phon e: (+352) 26 34 57 29 / Fax: (+352) 26 34 57 27 / Email: svc@sevic.com...
