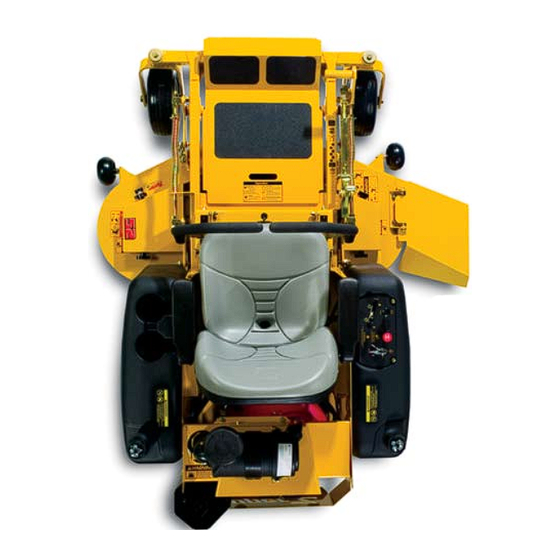

HUSTLER Mini Super Z Brochure & Specs

SOMETIMES, SIZE DOES MATTER!
LAWNCARE CONTRACTORS HAVE DISCOVERED
THAT SMALLER IS BETTER, IN MANY CASES.
The Hustler Mini Zs merge compact size and high horsepower. Its dimensions
ensure maximized efficiency. The horsepower ensures cutting power and top
speeds in the class, 13 mph in the case of the Super Mini Z!
The Mini Z and Super Mini Z address other needs of the lawncare
professional as well, delivering comfort, safety, and ergonomic
support throughout long days on the job. A comprehensive set of
features unique to Hustler make these mowers the most convenient,
most accessible, most easily and safely operated in the mini class.
The Mini Zs will demonstrate their true worth over many long mowing
seasons. Year to year, their ease of maintenance, their rugged durability, their
ready-when-you-are reliability will prove again and again their value, design,
and craftmanship.
Dependability shows itself over time. Serviceability is a day-to-day issue.
And no other mower in the class comes close to the Hustler Minis' absolute
simplicity of maintenance.
Thousands of lawncare pros and high-end residential users know the Hustler
Mini Zs cut a big job down to size.
B R A K E O F F
A patented automatic parking brake system – a simple straight-
forward starting sequence; enhanced safety in starting on slopes;
easier dismounts – no protracted gyrations to engage brakes,
clutch, or engine ignition, as with competitive machines.
H u s t e r Tu r f Eq u ip m e n t
Mini Z /Super Mini Z
™
ENGINE SPECIFICATIONS
Model Kawasaki
Horsepower 19
No. of Cylinders 2
Displacement 41.2 cu in (675 cc)
Compression Ratio 8.1:1
Max. Torque 37.0 ft lbs @ 2400 rpm
Starter 12-volt (.8 kw), solenoid shift positive engagement
Ignition Electronic
Charging System 12-volt, 15-amp
Fuel Unleaded gasoline with octane rating of 87 or higher
Fuel Filter Replaceable, automotive-type
Air Filter Heavy-duty air cleaner to extend the service interval for
excessive, dirty applications and improved performance
Cooling Air cooled. Fly-wheel fan
Governor Mechanical
TRACTION DRIVE SYSTEM
Type Dual hydrostatic. Individual pumps power two direct-drive
wheel motors. Hydrostatic system operates on 10W40 motor oil.
Transmission drive (oil) cooler for increased system life.
Pumps Two variable displacement, axial-piston type. Each pump
powers one drive-wheel motor. Mini Z: Hydro-Gear BDP10 Super
Mini Z: Hydro-Gear BDP16
Pump Drive V-belt drive from engine crankshaft
Hydraulic Lines Stainless-steel, high-pressure lines with Parker
Seal-Lok™ O-Ring Face-Seal fittings. Hydraulic lines and fittings
guaranteed to never leak!
Final Drive Direct-drive high-torque wheel motors. One for each
drive wheel. White CE 12
Filter 40 micron, spin-on type
Ground Speed Infinitely variable
Mini Z: 0-9 mph (0-14.48 kph) forward, 0-7 mph (0-11.27 kph)
reverse. Super Mini Z: Forward 0-13 mph (0-20.92 kph) forward,
0-7 mph (0-11.27 kph) reverse
Steering Twin-lever SmoothTrak™ steering provides independent
control of each drive wheel. Speed, forward, reverse, brake, and turns
are all controlled with hand-operated controls
B R A K E O N
Turning Radius True zero degree. Turns within its own length.
F o r m o r e i n f o r m a t i o n :
H u s t l e r T u r f E q u i p m e n t • H e s s t o n , K a n s a s 6 7 0 6 2 • 1 - 8 0 0 - 3 9 5 - 4 7 5 7
M i n i Z ™ & Su p e r M i n i Z ™
Specifications
™
Kawasaki Kawasaki Honda Kohler
23 25 24 20
2 2 2 2
41.2 cu in (675 cc) 41.2 cu in (675 cc) 40.9 cu in (670 cc) 38.0 cu in (660 cc)
8.1:1 8.1:1 8.3:1 8.5:1
39.8 ft lbs @ 2400 rpm 41.0 ft lbs @ 2400 rpm 37.5 ft lbs @ 2500 rpm 36.2 ft lbs @ 2600 rpm
Counter-rotating, independent drive wheels .187 in x .375 in (.47 cm x .95 cm) box-section reinforced front edge.
Steel deck housing is 4 in (10.16 cm) deep to provide room for high-
BRAKES:
capacity mowing.
Service: Hydrostatic dynamic braking
Parking: Automotive-style drum brakes. When steering levers Deck Lift Raise and lower deck from driver's seat with simple foot-
are placed in neutral position, integral park brakes are operated deck height adjustment. Pin for setting height, transport
automatically engaged position. Change cutting heights, hop curbs and trailer more easily.
Mower Drive Single V-belt drive from engine with electric clutch. Cutting Heights Foot-operated deck height adjustment. Pin for set-
Spring tension idler for extended belt life. ting height, detent for transport position. Height adjustment in .25 in
increments from 1 in to 4.5 in (2.55 cm to 11.43 cm).
TIRES:
Front: 13 x 5.00 – 6, rib tread
Mowing Blades Heavy-duty, heat-treated, high-lift steel blade
Drive: 23 x 9.50 – 12, turf tread
44 in: 16 in x 2.5 in x .20 in
52 in: 18 in x 2.5 in x .20 in
CAPACITIES:
Fuel System: 12 US gal (45.4 l)
Blade Tip Speed
Hydraulic Oil: 2 US gal (7.57 l)
44 in: 16,100 fpm
52 in: 18,300 fpm
DIMENSIONS:
Height: 40 in (101.6 cm)
Blade Drive V-belt drive to all three spindles. Spring tension idler
W/44 in Deck Length: 72 in (182.88 cm) pulleys.
Overall width: 45 in (114.3 cm) with disc. chute up
Spindles Machine aluminum housing, 1 in (2.5 cm) diameter high
Tire-to-tire width: 44 in (111.76 cm)
carbon steel shafts and sealed ball bearings.
Weight: 985 lbs (446.79 kg)
Flotation Suspended mower floats on four spring-assisted chains. 6
W/52 in Deck Length: 75 in (190.5 cm)
anti-scalp wheels are standard.
Overall width: 53 in (134.6 cm) with disc. chute up
Width of Cut
Tire-to-tire width: 44 in (111.76 cm)
Weight: 985 lbs (446.79 kg) 44 in: 44 in (111.76 cm)
52 in: 52 in (132.08 cm)
Trim Capacity (left side)
Safety Features Operator presence system connected to deck and
drive clutches. Stabilizer rollers at rear of tractor 44 in: .5 in (1.27 cm)
52 in: 6 in (15.24 cm)
Seat
Standard: Molded-vinyl seat with armrests. Fore and aft adjustment
ACCESSORIES
Construction: Mainframe is 1.5 in x 2 in x .125 in (3.8 cm x 5.08 BAC-VAC™ Catcher Rear-mounted, 9-bushel hopper is dumped
cm x .32 cm) rectangular steel tubing. Drive motors mounted to .179 from the seat without leaving the machine. Blower is powered from
in (.45 cm) welded steel. Front caster wheels mounted with roller right-side deck spindle (no pony engine required). Hopper and blower
bearings on each wheel. Front caster forks are .375 in (.95 cm) steel can be added or removed in seconds.
Deck Lift: Foot-operated deck height adjustment. Pin for setting Rear-Mount, 2-Bag Catcher 6-bushel capacity. Hand-dump wher-
height, detent for transport position ever you like or line with trash bags for easier handling. Blower is
powered from right-side deck spindle (no pony engine required).
Controls: Hand-operated choke/throttle, ignition switch, electric
mower clutch. Integrated parking brakes Mulch Kit Recycles clippings under deck allowing clippings to be cut
and recut, then discharged down into the grass. Reduces handling
Indicators: Hour meter, engine warning light
of clippings, improves appearance, and recycles nutrients back to
the soil.
Cup Holder: Two cup holders molded into the left side fuel tank.
Accommodates nearly any cup size including Big Gulp ™
Hitch Kit Optional bolt-on hitch with 7/8-inch hole. Will accept any
standard ball.
MOWING DECKS
Flex Forks Flex Forks smooth out the ride producing a more even
™
44", and 52" side-discharge decks
cut especially over uneven terrain. A smoother ride allows for greater
operator comfort at higher speeds. Mow faster, get done sooner.
Type Free-floating mower using three blades with center blade to
the front. Mower is suspended at the corners. Includes deck-mounted
Light Kits An aftermarket kit that mounts easily to the fuel tanks.
rollers to improve flotation in rolling and uneven terrain.
The light kit will allow you to start earlier and finish later. Available
Construction 11-gauge deck plate with an 7-guage deck plate for the FasTrak ™ , Hustler Mini Z ™ and Hustler Z ™ .
doubler with.125 in (.317 cm) welded steel. Solid 1 in x .375 in
Specifications subject to change without notice.
(2.55 cm x .95 cm) steel bars reinforce impact areas on trim edges.
w w w . h u s t l e r t u r f . c o m
Form No. 787416 4-06
