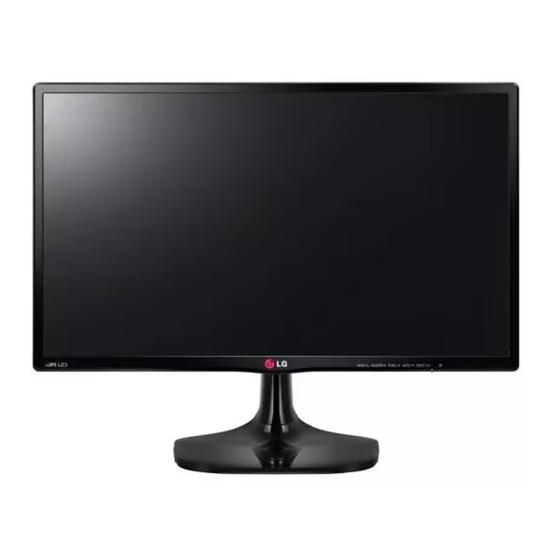

LG 22MP56HQ Owner's Manual

Ips led monitor
Hide thumbs

Advertisement

OWNER'S MANUAL
IPS LED MONITOR
Please read this manual carefully before operating
your set and retain it for future reference.
IPS LED MONITOR MODEL
22MP56HQ
24MP56HQ
www.lg.com

Advertisement

loading

  Related Manuals for LG 22MP56HQ

  Summary of Contents for LG 22MP56HQ

  • Page 1 OWNER’S MANUAL IPS LED MONITOR Please read this manual carefully before operating your set and retain it for future reference. IPS LED MONITOR MODEL 22MP56HQ 24MP56HQ www.lg.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS CONTENTS ASSEMBLING AND PREPAR- SPECIFICATIONS 22MP56HQ Unpacking 24MP56HQ Parts and buttons Preset Modes (Resolution) Setting up the Monitor set Indicator - Attaching the Stand Base - Detaching the Stand Base PROPER POSTURE - Mounting on a table Proper posture for using the Monitor set. - Using the cable holder - Mounting on a wall USING THE MONITOR SET Connecting to a PC - D-SUB connection - HDMI connection - Peripheral device connection CUSTOMIZING SETTINGS Customizing Settings - Menu Settings - P icture...
  • Page 3: Assembling And Preparing

    ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories. D-SUB Cable CD(Owner's Manual) / (This cable is not included in all Card countries.) Power Cord AC-DC Adapter AC-DC Adapter ( Depending on the country ) ( Depending on the country ) Stand Body Stand Base CAUTION Do not use any unapproved accessories to ensure the safety and product life span. Any damages or injuries by using unapproved accessories are not covered by the warranty. NOTE The accessories supplied with your product may vary depending on the model. Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.
  • Page 4: Parts And Buttons

    ASSEMBLING AND PREPARING Parts and buttons Power Indicator Lighting On: Turned on Lighting Off: Turned off (Power Button) Button (See p.11) DC-IN HDMI IN H / P D-SUB IN Connection panel (See p.9 ~10)
  • Page 5: Setting Up The Monitor Set

    ASSEMBLING AND PREPARING Detaching the Stand Base Setting up the Monitor set Attaching the Stand Base Place the Monitor set with the screen side down on a flat and cushioned surface. Place the Monitor set with the screen side down on a flat and cushioned surface. Pull out the Stand Body and Stand Base from the monitor set. CAUTION Turn the screw to the left. Lay a foam mat or soft protective cloth Pull out the Stand Base. on the surface to protect the screen from damage. Stand Body Attach the Stand Body to the monitor set. Attach the Stand Base to Stand Body. Tighten the screw to the right. Stand Body Stand Base Stand Base...
  • Page 6: Mounting On A Table

    ASSEMBLING AND PREPARING Mounting on a table Press (Power) button on the bottom switch panel to turn the power on. Lift and tilt the Monitor set into its upright position on a table. CAUTION Leave a 10 cm (minimum) space from the wall for proper ventilation. Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur. 10 cm 10 cm Using the cable holder 10 cm 10 cm Connect the AC-DC Adapter and Power Cord to a wall outlet. DC-IN Cable holder DC-IN...
  • Page 7 ASSEMBLING AND PREPARING WARNING Using the Kensington security system The Kensington security system connector is When you adjust the angle, do not hold the located at the back of the Monitor set. For more bottom of the Monitor set frame as shown on information of installation and using, refer to the the following illustration, as may injure your fingers. manual supplied with the Kensington security system or visit http://www.kensington.com . Connect the Kensington security system cable between the Monitor set and a table. Do not touch or press the screen when adjusting the angle of the monitor. NOTE The Kensington security system is optional. Do not hold this set like below picture.Monitor You can obtain it from most electronics stores. screen can detach from stand base and injure your body. NOTE Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view. Rear Front...
  • Page 8: Mounting On A Wall

    ASSEMBLING AND PREPARING Mounting on a wall Model 22MP56HQ 24MP56HQ For proper ventilation, allow a clearance of 10 cm VESA (A x B) 75 x 75 on each side and from the wall. Detailed Standard screw instructions are available from your dealer, see the Number of screws optional Tilt Wall Mounting Bracket Installation and Setup Guide. CAUTION Disconnect the power cord first, and then 10 cm move or install the Monitor set. Otherwise electric shock may occur. 10 cm If you install the Monitor set on a ceiling or 10 cm slanted wall, it may fall and result in severe injury. 10 cm Use only an authorized LG wall mount and contact the local dealer or qualified personnel. D o not over tighten the screws as this may cause damage to the Monitor set and void your warranty. U se only screws and wall mounts that meet the VESA standard. Any damages...
  • Page 9: Using The Monitor Set

    USING THE MONITOR SET USING THE MONITOR SET Connecting to a PC HDMI connection Transmits the digital video and audio signals from Your Monitor set supports Plug & Play*. your PC or A/V to the Monitor set. Connect the PC *Plug & Play: A PC recognizes a connected or A/V and the Monitor set with the HDMI cable as device that users connect to a PC and turn shown in the following illustrations. on, without device configuration or user intervention. D-SUB connection DC-IN HDMI IN H / P D-SUB IN Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations. (sold separately) DC-IN HDMI IN H / P D-SUB IN NOTE If you use HDMI PC, it can cause compatibility problem.
  • Page 10: Peripheral Device Connection

    USING THE MONITOR SET Peripheral device connection Self Image Setting Function Press the power button on the rear panel to turn Connect peripheral devices to the monitor using the power on. When monitor power is turned on, headphone ports. the "Self Image Setting" Function is executed automatically. (Only supported in Analog Mode) DC-IN HDMI IN H / P D-SUB IN (sold separately) NOTE "Self Image Setting" Function. NOTE This function provides the user with optimal Peripheral devices are sold separately. display settings.When the user connects Cables with angled plugs may have clear- the monitor for the first time, this function ance issues, use straight plugs when pos- automatically adjusts the display to optimal sible. settings for individual input signals.(Only supported in Analog Mode) ‘AUTO’ Function. When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution. Angle Type Straight Type (Only supported in Analog Mode)
  • Page 11: Customizing Settings

    CUSTOMIZING SETTINGS CUSTOMIZING SETTINGS Press the desired button on the rear of the Monitor set. Change the value of the menu item by pressing the buttons on the rear of the Monitor set. To return to the upper menu or set other menu items, use the up arrow ( ) button. Select EXIT to leave the OSD menu. Front Monitor set Buttons Rear Button Description Accesses the main menus.(See p.12) OSD Locked/OSD This function allow you to lock the current control settings, so Unlocked that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. Then OSD of “OSD Lock” will appear. After that, user can select lock or unlock by pressing left/right button. If user selects the “Lock” icon by pressing the “OK” button, the message “OSD Locked” will appear. Otherwise, “OSD Unlocked” will appear. After selecting the “Lock”, If you want to change to Unlock, you can push the “MENU” button for several seconds. The message “OSD Unlocked” will appear. Use this button to enter Reader Mode menu. Its function works to display screen as paper-like picture for Eye comfort.If you want to more information(See p.17). Use this button to enter SUPER ENERGY SAVING, Picture Mode, SUPER RESOLUTION+, DUAL DISPLAY, DUAL WEB menus.(See p.18 ~21) When adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode) The best display mode 1920 x 1080 You can choose the input signal. • When two input signals are connected, you can select the input signal (D-SUB/HDMI) you want. • When only one signal is connected, it is automatically detected. The default setting is D-SUB.
  • Page 12: Customizing Settings Menu Settings

    CUSTOMIZING SETTINGS Customizing Settings Menu Settings Press MENU button on the rear of the Monitor set to display the Menu OSD. Set the options by pressing the ◄ or ► or ▼ buttons. Select the "Next Menu" button to enter the more option settings. Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. Each option is explained below. Menu Analog HDMI Description Brightness ● ● To adjust the brightness of the screen Contrast ● ● Response Time You can set a response time for displayed pictures based on the speed of the ● ● screen. For a normal environment, it is recommended that you use 'Off'. For a fast-moving picture, it is recommended that you use 'High'. Wide/Original Wide Switch to full screen mode according to input image signal. ● ● Original Change the input image signal ratio to original. * This function works only if input resolution is lower than Monitor set ratio (16:9). Reset ◄...
  • Page 13: Picture

    CUSTOMIZING SETTINGS Picture Press MENU button on the rear of the Monitor set to display the Menu OSD. Select the "Next Menu" button to enter the more option settings. Enter to Picture by pressing the ▼ button. Set the options by pressing the ◄ or ► or ▼ buttons. Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. Each option is explained below. Menu > Next Menu > Picture Description Sharpness To adjust the clearness of the screen. Black Level You can set the offset level. If you select 'High', the screen will be bright and if you select ‘Low’, the screen will be dark.(only for HDMI input) * Offset?As the criteria for video signal, it is the darkest screen the monitor can show. Over Scan To select the range of output image for DTV timing in HDMI input.(only for HDMI input)Recommend overscan function to turn on when connect AV equipment.
  • Page 14: Color

    CUSTOMIZING SETTINGS Color Press MENU button on the rear of the Monitor set to display the Menu OSD. Select the "Next Menu" button to enter the more option settings. Select Color by pressing the ► button. Enter to Color by pressing the ▼ button. Set the options by pressing the ◄ or ► or ▼ buttons. Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. Each option is explained below. Menu > Next Menu > Color Description Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor, high gamma values display whitish images and low gamma values display blackish images. Color Temp Custom • Red:Set your own red color levels. • Green: Set your own green color levels. • Blue:Set your own blue color levels. Select the screen color. Warm: Set the screen to warm color temperature (more red). Medium: Set the screen to medium color temperature. Cool: Set the screen to cool color temperature (more blue). Six Color Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/ Magenta/Yellow) to satisfy the color requirements of a user. Adjusts the screen hue. Saturation Adjusts the color sharpness on the screen. Lower values make the color sharpness weaker and colors lighter while higher values make the color sharpness stronger and colors dark. Color Reset Resets the color settings to the factory default settings for the current input device.
  • Page 15: Display

    CUSTOMIZING SETTINGS Display Press MENU button on the rear of the Monitor set to display the Menu OSD. Select the "Next Menu" button to enter the more option settings. Select Display by pressing the ► button. Enter to Display by pressing the ▼ button. Set the options by pressing the ◄ or ► or ▼ buttons. Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. Each option is explained below. Menu > Next Menu > Display Description Horizontal To move image left and right. Vertical To move image up and down. Clock To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change. Phase To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters. Audio Press MENU button on the rear of the Monitor set to display the MENU OSD. Select the "Next Menu" button to enter the more option settings. Select Audio by pressing the ► button. Enter to Volume by pressing the ▼ button. Set the options by pressing the ◄ or ► buttons. Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. Each option is explained below.
  • Page 16: Others

    CUSTOMIZING SETTINGS Others Press MENU button on the rear of the Monitor set to display the Menu OSD. Select the "Next Menu" button to enter the more option settings. Select Others by pressing the ► button. Enter to Others by pressing the ▼ button. Set the options by pressing the ◄ or ► or ▼ buttons. Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. Each option is explained below. Menu > Next Menu > Others Description Language To choose the language in which the control names are displayed. Power Indicator Use this function to set the power indicator on the bottom side of the monitor to On or Off.If you set Off, it will go off. If you set On at any time, the power indicator will automatically be turned on. Automatic Standby If you do not press any button on the monitor set for a certain period, the monitor set will automatically switch to standby mode.
  • Page 17: Reader Setting

    CUSTOMIZING SETTINGS READER Setting Press READER button on the rear of the Monitor set to display the Reader Mode OSD. Set the options by pressing the ◄ buttons. Each option is explained below. Reader Mode Description Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want screen more bright, you can control brightness in Menu OSD. Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more bright, you can control brightness in Menu OSD. Reader Off It is a mode that reader mode is off. NOTE If option of Reader Mode is Reader 1 or Reader 2, Picture Mode will automatically be Custom and SUPER ENERGY SAVING will automatically be Off.
  • Page 18: Func. Setting

    FUNC. Setting SUPER ENERGY SAVING Press FUNC. button on the rear of the Monitor set to display the FUNC. OSD. Enter to SUPER ENERGY SAVING by pressing the ▼ button. Set the options by pressing the ◄ or ► or ▼buttons. Select EXIT to leave the OSD menu.To return to the upper menu or set other menu items, use the up arrow ) button. Each option is explained below. SUPER ENERGY SAVING Description High Enables SUPER ENERGY SAVING you can save energy with this energy- high efficient function. Enables SUPER ENERGY SAVING you can save energy with this energy- low efficient function. Disables SUPER ENERGY SAVING. NOTE TOTAL POWER REDUCTION: How much power is saved while using the monitor. TOTAL CO2 REDUCTION: Change the TOTAL POWER REDUCTION to CO2. SAVING DATA(W/h) 546 mm 604 mm (21.5 inch) (23.8 inch) SUPER SAVING(High) 5 W/h 5 W/h SUPER SAVING(Low) 2 W/h 2 W/h Saving Data depends on the Panel. So,those values should be different from each panel and panel vendor.If option of SUPER ENERGY SAVING is High or Low, monitor luminance become higher or lower depend on source. LG calculated these values by using “broadcast video signal” (including broadcast video: IEC 62087) SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING function. If option of SUPER ENERGY SAVING is High or Low, Picture Mode will automatically be Custom and Reader Mode will automatically be Reader Off.
  • Page 19: Picture Mode

    CUSTOMIZING SETTINGS Picture Mode Press FUNC. button on the rear of the Monitor set to display the FUNC. OSD. Select Picture Mode by pressing the ► button. Enter to Picture Mode by pressing the ▼ button. Set the options by pressing the ◄ or ► buttons. Select EXIT to leave the OSD menu.To return to the upper menu or set other menu items, use the up arrow( )button. Each option is explained below. Picture Mode Description Custom It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu. Text It is a mode that the screen is adjusted to the best for the textworks. Photo It is a mode that the screen is adjusted to the best to view pictures. Cinema It is a mode that the screen is adjusted to the best to view the videos. Game It is a mode that the screen is adjusted to the best to play a game. Picture Mode Description Custom It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu. Vivid 1 Adjusts the video image for the retail environment by enhancing the contrast, brightness, Colour, and sharpness. Vivid 2 Standard Adjusts the image for the normal environment. Cinema It is a mode that the screen is adjusted to the best to view the videos. NOTE If option of Picture Mode is non-Custom , Reader Mode will automatically be Reader Off and SUPER ENERGY SAVING will automatically be Off.
  • Page 20: Super Resolution

    CUSTOMIZING SETTINGS SUPER RESOLUTION + Press FUNC. button on the rear of the Monitor set to display the FUNC. OSD. Select SUPER RESOLUTION+ by pressing the ► button. Enter to SUPER RESOLUTION+ by pressing the ▼ button. Set the options by pressing the ◄ or ► buttons. Select EXIT to leave the OSD menu.To return to the upper menu or set other menu items, use the up arrow( )button. Each option is explained below. FUNC. > SUPER Description RESOLUTION+ Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode. The optimized picture quality is displayed when a user wants smooth and natural images. It iseffective for slow-moving pictures or still images. Middle The optimized picture quality is displayed when a user wants images between low and highmodes for comfortable viewing. It is effective for UCC or SD video. High Optimized picture quality is displayed when a user wants crystal clear images. It is effective forhigh quality video or game.
  • Page 21: Dual Display

    CUSTOMIZING SETTINGS * Before using below functions, please install DUAL SMART SOLUTION programme. DUAL DISPLAY Press FUNC. button on the rear of the Monitor set to display the FUNC. OSD. Select DUAL DISPLAY by pressing the ► button. Enter to DUAL DISPLAY by pressing the ▼ button. Set the options by pressing the ◄ or ► buttons. Select EXIT to leave the OSD menu.To return to the upper menu or set other menu items, use the up arrow ( ) button. Each option is explained below. DUAL DISPLAY Description Clone By selecting Clone,user can use secondary monitor as done mode of primary monitor. Extended By selecting Extended,user can use secondary monitor as extended mode of primary monitor. If select Off,DUAL DISPLAY is off. * Before using below functions, please install DUAL SMART SOLUTION programme. DUAL WEB Press FUNC. button on the rear of the Monitor set to display the FUNC. OSD. Select DUAL WEB by pressing the ► button. Enter to DUAL WEB by pressing the ▼ button. Set the options by pressing the ◄ or ► buttons. Select EXIT to leave the OSD menu.To return to the upper menu or set other menu items, use the up arrow ( ) button. Each option is explained below. DUAL WEB Description Help user to browse web efficiently by dividing in half. Help to arrange and move windowson screen. Help user to control dividedwindows ratio.
  • Page 22: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Check the following before calling for service. No image appears y Check and see if the power cord is connected properly to the power Is the power cord of the display connected? outlet. y Press the Power button. Is the power indicator light on? Is the power on and the power y Adjust the brightness and the contrast. indicator White? Is the power indicator flickering? y If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen. y Try to turn on the PC. Do you see an "OUT OF RANGE" y This message appears when the signal from the PC (video card) is message on the screen? out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again. y When the monitor is on "No-Signal" in 5 minutes, the monitor goes to Do you see a "NO SIGNAL" message on the screen? DPM mode. Do you see a "OSD LOCKED" message on the screen? y You can secure the current control settings, so that they cannot be Do you see “OSD LOCKED” when you push MENU button? inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.
  • Page 23: Display Image Is Incorrect

    TROUBLESHOOTING CAUTION Check Control Panel ► Display ► Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution. If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution. The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer. Display image is incorrect The screen color is mono or y Check if the signal cable is properly connected and use a screwdriver abnormal. to fasten if necessary. y Make sure the video card is properly inserted in the slot. y Set the color setting higher than 24 bits (true color) at Control Panel ► Settings. y Check if the screen is set to interlace mode and if yes, change it to the The screen blinks. recommend resolution. Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? Have you installed the display y Be sure to install the display driver from the display driver CD (or driver? diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com. y Make sure to check if the video card supports Plug&Play function. The screen is flickering. Did you select the recommended y If the selected resolution is HDMI 1080i 60/50 Hz, the screen may resolution? be flickering. Change the resolution to the recommended resolution 1080P.
  • Page 24: Specifications

    SPECIFICATIONS SPECIFICATIONS 22MP56HQ Display Screen Type 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 54.6 cm Pixel Pitch 0.2745 mm x 0.2745 mm (Pixel Pitch) Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic) Vertical Frequency 56Hz to 75Hz (D-SUB) 56Hz to 61Hz (HDMI) Input Form Separate Sync. Digital Video Input Signal Input 15 pin D-SUB Connector HDMI Connector Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital Resolution D-SUB(Analog) : 1920 x 1080 @ 60 Hz HDMI (Digital) : 1920 x 1080 @ 60 Hz Recommend VESA 1920 x 1080 @ 60 Hz Plug & Play DDC 2B(Analog,HDMI) Power On Mode : 20 W (ENERGY STAR® standard) * consumption Sleep Mode ≤ 0.3 W Off Mode ≤ 0.3 W Power Input 19 V 1.3 A AC-DC Adapter...
  • Page 25: 24Mp56Hq

    SPECIFICATIONS SPECIFICATIONS 24MP56HQ Display Screen Type 60.4 cm (23.8 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 60.4 cm Pixel Pitch 0.2745 mm x 0.2745 mm (Pixel Pitch) Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic) Vertical Frequency 56Hz to 75Hz (D-SUB) 56Hz to 61Hz (HDMI) Input Form Separate Sync. Digital Video Input Signal Input 15 pin D-SUB Connector HDMI Connector Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital Resolution D-SUB(Analog) : 1920 x 1080 @ 60 Hz HDMI (Digital) : 1920 x 1080 @ 60 Hz Recommend VESA 1920 x 1080 @ 60 Hz Plug & Play DDC 2B(Analog,HDMI) Power On Mode : 20 W (ENERGY STAR® standard) * consumption Sleep Mode ≤ 0.3 W Off Mode ≤ 0.3 W Power Input 19 V 1.6 A AC-DC Adapter Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPG-1 manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC...
  • Page 26: Preset Modes (Resolution)

    SPECIFICATIONS Preset Modes (Resolution) D-SUB Timing Horizontal Vertical Display Modes (Resolution) Polarity(H/V) Frequency(kHz) Frequency(Hz) 720 x 400 31.468 640 x 480 31.469 640 x 480 37.500 800 x 600 37.879 800 x 600 46.875 1024 x 768 48.363 1024 x 768 60.023 1152 x 864 67.500 1280 x 1024 63.981 1280 x 1024 79.976 1680 x 1050 65.290 1920 x 1080 67.500 Recommend Mode HDMI Timing Factory support mode Horizontal Vertical HDMI (Preset Mode) Frequency(kHz) Frequency(Hz) 480P...
  • Page 27: Proper Posture

    PROPER POSTURE PROPER POSTURE Proper posture for using the Monitor set. Adjust the Adjust the location of the Monitor set and Monitor set to avoid it your posture to reflecting light. allow you to view images at the optimal viewing angle. Place your hands gently on the keyboard, keeping your arms bent at the elbows and horizontally outright.
  • Page 28 Declaration of Conformity Trade Name: LG Model : 22MP56HA 24MP56HA Responsible Party: LG Electronics Inc. Address : 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A TEL: 201-266-2534 *above information is only for USA FCC Regulatory Make sure to read the Safety Precautions before using the product.

This manual is also suitable for:

24mp56hq
