Vysal Vysa-Therm 3000 Owner's Manual

1. Introduction

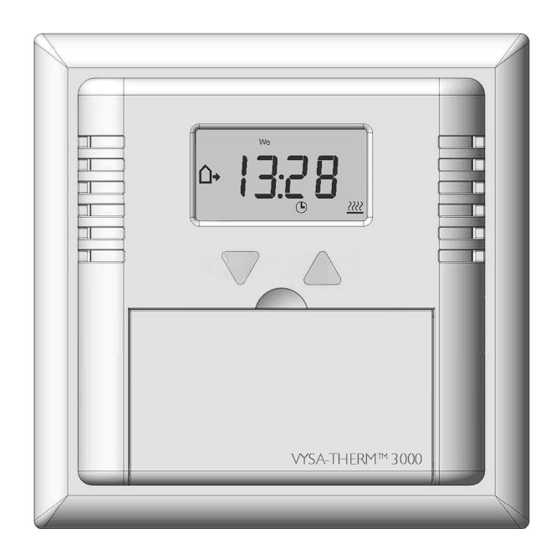

The Vysa-Therm™ 3000 is the most advanced thermostat available in the market today. Vysa-Therm™
3000 has the largest microprocessor available and is packed full of features to make life simple for the
installer and user alike.
The Vysa-Therm™ 3000 is the simplest thermostat to install and
programme has been optimised for economy and comfort suitable for typical lifestyles. The Vysa-
Therm™ 3000 has a high capacity 3V Lithium coin battery to protect the factory pre-set time and date so
that the installer / user need not enter them during installation.
There are two modes of operation; timed or un-timed.
The operation mode is initially selected by the DIL switches during installation but can be changed later
under the engineer menu without having to open the control.
timed operation
When
temperature between the comfort temperature and the savings temperature.
un-timed operation
When
controls to this temperature until it is manually adjusted.
Vysal Limited. Unit 3 Lovett Farm, Little Somerford, Wiltshire, SN15 5BP. Tel : 01666 822059 Fax: 01666 822422
OWNERS MANUAL
Vysa-Therm™ 3000
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
is chosen the control uses a real time clock and timer periods to change the
is chosen the control is set to the required temperature using
Email: sales@floor-heating.co.uk
Electrical and electronic specifications.
Supply Voltage: 230 Vac nominal (operating range 200 to 260 Vac), 50/60 Hz
Standby power consumption: 500 mW
Relay rating: 16 A resistive (4 A inductive), 230 Vac, 3600 W
Ambient operating temperature: 0 to 35 °C
Room sensor control set point range: 5 to 35 °C
Room sensor display and setting resolution: 0.2 °C
Room sensor operating differential: 0.4 °C
Room sensor accuracy: ± 1.5 °C over range 10 to 30 °C
Room sensor: built in NTC thermistor
Floor sensor control set point range: 5 to 45 °C
Floor sensor display and setting resolution: 0.2 °C
Floor sensor operating differential: 1.0 °C
Floor sensor accuracy: ± 2.0 °C over range 10 to 40 °C
Floor sensor: NTC thermistor, resistance 10kΩ @25 °C
Floor sensor: the length of the floor sensor lead can be extended up to a
maximum of 20 m.
never programme
Web: www.floor-heating.co.uk
Vysa-Therm™ 3000: 000807
. The default
and and
