Summary of Contents for Open Range Recreational Vehicle
- Page 1 Maintenance Manual Guidebook to Routine Maintenance of Your Recreational Vehicle...
- Page 2 Open Range RV Company. As the owner of a new Open Range product, it is important to recognize the importance of performing routine maintenance during the warranty period. Just like oil changes in your tow vehicle –...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Chapter I – Undercarriage Frame ..........1 Coupler . - Page 4 Chapter V – Interior Paneling ......... . 25 Linoleum / Vinyl Floor .
-
Page 5: Chapter I - Undercarriage
1. FRAME The steel frame on your Open Range recreational vehicle is cleaned with a high pressure phosphate spray wash that removes oils, dirt, and residue. After cleaning the frame is placed in an oven at 200°F, high quality, water borne paint is then applied. -
Page 6: Jacks
and easier to function. Avoid painting the main operating screw. 4. JACKS A. Travel Trailers On the top of the jack is a metal cover attached with a wire spring clip. Remove cover and inspect gears for grease. Re-grease if there is none there or it has dried out. -
Page 7: Wheels
cool. All tire pressures rise when tires are moving on roadway. A tire is considered “cold” after 3 hours of not moving. 6. WHEELS All wheels, due to their location, are subject to road conditions, moisture, dirt, etc. White steel wheels are powder coated paint. Since they are painted, to maintain its nice appearance, wash them with soap and water as often as desired. -
Page 8: Axles
Fastener Torque WARNING It is important to maintain proper torque to provide safe and secure attachment of the wheel to the hub/drum. Be sure to use wheel nuts that are compatible with the coin of the wheel. Improperly torqued wheel nuts can cause the wheel to separate from the wheel mounting surface during operation. - Page 9 B. Repack Bearings Before repacking bearings, take bearings out of hub and wash all old grease and grime out of bearings and hub with solvent cleaner. Use a high temperature, automotive type wheel bearing grease produced by a reputable manufacturer. The soap type should be lithium pomplex or equivalent.
-
Page 10: Brakes
8. BRAKES The brakes on your coach are 10” or 12” in diameter depending on the weight of the trailer. They function from 12 volt DC power supplied through brake control from your tow vehicle. These brakes are NOT self-adjusting. You will need to adjust brakes manually as outlined in the next several pages or have your selling dealer perform this operation. - Page 11 WARNING Improper brake adjustment can result in reduced brake performance or loss of brakes. Reduced brake performance can lead to property damage, serious personal injury, or loss of life. A. Brake Shoes While the hub/drum is removed the brake shoes also require full inspection for: 1.
-
Page 12: Springs/Shackles
Resurfacing the Brake Drum A standard drum lathe may be used to machine the drum surface. Do not exceed the maximum diameter cast into the brake drum. The drum should be replaced if it must be bored more than the maximum diameter cast in the brake drum. -
Page 13: Steps
B. Shackles Bolts and shackle plates need to be inspected twice per travel season or more if traveling consistently. Bolts are not expected to turn which causes nylon bushings inside of the spring eye to wear rapidly, causing the holes in shackles to wear oblong. When this condition occurs you MUST replace bolts and shackles. - Page 14 CAUTION To prevent the possibility of a person slipping on the steps: 1. Lubricate ONLY the pivot points 2. Wipe off any excess lubricant and clean the step carefully to be sure no excess lubricant is on the step assembly. NOTE: Paint on axles and springs is only a primer coat.
-
Page 15: Chapter Ii - Exterior
Chapter II – Exterior 1. METAL Aluminum skin is pre-painted as prepared from supplier with polyester automotive paint finish. To clean, use a mild detergent soap and water. Use an automotive type of wax or polish; same as you may use on your tow vehicle. -
Page 16: Exterior Roof
4. EXTERIOR ROOF Two types of roof material are used on Open Range products. Aluminum material is a smooth mill-finish requiring little care. Washing with soap and water plus rinsing should suffice. There is no hard substrate material underneath and aluminum will show slight waves due to sun and heat causing expansion of the aluminum material. -
Page 17: Extrusions And Vents
This material can and will also dry and/or crack from weather elements, permitting leakage and eventually major deterioration. Open Range RV Company advises the owner to remove these extrusions, clean out old putty tape, and replace with new sealant material every five years. -
Page 18: Chapter Iii - Systems
Chapter III – Systems 1. PROPANE SYSTEM Your system to feed propane fuel thru your piping system needs to be inspected for leakage at least once per year, preferably in the spring before you begin your camping season. The best method to test the system is to use a manometer, an instrument used to measure the operating pressure at 11”... -
Page 19: Plumbing System
center perform this test unless you have the proper equipment and full understanding of how to perform this test. You may also wish to use a local reputable RV service center to perform this function. 2. PLUMBING SYSTEM Maintenance to plumbing system is minor, there are two items of importance. -
Page 20: Electrical System
Remember – the more you rinse tanks, the cleaner they will be to avoid incorrect readings on probes and gauges on the monitor panel system. Flush Kit – Option Kit to flush black water holding tank is available on most models is designed to maintain and clean your tank. - Page 21 A fully charged battery will measure at 1.265 specific gravity. A discharged battery will measure at 1.120 specific gravity or 11.7 volts DC. A hydrometer is required to measure “specific gravity.” Most batteries with deep cycle rating require water to be added as needed.
-
Page 22: Chapter Iv - Appliances
Chapter IV – Appliances 1. Furnace The furnace in your Open Range recreational vehicle does need some normal maintenance attention, preferably once each spring, just before you begin your summer camping season. It’s best to have your selling dealer or a qualified service technician perform such an inspection. -
Page 23: Water Heater
You, as the owner/user, should inspect the furnace monthly during the heating season for presence of soot on vent. Operating the furnace under this condition could lead to serious property damage, personal injury or loss of life. If soot is observed on the vent, immediately shut the furnace down and contact a qualified service agency. -
Page 24: Stove, Range, Cooktop
this is not a warrantable item. Iron and sulfate levels in the water will determine the life of the anode rod. WARNING Do not replace the anode rod with any non-Suburban accessory part, such as an “add-on” electric heating element. Items such as these are not approved to be installed in Suburban products. -
Page 25: Refrigerator
2. Use warm water with a mild soap to clean grates, cook top, and painted or porcelain surfaces. DO NOT use a soap which contains ammonia. 3. DO NOT use abrasive cleaning pads, steel wool or abrasive soap, to clean any surface because of potential scratching of these items. - Page 26 2. Clean Now wash the refrigerator completely to a nice clean condition. You may wish to allow the door to remain open slightly to complete the drying process and to prevent any mildew or mold to grow. Keeping the refrigerator clean will help to avoid any food odors. NOTE: Do not use abrasive cleaners, chemicals, or scouring pads, because they can damage the interior of the refrigerator.
-
Page 27: Air Conditioner
3. Door seal should always be tight and not leak air. Place a piece of paper (or a dollar bill) between the door gasket and frame. Close the door and pull the paper out. You should feel a slight drag between the gasket and cabinet. - Page 28 Cleaning and/or changing the filters: 1. Disengage the two 1/4-turn fasteners that secure the ceiling assembly grille to the ceiling assembly (see figure). 2. Lower the grille and filters from the ceiling assembly. 3. Take filters out and either clean or exchange with other filters (see figure).
-
Page 29: Chapter V - Interior
3. CARPET Treat your carpet in your recreational vehicle the same as in your home by vacuuming frequently. For tough and deep stains you may need to use a professional cleaning service. Pretest carpet for colorfastness in an inconspicuous area such as under a cabinet. - Page 30 under your hot dishes. To clean your tops use cleaning detergents, such as, 409, Fantastic or a bleach-water solution. DO NOT use any abrasive cleaner on the top. When pouring boiling or scalding water into sink we suggest running cold water at the same time to avoid too much heat in the sink. For the sink bowl, use a beach-water solution, using 1/4 to 1/2 cup of bleach with sink filled to top with water.
-
Page 31: Window Mini Blinds
REMEMBER – this is polypropylene, basic plastic, so don’t be afraid to clean it. 11. DRAPES Materials used in the drapes of your recreational vehicle consist of different cotton and polyester combinations. Frequent vacuuming is recommended as the first choice of cleaning. Using a damp cloth in warm water with detergent soap, spot clean soiled spots. -
Page 32: Furniture
13. FURNITURE Upholstered items such as recliners, swivel rockers, rocker recliners, sofas and other free standing pieces may be cleaned by frequent vacuuming or light brushing to remove dust and to prevent overall soiling. On some spots you may wish to use a detergent soap and water to attempt to clean a spot. -

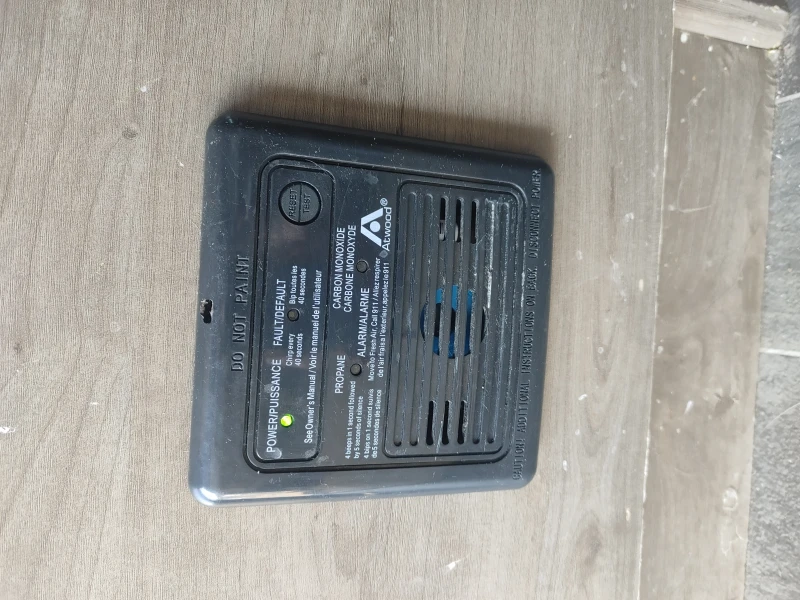

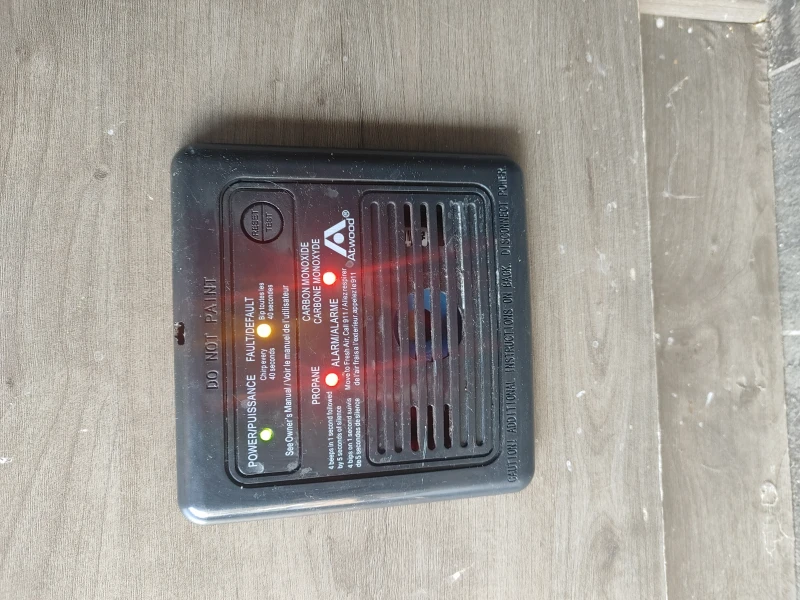

Page 33: Propane And Co Detector
last for 30 days, but you should replace the battery immediately once the unit starts “beeping” (“the low battery warning). • Replace you Smoke Alarms at least every 10 years. This includes models with 10-year batteries (SA-668LL and SA-668SLL). Manufactured date code is on the back of the alarm. 16. - Page 34 WARNING DO NOT USE A CIGARETTE LIGHTER TO TEST THE CO/ PROPANE GAS ALARM. Butane gas may damage the sensors. DO NOT attempt to test the alarm by any other means than by using the TEST/RESET button. DO NOT attempt to produce CO – to test the alarm.
-
Page 35: Maintenance Chart
MAINTENANCE CHART First Year Second Year I. UNDERCARRIAGE Date Date Wheel Bearings Inspected Repacked Lug Nuts Torqued Inspected Tightened Brake Shoes Inspected Adjusted Shackles Inspected Lubricated Steps Lubricated Lubricated II. EXTERIOR Metal Washed Waxed Fiberglass Washed Waxed Roof Inspected Sealed Roof Seams Inspected Sealed... - Page 36 The recreational vehicle you have purchased has been inspected by our trained inspectors and fully meets our high quality standards. As the owner of a new Open Range recreational vehicle, you can rest assured that we will do all we can to keep you a “happy camper.”...
Need help?
Do you have a question about the Recreational Vehicle and is the answer not in the manual?
Questions and answers
How do you stop the beeping noise from the smoke detector?
To stop the beeping noise from the smoke detector in an Open Range recreational vehicle, replace the battery immediately when the unit starts beeping with the low battery warning (once a minute). The low battery warning lasts for about 30 days, but it is recommended to replace the battery as soon as the beeping starts.
This answer is automatically generated
How do stop beeping noise from smoke detector
To stop the beeping noise from the smoke detector in an Open Range recreational vehicle:
1. Check the Battery – A weak battery causes the unit to beep about once a minute as a low battery warning. Replace the battery immediately when this occurs.
2. Test the Unit – After replacing the battery, test the smoke alarm to ensure it is functioning properly.
3. Clean the Alarm – Dust buildup can cause false alarms. Gently vacuum the cover with a soft brush attachment and test the unit afterward.
4. Relocate if Necessary – If the alarm frequently sounds unwanted alerts, consider relocating it to a more suitable position.
Avoid using water, cleaners, or solvents, as they may damage the smoke alarm.
This answer is automatically generated
