Summary of Contents for Interface 9834

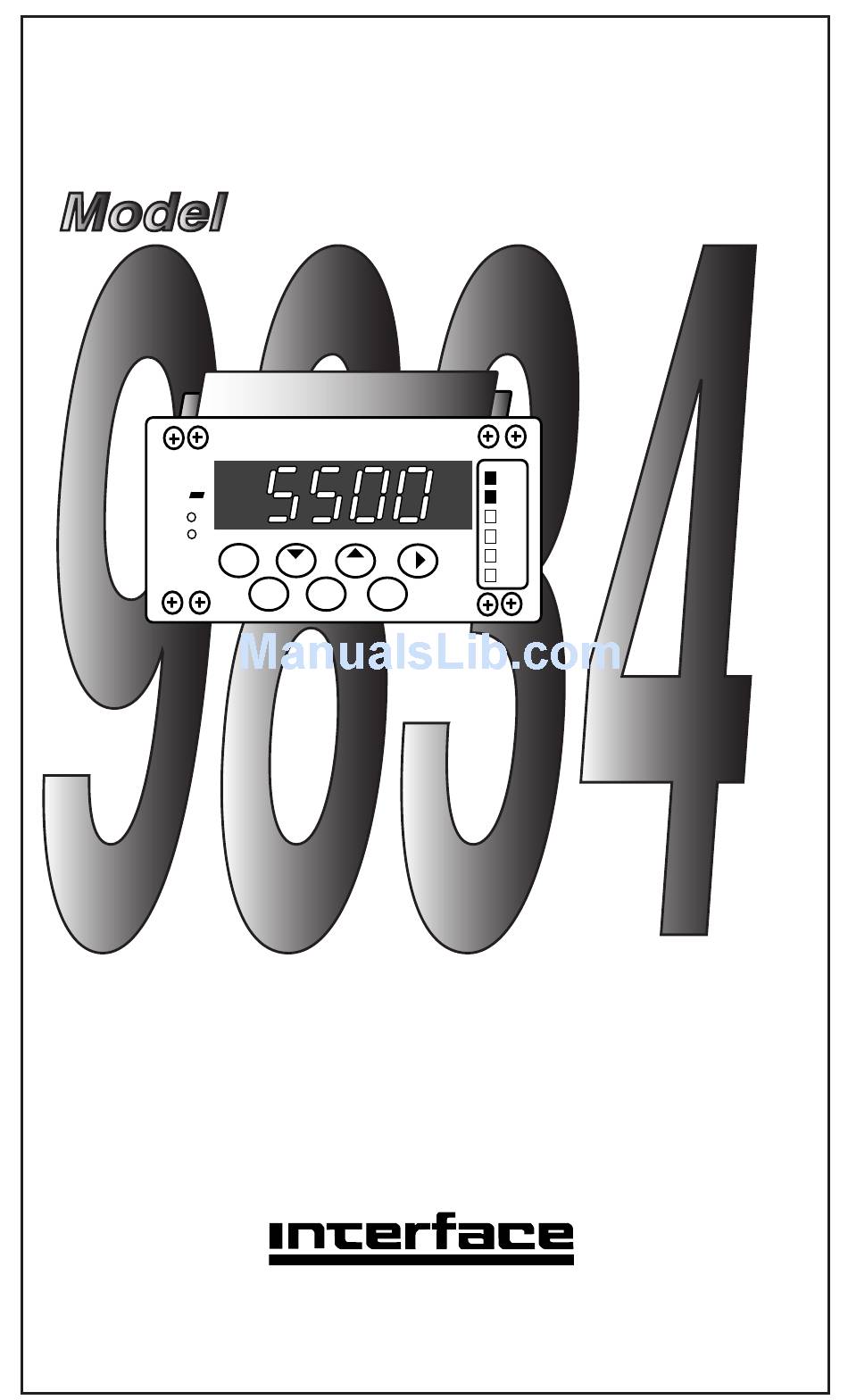

- Page 1 INSTRUCTION MANUAL Model 9834 TARE MODE TARE DISP RESET RCAL High Level Output Indicator with Enhanced Performance Features ADVANCED FORCE MEASUREMENT 7401 E. Butherus Dr. • Scottsdale, AZ 85260 TEL: (480) 948-5555 FAX: (480) 948-1924 www.interfaceforce.com...
- Page 2 Please return the original calibration data with the unit. REPAIR WARRANTY All repairs of Interface products are warranted for a period of 90 days from date of shipment. This warranty applies only to those items which were found defective and repaired.
-
Page 3: Table Of Contents
SWITCH and FUNCTION DEFINITIONS ....... 6 OPERATING INSTRUCTIONS ........10 CALIBRATION INSTRUCTIONS ......... 14 SERIAL RS232 COMMUNICATIONS ......17 FIGURES Figure 1 Model 9834 Front Panel View....3 Figure 2 Model 9834 Rear Panel View....3 Figure 3 Transducer Wiring ........4 Figure 4 I/O (Input/Output) Wiring ...... -
Page 4: Description And Specifications
DESCRIPTION The Model 9834 is an enhanced performance, microprocessor-based digital indicator capable of interfacing to high-level voltage ( 5 or 10VDC) or current (4-20mA) output transducers. A 16-bit analog-to-digital converter accurately digitizes the input signal. A 12VDC@90mA, short circuit protected, transducer excitation supply is also provided. Self-calibrating 10VDC and 4-20mA analog output signals are standard with this instrument. -
Page 5: Installation And Wiring
INSTALLATION AND WIRING INSTALLATION The Model 9834 enclosure is designated for panel mounting in a 1/8 DIN cutout. The cutout dimensions are shown below. 1.772" 45mm (+0.024, -0.000) 92 mm 3.622" (+0.032, -0.000) To panel mount the 9834, perform the following steps. -
Page 6: Figure 1 Model 9834 Front Panel View
(Dual Function Switch) Reset or Menu Exit REF Switch SW7 Display Selection Switch SW6 Switch SW5 (Dual Function Switch) Figure 1. Model 9834 Front Panel View Fuse Holder Input / Output Connector (250V, 250mA, 5mm fuse) (15-pin Male D-Sub) Line 50/60 Hz 115V .10A... -
Page 7: Figure 3 Transducer Wiring
Vexc (+12VDC) Transducer Power Logic Supply Vcc (+5v @ 50mA max) Transducer Signal Sig (+) Transducer Signal Return Analog Ground Reference Voltage Vref (+2.5v) Transducer Power Return Analog Ground Activated by REF switch Relay Contact 1 Activated by REF switch Relay Contact 2 Chassis Gnd Chassis Gnd... -
Page 8: Figure 5 Location Of Switches, Jumpers
20mA Analog 10V Analog Output Adjust Output Adjust 4mA Analog Transformer Output Adjust Vexc Adjust not used not used 5VDC/10VDC not used JUMPERS FOR BAUD RATE Baud Rate On On On Off 1200 On Off On Off 2400 Note: Jumper shown for default setting of 9600 baud On On Off Off 4800 Off On Off Off... -
Page 9: Switch And Function Definitions
S1 S2 S3 Mode Selection Switch (S1) S1 is used to cycle through the various programmable functions of the 9834. The sequence is as follows. The designators, in ( ), identify text that will be displayed. The settable values are shown in { }... - Page 10 SWITCH DEFINITIONS (CONT) Increment or Cal Switch (S3) This switch serves two functions, depending on the present status of S1. If the instrument is in the Mode Selection sequence, this switch will increment the flashing digit. If the instrument is in its operating mode, S3 becomes an AUTO CAL switch. CAUTION: If CAL function has been activated, depressing this switch will cause the instrument to recalibrate its full scale reading.
- Page 11 FUNCTION DEFINITIONS Filter Value (FILtEr) {00 to 99} The 9830 uses a filter based on exponential smoothing, a digital averaging technique where the recent conversions are given more weight than the older conversions. The weighting factor is the value of (FILtEr). The formula for the exponential filter is: = (1-F)C where S the new smoothed value...
- Page 12 10,000 lbf load cell loaded to capacity. (FS) = 10000*10V/5V = 20000. 2. A 9834 is to read 2000.0 on the display and produce a 10 mA span output with a 2000 lbf load cell loaded to capacity. (FS) = 2000.0*16mA/10mA = 3200.0. The output will then be 4 mA at zero load and 14 mA at capacity.
-
Page 13: Operating Instructions
Filter 1- (FILtEr), Decimal Point (dP), Calibration Number (CAL), Full Scale Number (FS), Setpoint to Monitor (SP -), Setpoint to be (SP HI), Setpoint Value (Set SP), Hysteresis Low (HL) and Hysteresis High (HH) values. Model 9834 TARE MODE TARE... - Page 14 PROGRAM INSTRUCTIONS (CONT) 4. Depress MODE (S1) switch once. The text dP followed by the decimal point location will be displayed. Use S2 or S3 to locate the decimal point. To store the selected value in non-volatile memory, depress the MODE switch. To exit the MODE sequence, without storing the new value in non-volatile memory depress the RESET switch.
- Page 15 PROGRAM INSTRUCTIONS (CONT) 9. Depress MODE (S1) switch once. The text SEt SP will be displayed momentarily, followed by the current value of Setpoint 1. Use S2, S3 and/or S4 to set a new value. To store the selected parameter in non-volatile memory, depress the MODE switch.
- Page 16 PROGRAM INSTRUCTIONS (CONT) 17. Depress MODE (S1) switch once. The text SP4 HI or SP4 LO will be displayed. Reference SP1 HI setup instructions on Page 11 to set SP4 HI or SP4 LO. 18. Depress MODE (S1) switch once. The text SEt SP will be displayed momentarily, followed by the current value of Setpoint 4.
-
Page 17: Calibration Instructions
CALIBRATION INSTRUCTIONS The Interface Model 9834 can be calibrated using (2) different methods. 1. The first method uses actual or simulated ZERO and FULL SCALE (FS) inputs. Actual inputs may come from a transducer loaded with calibrated weights. Simulated inputs may come from a voltage calibrator. - Page 18 CALIBRATION INSTRUCTIONS (CONT) 9. Enable the CAL switch. Reference PROGRAM INSTRUCTIONS Step 1 on Page 10 to enable the CAL switch. Note: Enabling the CAL switch allows only one attempt at calibrating the instrument. If calibration is not successful, repeat the whole calibration procedure.
- Page 19 CALIBRATION INSTRUCTIONS (CONT) CALIBRATION USING THE REF SWITCH 1. Attach a calibration adaptor to J1. 2. Apply power to the instrument. 3. The TARE and CAL LED's on the front panel should be illuminated 4. Depress the TARE (S2) switch once. The TARE LED should extinquish. The instrument should now display the UNTARED reading.
-
Page 20: Serial Rs232 Communications
No Parity Bit; One Stop Bit Transmissions from the Model 9834 are controlled by sending XOFF (ASCII code decimal 19, DC3) to suspend character transmission and XON (ASCII code decimal 17, DC1) to start transmission. All transmissions to the Model 9830, including XON and XOFF, must terminate with a CR (hex OD) and only a CR. - Page 21 SERIAL RS232 COMMUNICATIONS (CONT) Examples of Transmitted Data Byte Value in Hex Value in Decimal No SP Exceeded Instantaneous Display Displayed Number = -10.45 Decimal = xxx.xx Byte Value in Hex Value in Decimal SP 2 Exceeded Valley Display Displayed Number = -993.78 Decimal = xxx.xx Commands The XON and XOFF commands only affect the transmission of data from the selected...
- Page 22 SERIAL RS232 COMMUNICATIONS (CONT) (M)ODE COMMANDS To change a MODE item, send an 8 character ASCII string to the Model 9834. The 1st character is always M. The 2nd character identifies the item being changed. The other characters are the item's new value.
- Page 23 SERIAL RS232 COMMUNICATIONS (CONT) (C)alibrate Commands String Transmitted Menu Item Changed Calibrate Uncalibrate CA x.xxxxxxE +yy Sets the Scale Factor to x.xxxxxx * 10 Examples written in BASIC. These examples assumed that the RS232 port was opened with buffer # 2. Example 1 Print #2, "CU"...
- Page 24 REV A 11-21-07 ADVANCED FORCE MEASUREMENT 7401 E. Butherus Dr. • Scottsdale, AZ 85260 TEL: (480) 948-5555 FAX: (480) 948-1924 www.interfaceforce.com...
