Step 1. Turn Off Water Supply
1. Close the main water supply valve, located near the
well pump or water meter.
2. Shut off the electric or fuel supply to the water
heater.
3. Open all faucets to drain all water from house pipes.
NOTE: Be sure not to drain water from the water
heater, as damage to the water heater ele-
ments could result.

Installation Instructions

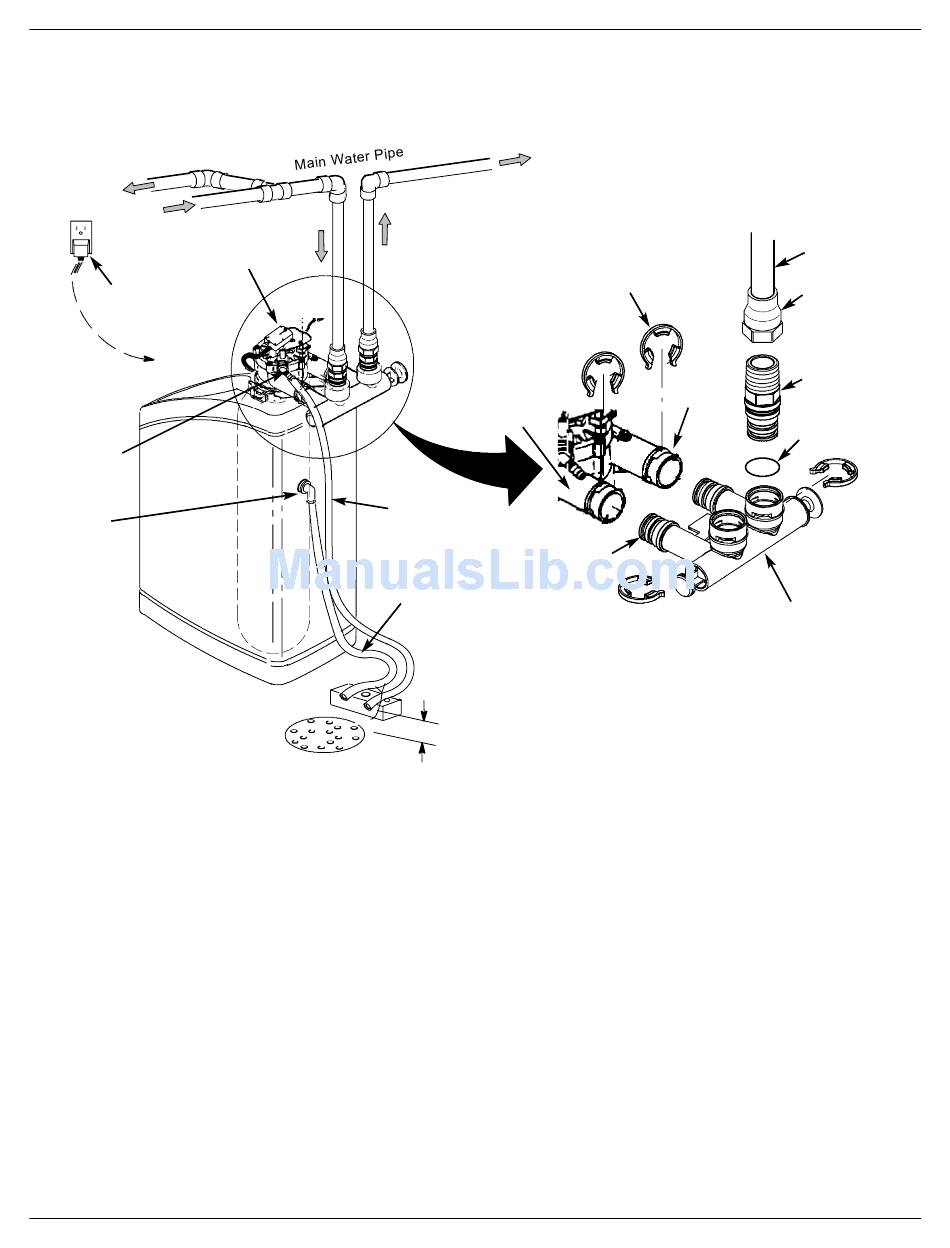

Typical Installation
Valve Drain
Hose*
Salt Storage
Tank Overflow
Hose*
Secure Valve Drain
Hose in place over
Floor Drain
Floor Drain
Morton System Saver
® ®
Conditioned
Water
Clips
Inlet
Lubricated
O-ring
NOTE: See "Air Gap Requirements" section.
NOTE: Water Softener shown with Salt Hole
1-1/2"
air gap
Step 2. Assembly
1. Morton System Saver
®
bled. During installation, remove the Salt Hole
Cover and set it aside to prevent damage. Check
the brinewell to be sure it is secured and vertical
(See Figure 11). Slide Faceplate Cover forward to
expose back valve assembly.
2. Lift the brine valve out of the brinewell. Make sure
the float stem is parallel to the stand tube so the
seals will seat properly during operation. Place the
brine valve back into the bottom of the brinewell and
reinstall the brinewell cover.
