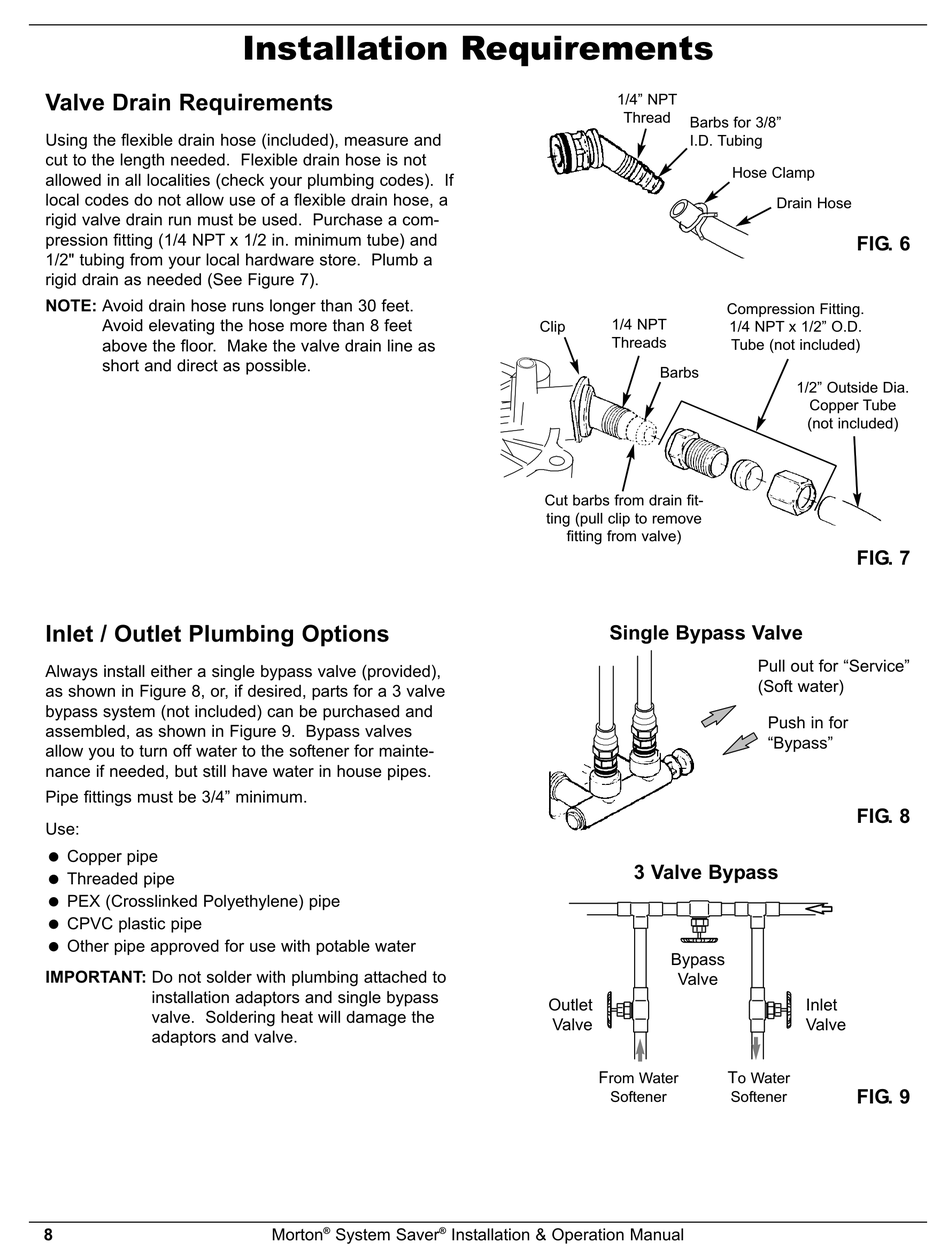

Valve Drain Requirements

Using the flexible drain hose (included), measure and
cut to the length needed. Flexible drain hose is not
allowed in all localities (check your plumbing codes). If
local codes do not allow use of a flexible drain hose, a
rigid valve drain run must be used. Purchase a com-
pression fitting (1/4 NPT x 1/2 in. minimum tube) and
1/2" tubing from your local hardware store. Plumb a
rigid drain as needed (See Figure 7).
NOTE: Avoid drain hose runs longer than 30 feet.
Avoid elevating the hose more than 8 feet
above the floor. Make the valve drain line as
short and direct as possible.
Inlet / Outlet Plumbing Options
Always install either a single bypass valve (provided),
as shown in Figure 8, or, if desired, parts for a 3 valve
bypass system (not included) can be purchased and
assembled, as shown in Figure 9. Bypass valves
allow you to turn off water to the softener for mainte-
nance if needed, but still have water in house pipes.
Pipe fittings must be 3/4" minimum.
Use:
= Copper pipe
= Threaded pipe
= PEX (Crosslinked Polyethylene) pipe
= CPVC plastic pipe
= Other pipe approved for use with potable water
IMPORTANT: Do not solder with plumbing attached to
installation adaptors and single bypass
valve. Soldering heat will damage the
adaptors and valve.
8
Installation Requirements
Morton System Saver
®
1/4" NPT
1/4 NPT
Clip
Threads
Cut barbs from drain fit-
ting (pull clip to remove
fitting from valve)
Single Bypass Valve
Outlet
Valve
F
rom Water
Softener
Installation & Operation Manual
®
Thread
Barbs for 3/8"
I.D. Tubing
Hose Clamp
Drain Hose
Compression Fitting.
1/4 NPT x 1/2" O.D.
Tube (not included)
Barbs
1/2" Outside Dia.
Pull out for "Service"
(Soft water)
Push in for
"Bypass"
3 Valve Bypass
Bypass
Valve
T
o Water
Softener
FIG. 6
Copper Tube
(not included)
FIG. 7
FIG. 8
Inlet
Valve
FIG. 9
