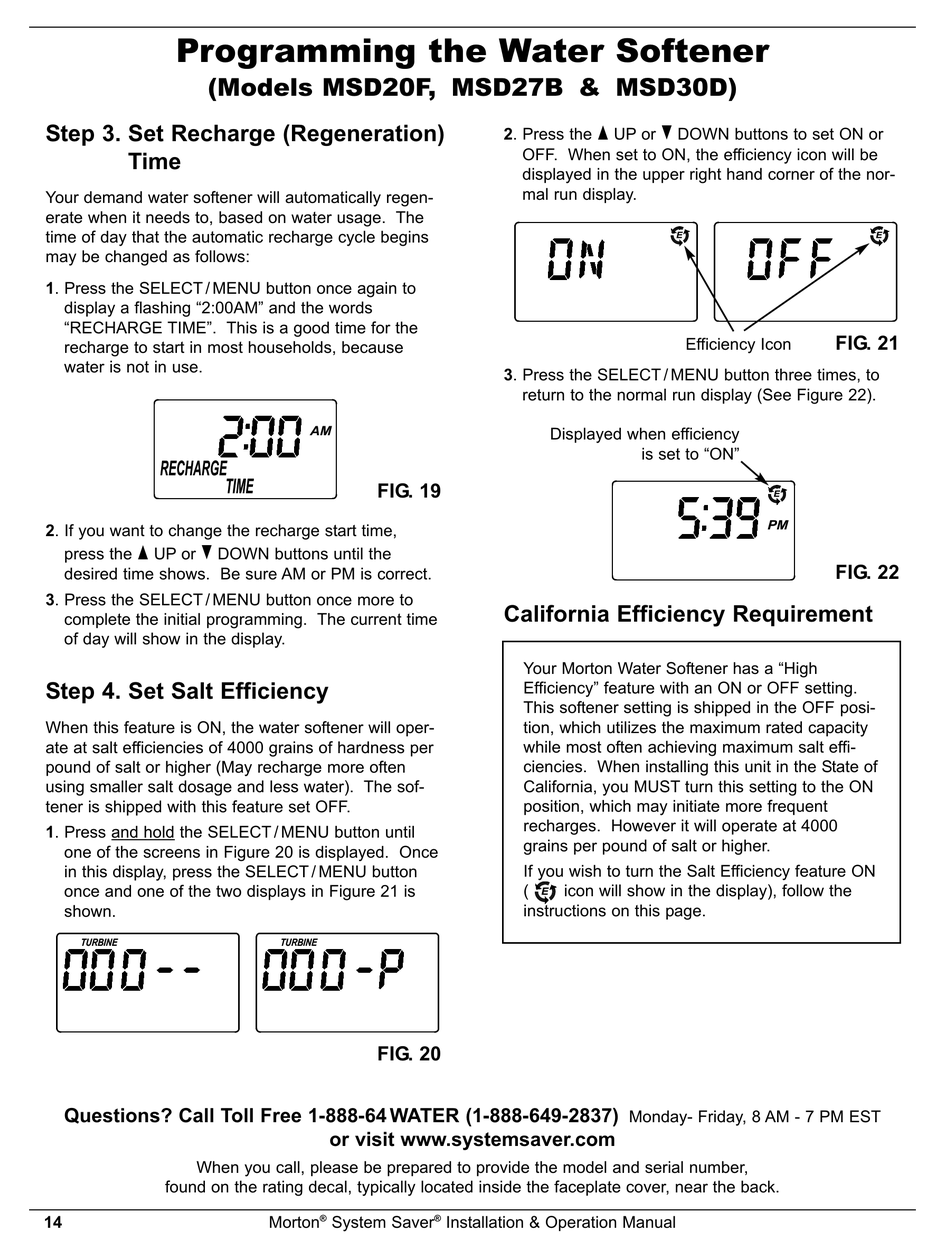

Morton System Saver MSD20F Installation And Operation Manual page 14

Programming the Water Softener
(Models MSD20F, MSD27B & MSD30D)
Step 3. Set Recharge (Regeneration)
Time
Your demand water softener will automatically regen-
erate when it needs to, based on water usage. The
time of day that the automatic recharge cycle begins
may be changed as follows:
1. Press the SELECT / MENU button once again to
display a flashing "2:00AM" and the words
"RECHARGE TIME". This is a good time for the
recharge to start in most households, because
water is not in use.
2. If you want to change the recharge start time,
q
press the UP or DOWN buttons until the
desired time shows. Be sure AM or PM is correct.
3. Press the SELECT / MENU button once more to
complete the initial programming. The current time
of day will show in the display.
Step 4. Set Salt Efficiency
When this feature is ON, the water softener will oper-
ate at salt efficiencies of 4000 grains of hardness per
pound of salt or higher (May recharge more often
using smaller salt dosage and less water). The sof-
tener is shipped with this feature set OFF.
1. Press and hold the SELECT / MENU button until
one of the screens in Figure 20 is displayed. Once
in this display, press the SELECT / MENU button
once and one of the two displays in Figure 21 is
shown.
Questions? Call Toll Free 1-888-64 WATER (1-888-649-2837)
When you call, please be prepared to provide the model and serial number,
found on the rating decal, typically located inside the faceplate cover, near the back.
14
FIG. 19
FIG. 20
or visit www.systemsaver.com
Morton System Saver Installation & Operation Manual
® ®
q
2. Press the UP or DOWN buttons to set ON or
OFF. When set to ON, the efficiency icon will be
displayed in the upper right hand corner of the nor-
mal run display.
3. Press the SELECT / MENU button three times, to
return to the normal run display (See Figure 22).
Displayed when efficiency
is set to "ON"
California Efficiency Requirement
Your Morton Water Softener has a "High
Efficiency" feature with an ON or OFF setting.
This softener setting is shipped in the OFF posi-
tion, which utilizes the maximum rated capacity
while most often achieving maximum salt effi-
ciencies. When installing this unit in the State of
California, you MUST turn this setting to the ON
position, which may initiate more frequent
recharges. However it will operate at 4000
grains per pound of salt or higher.
If you wish to turn the Salt Efficiency feature ON
( icon will show in the display), follow the
instructions on this page.
Monday- Friday, 8 AM - 7 PM EST
FIG. 21
Efficiency Icon
FIG. 22
