continued from previous page
3. Install the brine tank overflow grommet and elbow
into the 13/16" diameter hole in the back of the salt
storage tank wall.
Step 3. Move the Unit into Place
1. Move the water softener into the desired location.
Set it on a solid, level surface.
IMPORTANT: Do not place shims directly under the
salt storage tank to level the softener.
The weight of the tank, when full of
water and salt, may cause the tank to
fracture at the shim.
2. Visually check and remove any debris from the
water softener valve inlet and outlet ports.
3. Make sure the turbine assembly spins freely in the
"out" port of the valve.
4. If not already done, put a light coating of silicone
grease on the single bypass valve o-rings.
5. Push the single bypass valve into the softener valve
as far as it will go. Snap the two large holding clips
into place, from the top down as shown in Figures
12 & 13.
IMPORTANT: Be sure the clips snap firmly into place
so the single bypass valve will not pull
out.
Step 4. Complete Inlet and Outlet
Plumbing
Measure, cut, and loosely assemble pipe and fittings
from the main water pipe to the inlet and outlet ports of
the water softener valve. Be sure to keep fittings fully
together, and pipes squared and straight.
Be sure hard water supply pipe goes to the water sof-
tener valve inlet side.
NOTE: Inlet and outlet are marked on the water sof-
tener valve. Trace the water flow direction to
be sure hard water is to inlet.
IMPORTANT: Be sure to fit, align and support all
plumbing to prevent putting stress on
the water softener valve inlet and outlet.
Undue stress from misaligned or unsup-
ported plumbing may cause damage to
the valve.
Complete the inlet and outlet plumbing for the type of
pipes you will be using.
10
Installation Instructions
Morton System Saver
® ®
Nozzle
Venturi
Assembly
Brinewell
Cover
Salt
Hole
Cover
Brinewell
Float
Stem
Brine
Valve
Correct Assembly
Clip
Outside diameter
of water softener
valve inlet & outlet
NOTE: Be sure all 3 tabs of the clip go through the matching
holes on the water softener valve inlet or outlet, and
fully into the channel on the single bypass valve.
Make sure that the tabs are fully seated.
Installation & Operation Manual
Faceplate Cover
Brine Tank
13/16" Hole
Clip
Channel
Single Bypass Valve
Outside diameter
of clip channel on
single bypass valve
Overflow
Elbow
Brine Tank
Overflow
Grommet
Brine
Tubing
Salt
Storage
Tank
Stand
Tube

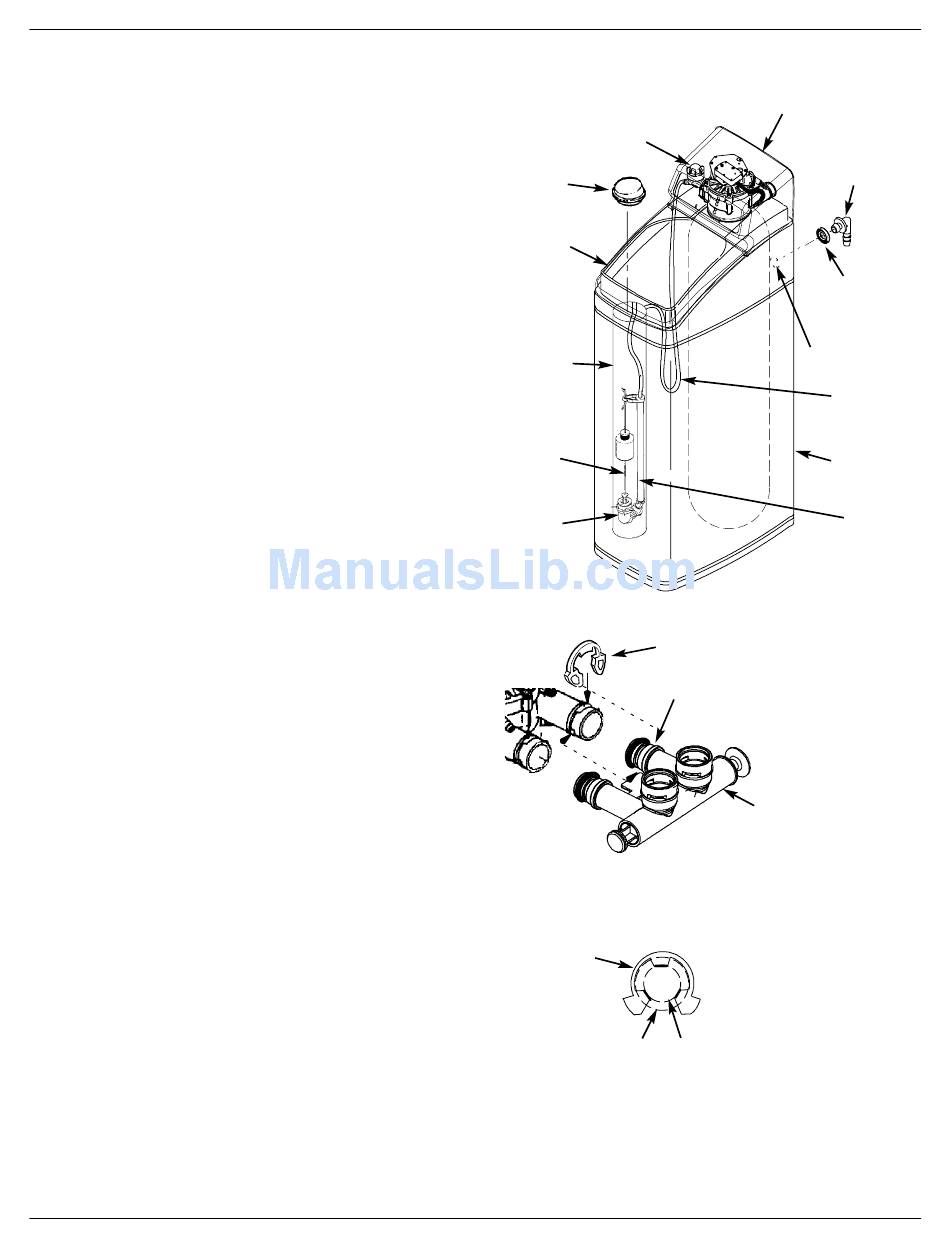

FIG. 11
FIG. 12
FIG. 13
