GDC-450H DECT Wireless Handset User Guide Please read this guide carefully before operating your new Wireless handset. Retain the guide for future reference. - Page 2 2. This device must accept any interference received, including interference that may cause undesired operation. European Union Declarations of Conformity LG-Ericsson Co., Ltd. declares that the equipment specified in this document, which bears the “CE” mark, conforms to the European Union Radio and Telecommunications Terminal Equipment Directive (R&TTE 1999/5/EC) including,...
- Page 3 Charger/base away from the edges of the surface to avoid the potential of a fall. Avoid situations where you might drop the handset. While the GDC-450H is a rugged mobile device, dropping it on to the floor may cause critical damage.
- Page 4 GDC-450H Wireless Handset User Guide Important Safety Information...
- Page 5 GDC-450H Wireless Handset User Guide...
- Page 6 GDC-450H Wireless Handset User Guide...
- Page 7 GDC-450H Wireless Handset User Guide...
- Page 8 GDC-450H Wireless Handset User Guide...
- Page 9 GDC-450H Wireless Handset User Guide...
- Page 10 GDC-450H Wireless Handset User Guide...
-
Page 11: Table Of Contents
2.6.1 Enabling Subscriptions ...................10 2.6.2 Subscribing to the System................10 2.6.3 Terminating a Subscription................11 Authentication ................12 Registering GDC-450H to LWS-BS (LG-Ericsson Wireless SOHO- Base Station) ....................13 2.8.1 Enabling Registration ..................13 2.8.2 Registering to the LWS-BS................14 2.8.3 Terminating a registration from LWS-BS ............14 3 Using the Basic Features ............ - Page 12 Responding to an Authorization (PIN) Request ......31 5.20 System Voice Announcements .............31 5.21 Using System Voice Mail ..............31 5.22 User Program Codes ..............31 6 GDC-450H User Menu Features ..........33 Call Register (Call Log) ..............34 Image & Sound ................35 6.2.1 Images......................35 6.2.2 Sounds ......................35...
- Page 13 6.5.10 Missed Call Mode ...................43 6.5.11 Range Out beep .....................44 6.5.12 Clock Display....................44 6.5.13 Auto Answer Mode ..................44 Direct Call..................45 7 Troubleshooting ..............46 8 Specifications ................. 47 9 Dial pad Character Charts ............. 48 10 GDC-450H User Menu ............50...
-
Page 14: Introduction

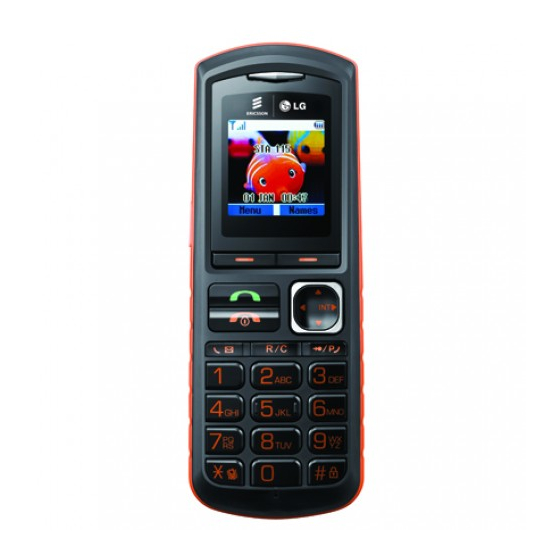

1.1 Description 1.1.1 Handset The GDC-450H, shown in the Handset Diagram, appears much like a mobile cell phone. On the front are the dial pad, a number of control buttons (described in the Handset Buttons and Features list) and a large LCD display. In the lower rear of the unit is the battery compartment. - Page 15 GDC-450H Wireless Handset User Guide Handset Buttons and Features Number Button Description Navigation button: Left arrow – idle state=view missed call, other states=left navigation Right arrow – Idle state=place call (host intercom dial tone), active call state=press to Transfer call, or press and hold 1 second to place call on hold, in User Menu=right navigation.
- Page 16 User Guide GDC-450H (rear view) If an Ear Microphone/Headset is attached to a GDC-450H, it can receive or release a call. It is recommended to use a Headset meeting JIS C-6560 Specification. Press the button on the Ear Microphone/Headset to receive an incoming call when ringing, and do the same action to release the call.
-
Page 17: Gdc-450H Display
1.1.2 GDC-450H Display The GDC-450H has a large 128 x 128 pixel full-color TFT LCD (Liquid Crystal Display). The display indicates the status of the handset and provides visual feedback for dialing and other actions. Various icons, detailed in the chart below, are shown at the top of the display. The central area of the display shows messages from the host LG-Ericsson system and the phone itself. - Page 18 GDC-450H Wireless Handset User Guide Icon Name & Description Keypad lock icon Indicates the phone dial pad and buttons are inactive. This prevents accidental is buttons press as may happen with a wireless handset. Alarm clock icon Indicates an Appointment is set.
-
Page 19: Charger/Base Unit
User Guide 1.1.3 Charger/base Unit The Charger/base unit (p/n GDC-450SSC) is used to charge the GDC-450H handset and to house the handset when not in use. Terminals in the charger mate to terminals in the bottom of the handset to allow the batteries to charge. Fully charged batteries provide about 20 hours of talk-time or about 150 hours of standby-time. -
Page 20: Getting Started
User Guide 2 Getting Started Before you can begin to use your new GDC-450H you must unpack the unit, install the batteries, charge the unit and register the item for service to your telephone system. This section provides you the information needed to complete these steps. -
Page 21: Installing The Batteries
At low battery levels (less than 1 battery power bar), the display backlight turns OFF to maximize battery charge. Use only with batteries provided for the GDC-450H. Use of other types of batteries may cause harm to the unit or explosion. -
Page 22: Connecting The Charger/Base Unit
2.4 Installing the Belt Clip The GDC-450H comes with a belt clip that can be installed on the unit. To install the belt clip, refer to the figure and instructions below. -
Page 23: Installation Of Wireless Terminal
User Guide 2.5 Installation of Wireless Terminal Before using the GDC-450H, the wireless terminal must be subscribed to a System. The subscription process must be conducted at the User Station, and at the Attendant Station to ensure proper function of the wireless terminal. Proper Authorization Codes should be obtained from the System Administrator or the Attendant before processing the subscription (refer to Subscribing the GCD-450H to a System). -
Page 24: Terminating A Subscription
5. Select an available BASE station number and press the OK ( ) button; the GDC-450H searches for the system, displaying and “Searching..x”. When a system is found, its RFPI, is displayed. The RFPI of your system is available from your System Administrator, or perhaps the attendant. -
Page 25: Authentication
GDC-450H Wireless Handset User Guide To Unsubscribe users locally in the system from the Attendant Station: To unsubscribe all wireless terminals at once, + 0 #+ Flex. Button 7 + Password (147*) + TRANS/PGM HOLD/SAVE 1) Press [TRANS/PGM] button ([TRANS/PGM] LED flashes and [MON] LED lights steady). -
Page 26: Registering Gdc-450H To Lws-Bs (Lg-Ericsson Wireless Soho-Base Station)
2.8 Registering GDC-450H to LWS-BS (LG-Ericsson Wireless SOHO-Base Station) Prior to accepting a connection with a GDC-450H, a registration to services must be entered into your LWS system. This is accomplished in a two step process: the LWS-BS enables registration of a phone to the system, then the GDC-450H subscribes to the LWS-BS for services. -
Page 27: Registering To The Lws-Bs
OK ( ) button. 5. The GDC-450H searches for the LWS-BS, displaying and “Searching..1”. When a LWS-BS is found, its RFPI, is displayed. The RFPI of your LWS-BS is available from your System Administrator, or perhaps the attendant. -
Page 28: Using The Basic Features
Code digits are available from your System Administrator, or perhaps the Attendant. 3.1 Turning the GDC-450H ON and OFF Your new Wireless handset operates on 1 Li-ion rechargeable batteries. When not in-use, it should be turned OFF to extend the life of the batteries. Fully charged, batteries provide about 15 hours of talk-time or about 120 hours of standby time. -
Page 29: Volume Adjustments
GDC-450H Wireless Handset User Guide 3.2 Volume Adjustments 3.2.1 Adjusting the Audio volume During a call, you can adjust the audio volume from the earpiece (level 1 to 7). To adjust the audio volume: 1. While on a call, press the Up or Down arrow on the Navigation ( ) button. -
Page 30: Releasing A Call
3.7 Placing a Call on Hold While you are on a call using the GDC-450H, you may place the caller in a waiting state where the caller hears music on hold. This allows you to place another call or answer a call waiting. -
Page 31: Call Transfer
) button. 3.9 Do Not Disturb (DND) When the DND (Do Not Disturb) feature is active, the GDC-450H will not notify you of an incoming call. The handset will not ring or vibrate allowing you to work without interruption from an incoming call. The host LG-Ericsson system determines routing of the incoming call while your phone is in DND. -
Page 32: System Last Number Redial
GDC-450H Wireless Handset User Guide 3.11 System Last Number Redial The host LG-Nortel system stores the last ten (10) external numbers called by the GDC- 450H in system memory. These numbers can be accessed and the number selected for quick redialing. -
Page 33: Phonebook
User Guide 4 Phonebook The GDC-450H incorporates a Phonebook that stores up to 60 contact records and each record has a name and phone number. The name can be up to 14 digits in length (characters and numbers). From the Phonebook, menu records can be searched, called, added, modified or deleted. -
Page 34: Modifying Records In The Phonebook
GDC-450H Wireless Handset User Guide 2. Use the Navigation ( ) to highlight the Add selection and press the OK ( left soft button. 3. Enter the each character of the name using the dial pad. Up to 14 characters (including numbers) may be entered. -
Page 35: Using Advance System Features
GDC-450H Wireless Handset User Guide a. Enter the first few characters of the name using the dial pad. See the charts in the Appendix Dial pad Character Charts. As an example, press 5 twice for ‘k’ and 3 twice for ‘e’ to search for kenny. -
Page 36: Leaving A Return Call Message
GDC-450H Wireless Handset User Guide When the busy station returns to idle, you receive a Callback. 1. Answer the callback in the normal manner. 2. Await answer from the previously called station. Note: A maximum of 5 simultaneous callbacks can be active. Call backs are returned in the order received at the Station (your callback may not be first in line). -
Page 37: Answering A Call Ringing At Another Station
GDC-450H Wireless Handset User Guide Note: The system may take up to 3 minutes to notify the handset of changes to the state of user features such as DND. A linked station will display “IN USE AT LINK” when the other linked station is in use;... -
Page 38: Using System Speed Numbers
GDC-450H Wireless Handset User Guide To delete a Station Speed Dial number: 1. Press the Talk ( ) button, you receive dial tone. 2. Press and hold, 1 second, the Speed/Program ( ) button. 3. Press the Speed/Program ( ) button. -
Page 39: Pre-Defined & Custom Text Messaging
GDC-450H Wireless Handset User Guide Note: When forwarding calls to voice mail, assure you have created a voice mail greeting. In some cases, such as Follow-me forward, you must enter an Authorization Code to activate the feature. DND and Call Forward are mutually exclusive features. If DND is active, Call Forward cannot be set. -
Page 40: Responding To A Message Wait Indication
GDC-450H Wireless Handset User Guide A = 2-1 B = 2-2 C = 2-3 D = 3-1 E = 3-2 F = 3-3 G = 4-1 H = 4-2 I = 4-3 J = 5-1 K = 5-2 L = 5-3... -
Page 41: Blocking Outgoing Calls W/Temporary Cos
GDC-450H Wireless Handset User Guide For VS (integrated basic mail) or VM (3 party voice mail) or UC (integrated Unified Communications server) messages, dial 3, 4 or 5 and follow the voice prompts to hear, delete and manage your messages. -
Page 42: Call Park
3. After the confirmation tone, a private connection is established to parked call. 4. When done, press the End ( ) button. 5.15 Conference Room GDC-450H cannot initiate a conference. It can, however, create, join, and delete a conference room. To activate (create) a conference room: 1. Press the Talk ( ) button, you receive dial tone. -
Page 43: Universal Night Answer
GDC-450H Wireless Handset User Guide 5.16 Universal Night Answer In the Night mode, the host system changes assigned incoming call routing often to alert through external speaker systems. Universal Night Answer (UNA) permits you to answer such ringing calls at night. -
Page 44: Responding To An Authorization (Pin) Request
GDC-450H Wireless Handset User Guide Note: Depending on the host system, an Authorization code initially may be set as the station number. Also, the number of digits may vary for different host systems (refer to the System Administrator for more details). - Page 45 GDC-450H Wireless Handset User Guide 2. Press and hold, 1 second, the Speed/Program ( ) button. 3. Dial the User Pgm Code and any required entry. See your System Administrator for codes. 4. Press and hold, 1 second, the Speed/Program ( ) button.
-
Page 46: Gdc-450H User Menu Features
Display MAC address MAC ADDRESS 6 GDC-450H User Menu Features GDC-450H incorporates a menu you employ to control various features and attributes of the handset. The Appendix GDC-450H User Menu displays the Menu tree. The main sub- menus are: Call Register (Call Log) ... -
Page 47: Call Register (Call Log)
GDC-450H Wireless Handset User Guide 3. Press the OK ( ) left soft button to access the sub-menu. 4. Press the Back ( ) right soft button to return to the previous menu. The following sections provide details on each of these menu selections. -
Page 48: Image & Sound
GDC-450H Wireless Handset User Guide 6.2 Image & Sound In the Image and Sound sub-menu you select a wallpaper to display on the handset and adjust internal and external ring. Selections for this menu are: Images Sounds To select an item from the Image and Sound sub-menu: 1. -
Page 49: Phone Register
GDC-450H Wireless Handset User Guide For Ring Type: 1. Use the left and right arrows on the Navigation ( ) button to hear each ring tone. 2. Select the Set ( ) left soft button to select the tone. 3. Press the OK ( ) left soft button to confirm the selection. -
Page 50: Subscription
5. Select an available BASE number (up to 4) and press the OK ( ) button; the GDC-450H searches for the system and displays “Searching..x”. When a system is found, its RFPI, is displayed (verify with your System Administrator, or the Attendant). -
Page 51: Modify Pin
GDC-450H Wireless Handset User Guide 3. Use the up down arrows on the Navigation ( ) button to select a Base (1 ~ 4) or Best Choice. 4. Press the OK ( ) left soft button. This handset searches for the selected zone and displays “Searching x”;... -
Page 52: Creating & Modifying An Appointment
User Guide 6.4 Creating & Modifying an Appointment Your GDC-450H Wireless handset has an Appointment Reminder feature. When set, the handset will remind you of an Appointment with a display of the appointment text and an appointment alert (alarm sound) or vibration alert (if in silent mode). In addition to the time, you can enter the appointment text and set the appointment as daily, monthly or annual. -
Page 53: Clock, Date And Time Display
The Clock Display must be enabled to display the handset time. 6.5.2 Alarm Clock The GDC-450H incorporates an Alarm Clock feature. When the handset clock reaches the alarm time, you are notified by the alarm. To set the Alarm Clock: 1. -
Page 54: Keypad Tones
To conserve battery charge, use the Standard or Sleep backlighting mode. At low battery levels (less than two bars), the backlight turns OFF until the handset batteries are re charged. 6.5.5 Language The GDC-450H supports multiple languages; you can select one of for languages for use in the display of handset messages. -
Page 55: Silent Mode
GDC-450H Wireless Handset User Guide To select a language: 1. Select the Phone Setting menu from the User Menu. 2. Use the Navigation ( ) button to highlight the Language selection. 3. Press the OK ( ) left soft button to access the sub-menu. -
Page 56: S/W Version
) button. 6.5.9 Edit CO Code The GDC-450H can subscribe to four (4) DECT zones simultaneously. Each zone may have access to a different set of external lines with different codes. The code is used to place calls from the handset Phonebook as well as for incoming call look-up in the Phonebook. If desired, you can assign a CO access code the handset will send and receive in front of a Phonebook number for each separate zone. -
Page 57: Range Out Beep
GDC-450H Wireless Handset User Guide 6.5.11 Range Out beep When out-of-range for more than a minute, the phone will beep every 3 seconds. If you expect to be Out-Of-Range for an extended period you should turn the handset power OFF. -
Page 58: Direct Call
User Guide 6.6 Direct Call The GDC-450H can be configured to dial a specific number when any button on the handset is pushed. The Direct Call or Hotline number can be enabled and the number to call specified. The direct call (emergency) number is transmitted on input from any key. This feature may be used in cases where the User is not able to effectively dial a phone number, and would need direct access for assistance from the Attendant or another party. -
Page 59: Troubleshooting
GDC-450H Wireless Handset User Guide 7 Troubleshooting Solution Problem Possible Cause Assure batteries are properly installed and LCD is blank No power charged. Press and hold the End/Power button for 1 second. “NO CHANNEL” displayed All DECT channels when TALK button Wait until a channel is available. -
Page 60: Specifications
8 Specifications Standard DECT/GAP Frequency band 1880~1900MHz RF Modulation GSFK Range from Base Station to Handset Maximum=200 meters, Typical=70 meters GDC-450H Wireless DECT Handset Item Specification Size: 142mm × 52mm × 20mm (H×W×D) Weight: 118 grams Color:... -
Page 61: Dial Pad Character Charts
User Guide 9 Dial pad Character Charts The integrated GDC-450H Phonebook permits names to be associated with a Phonebook record. The following charts provide the correlation between the dial pad digits and characters. Charts are available for English, Italian, Spanish and Russian. To insert a character, each dial pad button is pressed one or more times to select the desired character. - Page 62 GDC-450H Wireless Handset User Guide Spanish Language Character Chart Dial Pad Button depressions button < > á à é è í ì Ç ñ ó ò ú ù € & Russian Language Character Chart Dial Pad Button depressions button <...
-
Page 63: Gdc-450H User Menu
GDC-450H Wireless Handset User Guide 10 GDC-450H User Menu Missed Calls Missed Calls Missed Call Missed Call 1. Call Register 1. Call Register Received Calls Received Calls Received Call Received Call Dialed Calls Dialed Calls Dialed Call Dialed Call All Calls... - Page 64 GDC-450H Wireless Handset User Guide...
- Page 65 GDC-450H Wireless Handset User Guide...
- Page 66 www.lg-nortel.com...
